DTC B1213 (J and AUTO)

DTC B1213 or DTC indicator J and AUTO  : An Open in the Rear Evaporator Temperature Sensor Circuit

DTCs (AC)

1. Problem verification

   - 1. Clear the DTC with the HDS.

   - 2. Turn the vehicle to the OFF (LOCK) mode then the ON mode.

   - 3. Do the Self-Diagnostic Function with the HDS or the climate control unit.

   - 4. Check for DTCs.

   DTC Description	DTC
   B1213 An open in the rear evaporator temperature sensor circuit

   Is DTC B1213 or J and AUTO indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure. Check for loose wires or poor connections on the rear evaporator temperature sensor circuit.

2. Open wire check (TEVA RR line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Climate control unit connector C (12P)

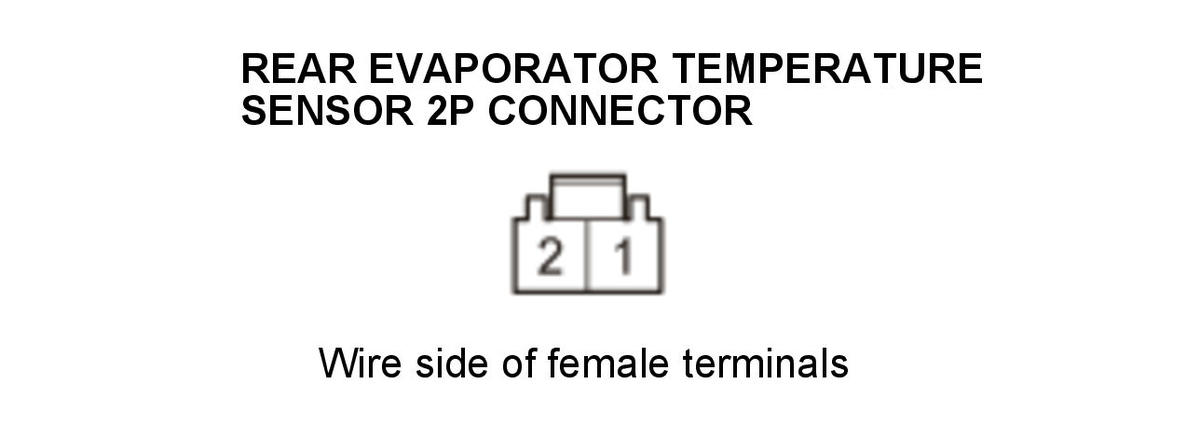

   Rear evaporator temperature sensor 2P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector C (12P): disconnected
   	Rear evaporator temperature sensor 2P connector: disconnected
   Test point 1	Climate control unit connector C (12P) No. 12 - Refer to: Climate Control Unit Connector For Inputs and Outputs (2019 2020 2021), or Climate Control Unit Connector For Inputs and Outputs (2016 2017 2018) .
   Test point 2	Rear evaporator temperature sensor 2P connector No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The TEVA RR wire is not open. Go to step 3.

   NO

   Repair an open in the wire between the climate control unit and the rear evaporator temperature sensor.

3. Open wire check (SENSOR(COM) line)

   - 1. Disconnect the following connector.

   Climate control unit connector A (32P)

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector A (32P): disconnected
   	Climate control unit connector C (12P): disconnected
   	Rear evaporator temperature sensor 2P connector: disconnected
   Test point 1	Climate control unit connector A (32P) No. 18 - Refer to: Climate Control Unit Connector For Inputs and Outputs (2019 2020 2021), or Climate Control Unit Connector For Inputs and Outputs (2016 2017 2018)
   Test point 2	Rear evaporator temperature sensor 2P connector No. 1

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The SENSOR(COM) wire is OK. Go to step 4.

   NO

   Repair an open in the wire between the climate control unit and the rear evaporator temperature sensor.

4. Shorted wire check (TEVA RR line to power)

   - 1. Turn the vehicle to the ON mode.

   - 2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Climate control unit connector A (32P): disconnected
   	Climate control unit connector C (12P): disconnected
   	Rear evaporator temperature sensor 2P connector: disconnected
   Test point 1	Climate control unit connector C (12P) No. 12 - Refer to: Climate Control Unit Connector For Inputs and Outputs (2019 2020 2021), or Climate Control Unit Connector For Inputs and Outputs (2016 2017 2018)
   Test point 2	Body ground

   Is there any voltage?

   YES

   Repair a short to power in the wire between the climate control unit and the rear evaporator temperature sensor.

   NO

   The TEVA RR wire is OK. Go to step 5.

5. Rear evaporator temperature sensor check

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Test the rear evaporator temperature sensor.

   Is the rear evaporator temperature sensor OK?

   YES

   Replace the climate control unit .

   NO

   Replace the rear evaporator temperature sensor - Refer to: Evaporator Temperature Sensor Removal, Installation, and Test, or Rear Evaporator Temperature Sensor Removal, Installation, and Test .
