Outside Air Temperature Sensor: Test

NOTE: Before testing the sensor, check for climate control DTCs - Refer to: How to Troubleshoot the Climate Control System .

Outside Air Temperature Sensor

Outside Air Temperature Sensor - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

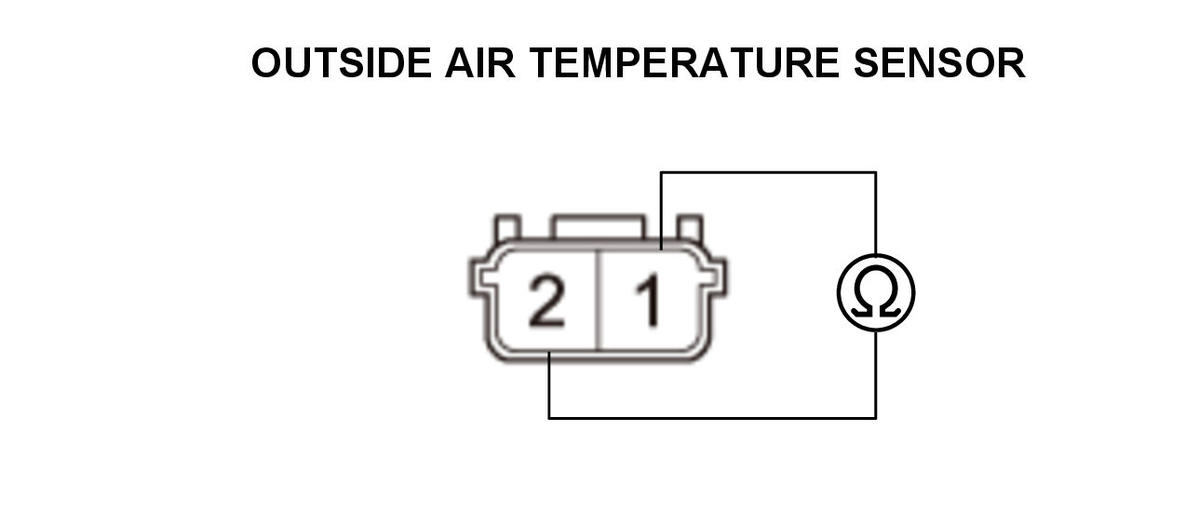

1. Dip the sensor in ice water, and measure the resistance between terminals No. 1 and No. 2.

2. Then pour warm water on the sensor, and check for a change in resistance.

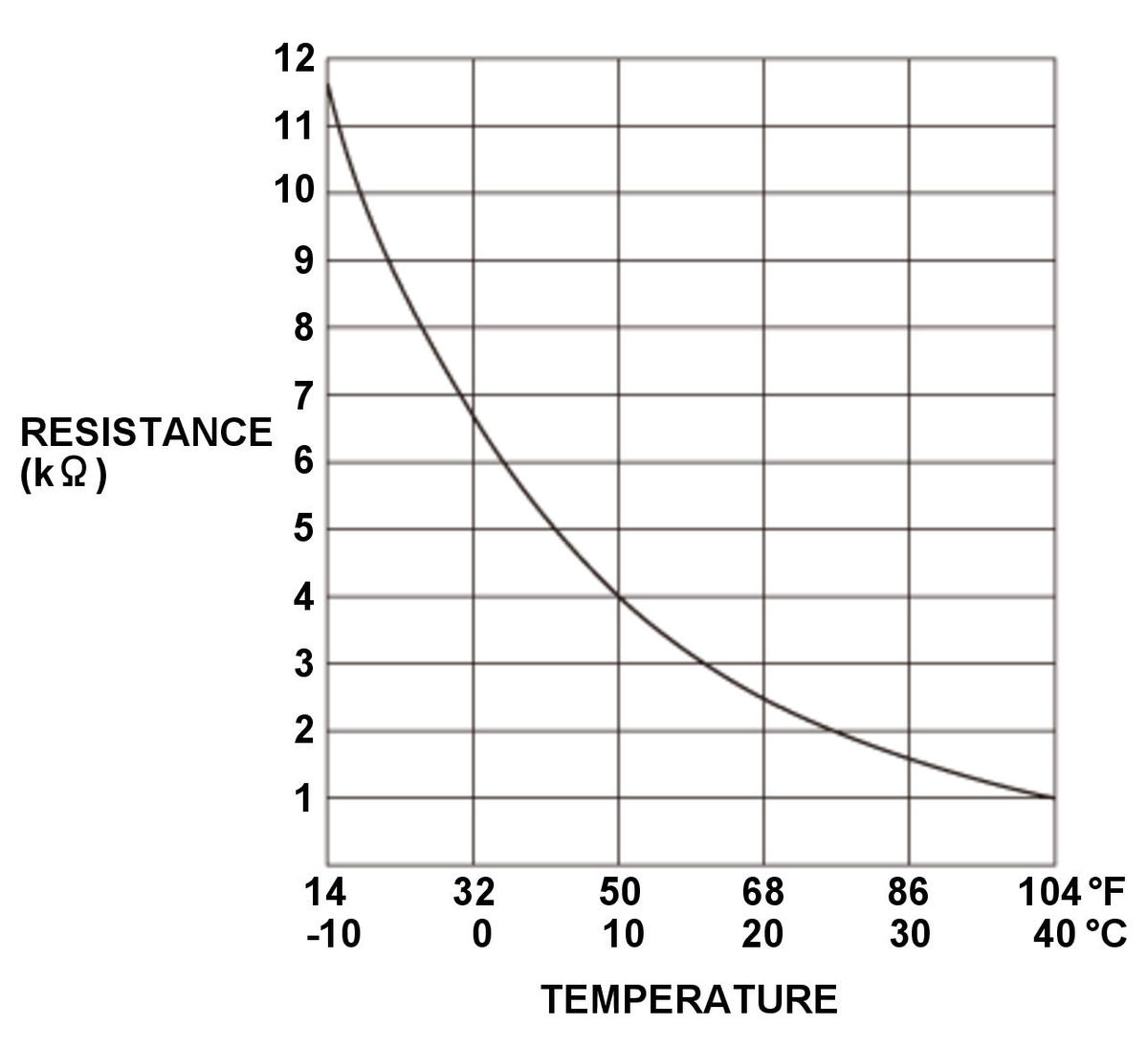

3. Compare the resistance readings with the specifications shown in the graph, the resistance should be within the specifications.

4. If the resistance is not as specified, replace the outside air temperature sensor.
