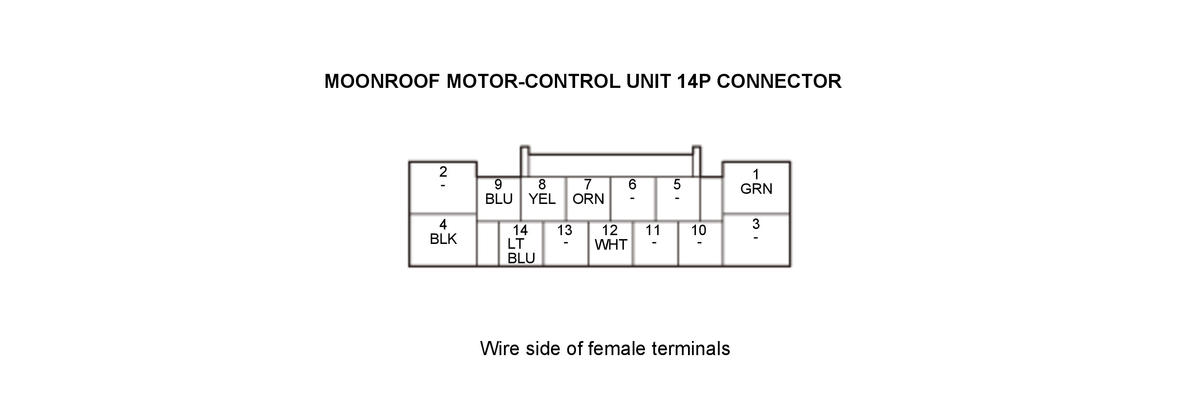

Moonroof Motor-Control Unit Connector For Inputs And Outputs
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B S/R | Power source for moonroof motor-control unit | About battery voltage at all times |
| 2 | Not used | - - - | - - - |
| 3 | Not used | - - - | - - - |
| 4 | PGND | Ground for moonroof motor-control unit | Less than 0.2 V at all times |
| 5 | Not used | - - - | - - - |
| 6 | Not used | - - - | - - - |
| 7 | S/R SW (OPEN) | Detects S/R SW (OPEN) signal | With moonroof switch OPEN: less than 0.2 V If none of above conditions are met: about battery voltage |
| 8 | S/R SW (TILT) | Detects S/R SW (TILT) signal | With moonroof switch TILT: less than 0.2 V If none of above conditions are met: about battery voltage |
| 9 | S/R SW (CLOSE) | Detects S/R SW (CLOSE) signal | With moonroof switch CLOSE: less than 0.2 V If none of above conditions are met: about battery voltage |
| 10 | Not used | - - - | - - - |
| 11 | Not used | - - - | - - - |
| 12 | LIN (WINDOW) | Communication line | - - - |
| 13 | Not used | - - - | - - - |
| 14 | S/R SW (AUTO) | Detects S/R SW (AUTO) signal | With moonroof switch AUTO: less than 0.2 V If none of above conditions are met: about battery voltage |
