DTC : B1C60

DTC B1C60  : Driver's Heater Current Abnormal High

DTC (Ventilated Seat Control Unit)

• NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Go to: Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC Checks .
• The ventilated seat control unit does not turn on the seat heater until the seat core temperature is 85 degrees or less. Make sure the seat core temperature is below 85 degrees before troubleshooting.

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   Clear DTCs

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   B1C60 Driver's heater current abnormal high

   Is DTC B1C60 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. DTC check 1

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Driver's seat heater connector A (6P)

   - 3. Turn the vehicle to the ON mode.

   - 4. Clear the DTCs with the HDS.

   Clear DTCs

   - 5. Check for DTCs with the HDS.

   DTC Description	DTC
   B1C60 Driver's heater current abnormal high

   Is DTC B1C60 indicated?

   YES

   Go to step 3.

   NO

   Go to step 4.

3. Shorted wire check (DR HT line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Ventilated seat control unit 14P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Ventilated seat control unit 14P connector: disconnected Driver's seat heater connector A (6P): disconnected
   Test point 1	Ventilated seat control unit 14P connector No. 1
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short in the wire.

   NO

   Replace the Ventilated Seat Control Unit - Removal and Installation .

4. Shorted wire check (BACK HTR line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Driver's seat heater connector B (2P)

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Ventilated seat control unit 14P connector: disconnected Driver's seat heater connector A (6P): disconnected Driver's seat heater connector B (2P): disconnected

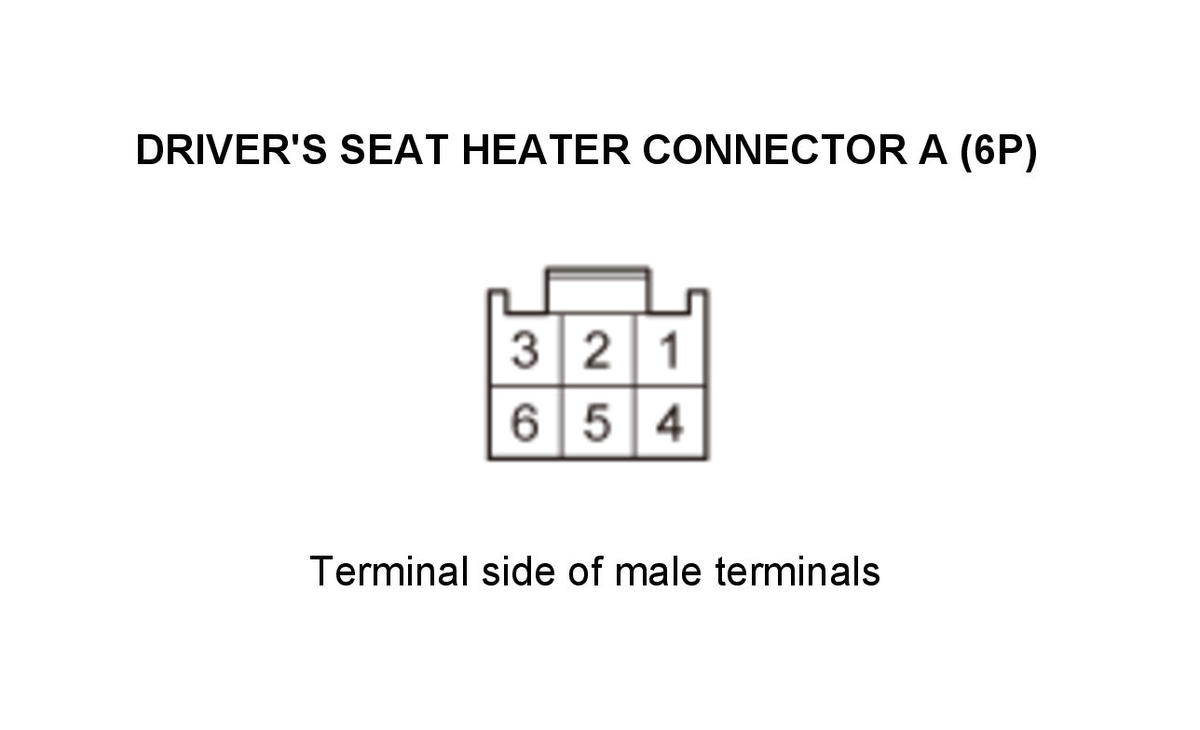

   Test point 1	Driver's seat heater connector A (6P) No. 6
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the BACK HTR wire.

   NO

   Go to step 5.

5. DTC check 2

   - 1. Reconnect the following connector.

   Driver's seat heater connector A (6P) Ventilated seat control unit 14P connector

   - 2. Turn the vehicle to the ON mode.

   - 1. Clear the DTCs with the HDS.

   Clear DTCs

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   B1C60 Driver's heater current abnormal high

   Is DTC B1C60 indicated?

   YES

   Replace the driver's Seat Cushion Heater (Ventilated Seats) - Replacement .

   NO

   Replace the driver's Seat-Back Heater (Ventilated Seats) - Replacement .
