RDM Off Switch (2016 2017 2018): Test

Courtesy of HONDA, U.S.A., INC.

RDM OFF Switch Internal Resistance Check:

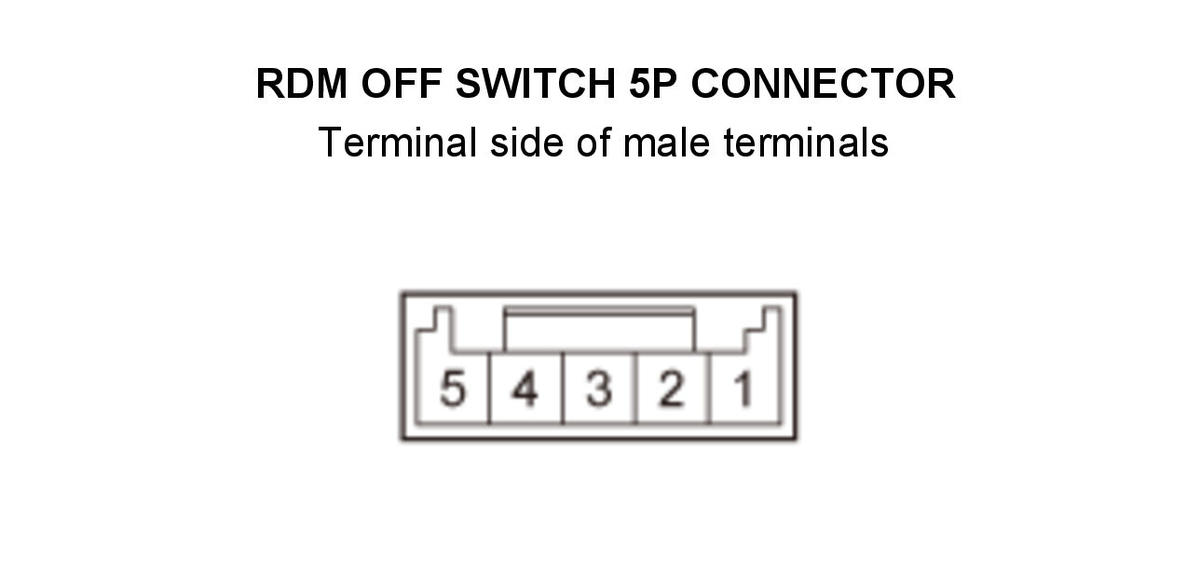

1. Measure the resistance between RDM OFF switch 5P connector terminals No. 2 and No. 5 according to the table.

• If there is no resistance in one or more positions, replace the RDM OFF switch.

Courtesy of HONDA, U.S.A., INC.

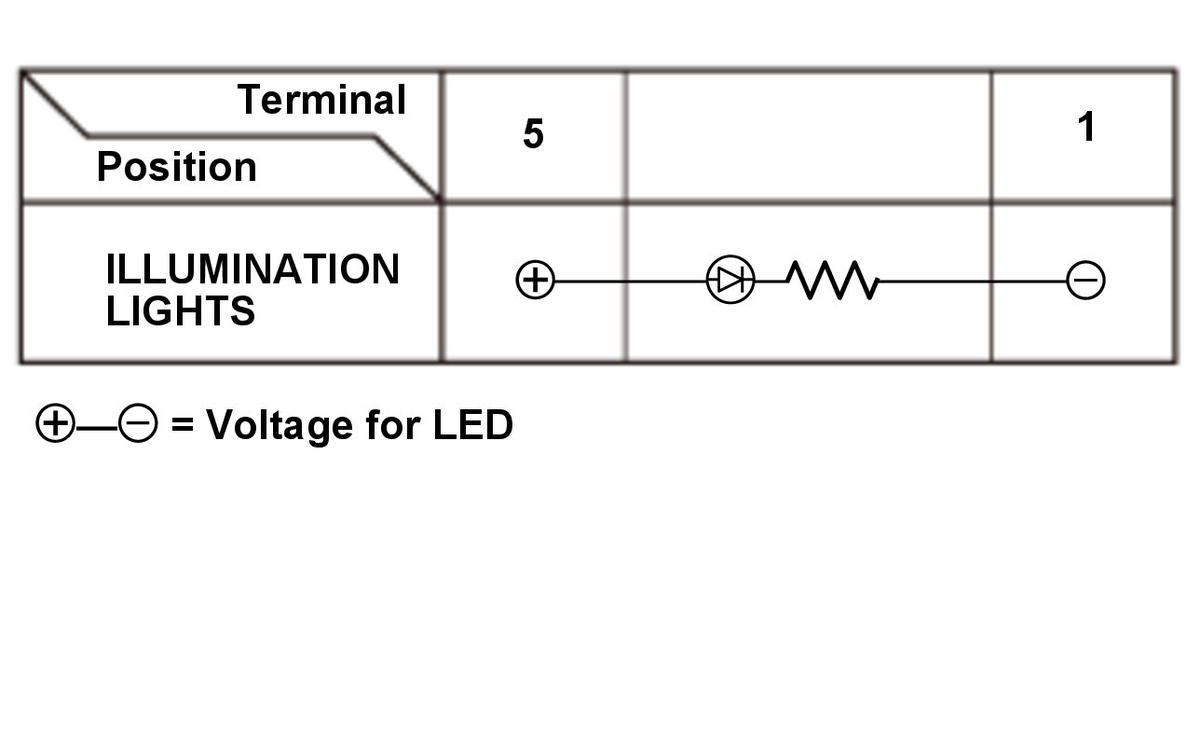

RDM OFF Switch Indicator Drive Circuit Check:

1. Check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE:  Important operating characteristic; diode bias cause a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

If the results are not as specified, replace the RDM OFF switch.

Courtesy of HONDA, U.S.A., INC.

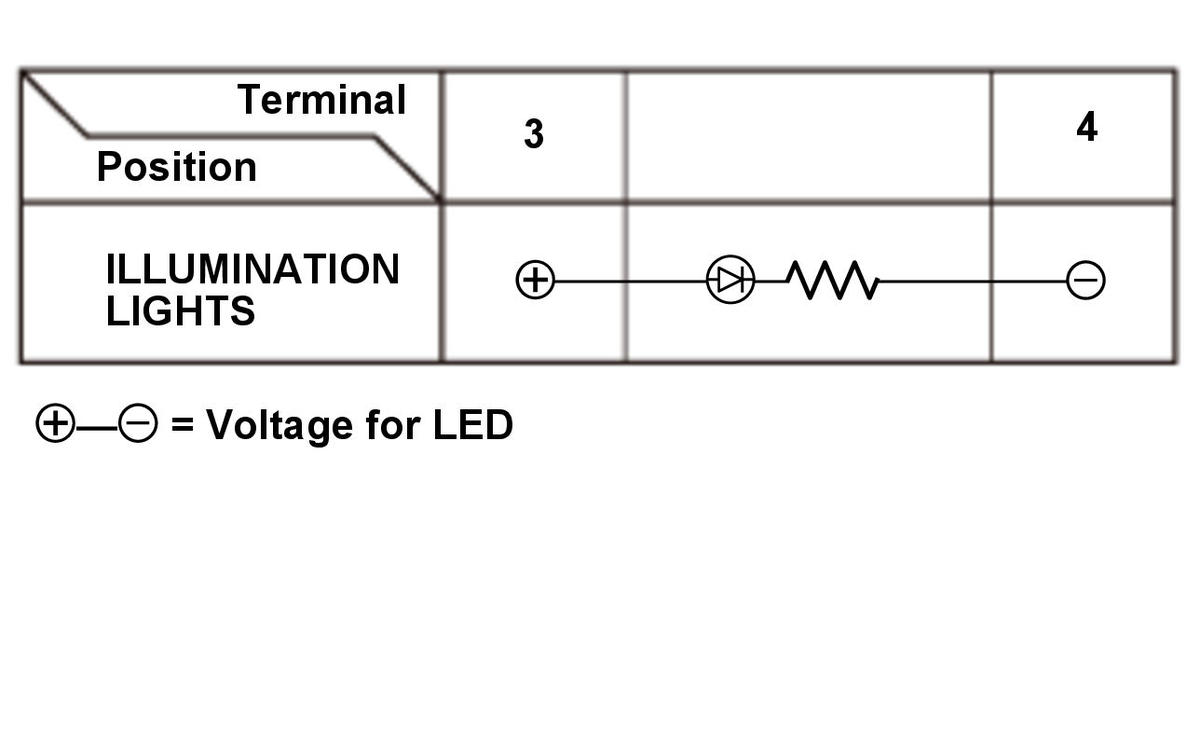

RDM OFF Switch Illumination Circuit Check:

1. Check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE:  Important operating characteristic; diode bias cause a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse)

If the results are not as specified, replace the RDM OFF switch.
