DTC : B1130

DTC B1130  : Front passenger's power window motor A pulse malfunction

DTC (Door Multiplex Control Unit)

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Go to: Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC Checks .

1. Problem verification

   -1. Clear the DTCs with the HDS.

   Clear DTCs

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Open and close the front passenger's power window by using the front passenger's power window switch manually.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   B1130 Front passenger's power window motor A pulse malfunction

   Is DTC B1130 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time.

2. Open wire check (AS FLSA line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Front passenger's power window switch 37P connector

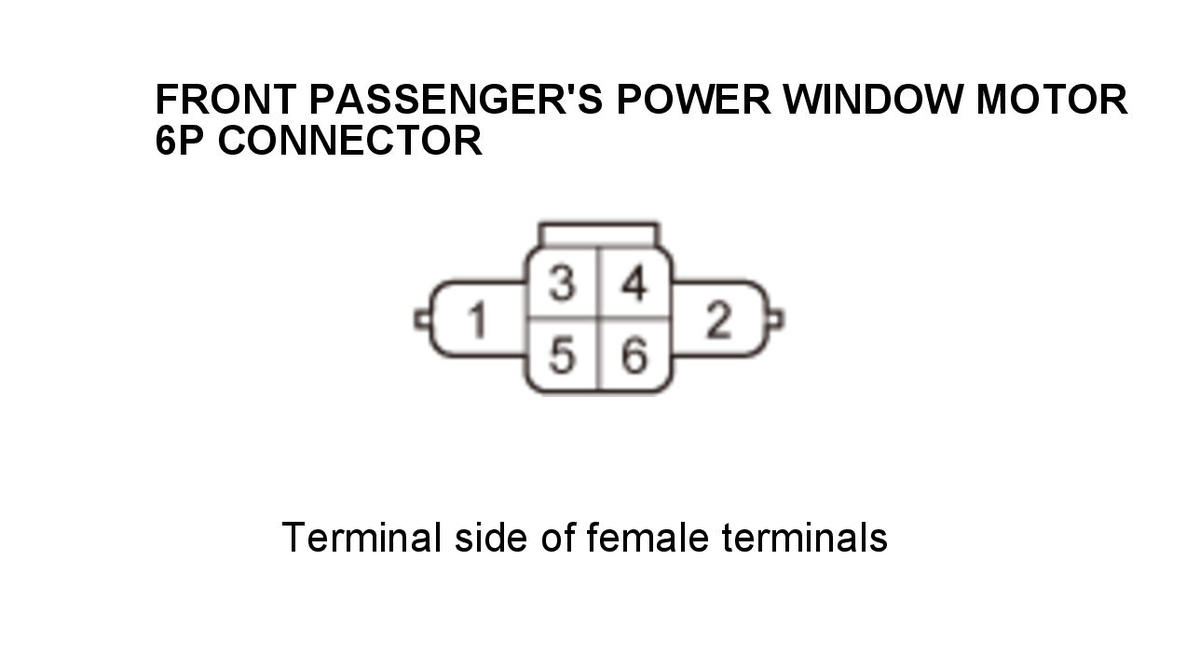

   Front passenger's power window motor 6P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Front passenger's power window switch 37P connector: disconnected Front passenger's power window motor 6P connector: disconnected
   Test point 1	Front Passenger's Power Window Switch 24P Connector No. 23
   Test point 2	Front passenger's power window motor 6P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The AS FLSA wire is not open. Go to step 3.

   NO

   Repair an open or high resistance in the wire.

3. Shorted wire check (AS FLSA line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Front passenger's power window switch 24P connector: disconnected Front passenger's power window motor 6P connector: disconnected
   Test point 1	Front Passenger's Power Window Switch 24P Connector No. 23
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   The AS FLSA wire is OK. Faulty front passenger's power window motor, replace the front passenger's Power Window Motor - Removal and Installation .
