Cylinder Head Cover (2019 2020 2021): Removal: Rear

  1. Intake Manifold Removal and Installation (9-Speed A/T) (2019 2020 2021)
  2. Rear Cylinder Ignition Coil - Remove
  3. Connector (Rocker Arm Oil Pressure Sensor) - Disconnect

    NOTE:  Remove the rocker arm oil pressure sensor harness clips from the timing belt rear upper cover at the same time.

  4. Harness Holder - Move

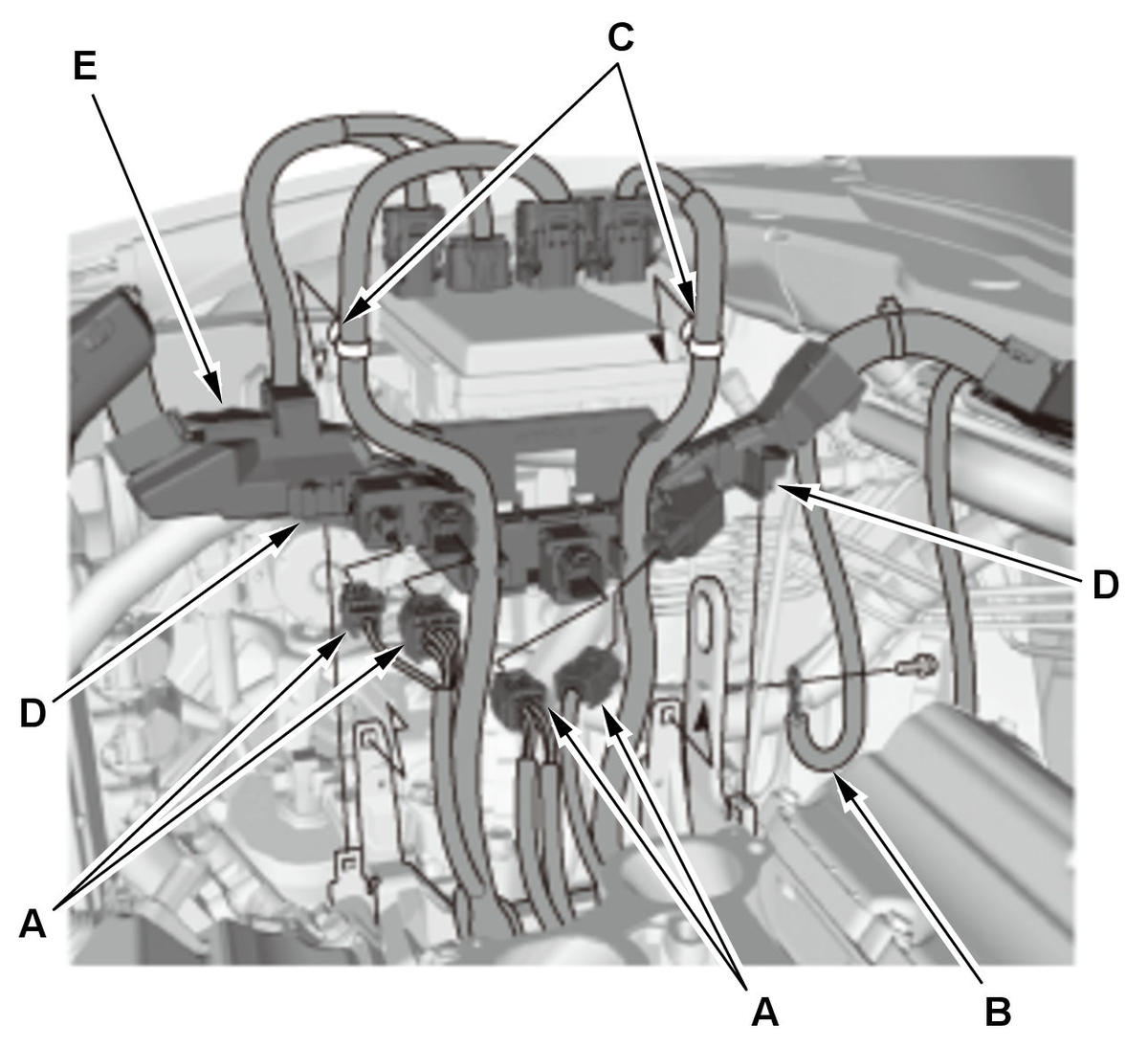

    GHH308190Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connectors (A) and the ground cable (B).

    2. Remove the harness clips (C) and the harness holder clamps (D).

    3. Move the harness holder (E).
  5. Rear Cylinder Head Cover Harness Holder - Move

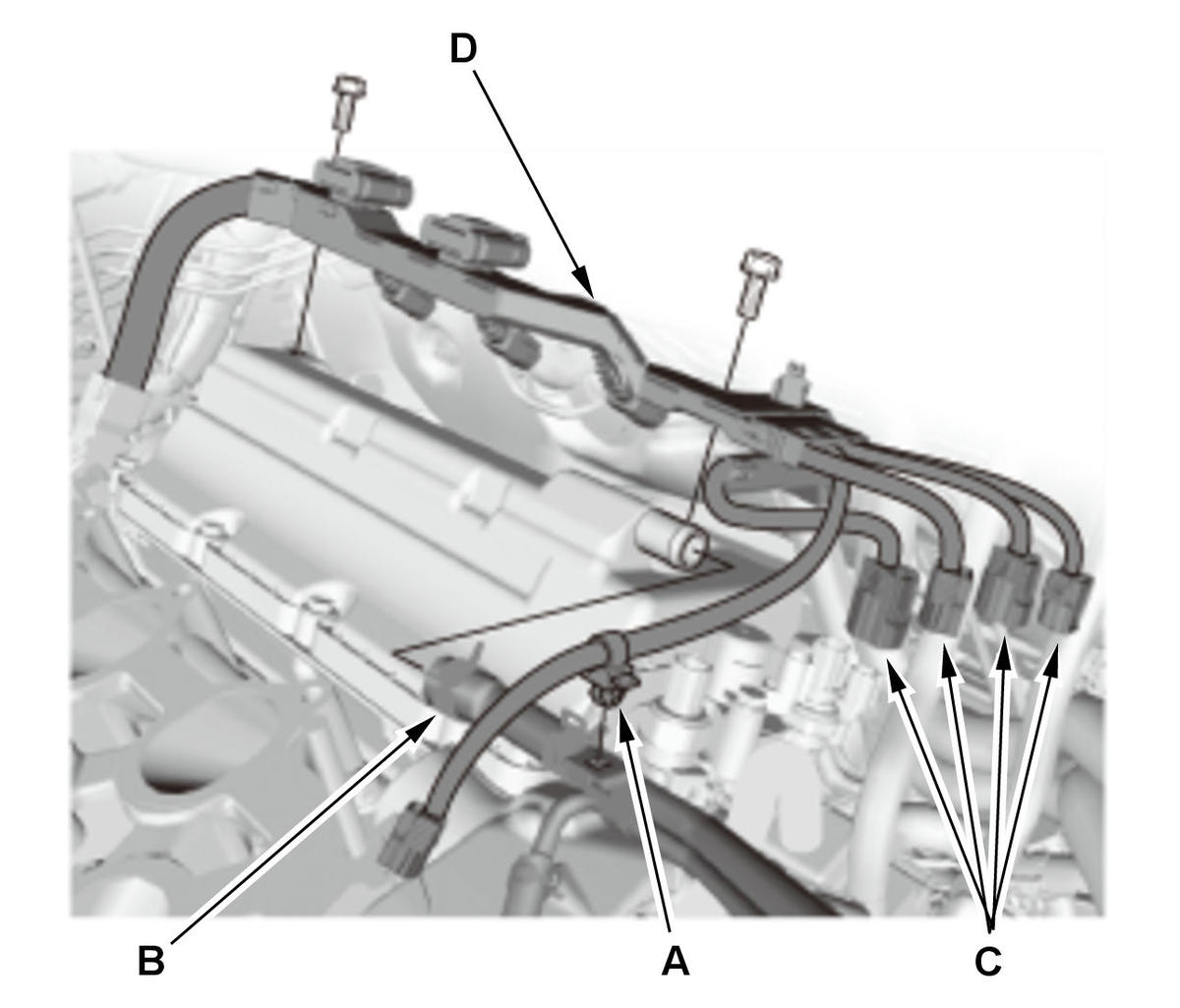

    GHH308191Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the harness clip (A).

    2. Disconnect the breather hose (B).

    3. Disconnect the connectors (C).

    4. Move the rear cylinder head cover harness holder (D).
  6. Rear Cylinder Head Cover - Remove

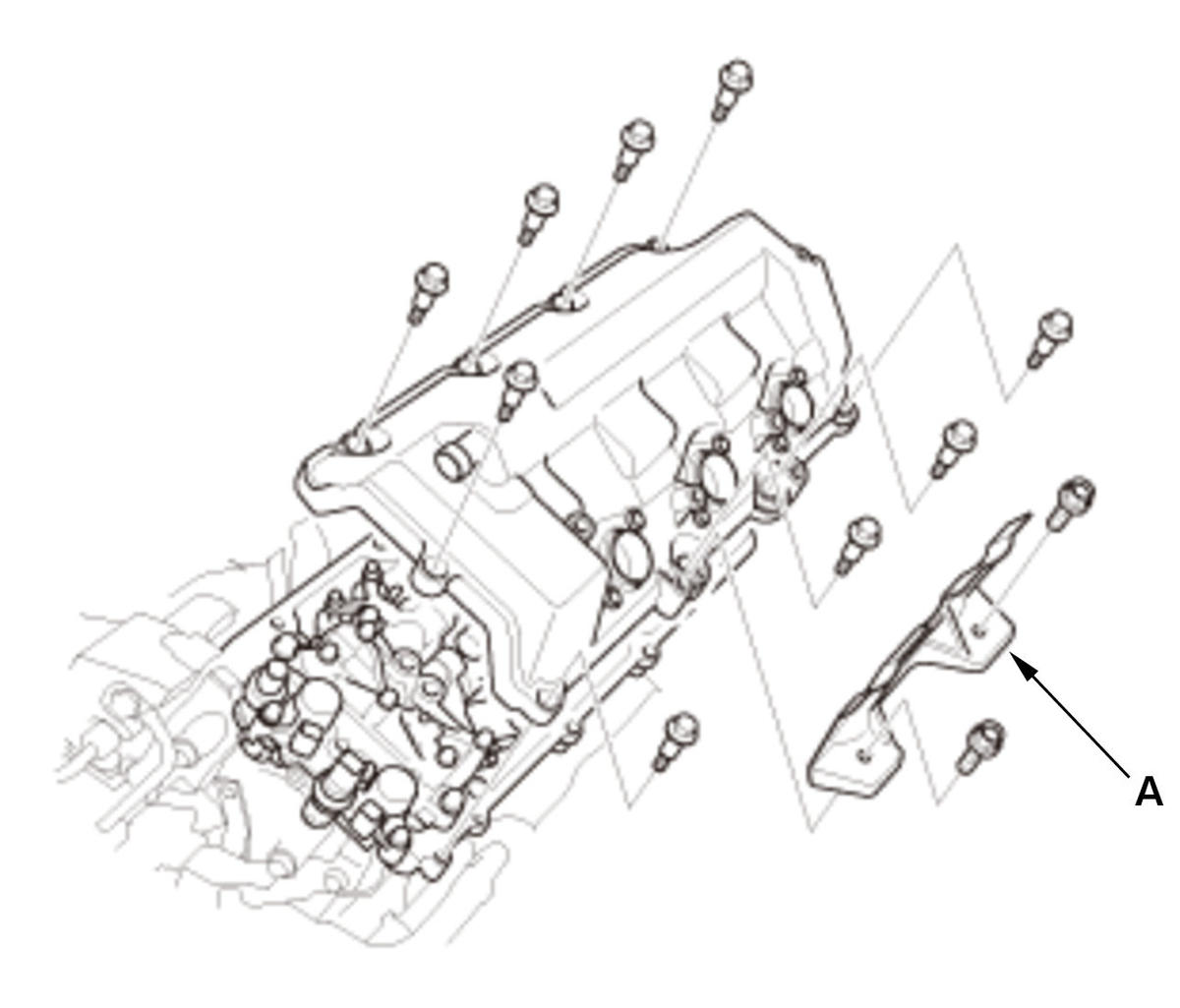

    GHH308192Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the rear cylinder head cover.

    2. Remove the heat insulator (A) as needed.
