Cylinder Head Cover (2019 2020 2021): Removal: Front

  1. Connector (Front Secondary HO2S) - Disconnect
  2. Intake Manifold - Remove - Go to Intake Manifold Removal and Installation (9-Speed A/T) (2019 2020 2021)
  3. Front Cylinder Ignition Coil - Remove
  4. Connector and Positive Cable (Alternator) - Disconnect
  5. Front Cylinder Head Cover Harness Holder - Move

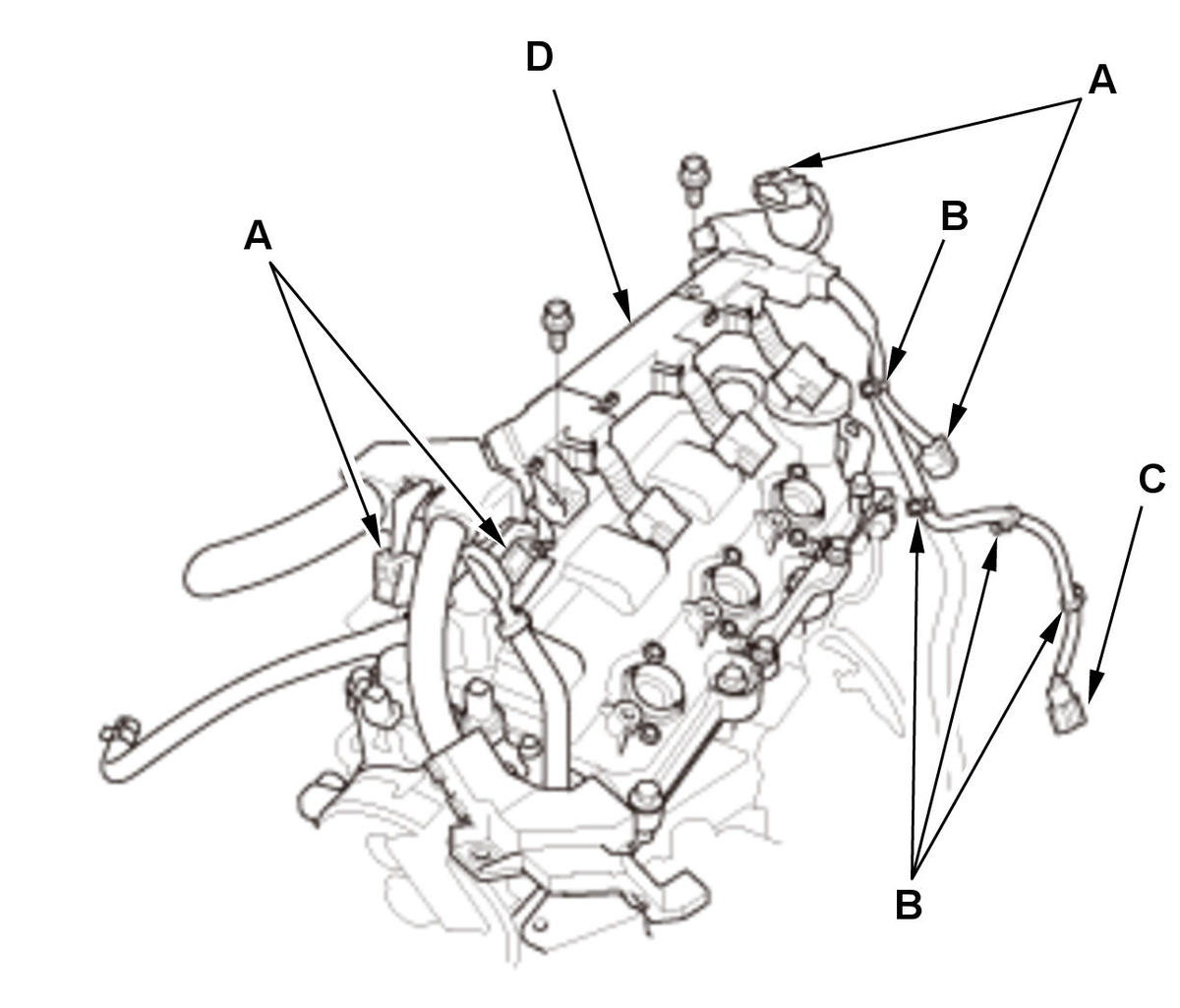

    GHH308188Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connectors (A).

    2. Remove the harness clips (B) and the connector clamp (C).

    3. Move the front cylinder head cover harness holder (D).
  6. Front Cylinder Head Cover - Remove

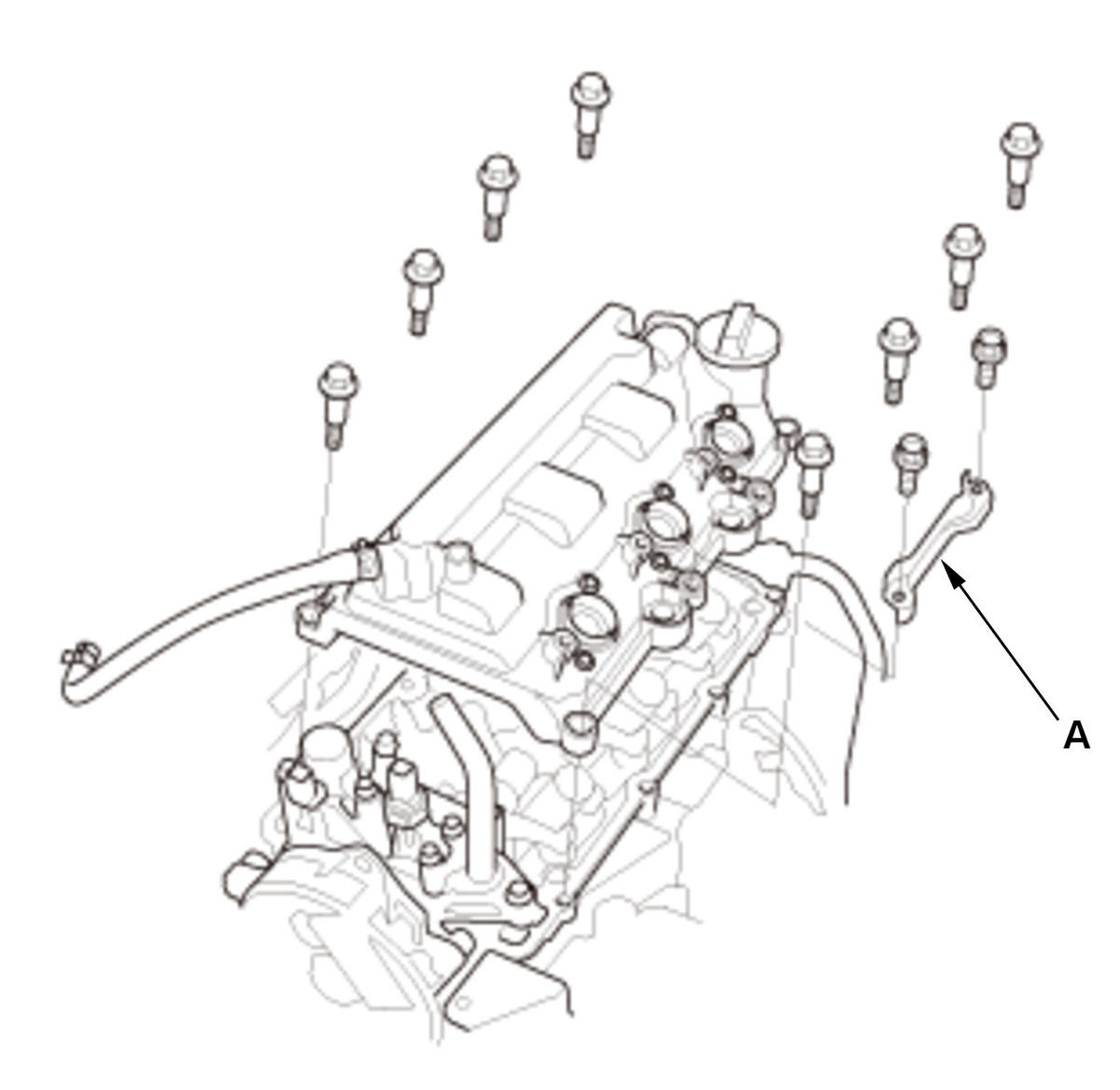

    GHH308189Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the front cylinder head cover.

    2. Remove the heat insulator (A) as needed.
