Cylinder Head Cover (2019 2020 2021): Installation: Front
- Head Cover Gasket - Install

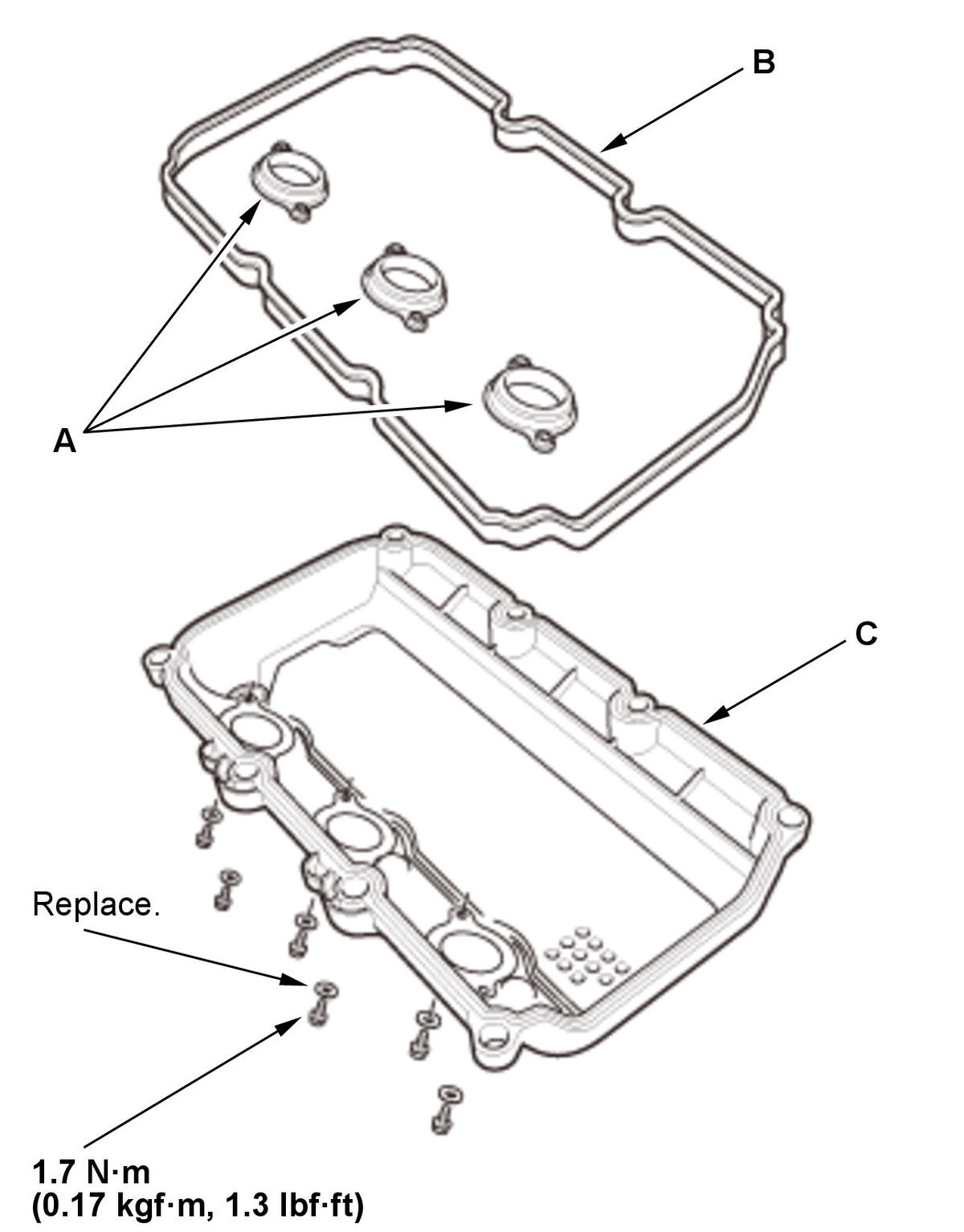

1. Check the spark plug seals (A) for damage. If any seals are damaged, replace it. 2. Thoroughly clean the head cover gasket (B) and the groove of the cylinder head cover (C).
NOTE: Check and if necessary, replace the head cover gasket.
3. Install the head cover gasket in the groove of the cylinder head cover. Make sure the head cover gasket is seated securely.
- Front Cylinder Head Cover - Install

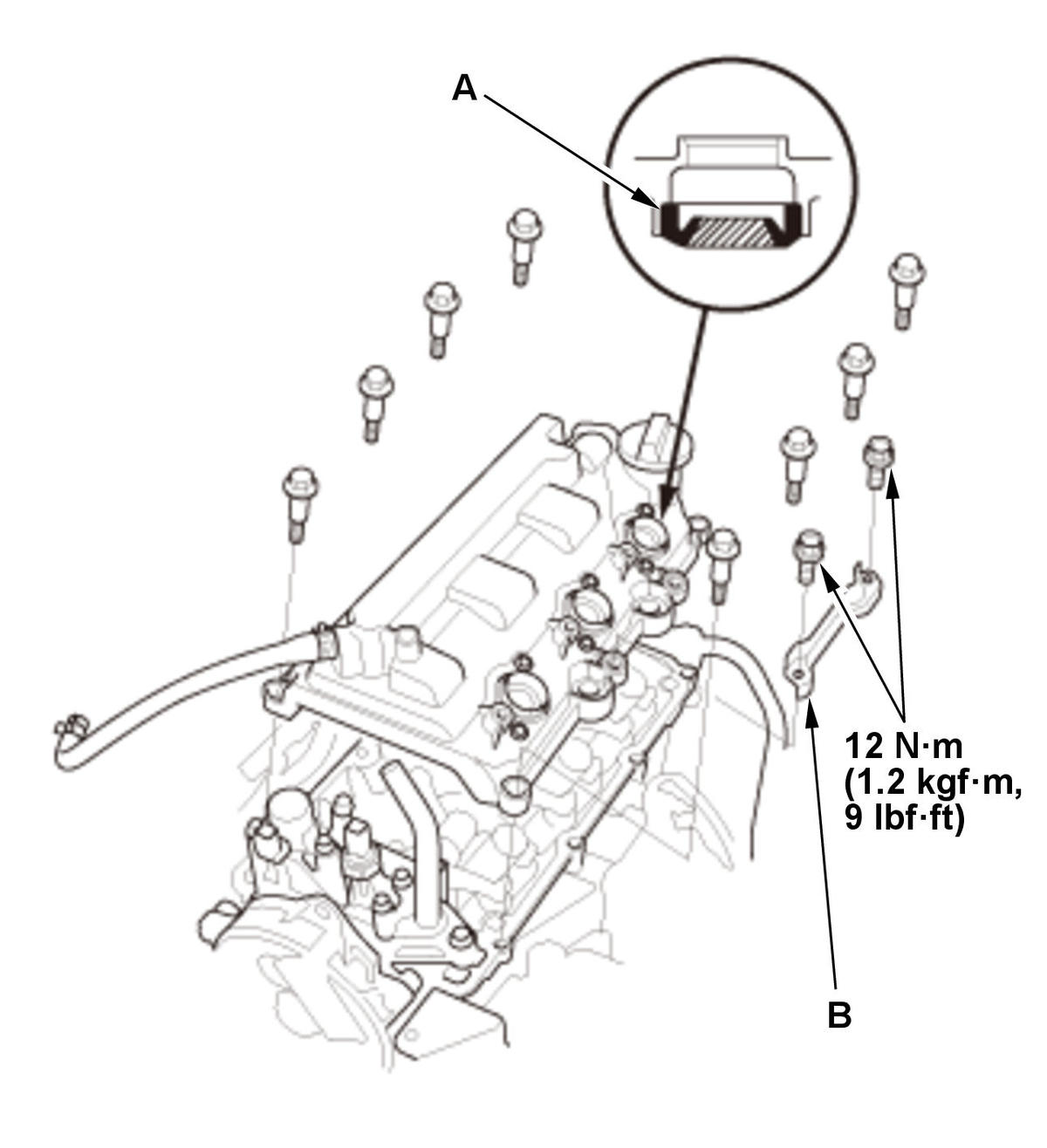

1. Apply liquid gasket to the front rocker arm oil control valve mating surfaces. 2. Set the spark plug seals (A) on the spark plug tubes, and install the front cylinder head cover, then loosely install the front cylinder head cover mounting bolts.
3. Inspect the spark plug seals for damage.
4. If the heat insulator (B) removed, install the heat insulator.

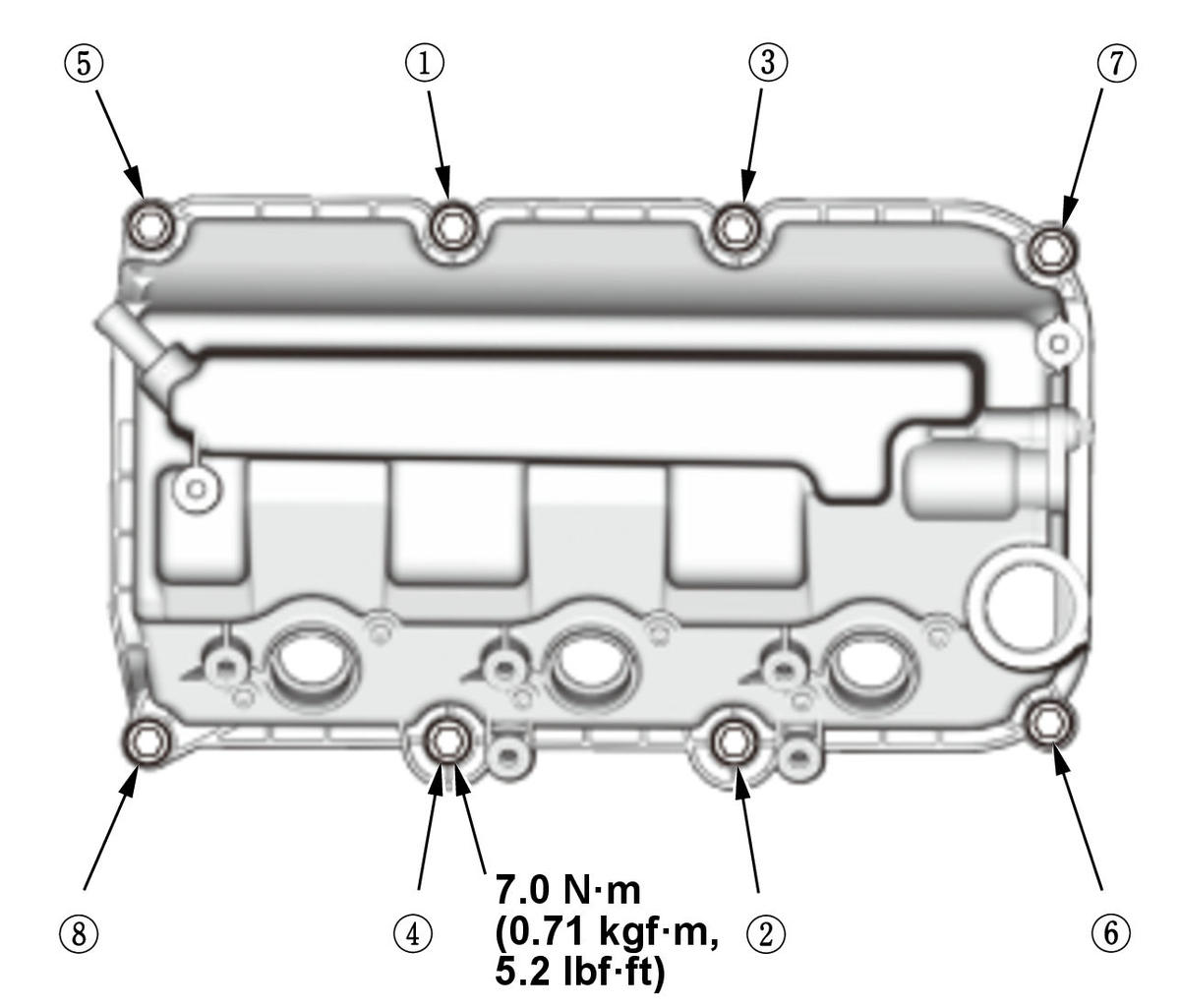

5. Tighten the bolts in three steps; tighten the bolts until the bolts sit on the front cylinder head cover, tighten the bolts until the gasket is compressed, tighten the bolts to specified torque. - Front Cylinder Head Cover Harness Holder - Install
Courtesy of HONDA, U.S.A., INC.

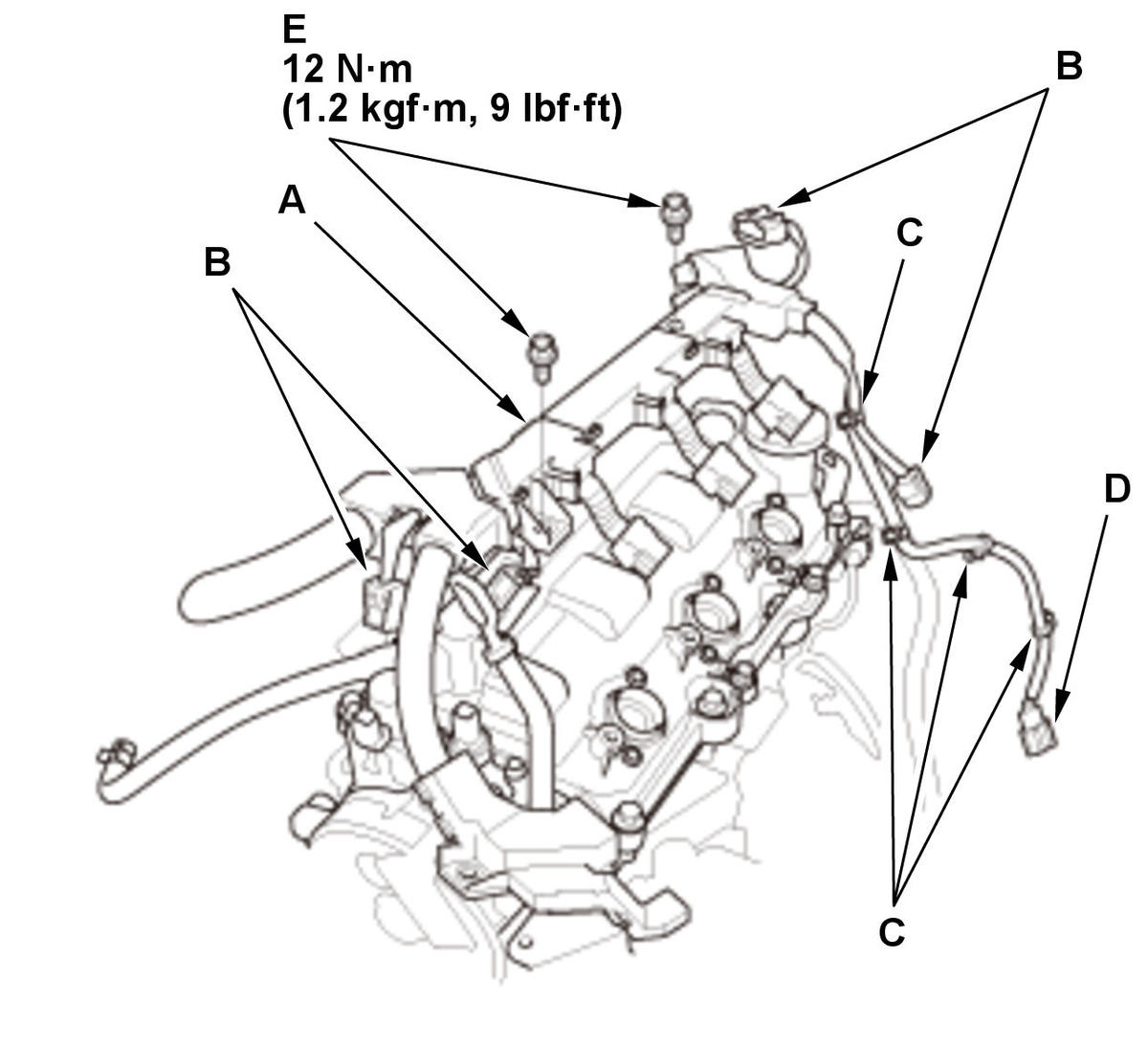

1. Install the front cylinder head cover harness holder (A). 2. Connect the connectors (B).
3. Install the harness clips (C) and the connector clamp (D).
4. Tighten the front cylinder head cover harness holder mounting bolts (E).
- Connector and Positive Cable (Alternator) - Connect
- Front Cylinder Ignition Coil - Install
- Intake Manifold - Install - Go to: Intake Manifold Removal and Installation (9-Speed A/T) (2019 2020 2021)
- Connector (Front Secondary HO2S) - Connect
