CYLINDER HEAD (9-Speed A/T) (2019 2020 2021): Removal

NOTE:

• Use fender covers to avoid damaging painted surfaces.
• To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
• Connect the HDS to the DLC How to Connect the HDS , and monitor ECT SENSOR 1. To avoid damaging the cylinder head, wait until the engine coolant temperature drops below 100 °F (38 °C) before loosening the cylinder head bolts.
• Mark all wirings and hoses to avoid misconnection. Also, be sure that they do not contact any other wirings or hoses, or interfere with any other parts.

1. Fuel Pressure - Relieve
2. 12 Volt Battery Terminal - Disconnect
3. Engine Coolant - Drain - Go to: Coolant Replacement (2019 2020 2021)
4. Front and Rear Warm Up TWC - Remove - Refer to:

   Under-Floor TWC Removal and Installation,

   Warm Up TWC Removal and Installation

5. Cylinder Head Cover - Remove - Go to: Cylinder Head Cover Removal (9-Speed A/T) (2019 2020 2021)
6. Timing Belt - Remove
7. Camshaft Pulley and Back Cover - Remove
8. Alternator - Remove
9. Intake Manifold and Intake Manifold Base - Remove - Go to: Intake Manifold Removal and Installation (9-Speed A/T) (2019 2020 2021)
10. Water Passage and Connecting Pipe - Remove
11. Injector - Remove - Go to: Injector Removal and Installation (9-Speed A/T) (2019 2020 2021) .
12. Connector (PCM) - Disconnect - Go to: PCM Removal and Installation (9-Speed A/T) (2019 2020 2021)

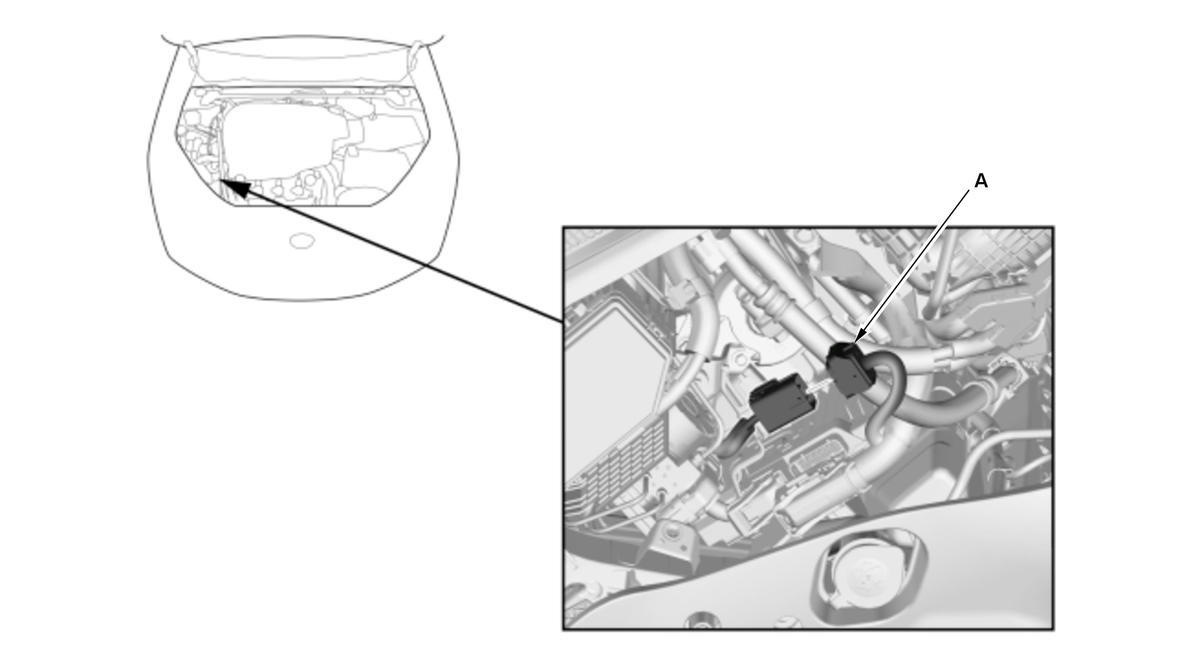

13. Connector (Engine Wire Harness) - Disconnect

    1. Disconnect the connector (A).

    Courtesy of HONDA, U.S.A., INC.

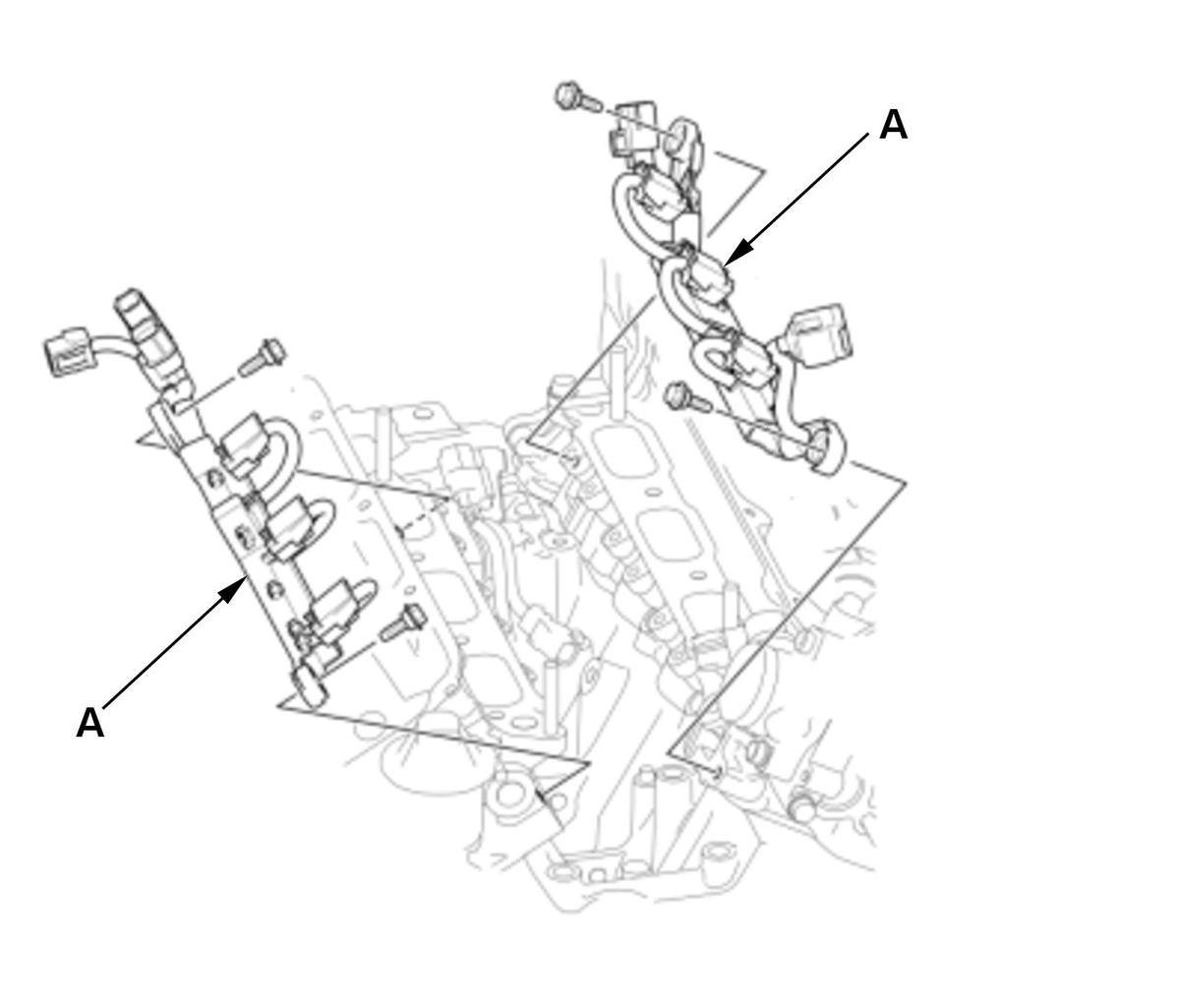

14. Injector harness holder - Remove

    Courtesy of HONDA, U.S.A., INC.

    1. Remove the injector harness holders (A).

15. Fuel Feed Hose (High Pressure Fuel Pump Side) - Disconnect

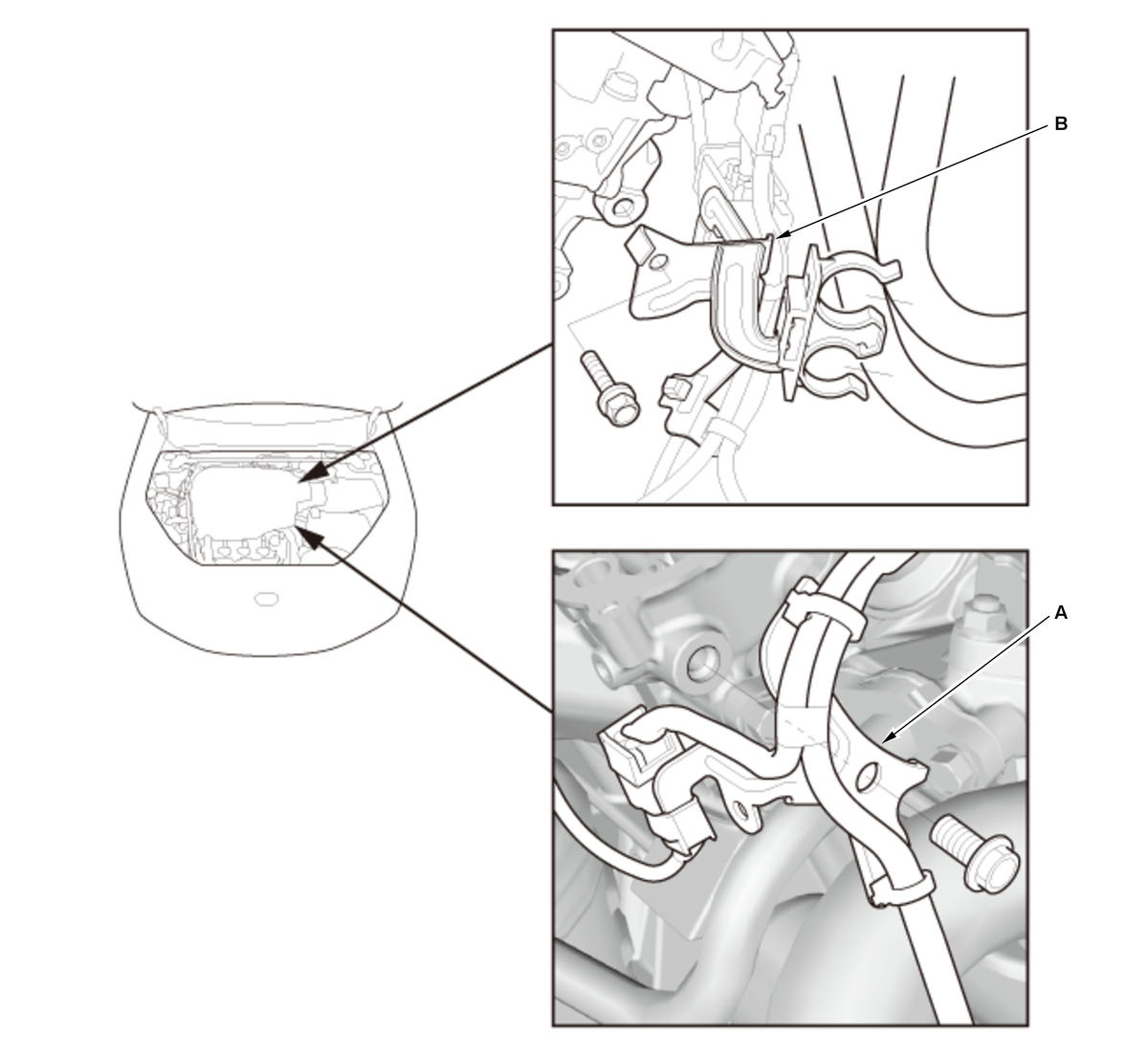

16. Connector Bracket and Harness Bracket - Move

    1. Move the connector bracket (A) from the front cylinder head.

    Courtesy of HONDA, U.S.A., INC.

    2. Move the harness bracket (B) from the rear cylinder head.

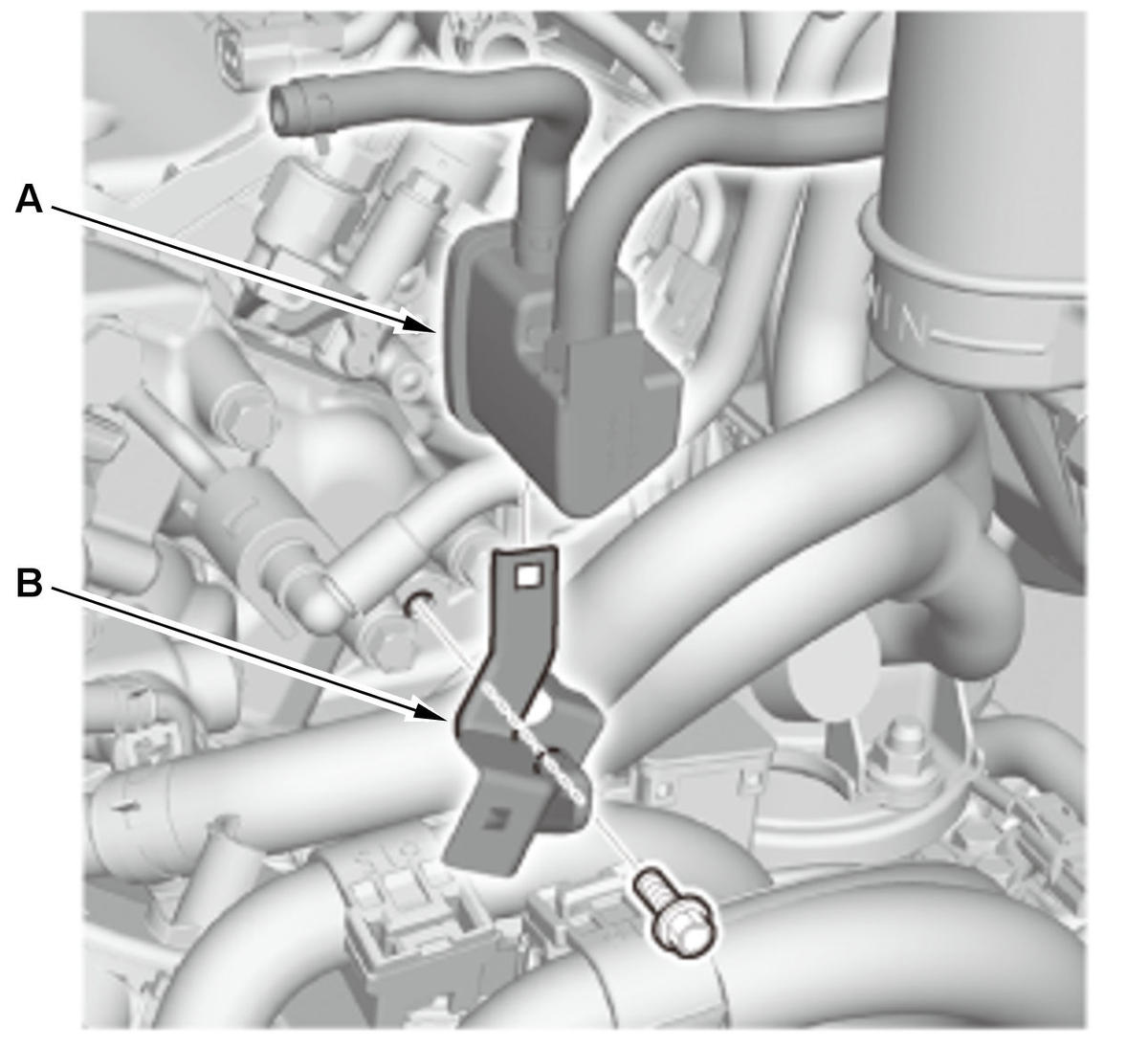

17. EVAP Canister Purge Joint Bracket - Remove

    Courtesy of HONDA, U.S.A., INC.

    1. Move the EVAP canister purge joint (A). 2. Remove the EVAP canister purge joint bracket (B).

18. Cylinder Head - Remove

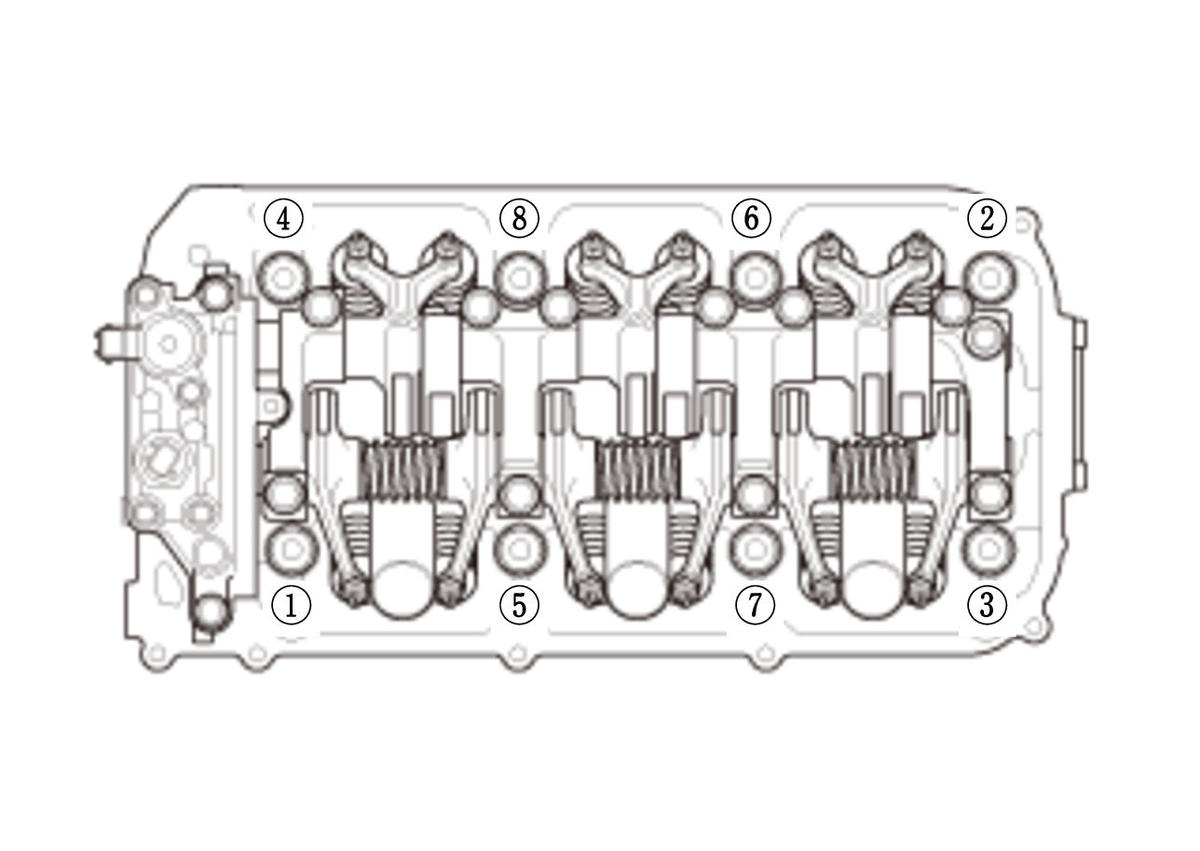

    Fig 1: FRONT Cylinder Head Loosening Sequence

    Courtesy of HONDA, U.S.A., INC.

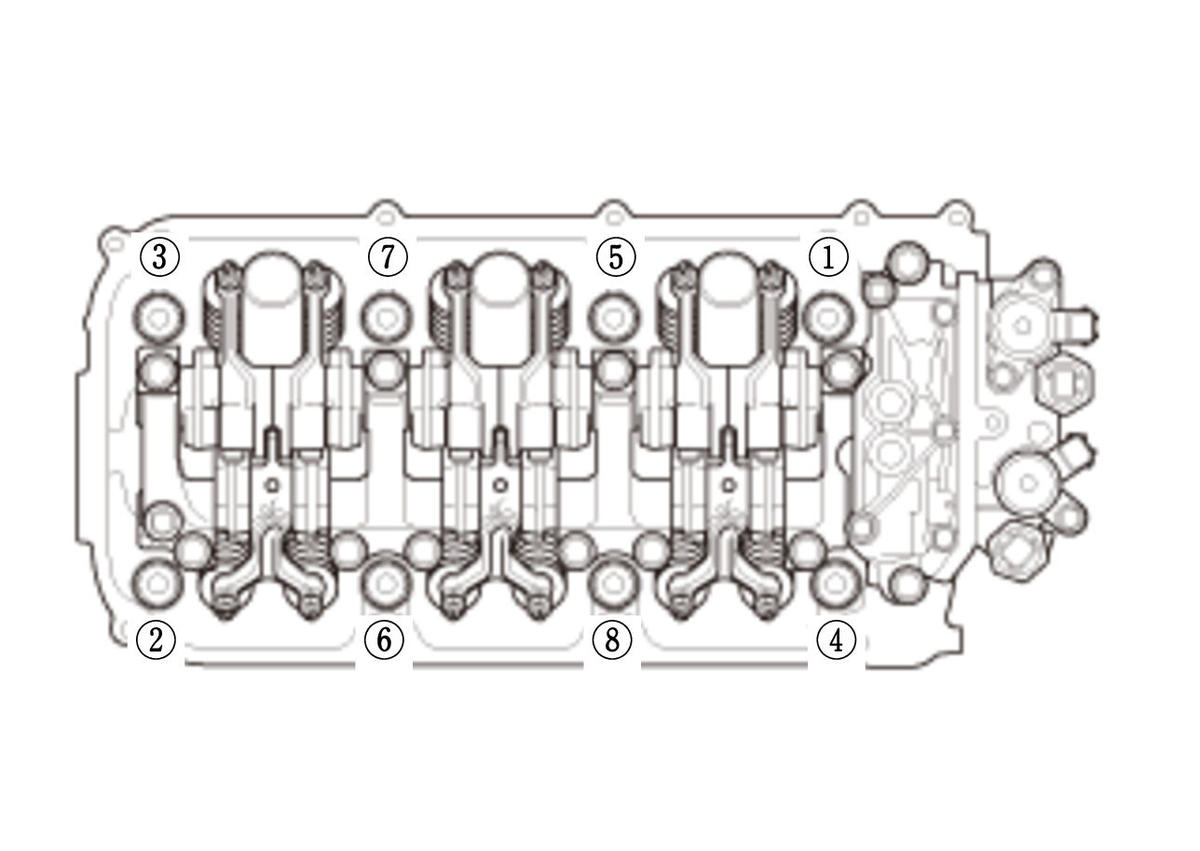

    Fig 2: REAR Cylinder Head Loosening Sequence

    Courtesy of HONDA, U.S.A., INC.

    1. Remove the cylinder head bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time; repeat the sequence until all bolts are loosened. 2. Remove the cylinder heads.
