CYLINDER HEAD (6-Speed A/T), ('16-'18 9-Speed A/T): Removal

NOTE:

• Use fender covers to avoid damaging painted surfaces.
• To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
• Connect the HDS to the DLC , and monitor ECT SENSOR 1. To avoid damaging the cylinder head, wait until the engine coolant temperature drops below 100 °F (38 °C) before loosening the cylinder head bolts.
• Mark all wirings and hoses to avoid misconnection. Also, be sure that they do not contact any other wirings or hoses, or interfere with any other parts.

1. Fuel Pressure - Relieve
2. 12 Volt Battery Terminal - Disconnect
3. Engine Coolant - Drain - Go to:Coolant Replacement (2016 2017 2018)
4. Front and Rear Warm Up TWC - Remove - Refer to:

   Under-Floor TWC Removal and Installation, or

   Warm Up TWC Removal and Installation

5. Cylinder Head Cover - Remove - Go to: Cylinder Head Cover Removal and Installation (6-Speed A/T), ('16-'18 9-Speed A/T)
6. Timing Belt - Remove
7. Camshaft Pulley and Back Cover - Remove
8. Alternator - Remove
9. Intake Manifold and Intake Manifold Base - Remove - Go to:Intake Manifold (6-Speed A/T, '16-'18 9-Speed A/T)
10. Water Passage and Connecting Pipe - Remove
11. Injector - Remove - Go to:Injector Removal and Installation (6-Speed A/T, '16-'18 9-Speed A/T)

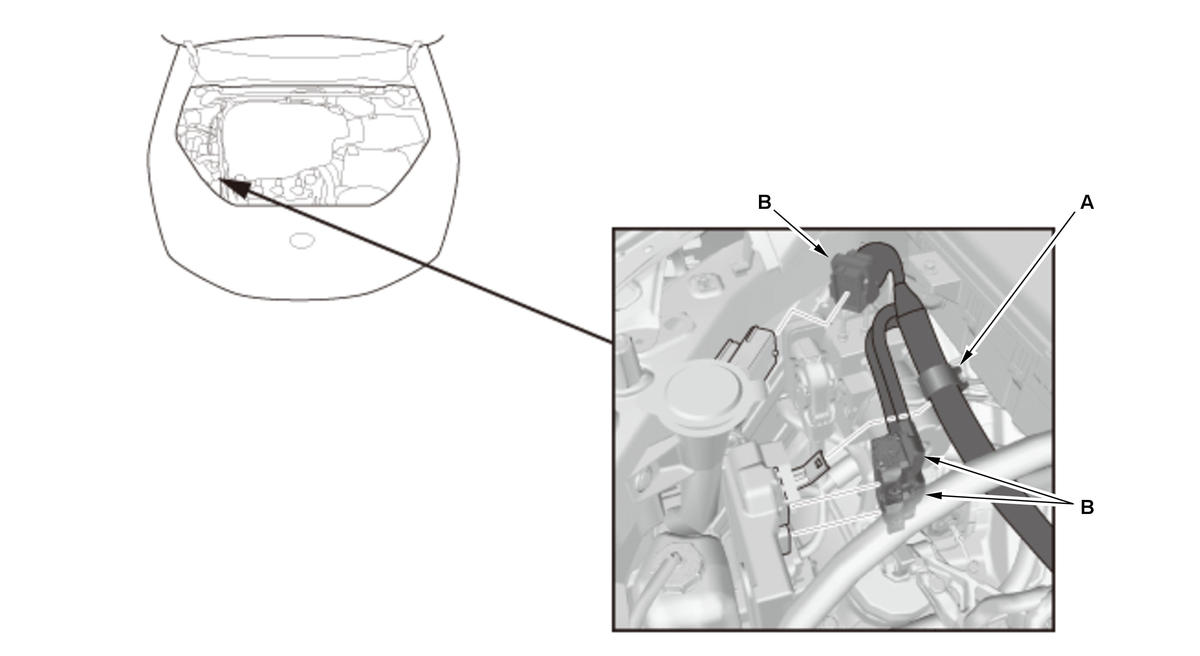

12. Connector (PCM and Engine Wire Harness) - Disconnect

    1. Remove the harness clamp (A).

    Courtesy of HONDA, U.S.A., INC.

    2. Disconnect the connectors (B).

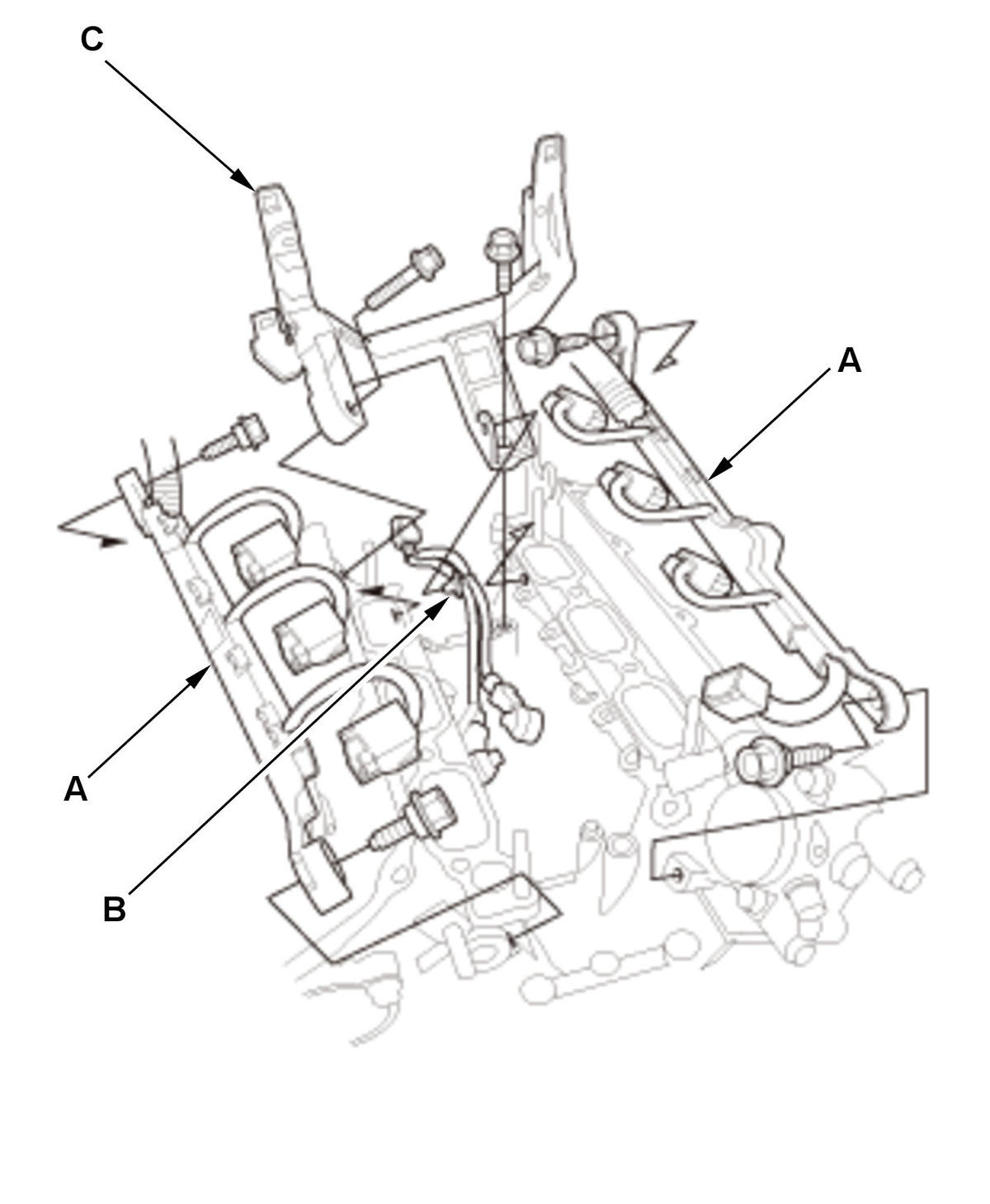

13. Injector Control Module Bracket - Remove

    Courtesy of HONDA, U.S.A., INC.

    1. Move the injector harness holders (A). 2. Remove the harness clip (B) and the injector control module bracket (C).

14. Fuel Feed Hose (High Pressure Fuel Pump Side) - Disconnect

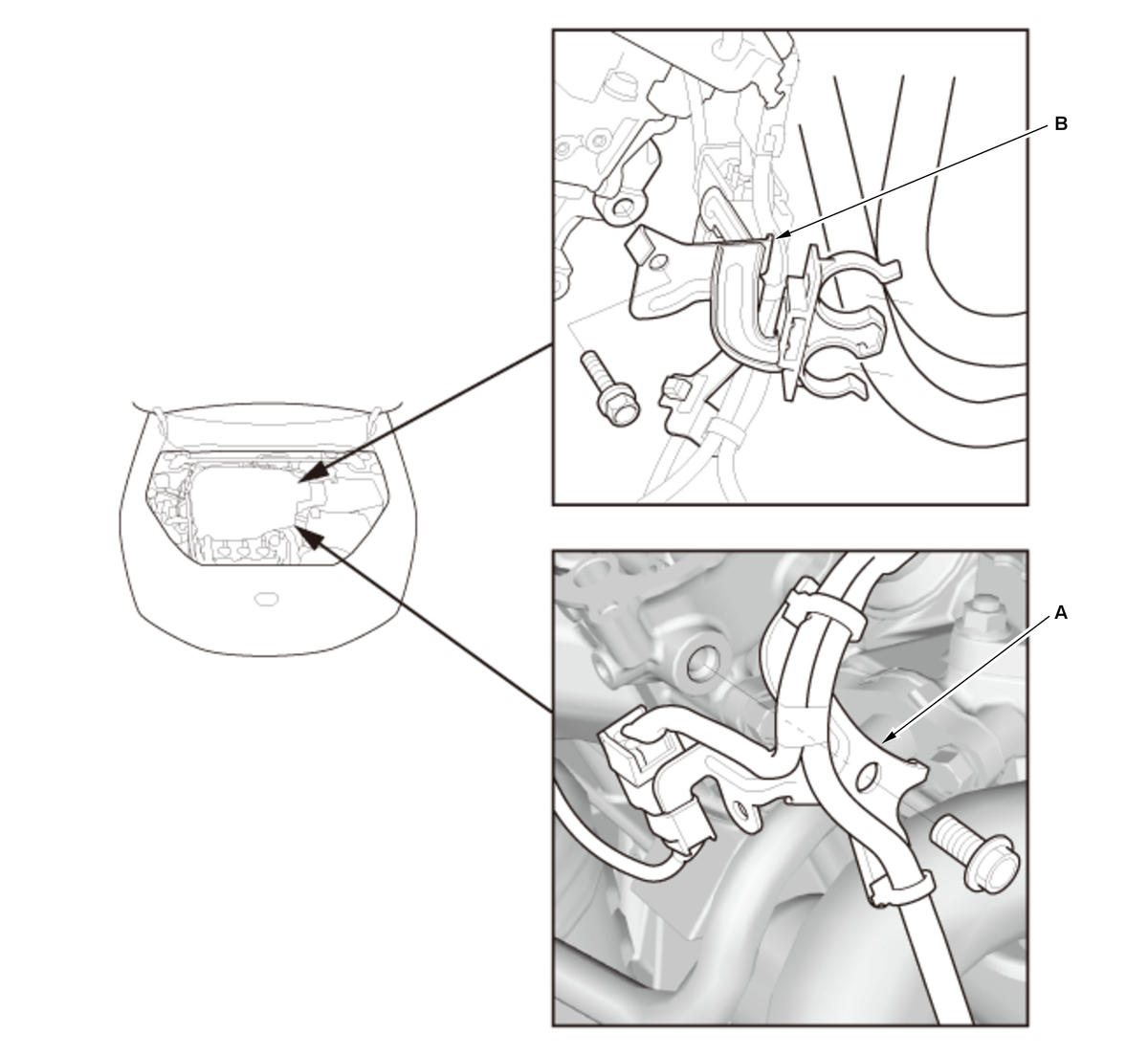

15. Connector Bracket and Harness Bracket - Move

    1. Move the connector bracket (A) from the front cylinder head.

    Courtesy of HONDA, U.S.A., INC.

    2. Move the harness bracket (B) from the rear cylinder head.

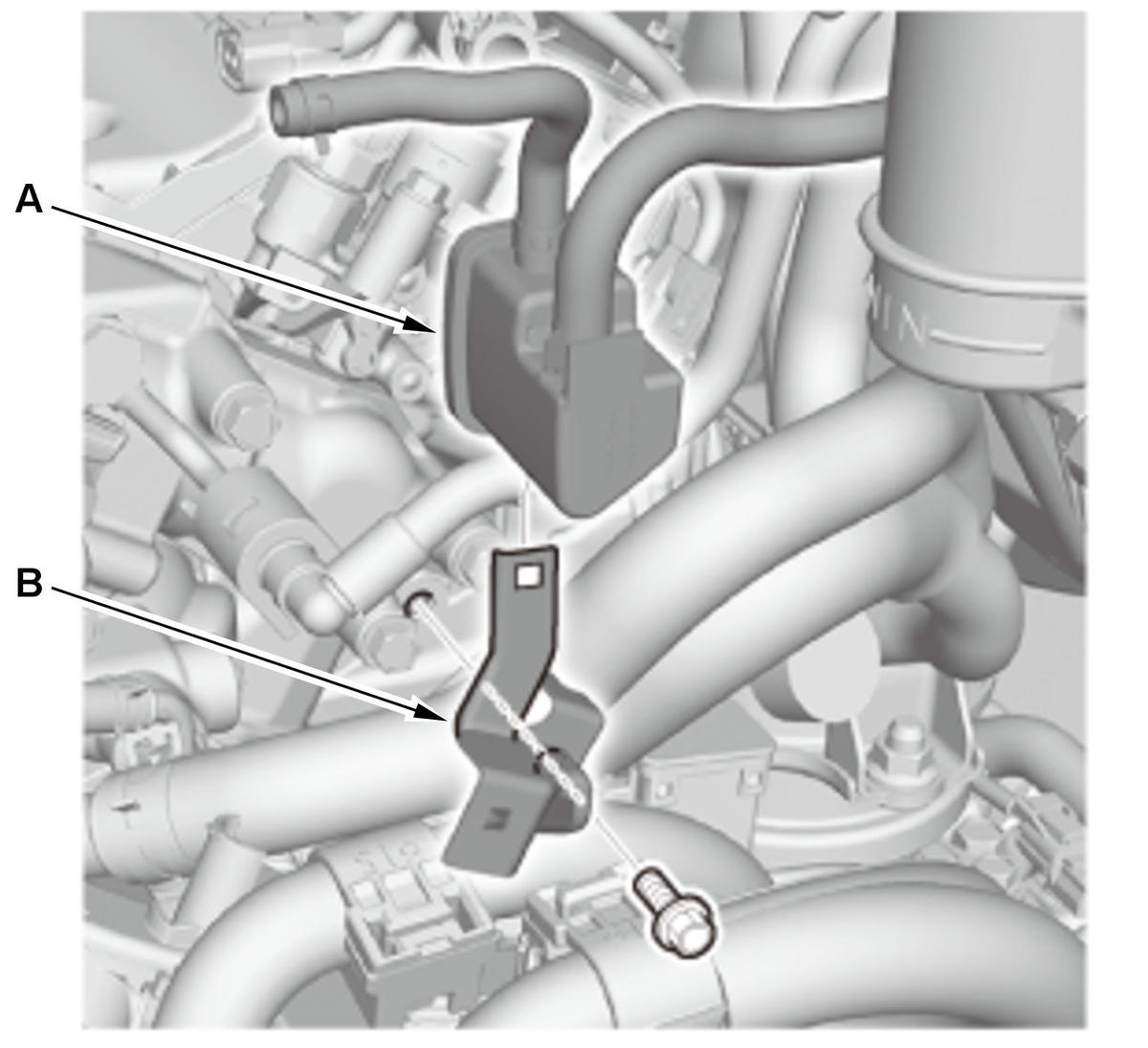

16. EVAP Canister Purge Joint Bracket - Remove

    Courtesy of HONDA, U.S.A., INC.

    1. Move the EVAP canister purge joint (A). 2. Remove the EVAP canister purge joint bracket (B).

17. Cylinder Head - Remove

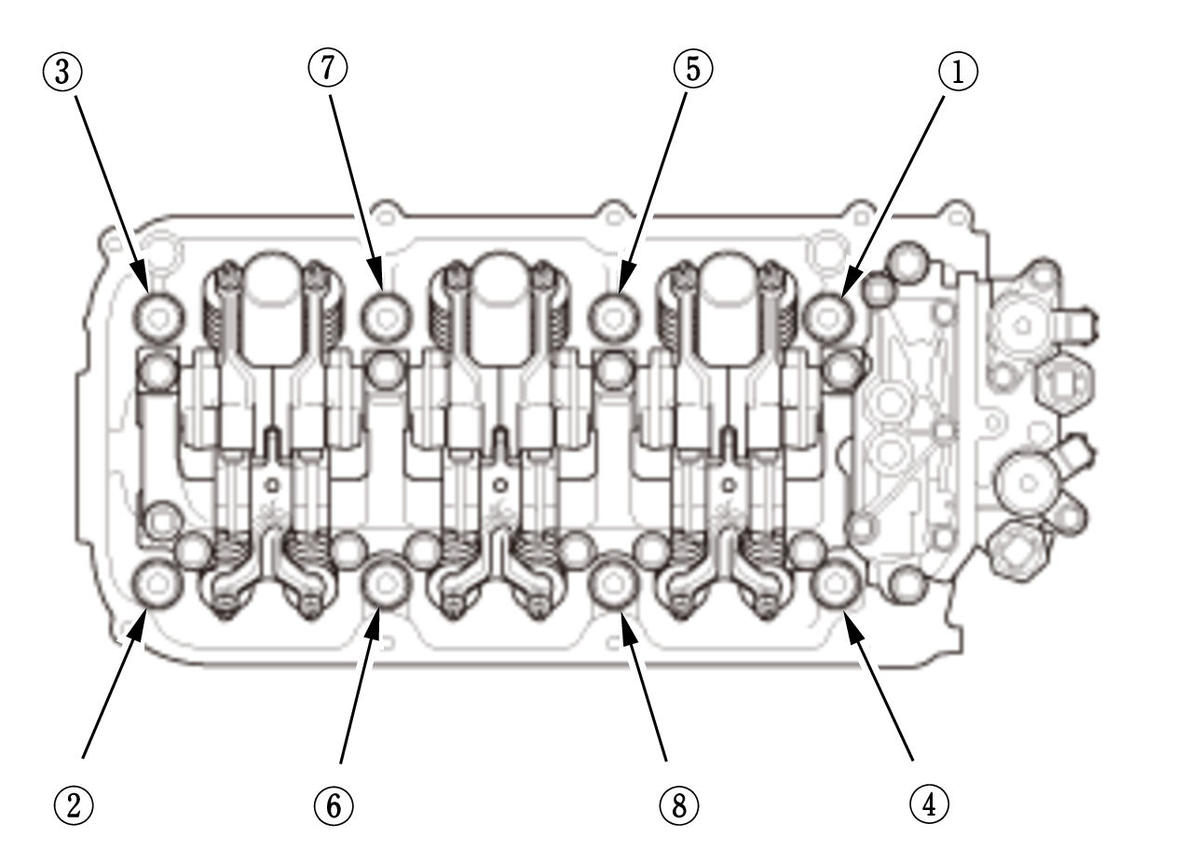

    Fig 1: FRONT Cylinder Head Loosening Sequence

    Courtesy of HONDA, U.S.A., INC.

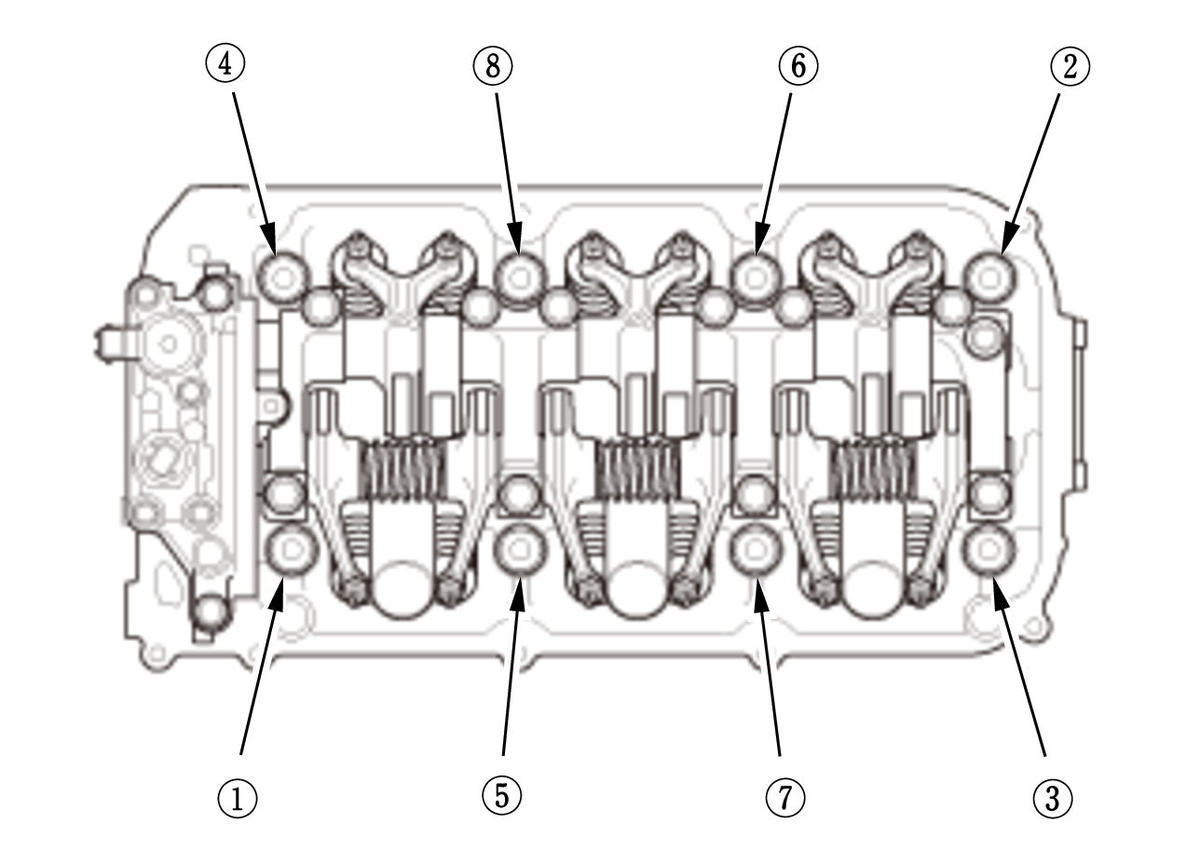

    Fig 2: REAR Cylinder Head Loosening Sequence

    Courtesy of HONDA, U.S.A., INC.

    1. Remove the cylinder head bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time; repeat the sequence until all bolts are loosened. 2. Remove the cylinder heads.
