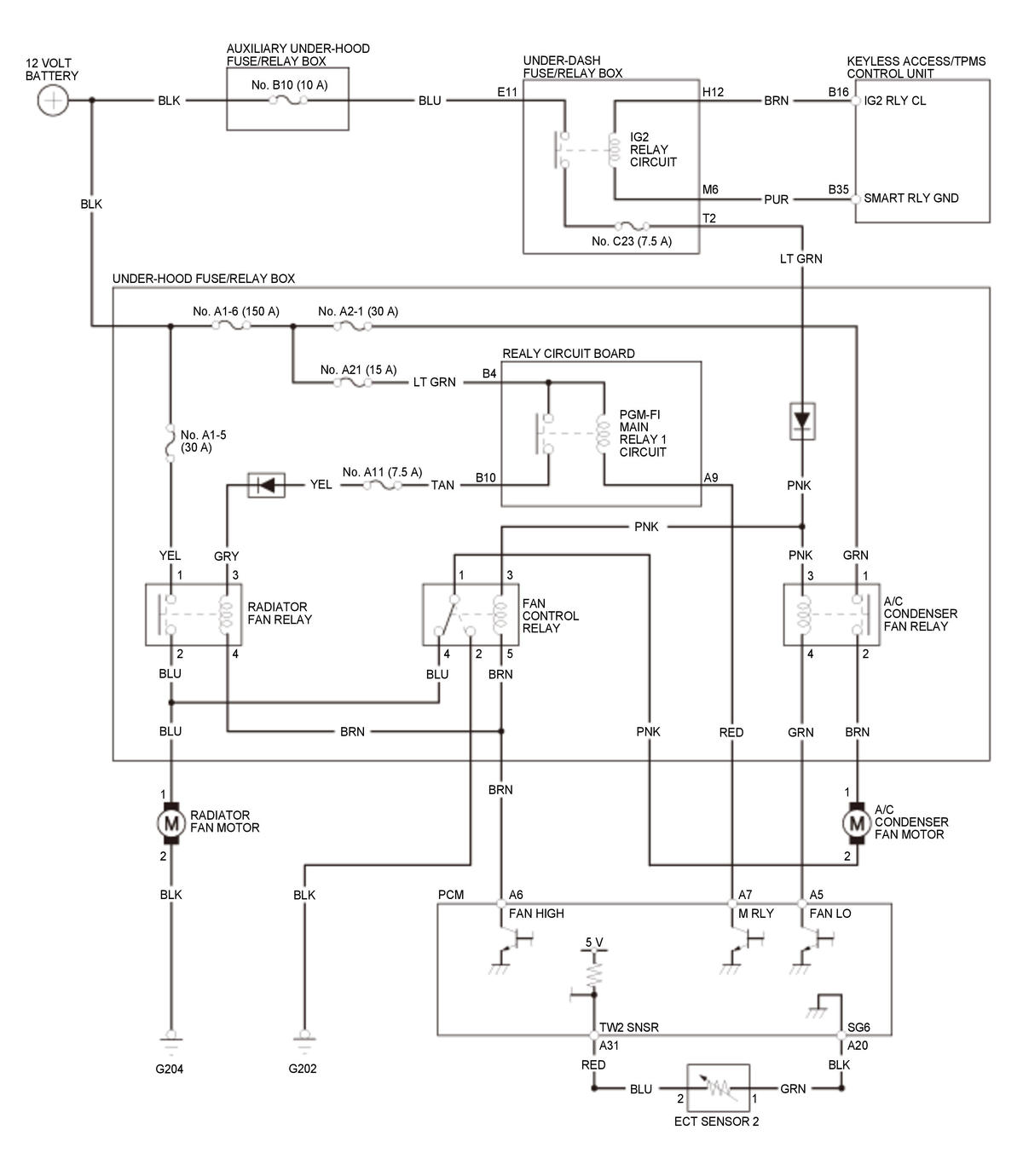

COOLING FAN CONTROLS (6-Speed A/T), [9-Speed A/T (2016 2017 2018)]

GHH308146

Courtesy of HONDA, U.S.A., INC.
