Gauges - Fuel Gauge Indication Does Not Rise

NOTE:

• When refueling, the gauge control module shifts from the normal mode to the "refueling mode," moving the fuel gauge indicator only after it detects that 5 liters (approximately 1.25 U.S. gallon) or more of fuel have been added.
• The fuel gauge indication may not rise when refueling a small quantity of fuel and may not shift to refueling mode.

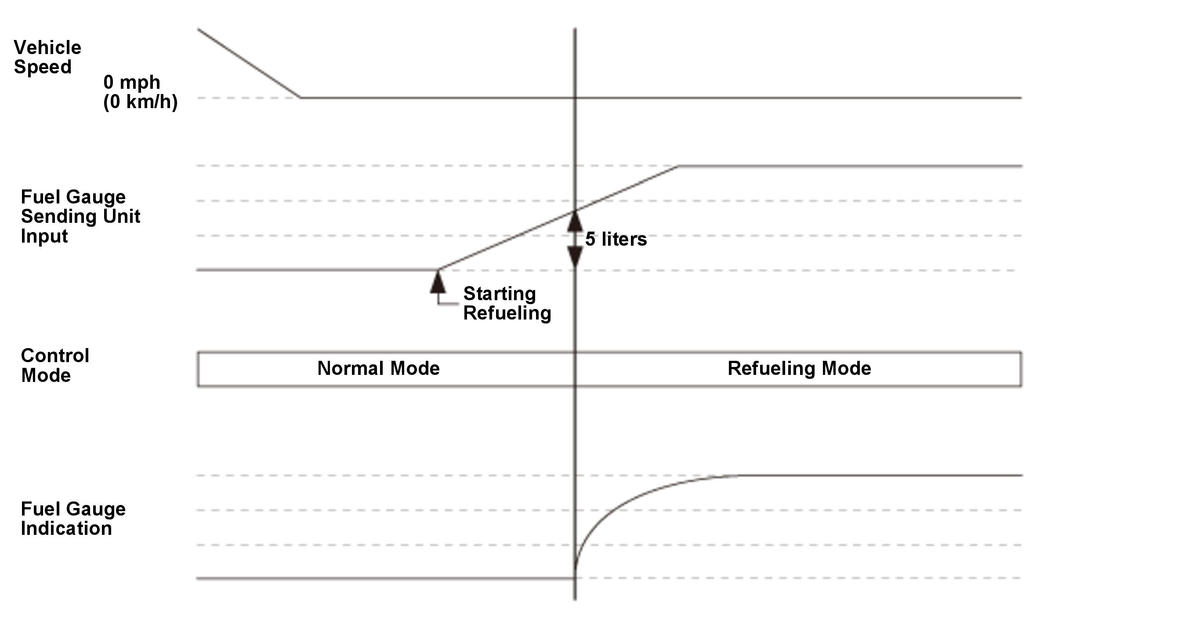

Shift to the Refueling Mode

Courtesy of HONDA, U.S.A., INC.

1. DTC check

   -1. Turn the vehicle to the ON mode.

   - 2. Check the low fuel indicator.

   Does the low fuel indicator flash?

   YES

   Check for DTCs. If any DTCs are indicated, do the indicated DTC's troubleshooting. If no DTCs are indicated, replace the Gauge Control Module - Removal and Installation .

   NO

   Go to step 2.

2. Fuel gauge operation check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Do the gauge self-diagnostic function.

   Gauges Self-Diagnostic Function (2016 2017 2018)  or

   Gauges Self-Diagnostic Function (2019 2020 2021)

   Is the fuel gauge OK?

   YES

   Go to step 3.

   NO

   Replace the Gauge Control Module - Removal and Installation .

3. Fuel tank visual check

   -1. Raise the vehicle on a lift.

   - 2. Check the fuel tank for damage.

   Is the fuel tank OK?

   YES

   Go to step 4.

   NO

   Replace the Fuel Tank - Removal and Installation .

4. Fuel gauge sending unit check

   -1. Test the fuel gauge sending unit.

   Is the fuel gauge sending unit OK?

   YES

   Explain the control method of the fuel gauge.

   NO

   Replace the fuel gauge sending unit. Fuel Tank Unit - Disassembly and Reassembly .
