Entering the Self-Diagnostic Function (Manual Method)

Before doing the self-diagnostic function, make sure the No. A26, No. C29*2 and No. D1*1 fuses are OK. - Refer to:

*1: With auto idle stop system

*2: Without auto idle stop system

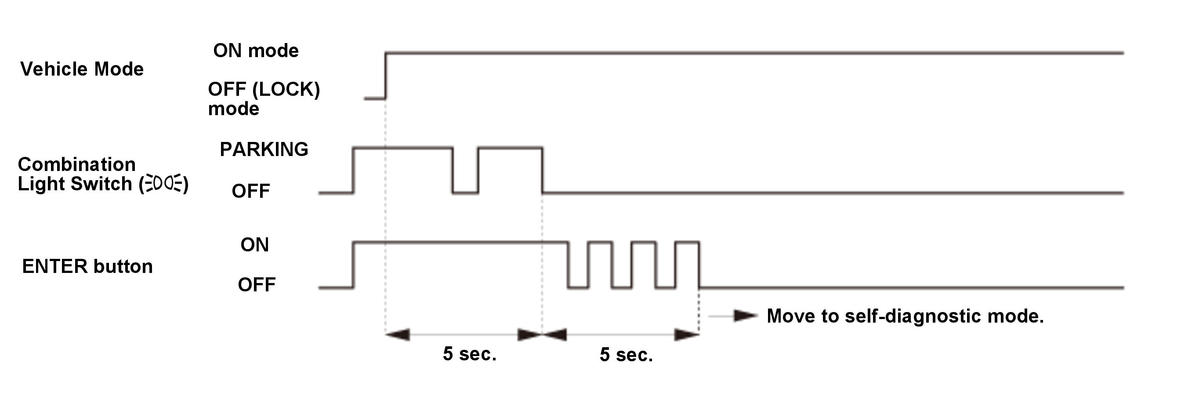

1. Push and hold the ENTER button.

2. Turn the combination light switch to the PARKING position ( ).

3. Turn the vehicle to the ON mode.

4. Within 5 seconds, turn the combination light switch to OFF, then to the PARKING position ( ) and OFF again.

5. Within 5 seconds, release the ENTER button, and then repeatedly push and release the button three times.

NOTE

While in the self-diagnostic mode, the dashlights brightness controller operates normally.
While in the self-diagnostic mode, the ENTER button is used to start the Beeper Drive Circuit Test and the Gauge Drive Circuit Check.
If the vehicle speed exceeds 1.2 mph (2 km/h), or turn the vehicle to the OFF (LOCK) mode, the self-diagnostic mode ends.
