Gauges / Meter - Testing & Troubleshooting
>>
Circuit Diagram
>>

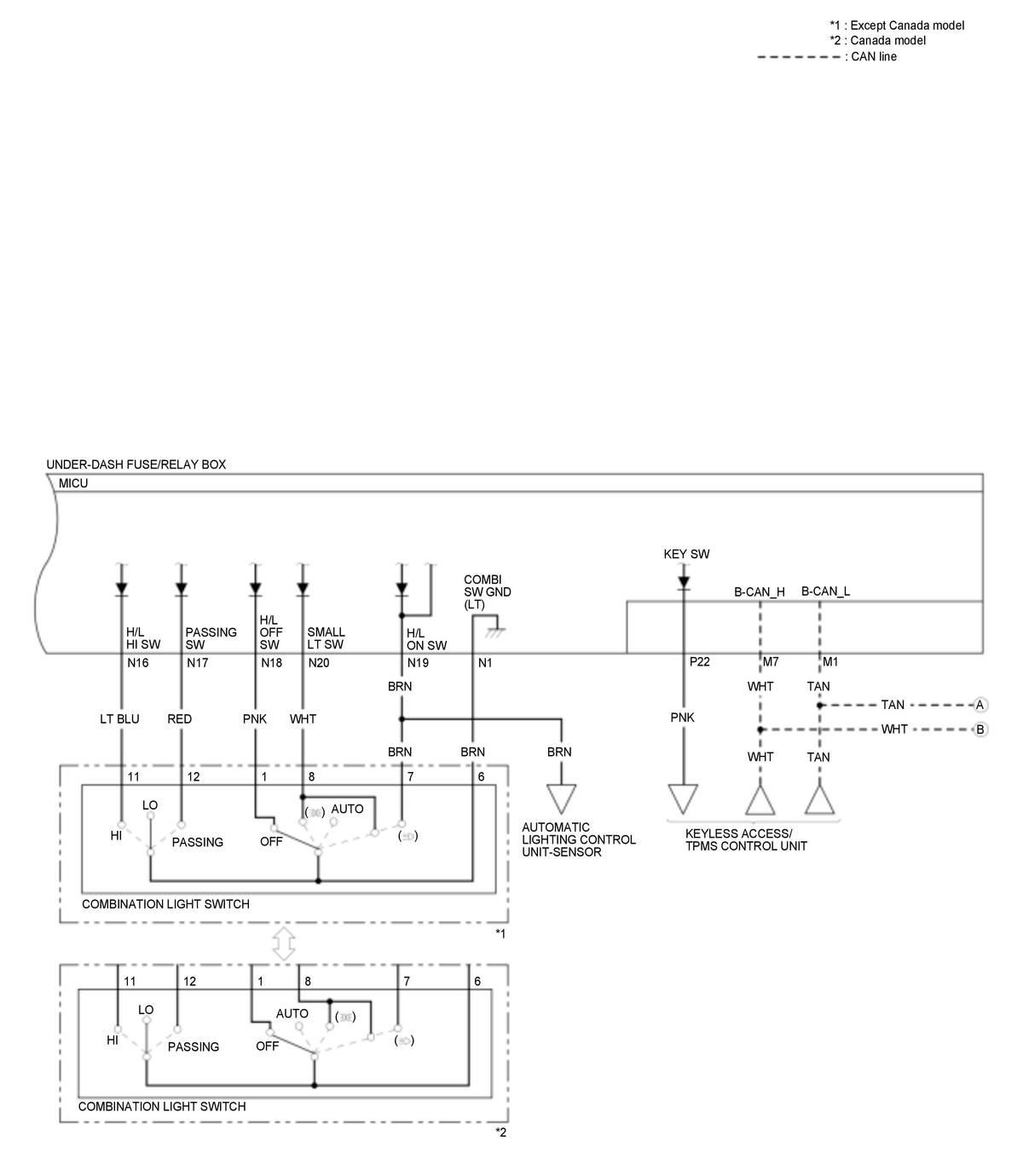

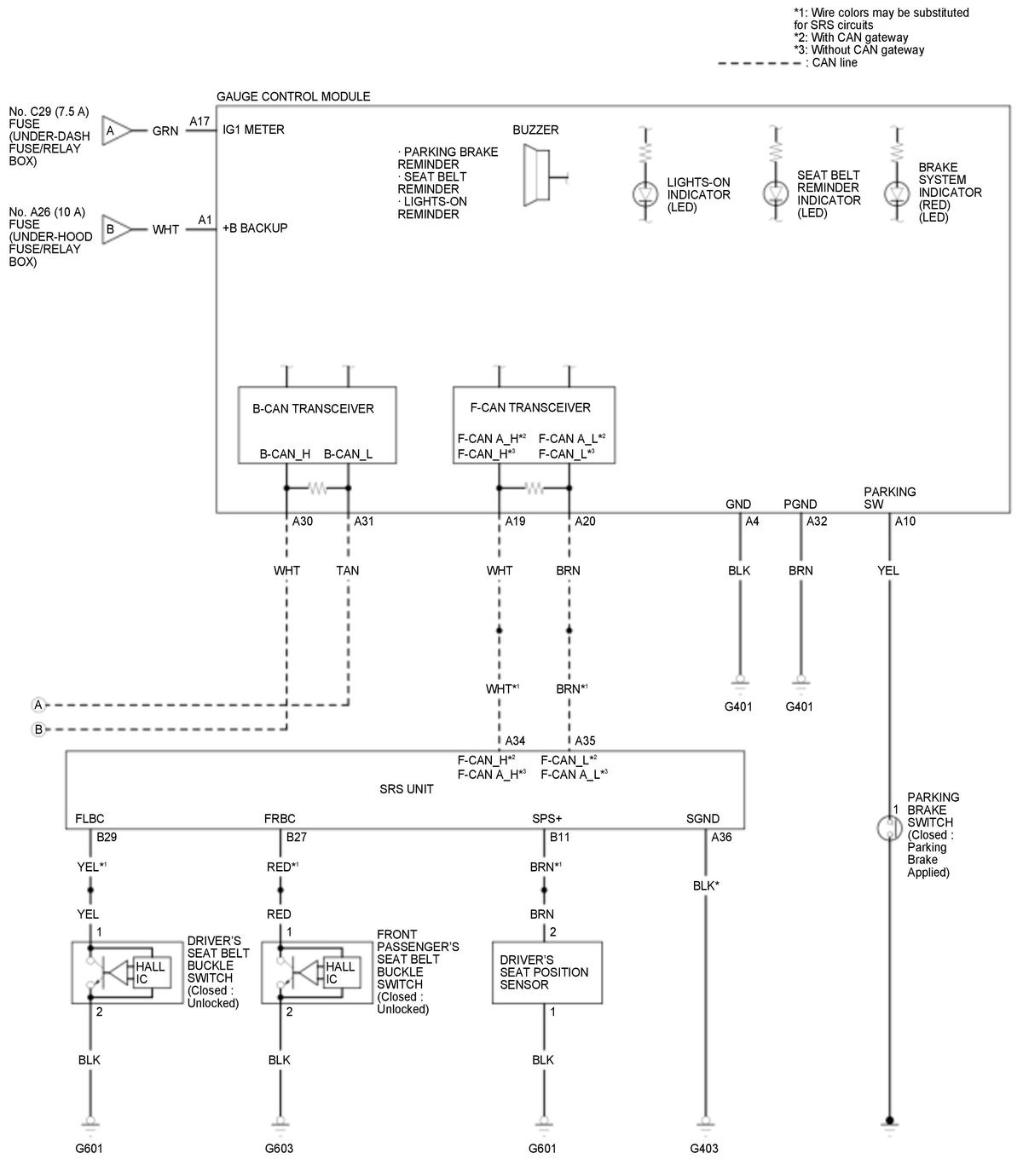

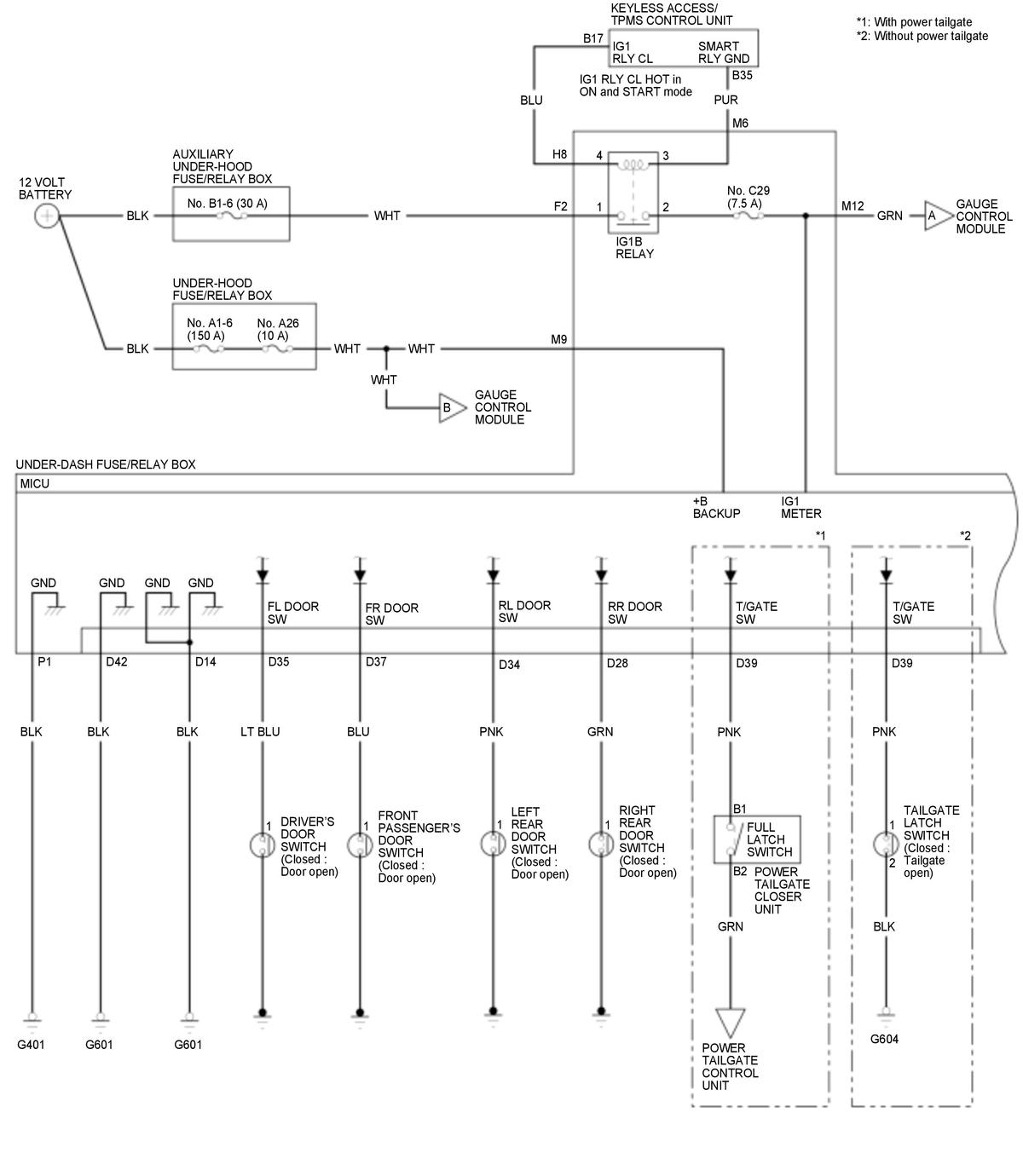

REMINDER SYSTEMS (WITHOUT Auto Idle Stop System) (2019 2020 2021)
REMINDER SYSTEMS (WITHOUT Auto Idle Stop System) (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
