REMINDER SYSTEMS (WITHOUT Auto Idle Stop System) (2017 2018)

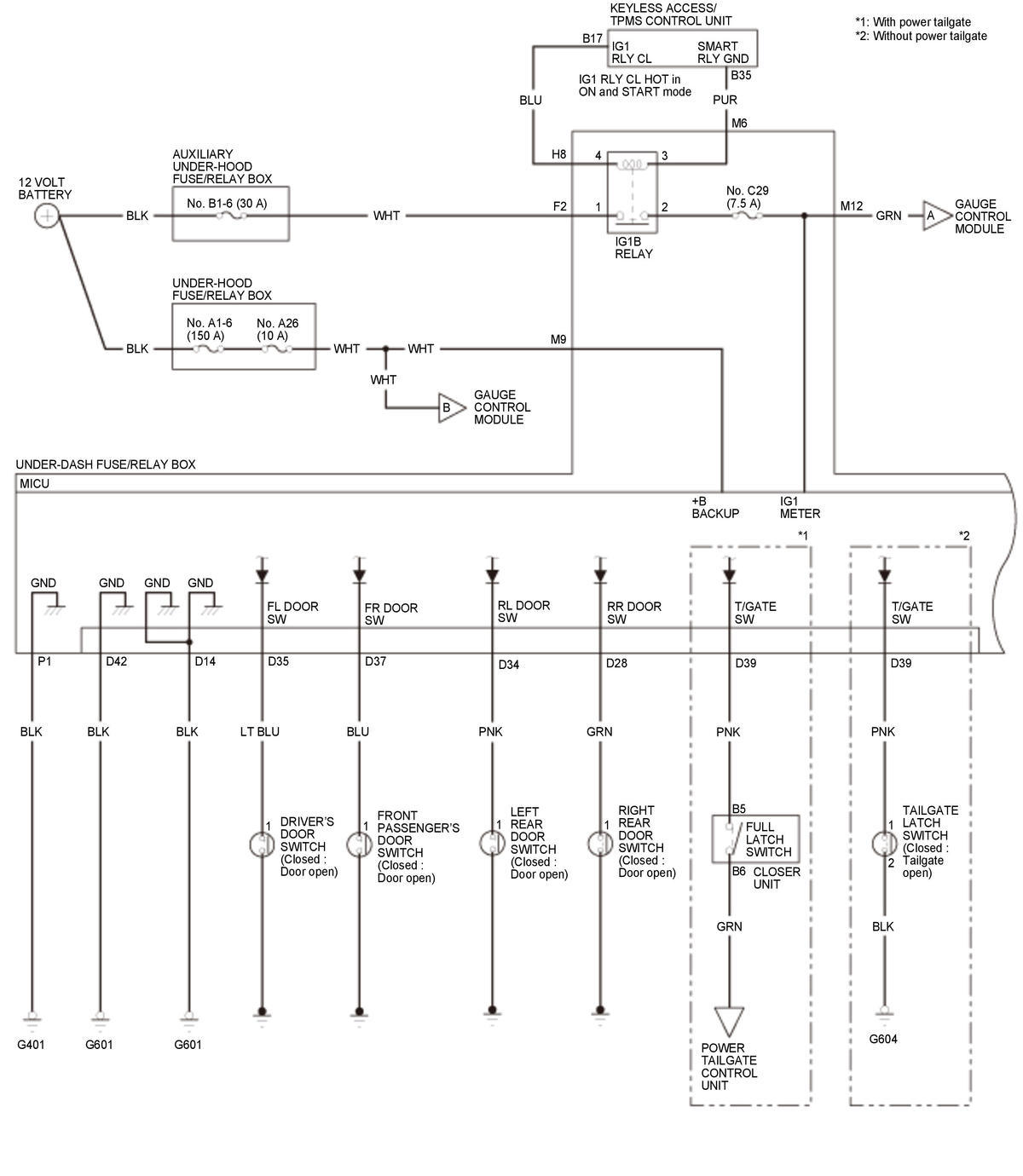

GHH309676

Courtesy of HONDA, U.S.A., INC.

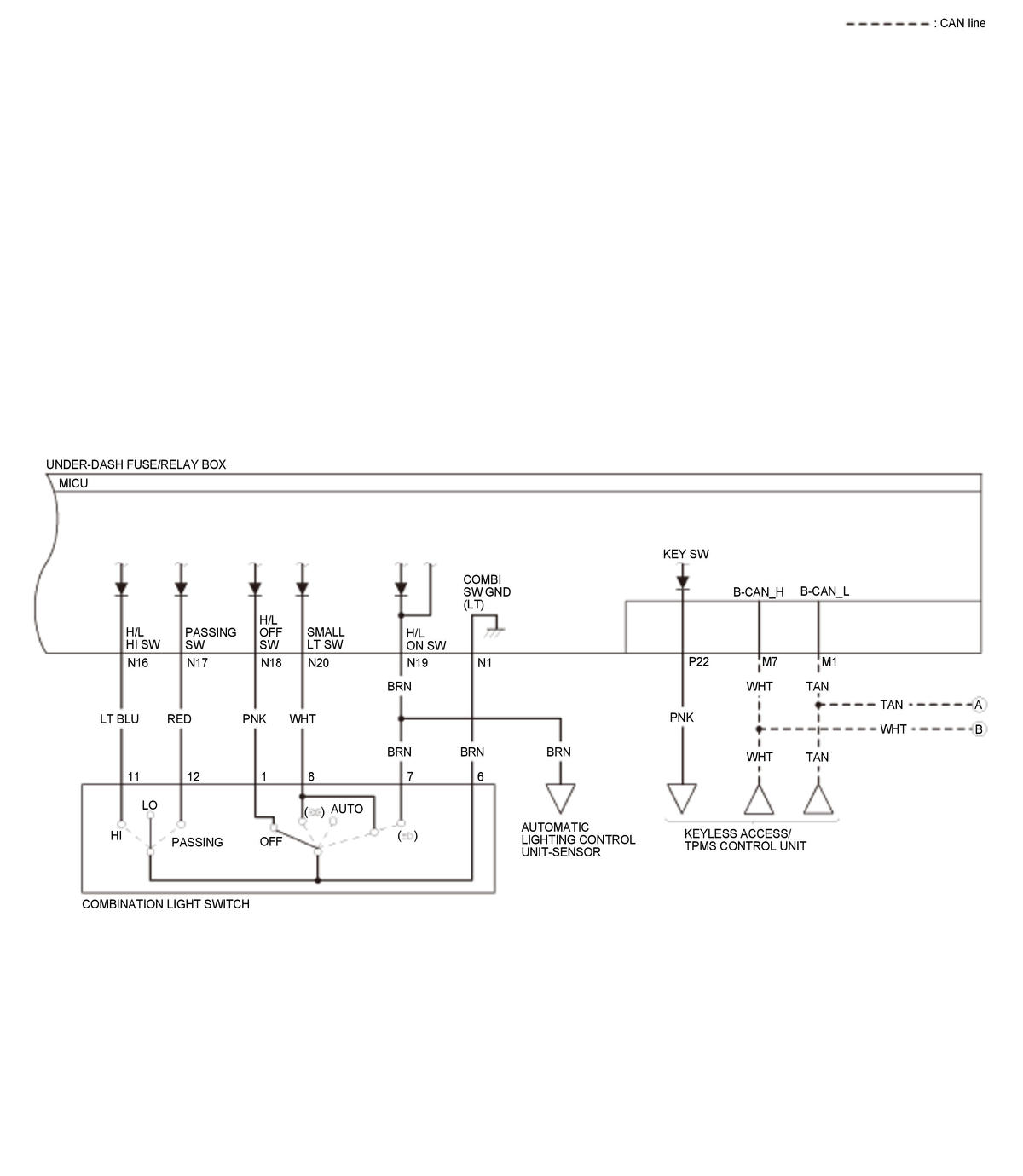

GHH309677

Courtesy of HONDA, U.S.A., INC.

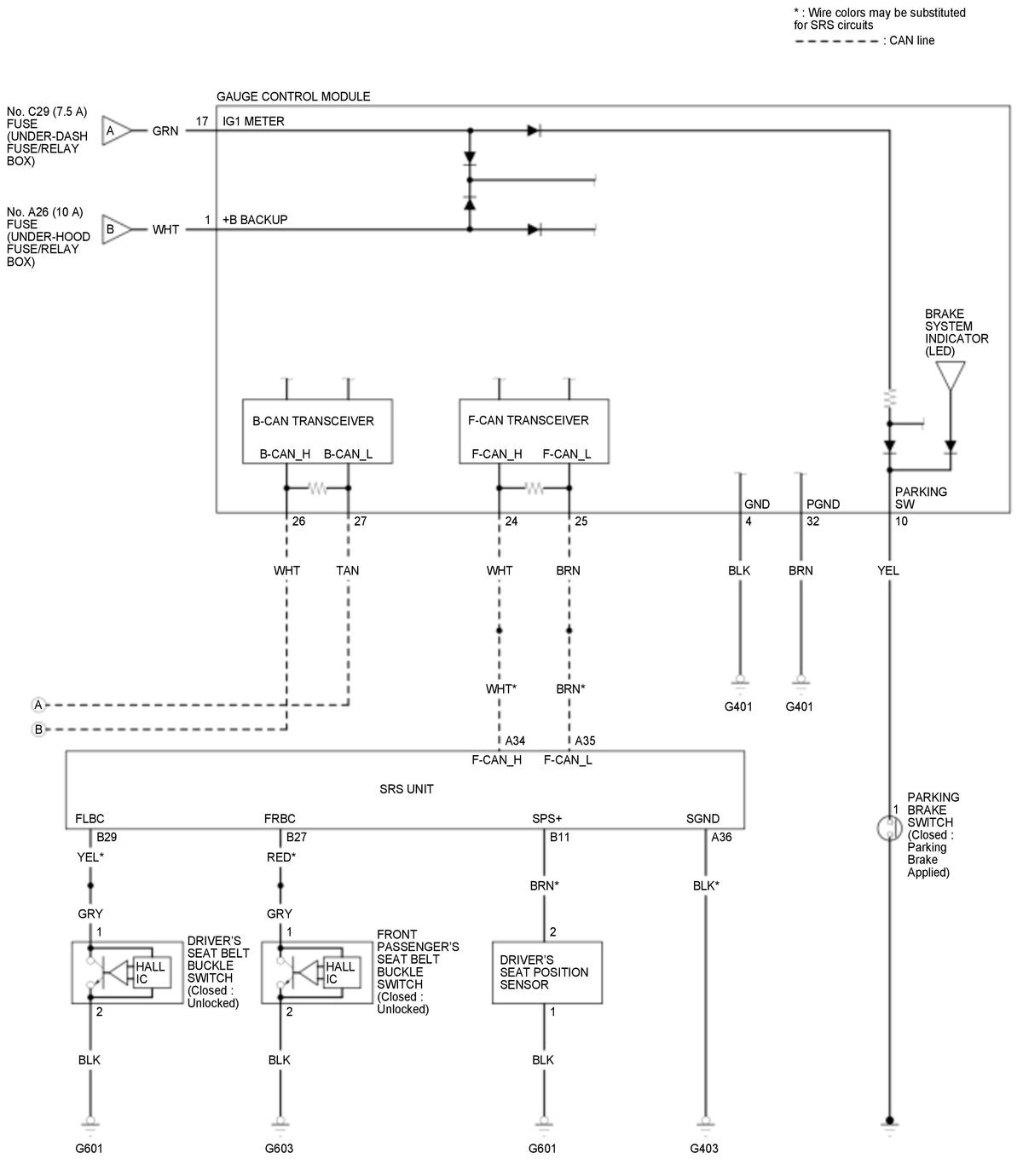

GHH309678

Courtesy of HONDA, U.S.A., INC.
