REMINDER SYSTEMS (WITHOUT Auto Idle Stop System) (2016)

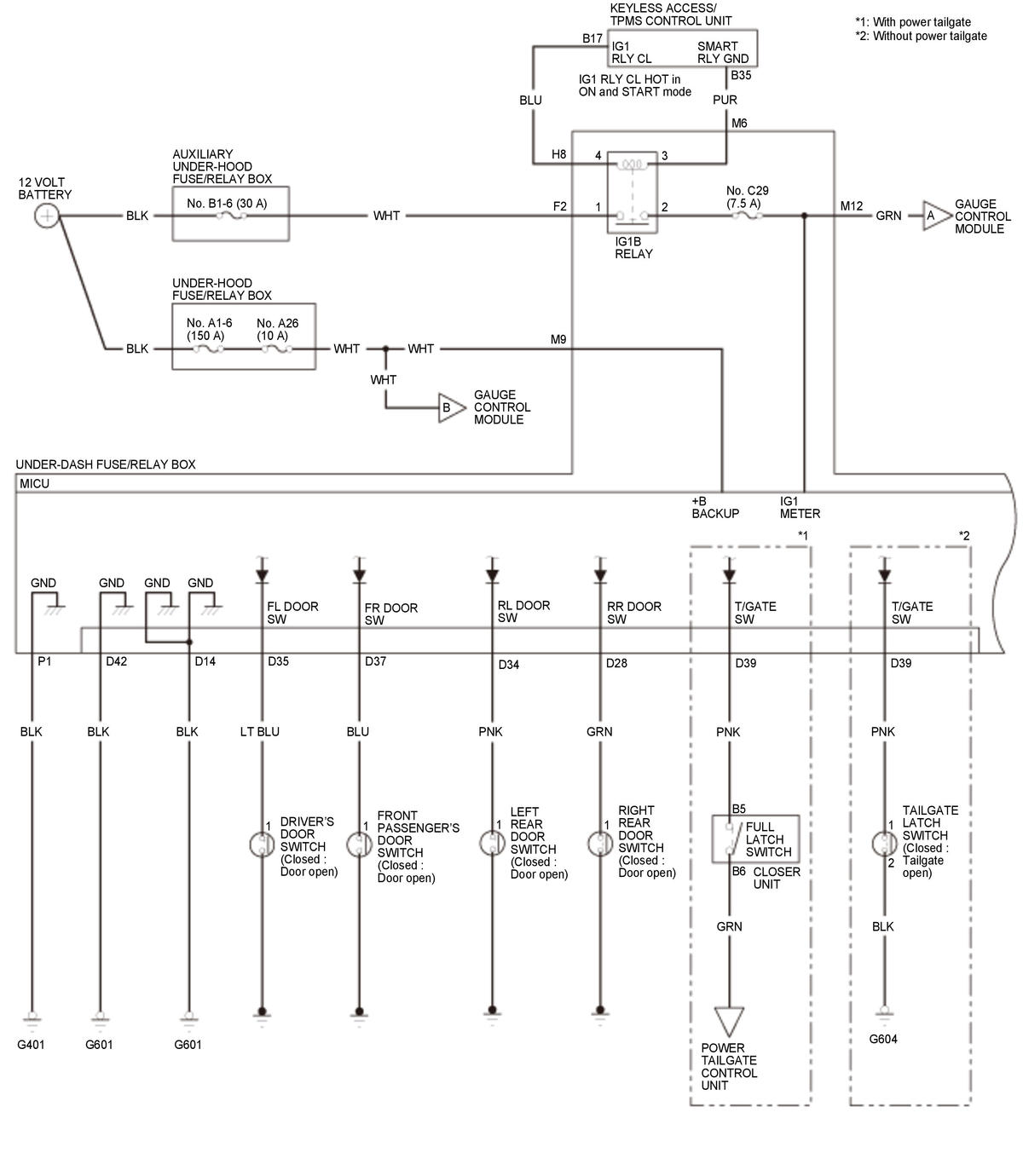

GHH309670

Courtesy of HONDA, U.S.A., INC.

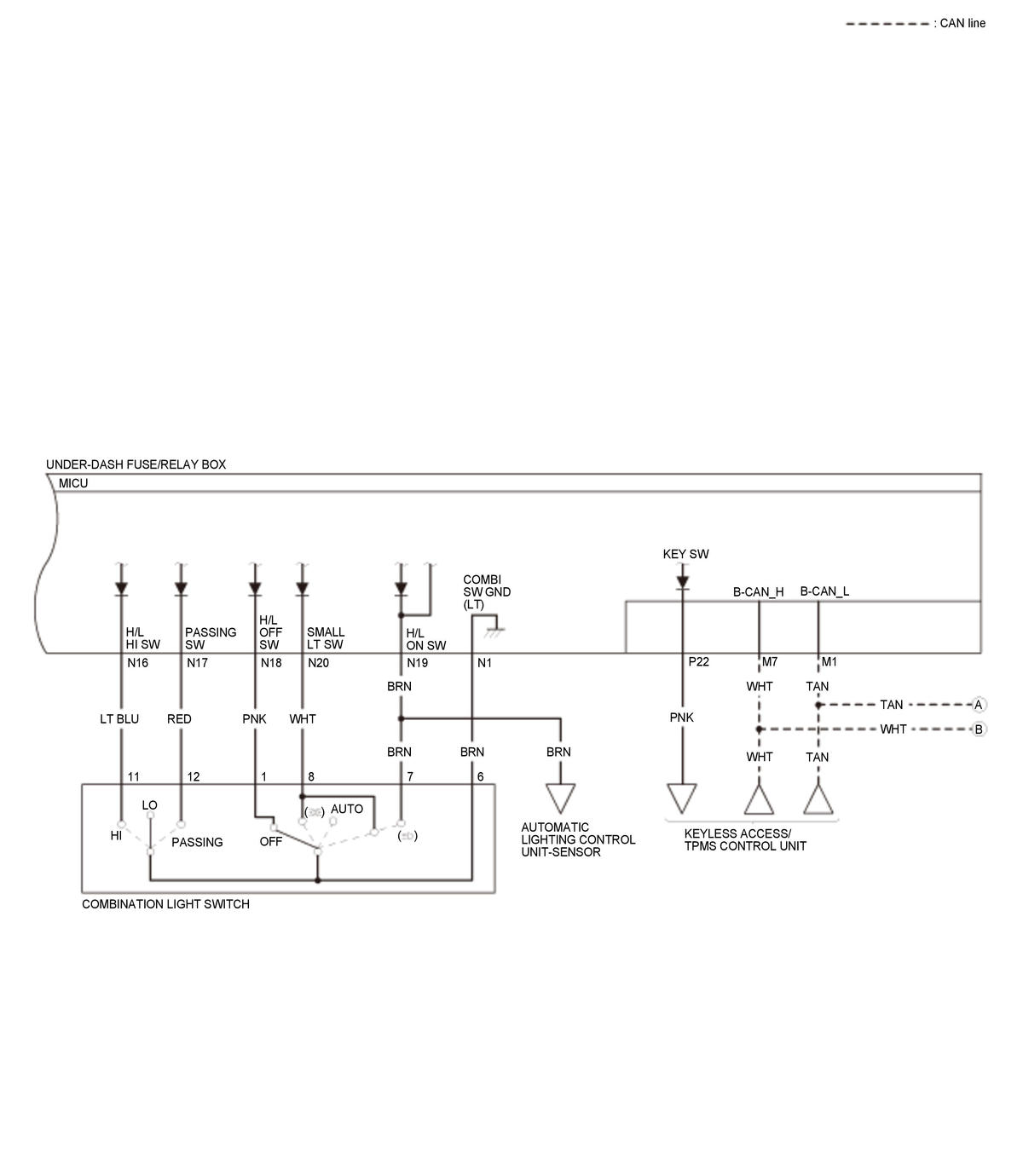

GHH309671

Courtesy of HONDA, U.S.A., INC.

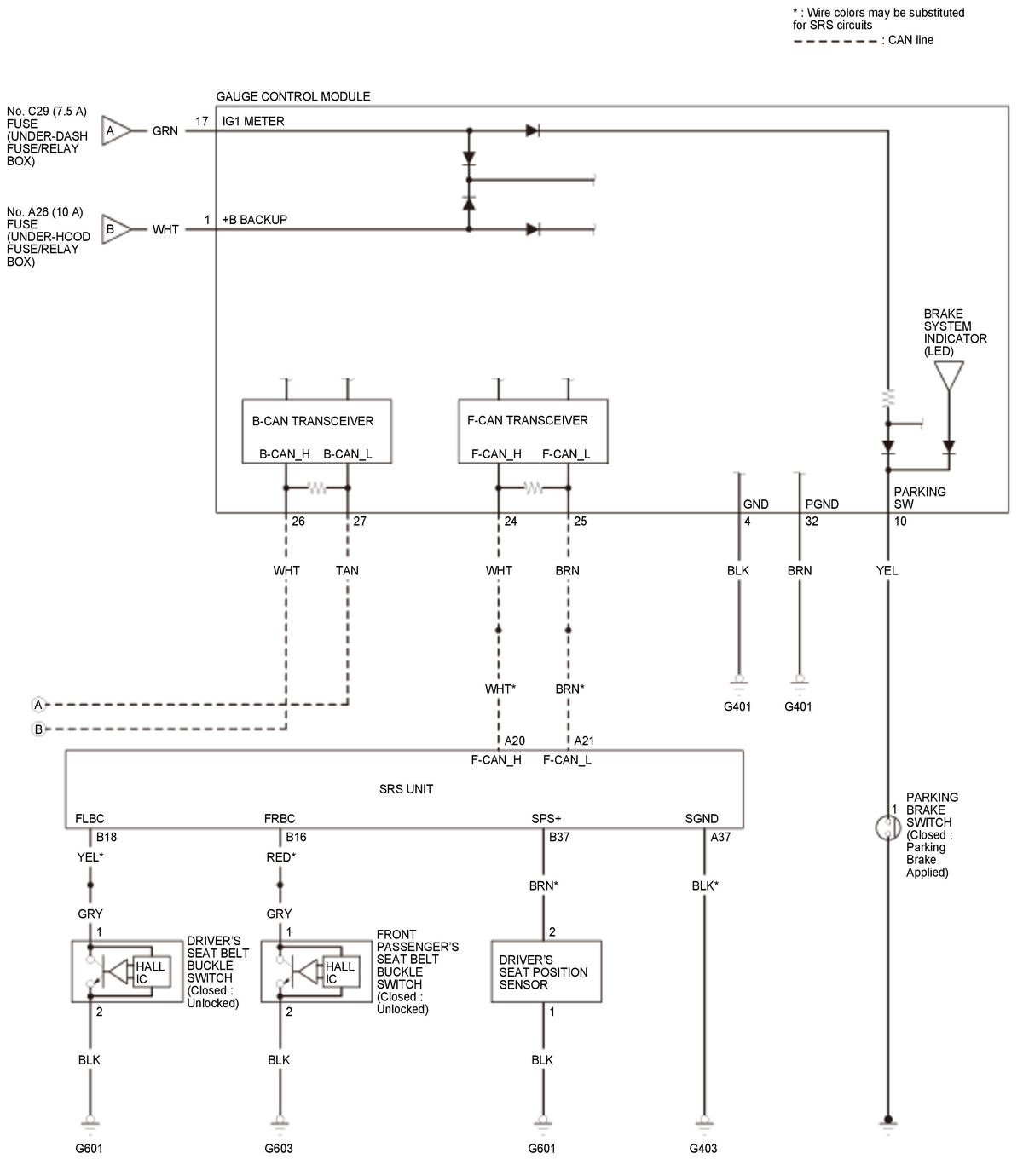

GHH309672

Courtesy of HONDA, U.S.A., INC.
