REMINDER SYSTEMS (WITH Auto Idle Stop System) (2017 2018)

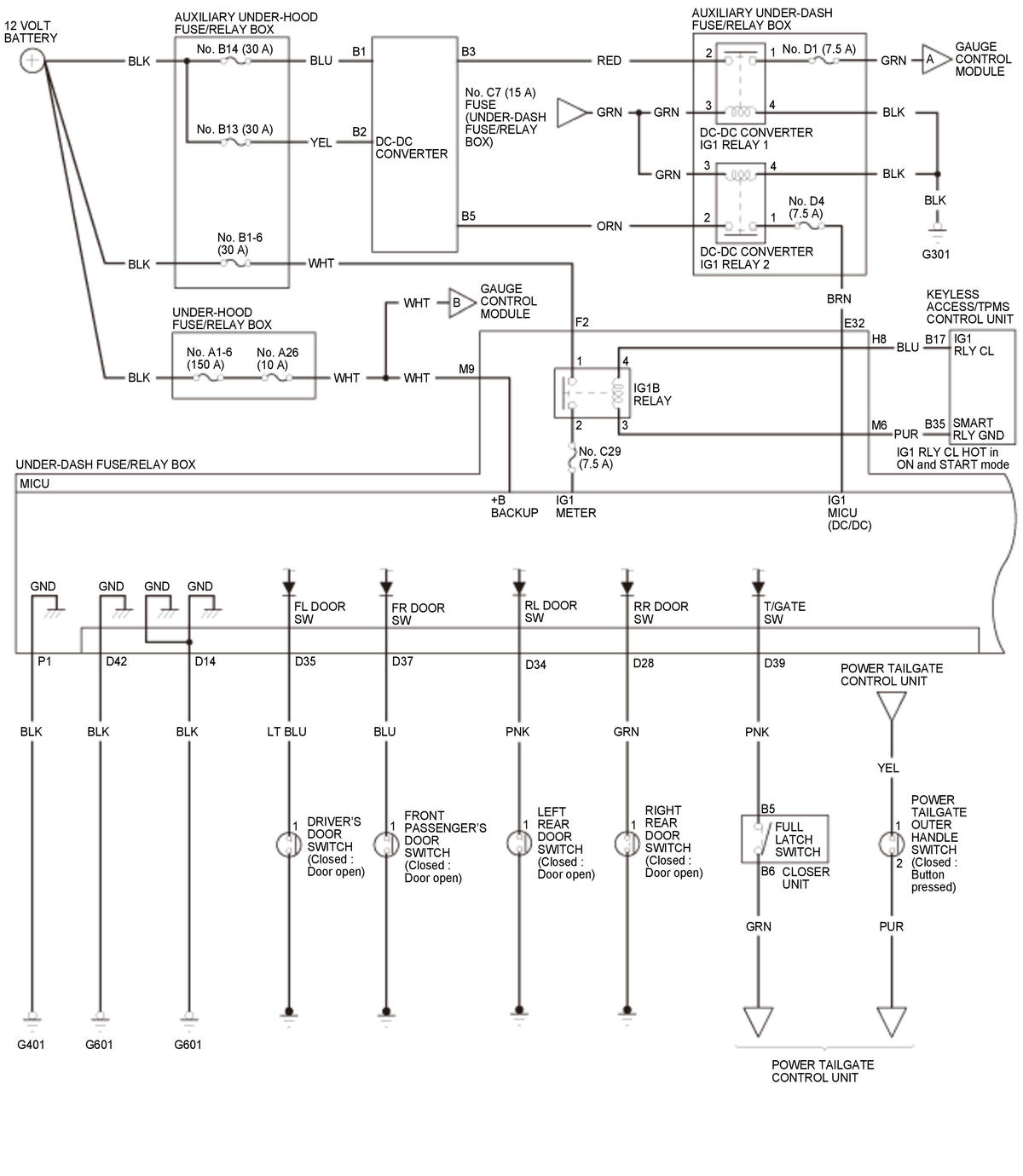

GHH309679

Courtesy of HONDA, U.S.A., INC.

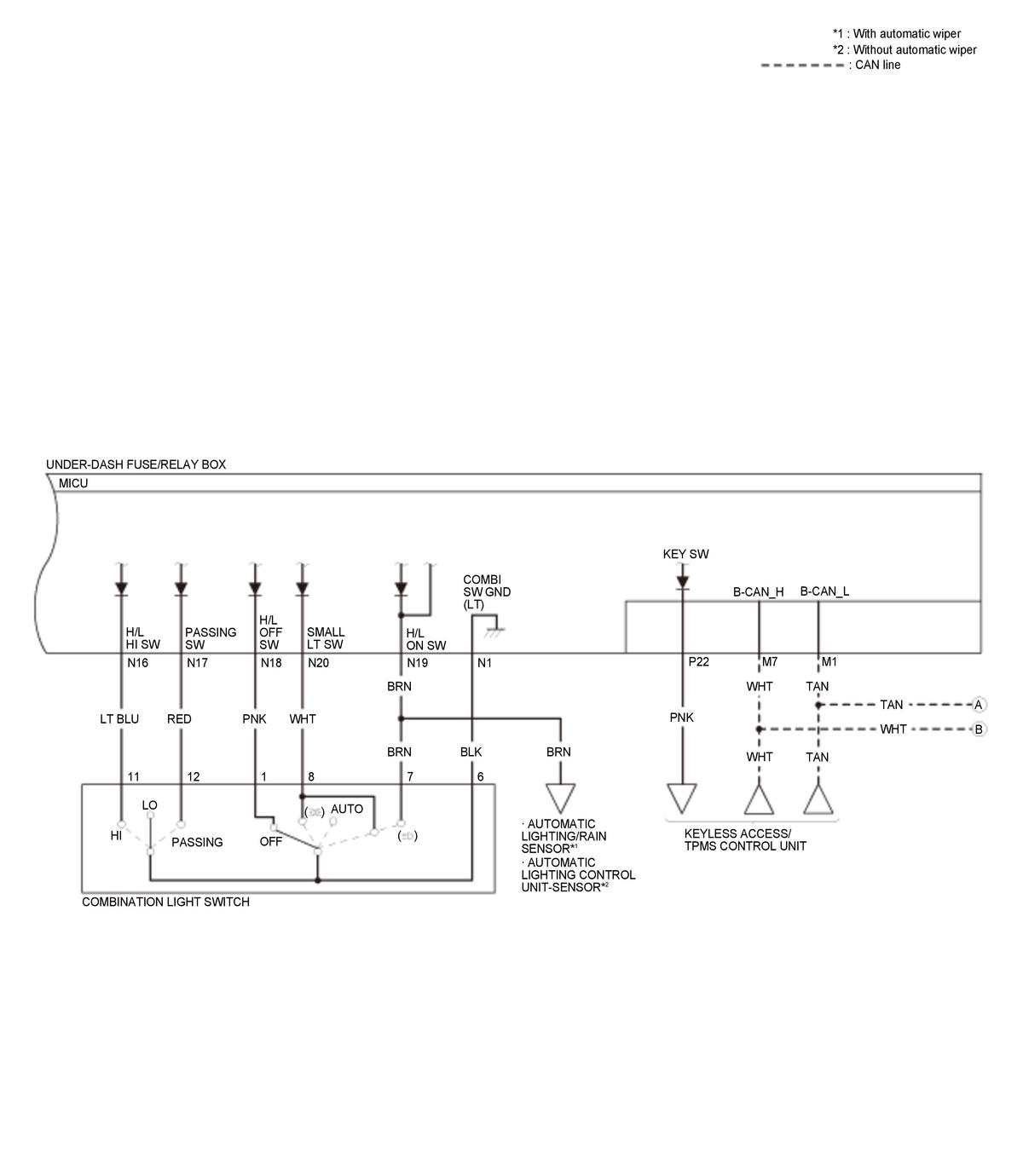

GHH309680

Courtesy of HONDA, U.S.A., INC.

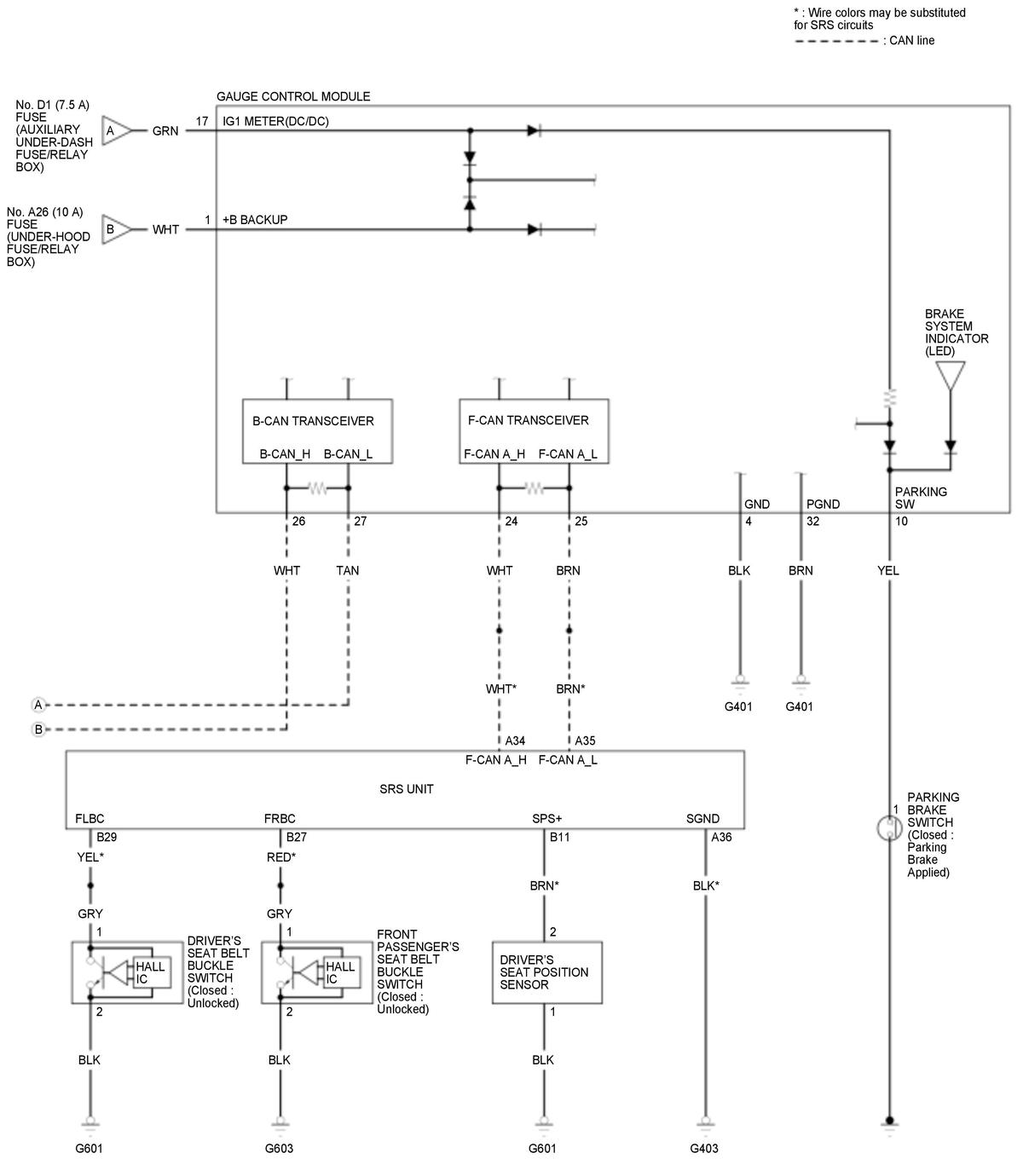

GHH309681

Courtesy of HONDA, U.S.A., INC.
