Gauges / Meter - Testing & Troubleshooting
>>
Circuit Diagram
>>

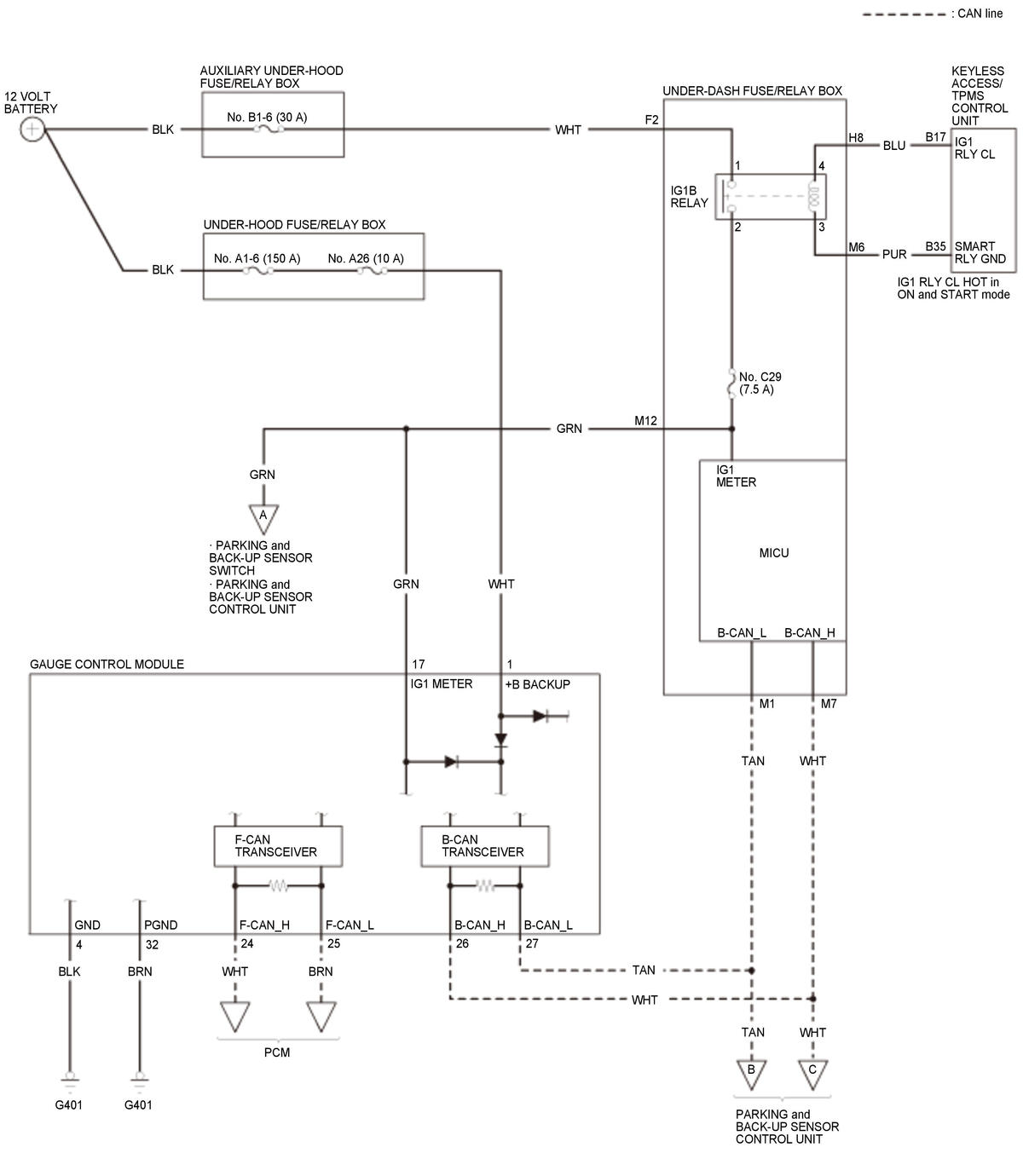

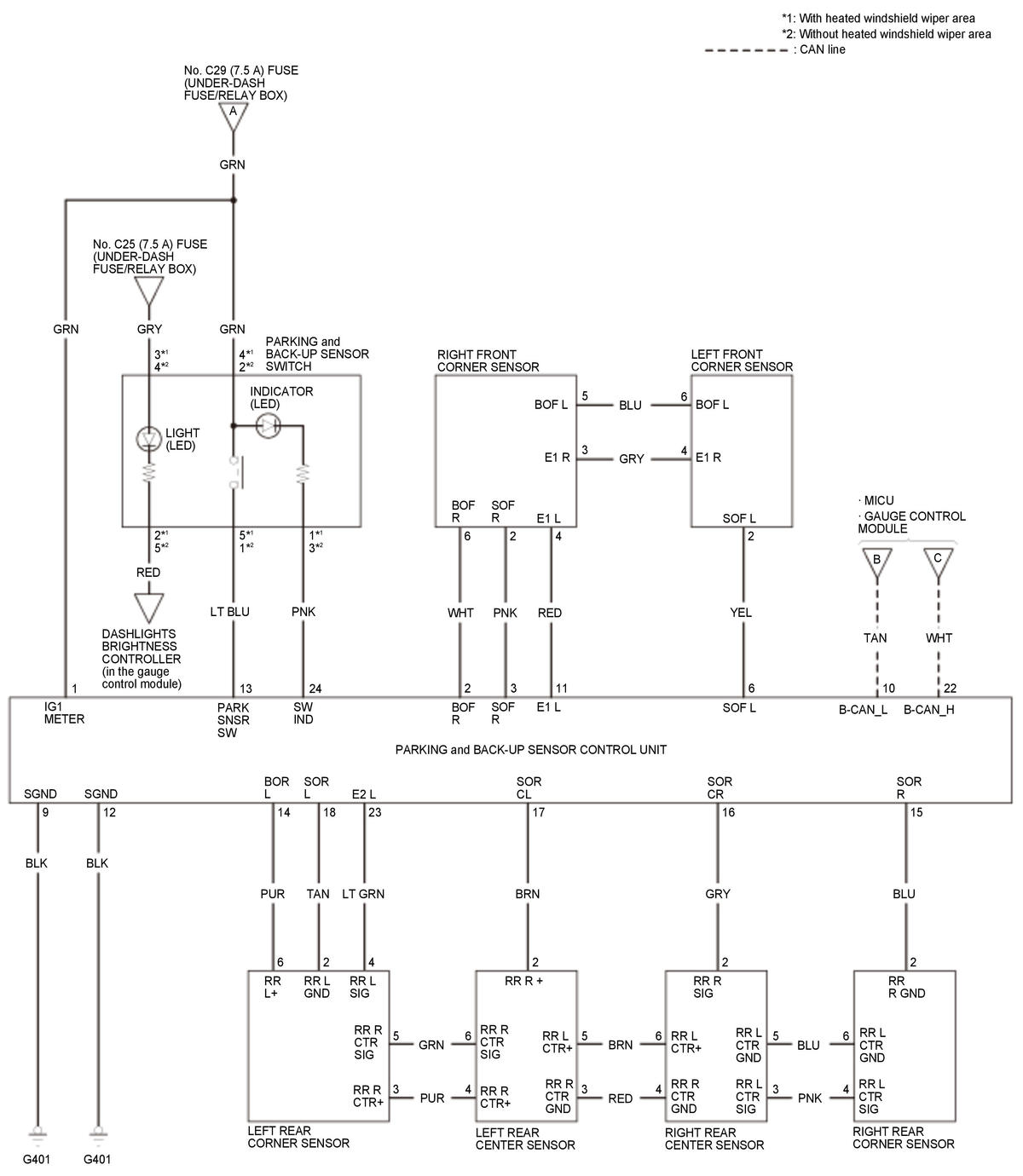

PARKING AND BACK-UP SENSOR SYSTEM (WITHOUT Auto Idle Stop System) (2016 2017 2018)
PARKING AND BACK-UP SENSOR SYSTEM (WITHOUT Auto Idle Stop System) (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
