Gauges / Meter - Testing & Troubleshooting
>>
Circuit Diagram
>>

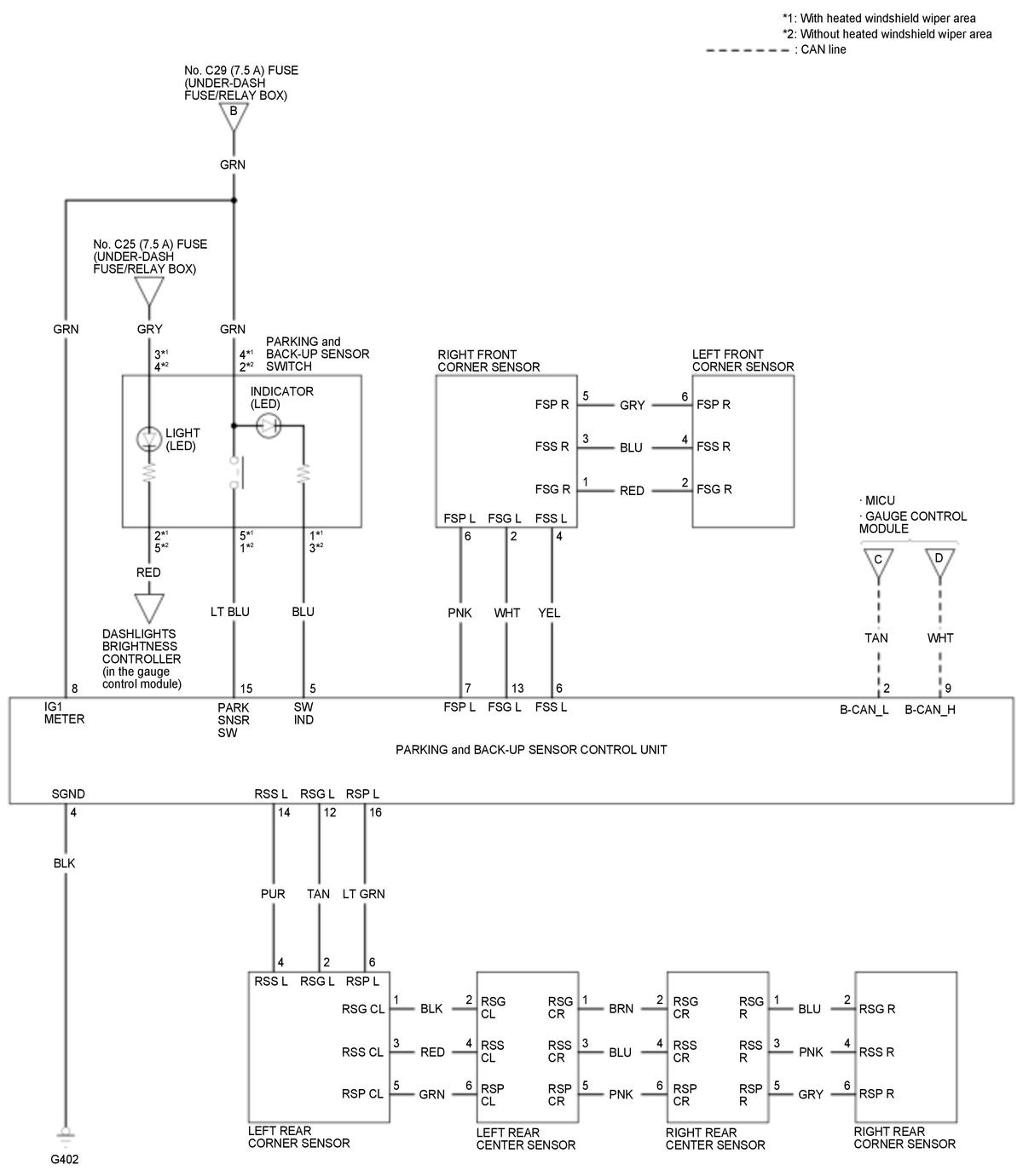

PARKING AND BACK-UP SENSOR SYSTEM (WITH Auto Idle Stop System) (2019 2020 2021)

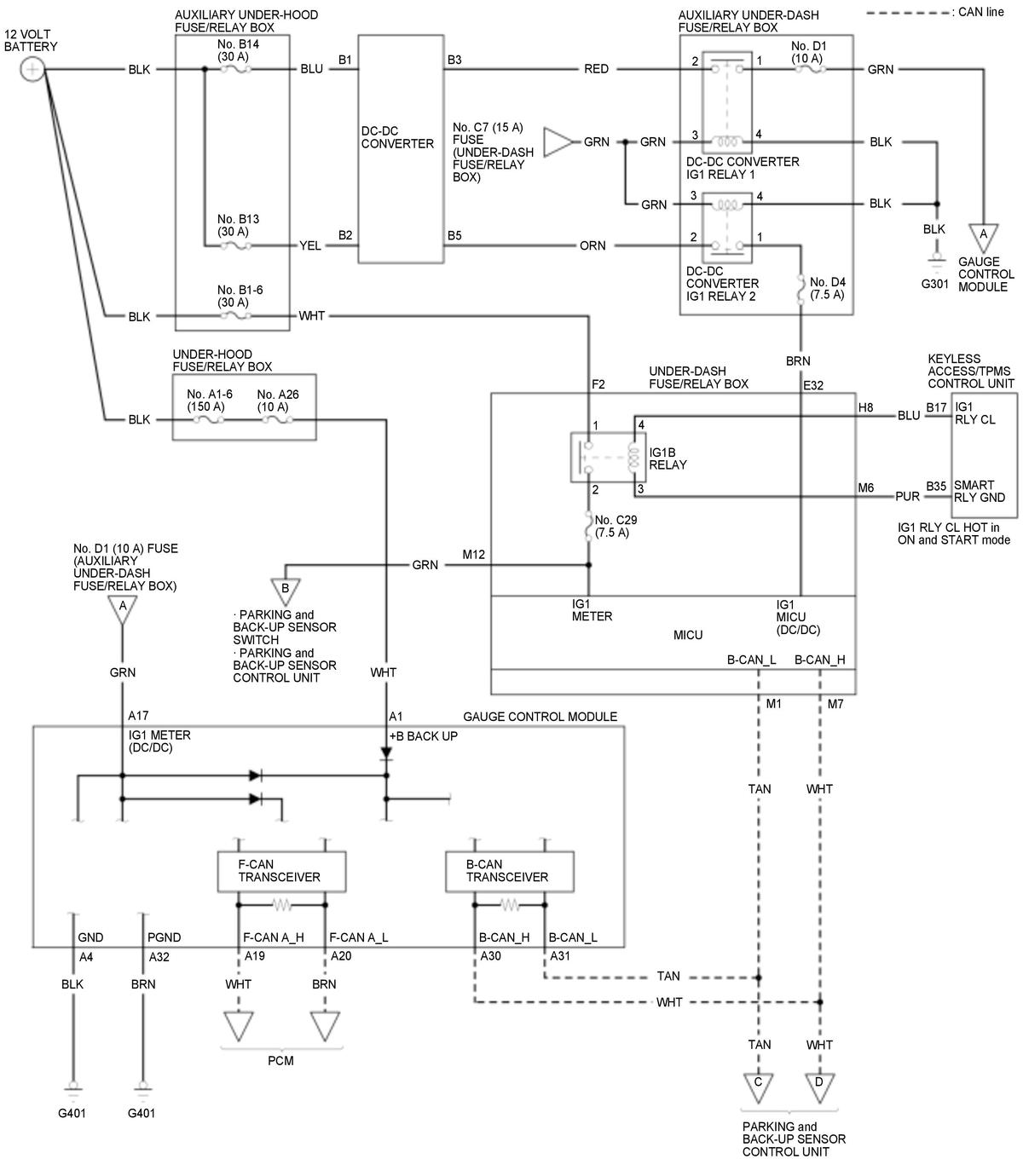

PARKING AND BACK-UP SENSOR SYSTEM (WITH Auto Idle Stop System) (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
