PADDLE SHIFTER (9-Speed A/T) (2019 2020 2021): Test

SRS components are located in this area. Review the SRS component locations -

Refer to:

Component Location Index (2016) or

SRS Component Location Index (2017 2018 2019 2020 2021) and

The Precautions And Procedures before doing repair or service.

1. Driver's Airbag - Remove
2. Paddle Shifter - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

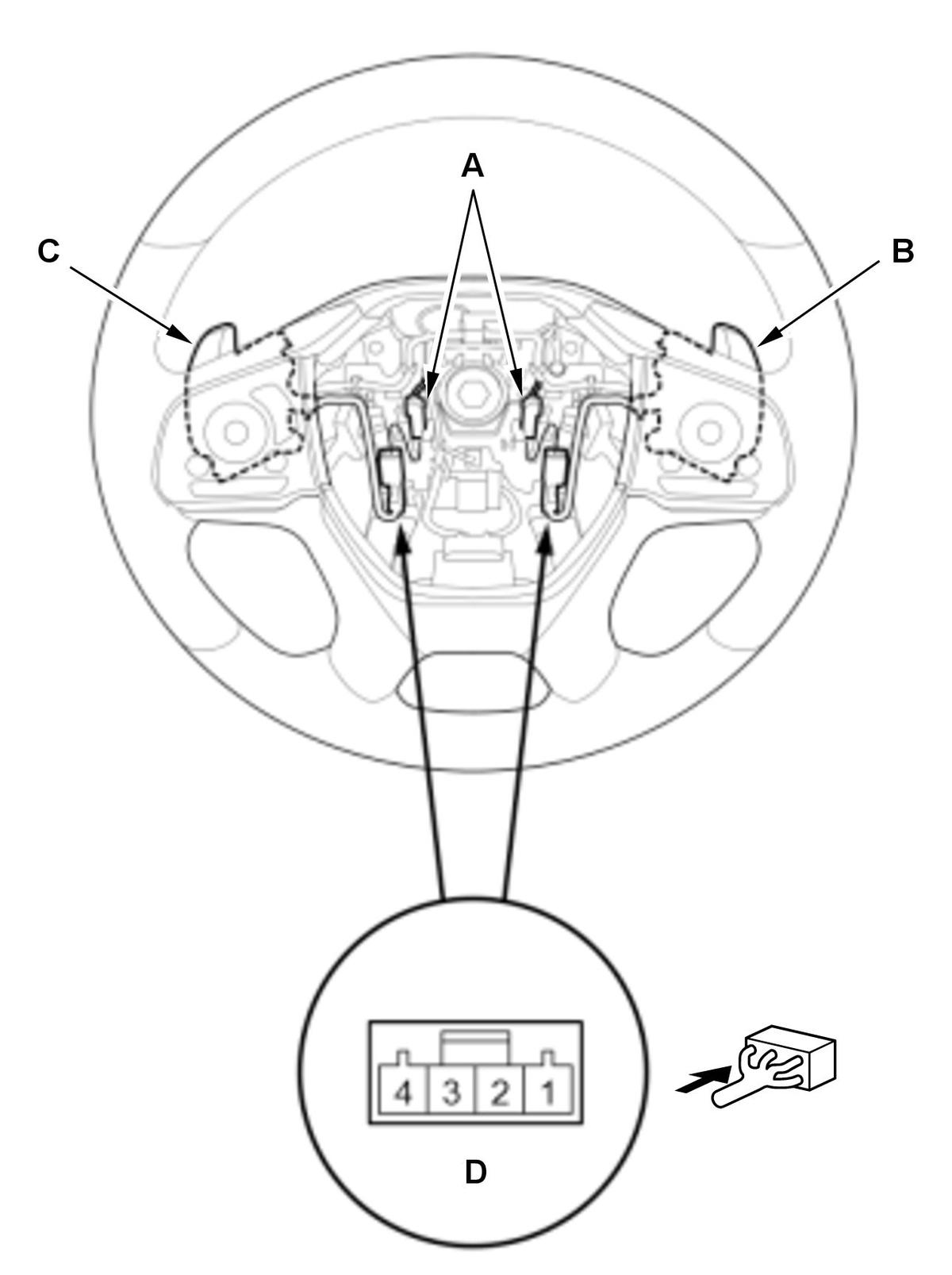

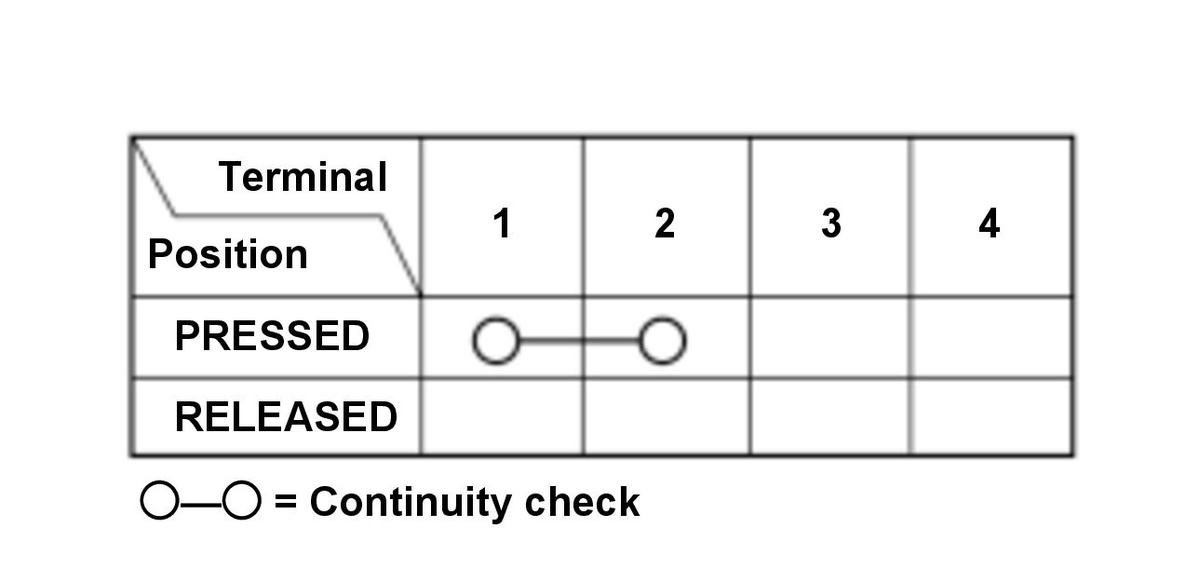

   1. Disconnect the connectors (A). 2. Test the paddle shifter + (upshift switch) (B) and the paddle shifter - (downshift switch) (C) by checking for continuity between connector (male terminals) (D) terminals No. 1 and No. 2 according to the table. 3. If the result is not as specified, replace the paddle shifter + (upshift switch) and/or the paddle shifter - (downshift switch).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
