Home >> Honda >> 2021 >> Pilot Special Edition, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Gauges / Meter - Service Information >> Removal And Installation, Test >> PADDLE SHIFTER (9-Speed A/T) (2019 2020 2021) >> Removal and Installation >> Procedure

Removal and Installation: Procedure

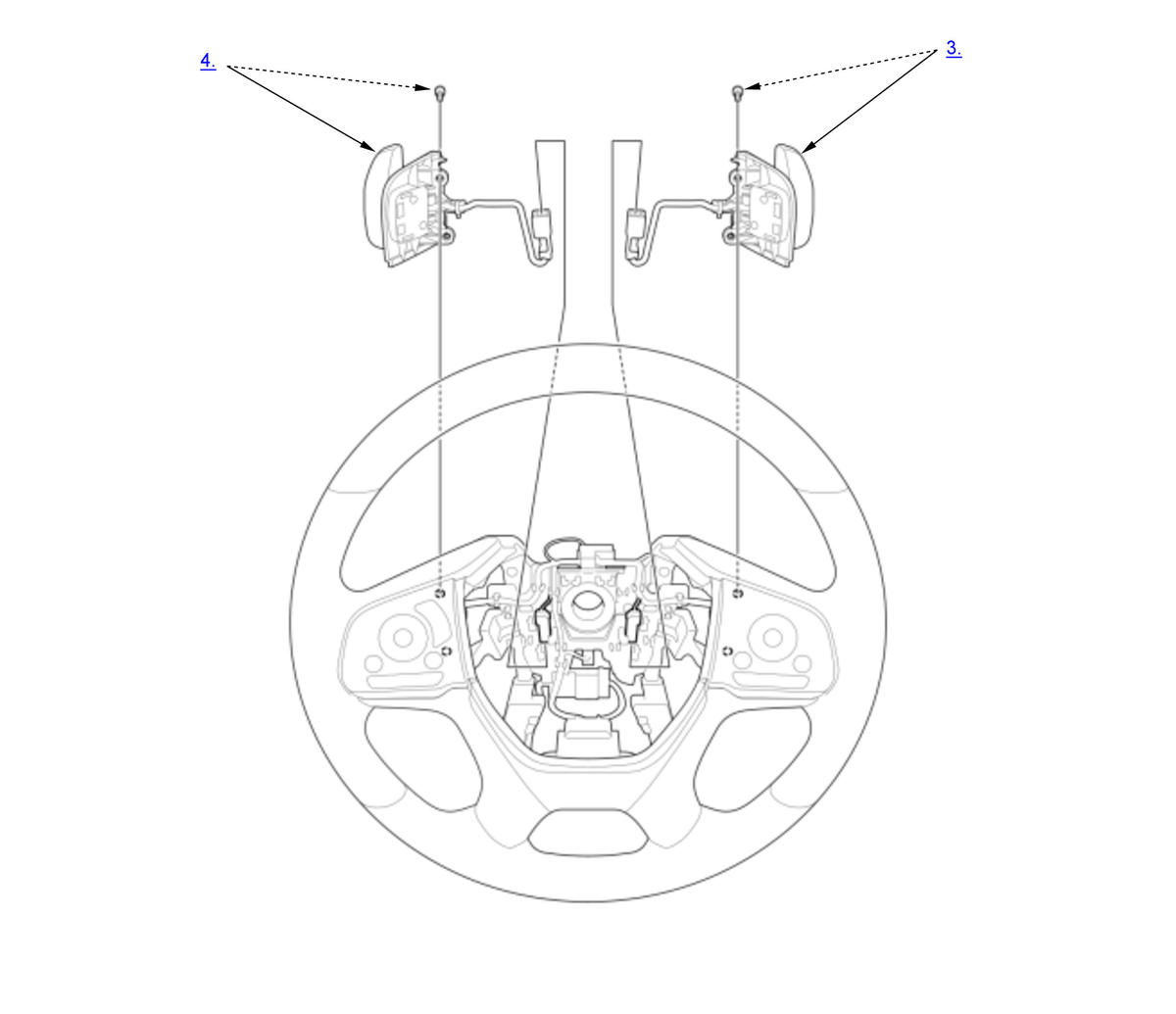

GHH309739Courtesy of HONDA, U.S.A., INC.
  1. Steering Wheel - Remove - Steering Wheel Removal and Installation (2019 2020 2021)
  2. Steering Wheel Body Cover - Remove - Steering Wheel Disassembly and Reassembly (2019 2020 2021)
  3. Paddle Shifter + (Upshift Switch) - Remove
  4. Paddle Shifter - (Downshift Switch) - Remove
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  6. VSA Sensor Neutral Position - Memorize
