How to Clear DTCs with the HDS

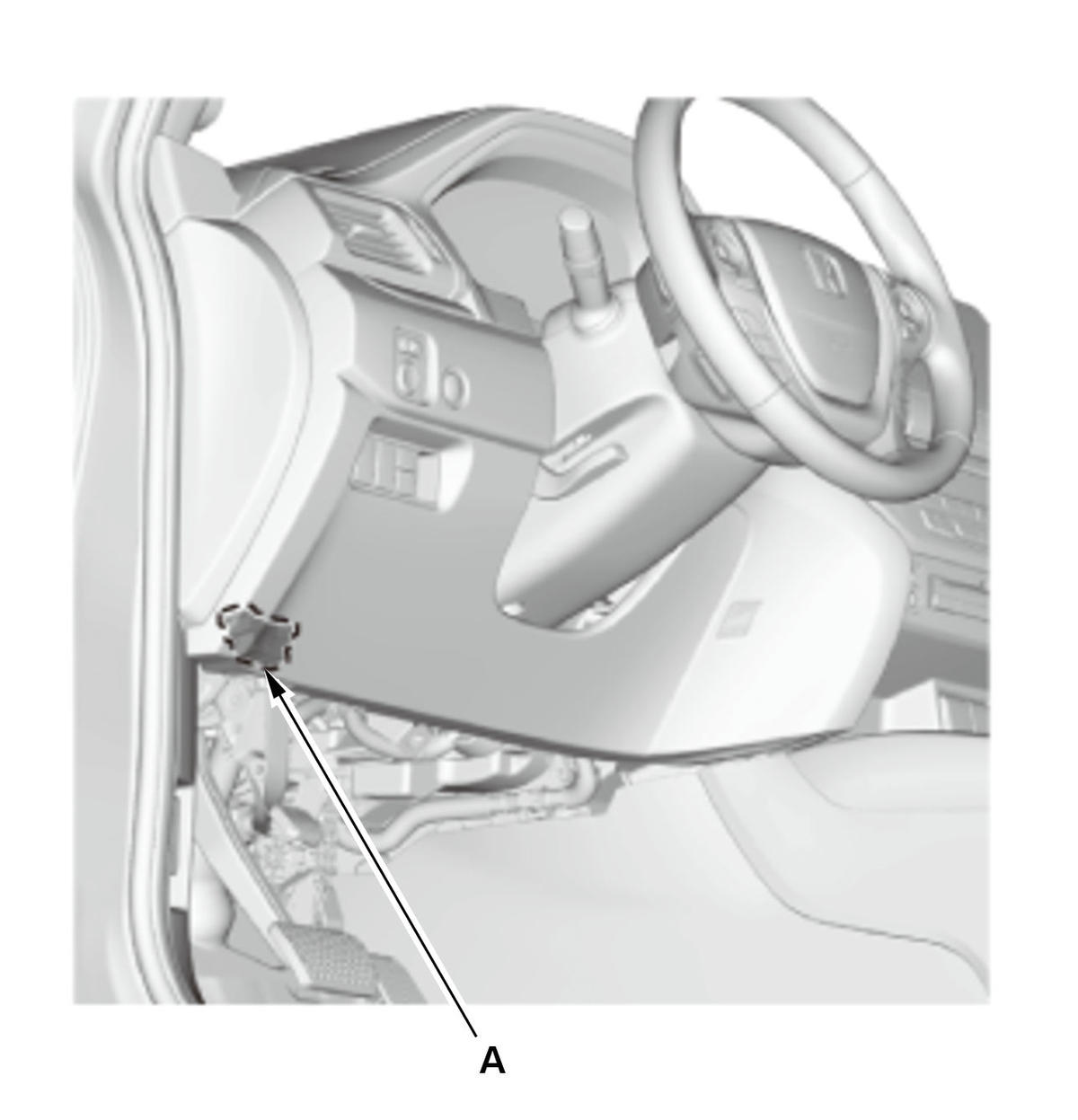

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

Courtesy of HONDA, U.S.A., INC.

2. Turn the vehicle to the ON mode.

3. Clear the DTCs with the HDS.

4. Turn the vehicle to the OFF (LOCK) mode, and disconnect the HDS from the DLC.
