Wire Harness And Ground Locations (2019 2020 2021)

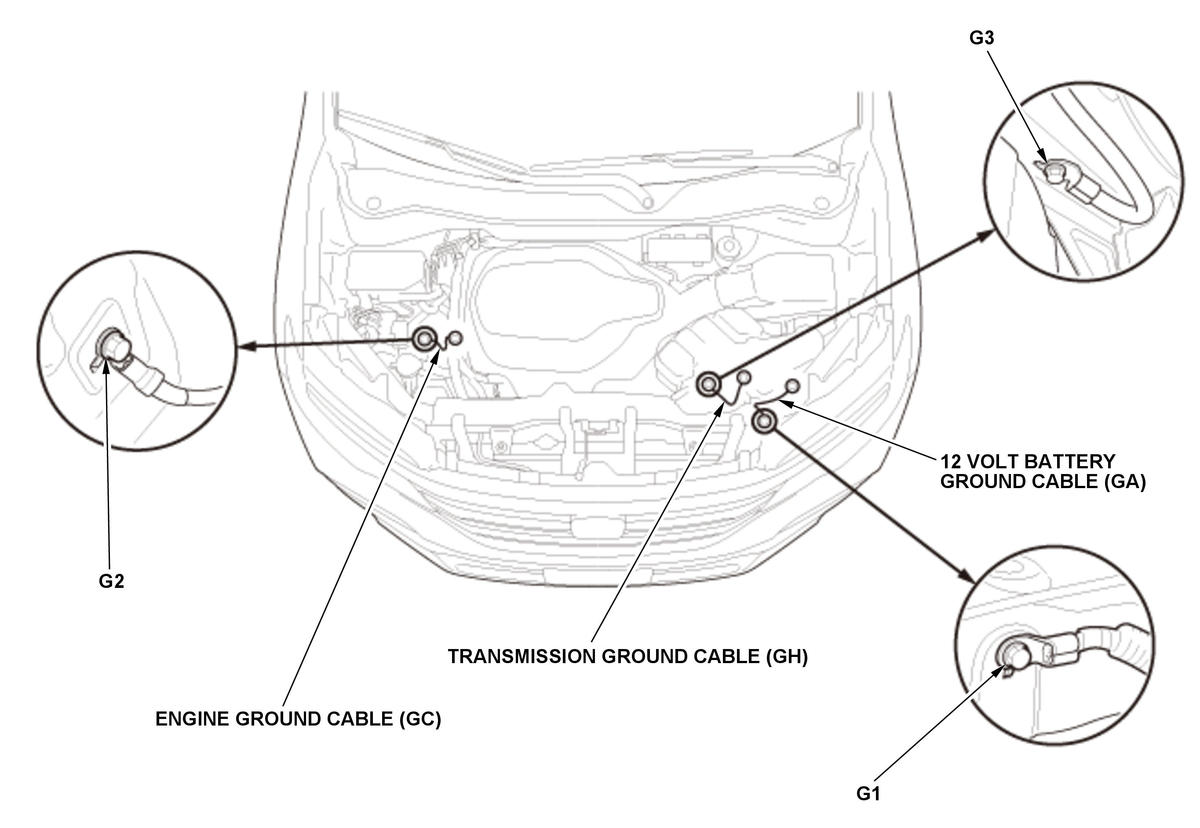

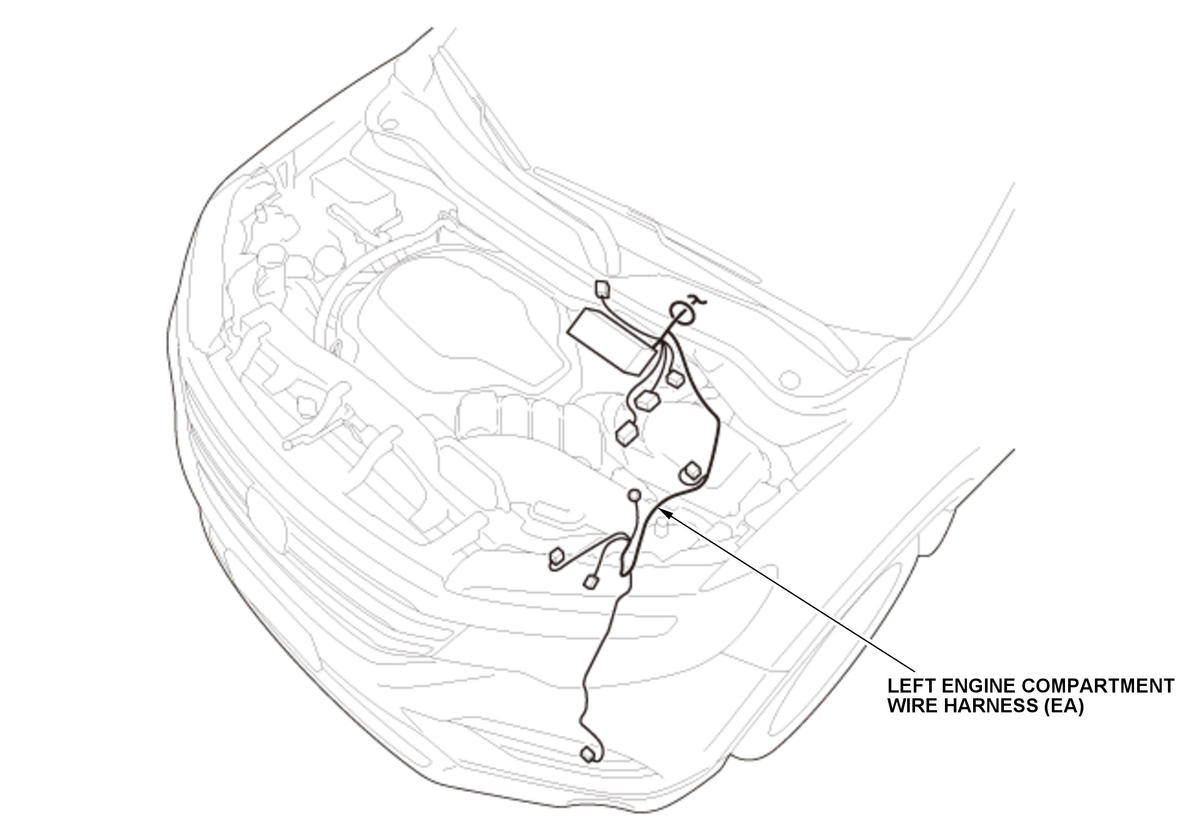

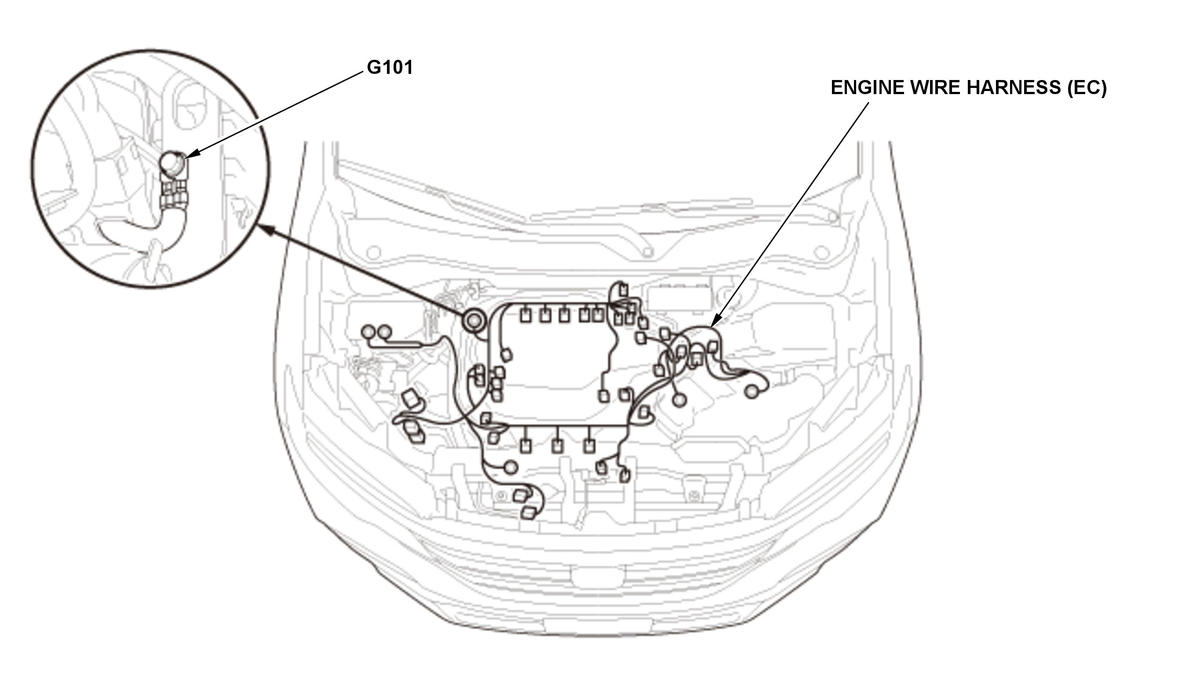

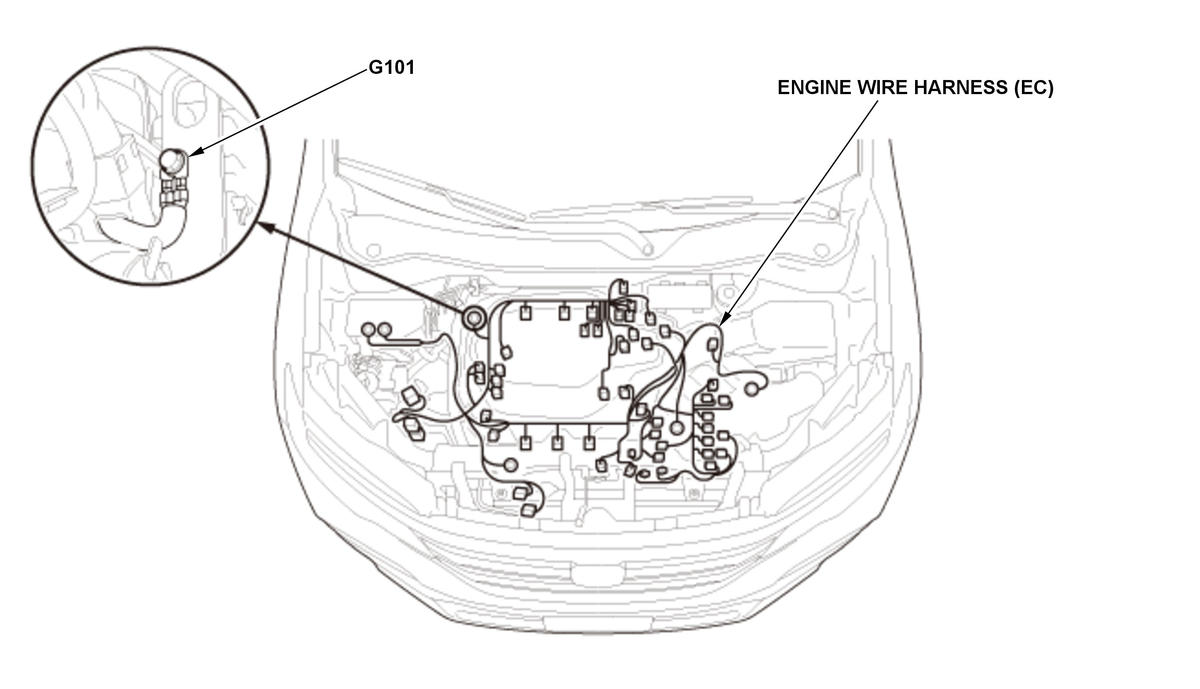

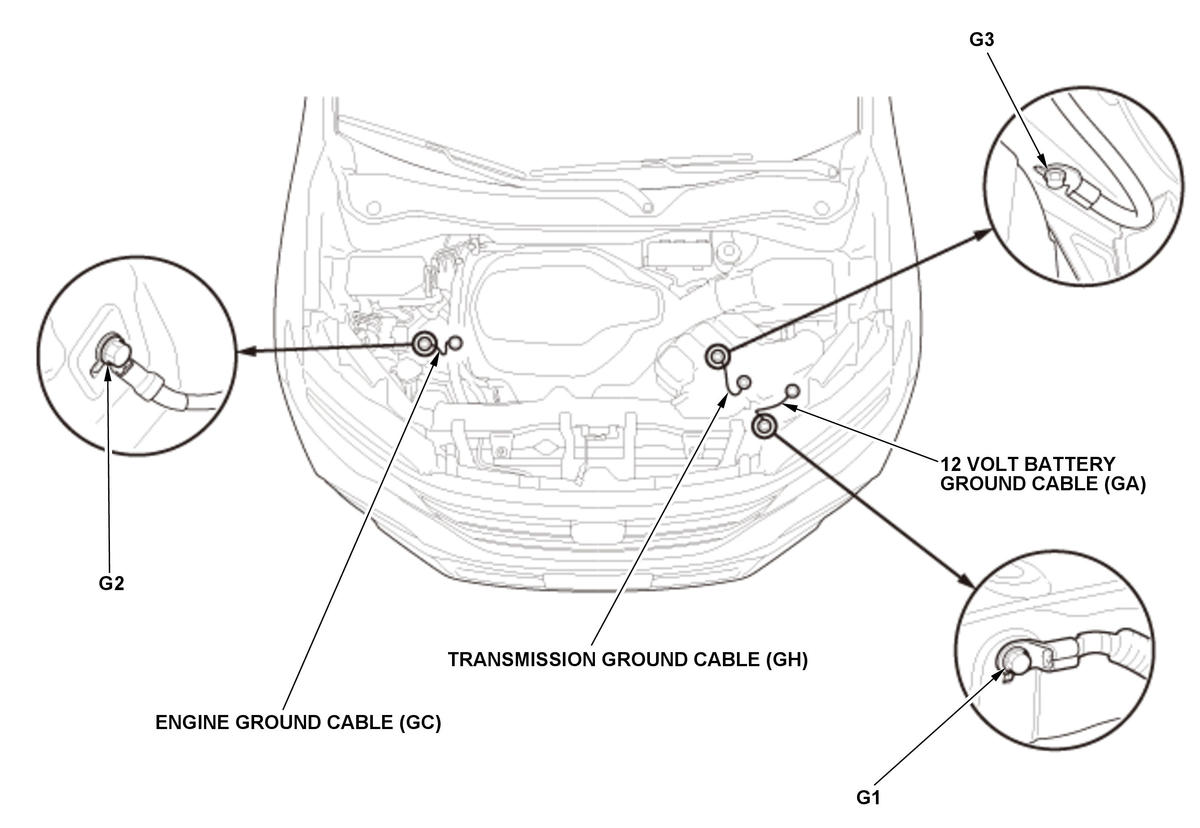

Engine Compartment - 1/9 6-Speed A/T

Courtesy of HONDA, U.S.A., INC.

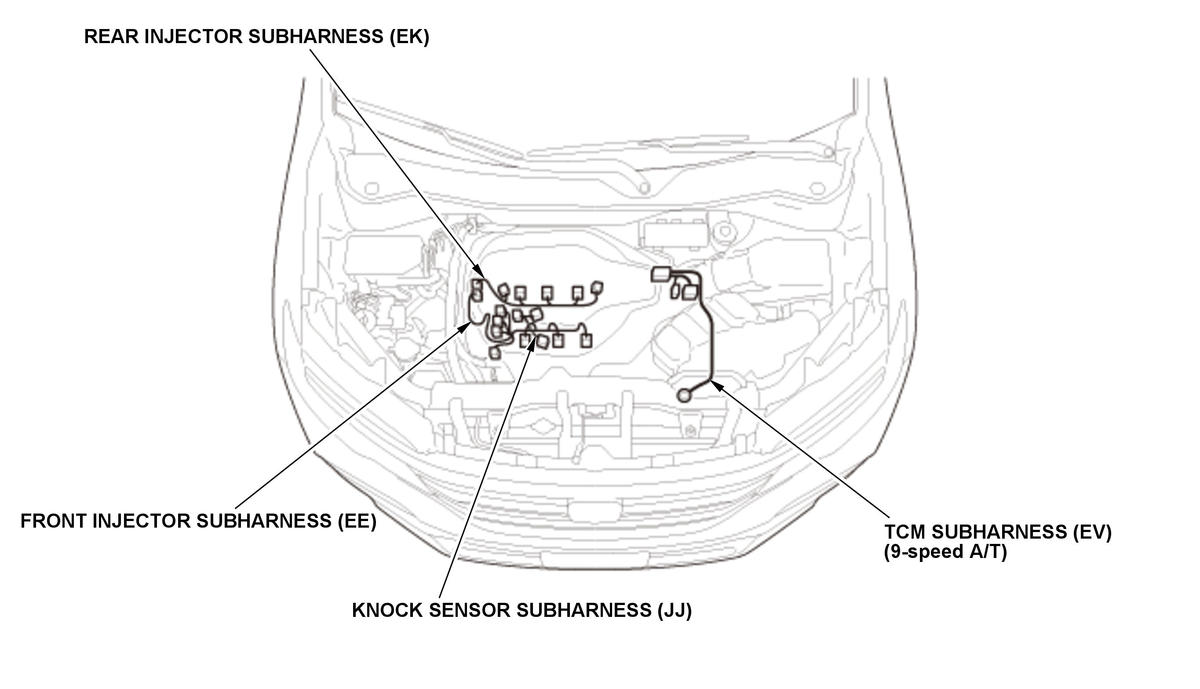

Engine Compartment - 2/9 9-Speed A/T

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 3/9 6-Speed A/T

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 4/9 9-Speed A/T

Courtesy of HONDA, U.S.A., INC.

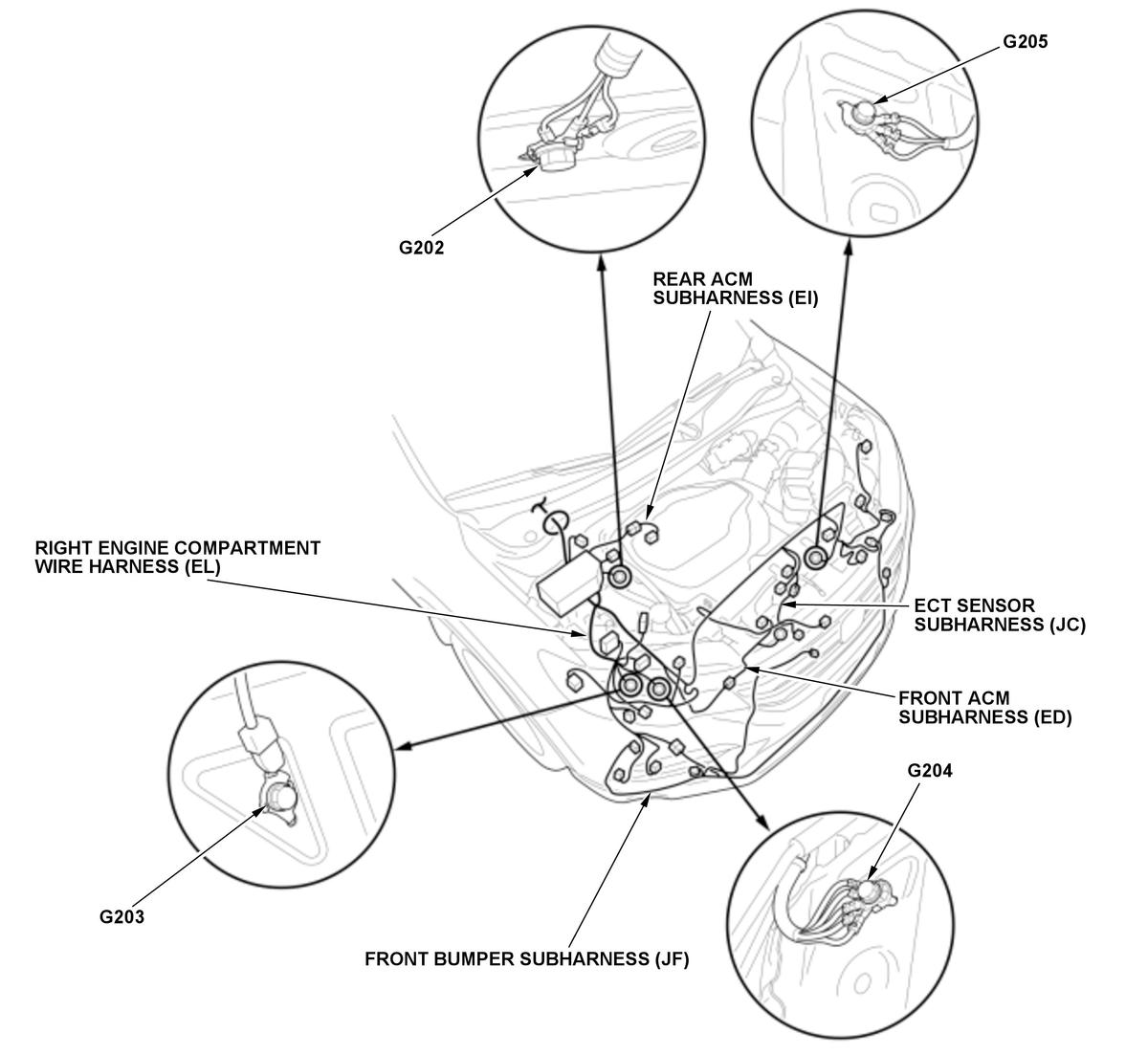

Engine Compartment - 5/9

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 6/9

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 7/9

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 8/9

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 9/9

Courtesy of HONDA, U.S.A., INC.

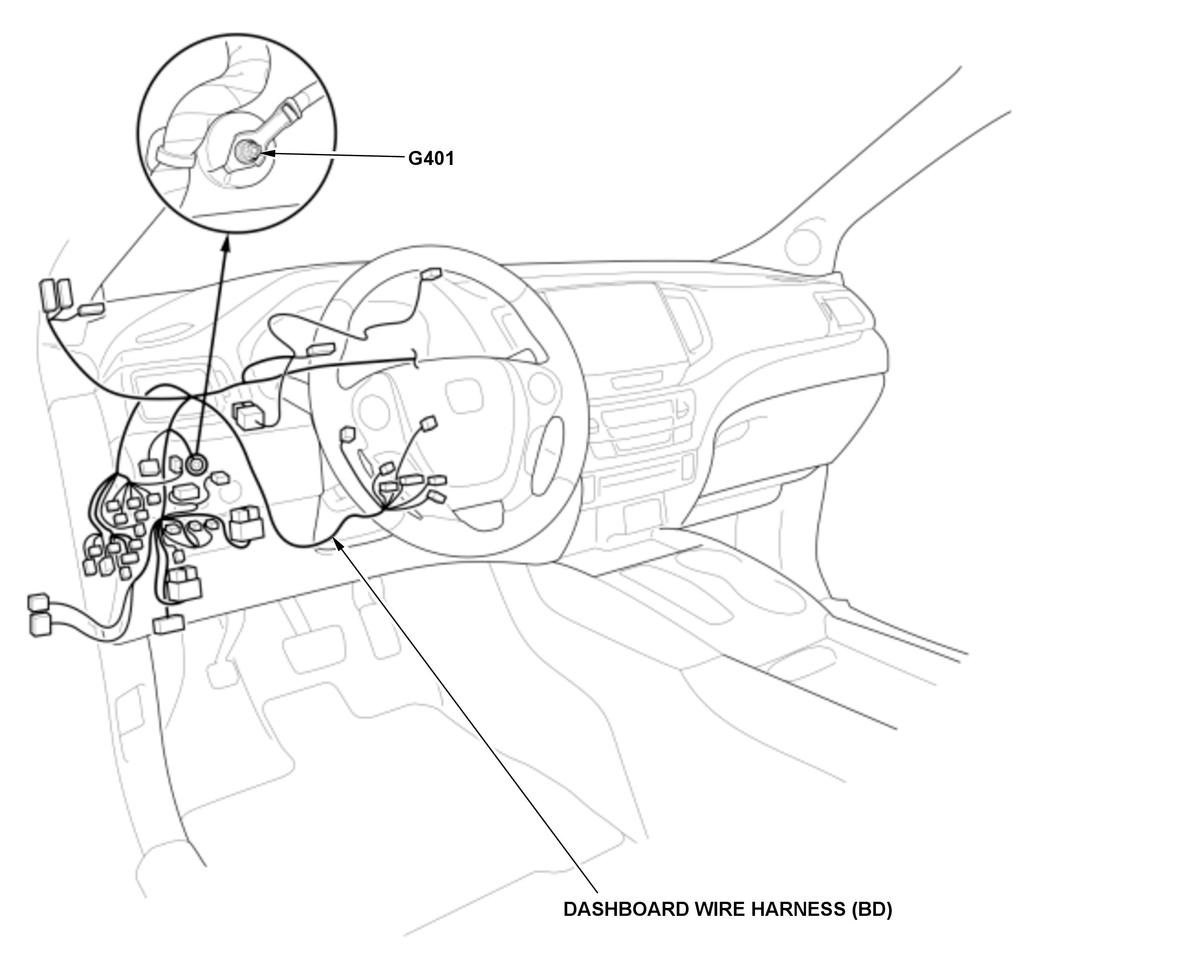

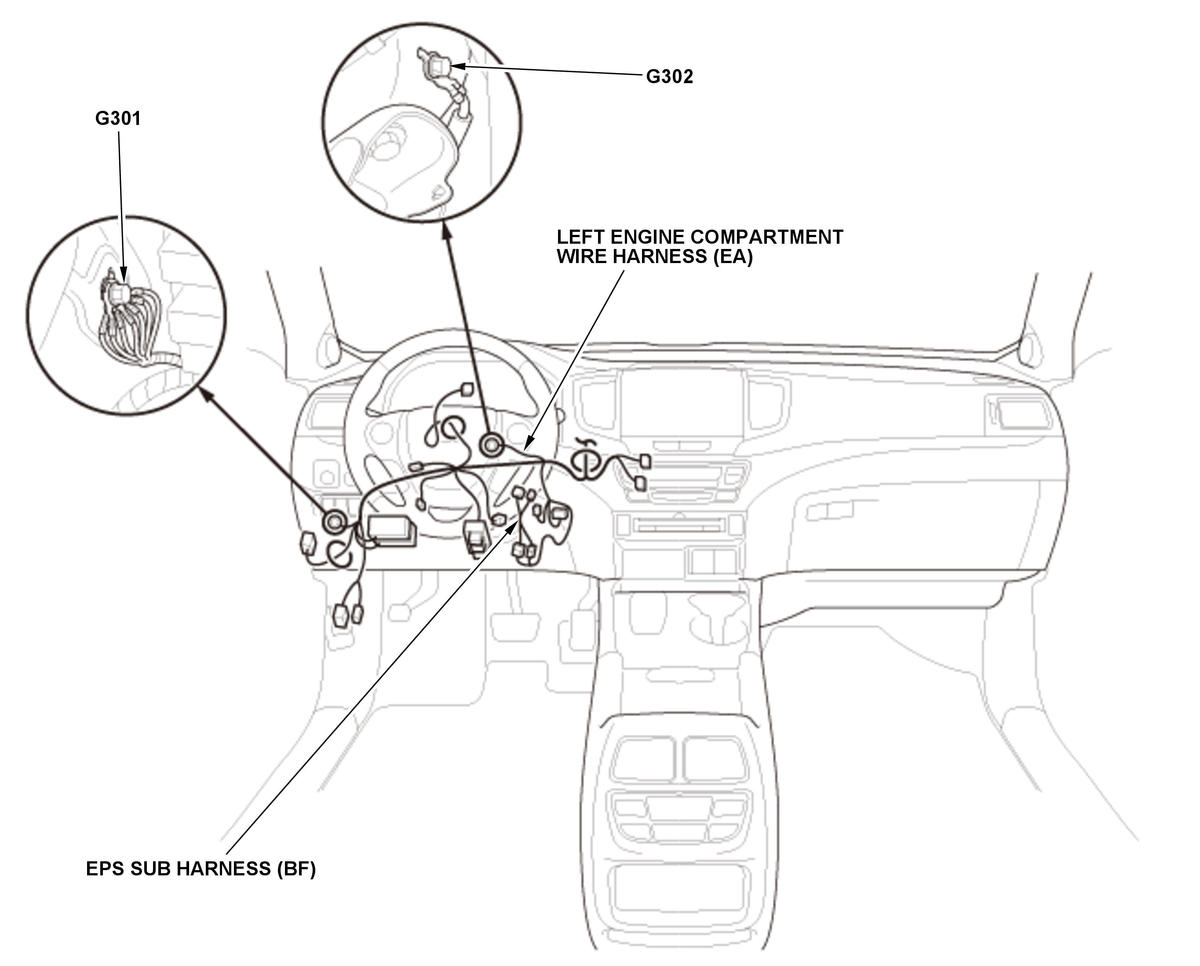

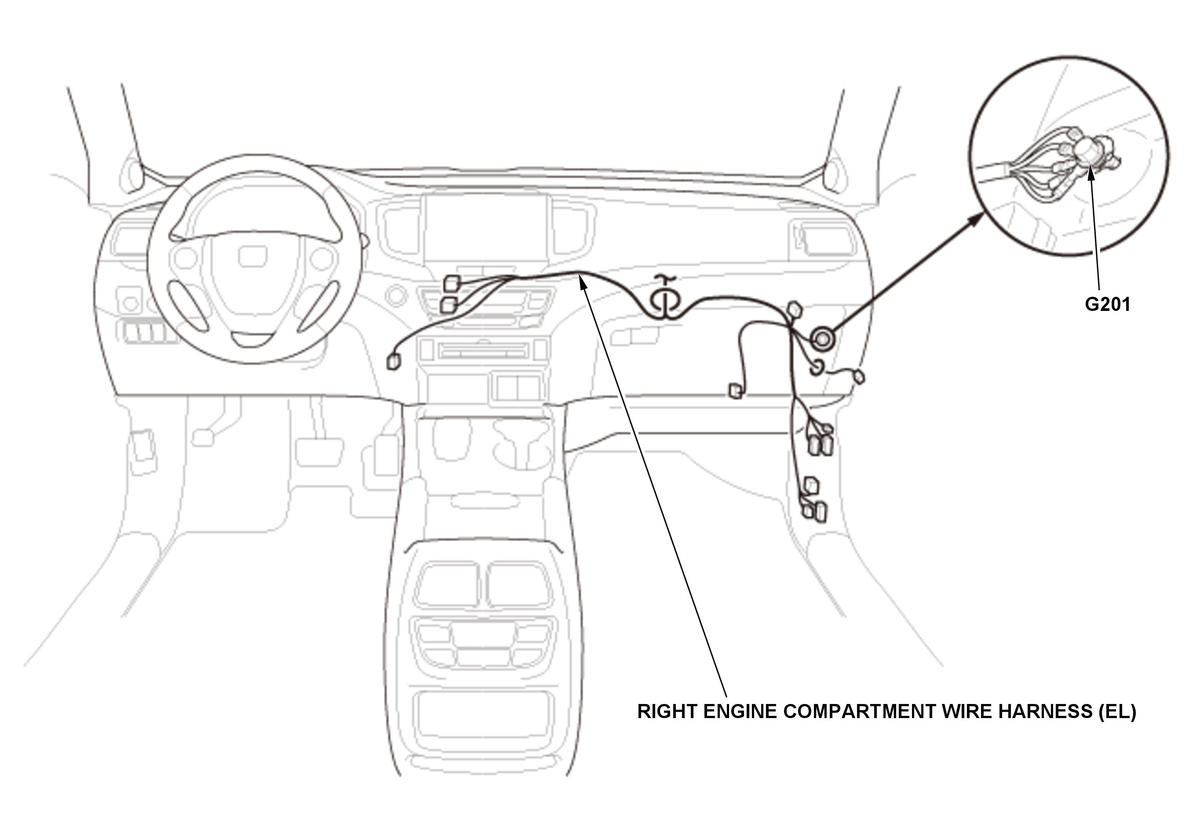

Dashboard - 1/4

Courtesy of HONDA, U.S.A., INC.

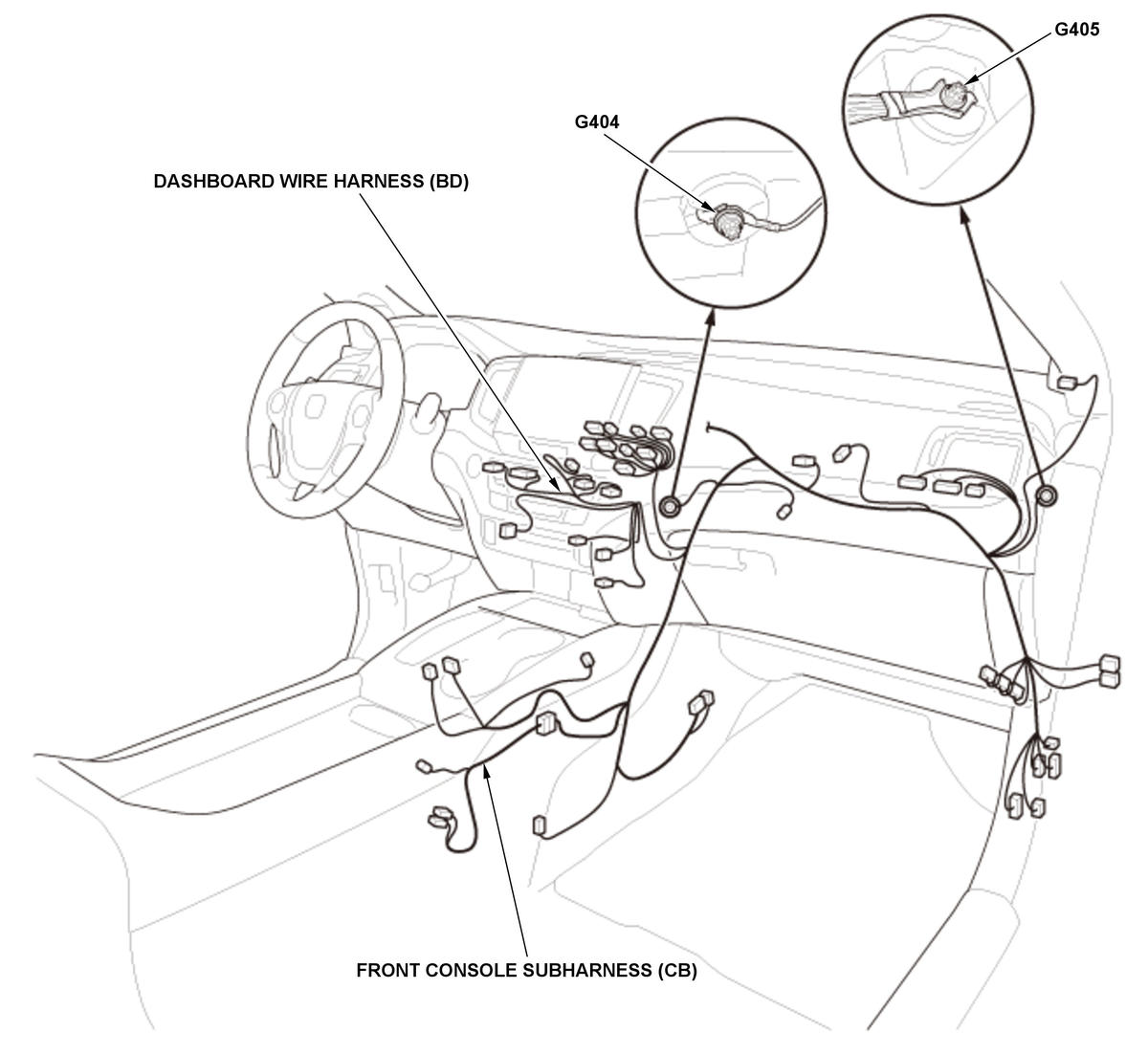

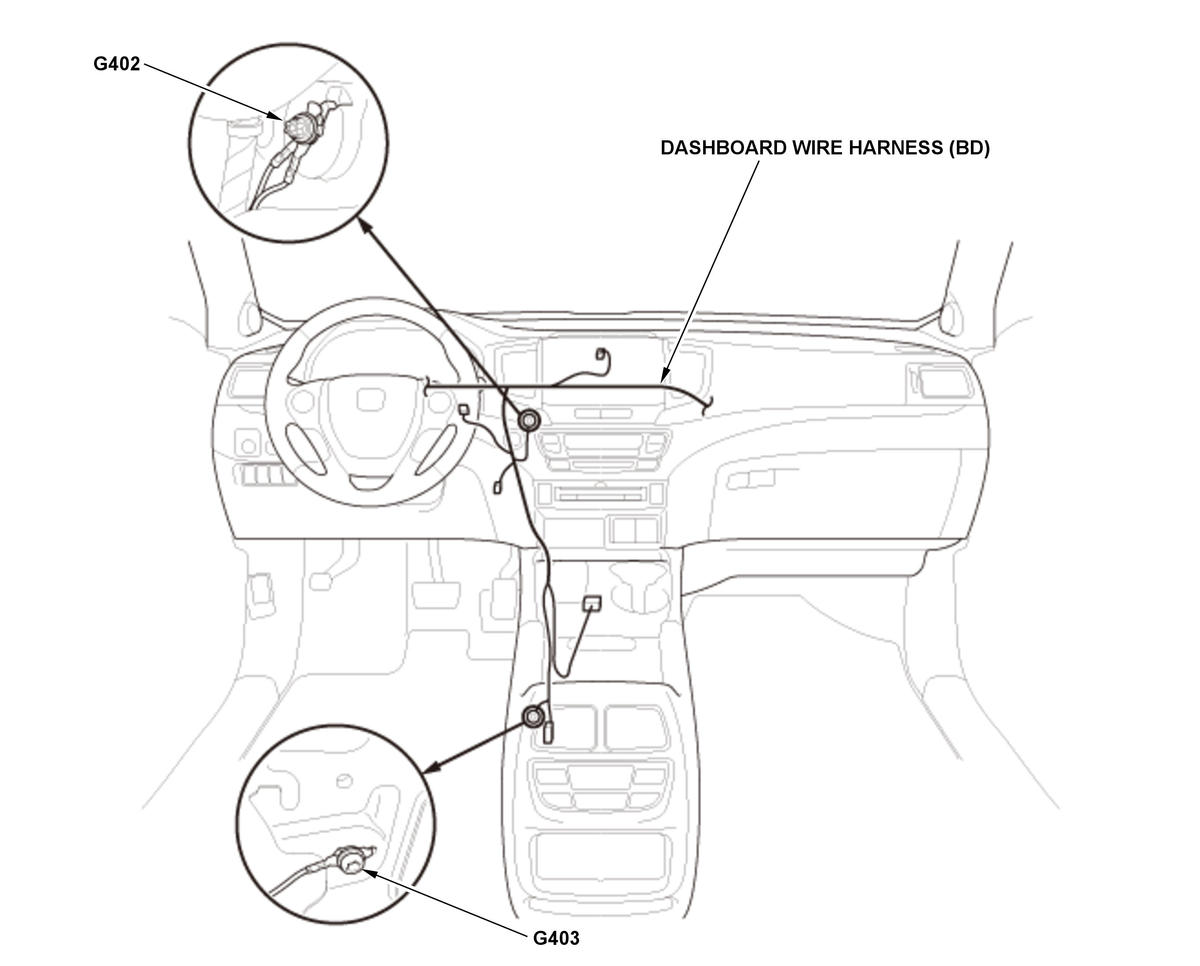

Dashboard - 2/4

Courtesy of HONDA, U.S.A., INC.

Dashboard - 3/4

Courtesy of HONDA, U.S.A., INC.

Dashboard - 4/4

Courtesy of HONDA, U.S.A., INC.

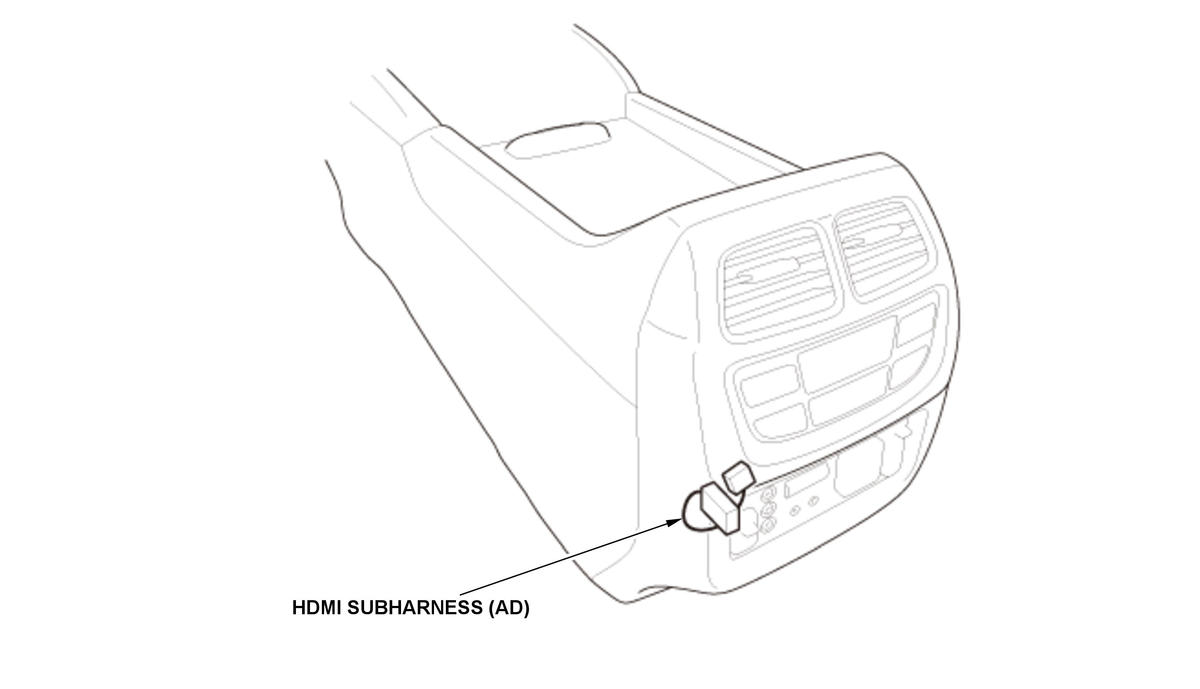

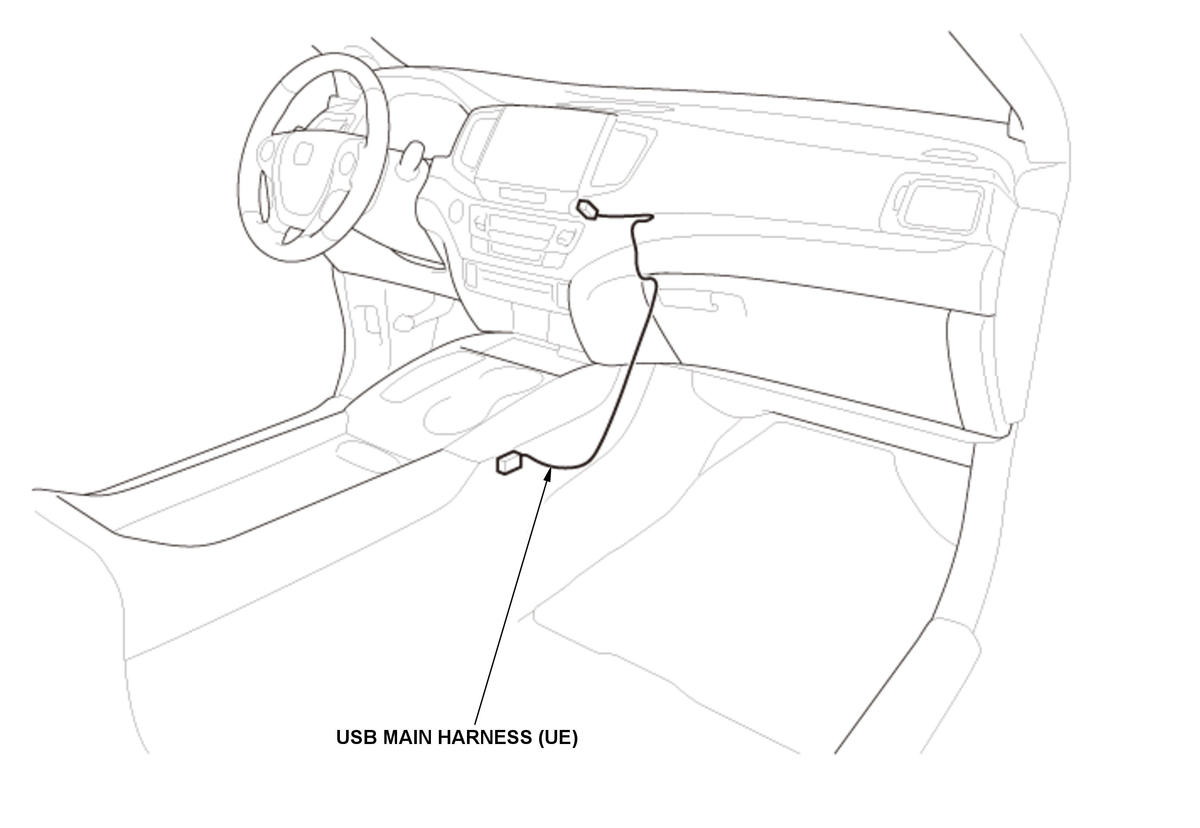

Console

Courtesy of HONDA, U.S.A., INC.

Roof - 1/4 With panoramic glass roof

Courtesy of HONDA, U.S.A., INC.

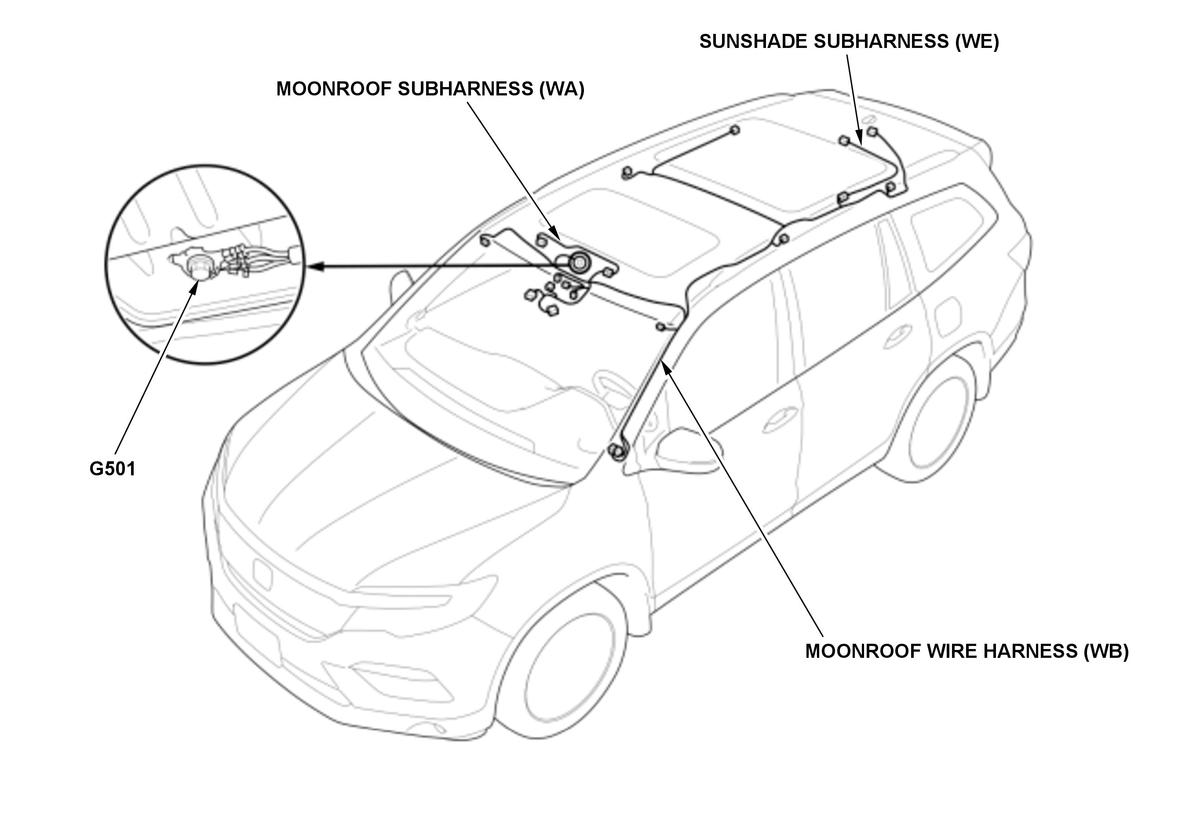

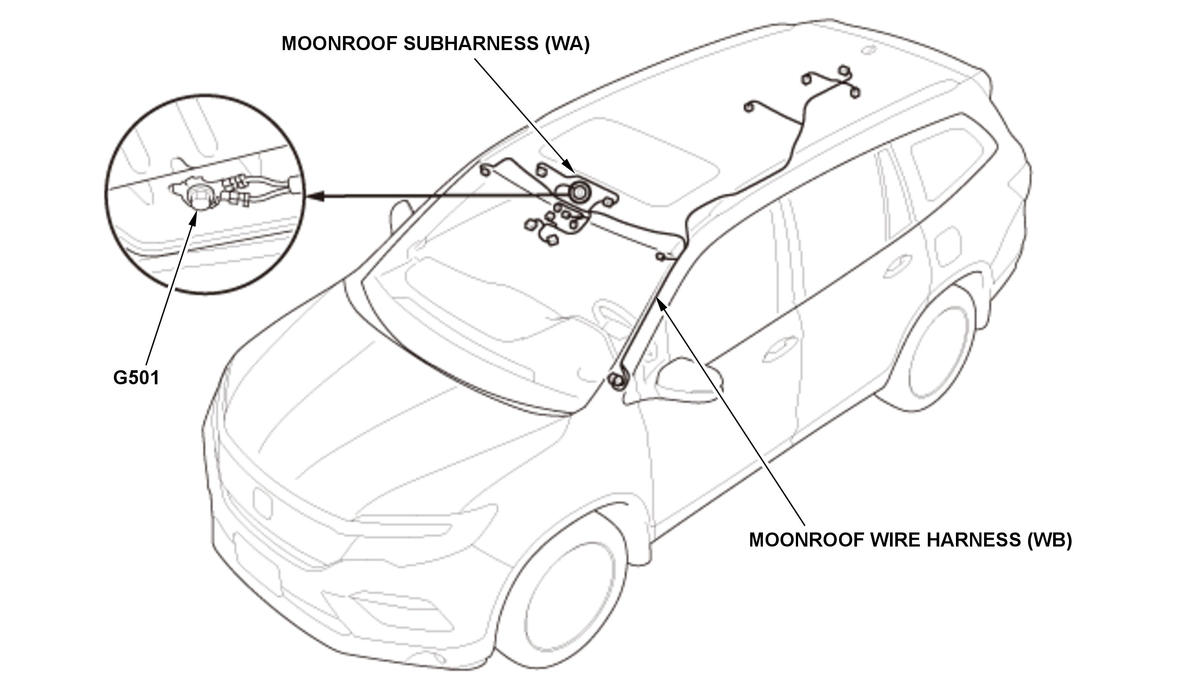

Roof - 2/4 With moonroof

Courtesy of HONDA, U.S.A., INC.

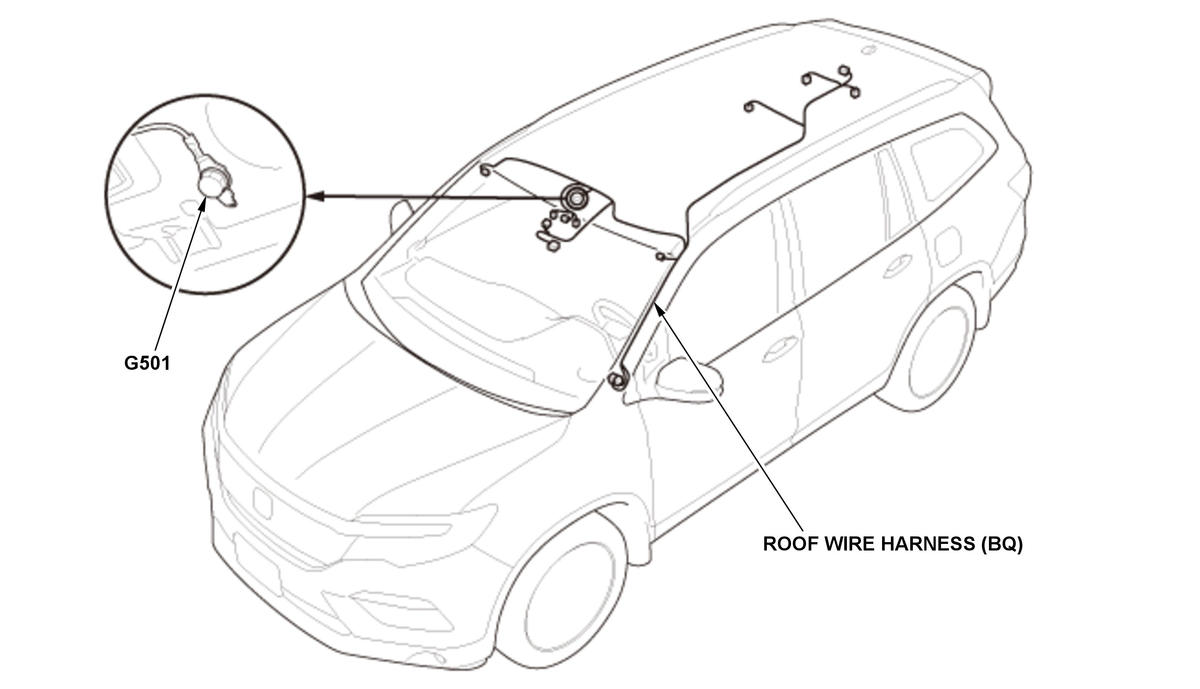

Roof - 3/4 Without moonroof

Courtesy of HONDA, U.S.A., INC.

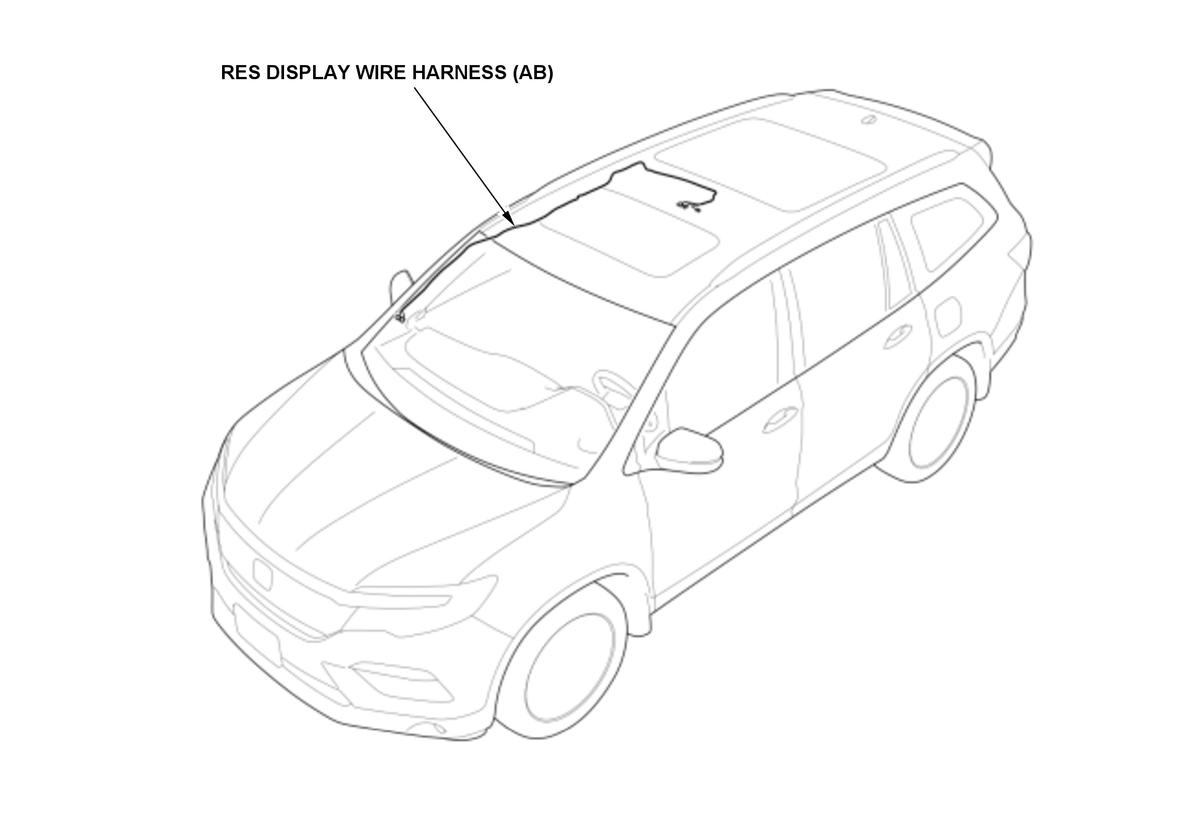

Roof - 4/4 With rear entertainment system

Courtesy of HONDA, U.S.A., INC.

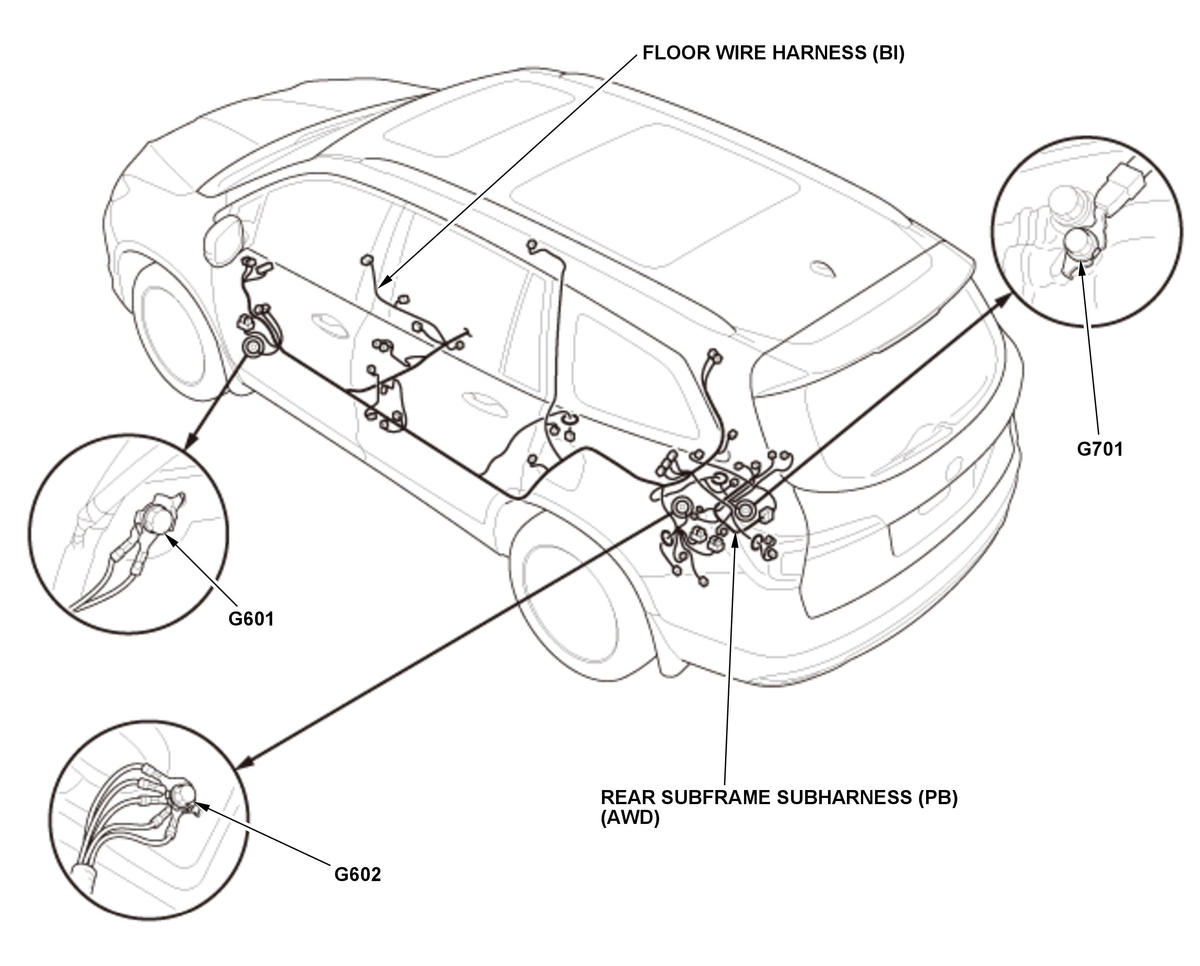

Floor - 1/2

Courtesy of HONDA, U.S.A., INC.

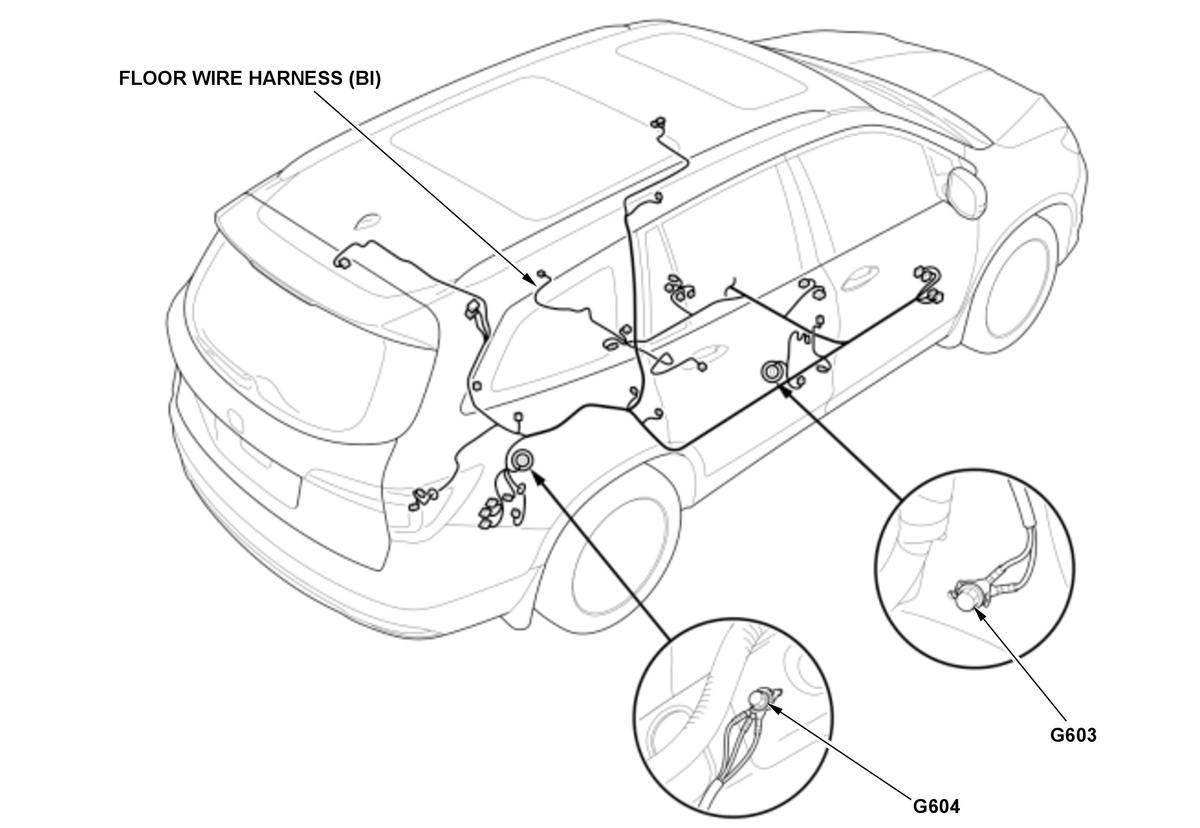

Floor - 2/2

Courtesy of HONDA, U.S.A., INC.

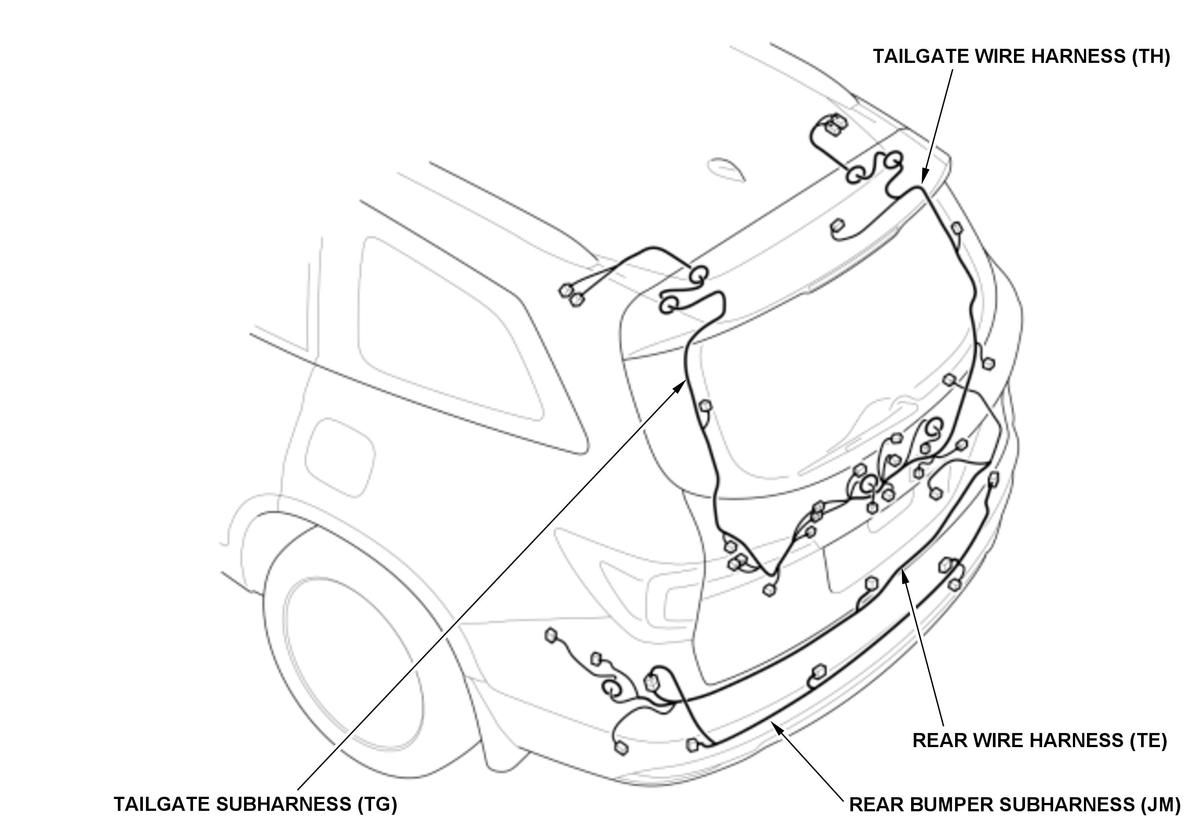

Rear - 1/2 With power tailgate

Courtesy of HONDA, U.S.A., INC.

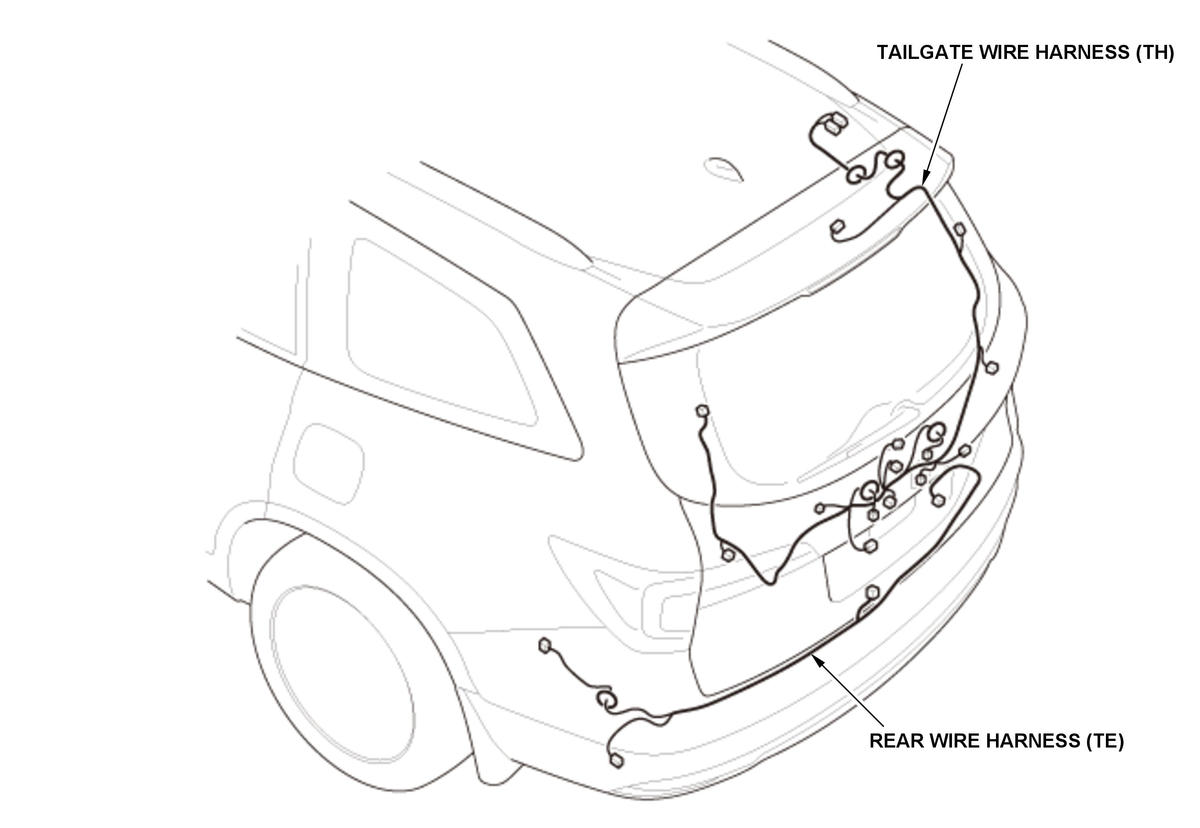

Rear - 2/2 Without power tailgate

Courtesy of HONDA, U.S.A., INC.

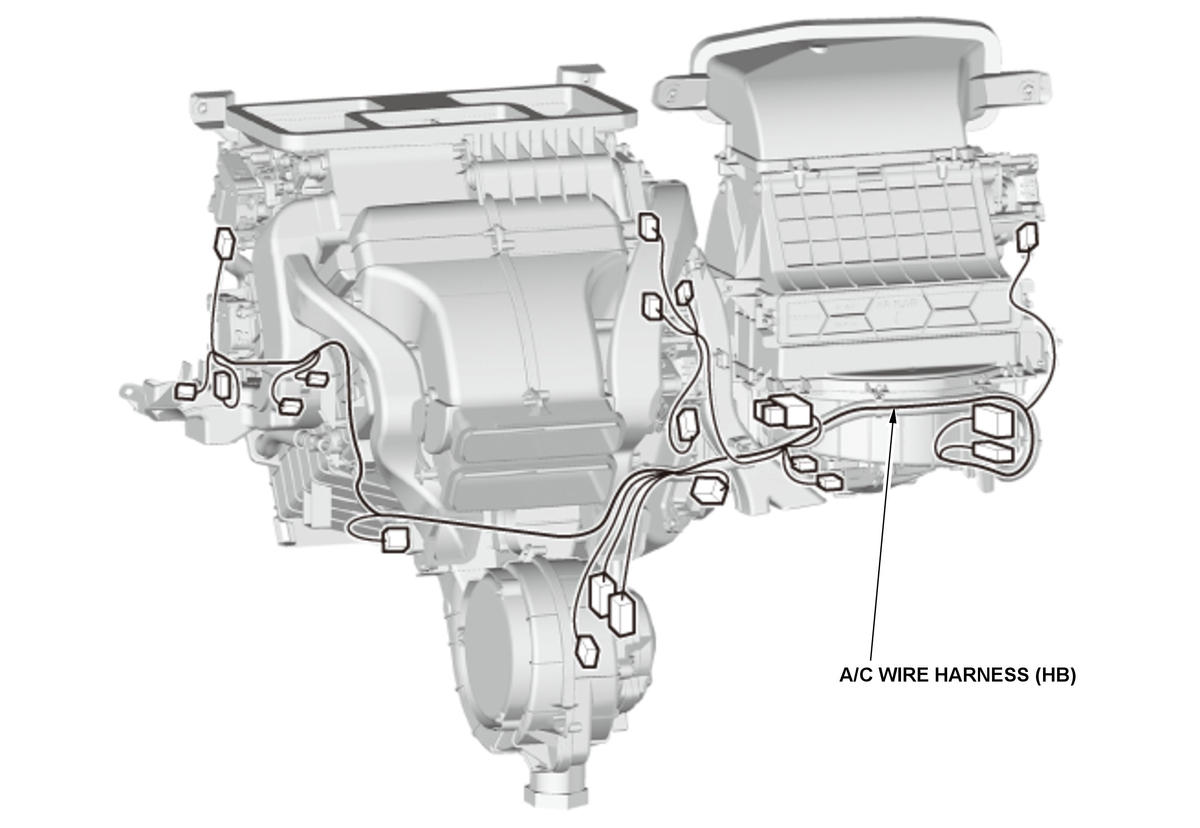

Blower

Courtesy of HONDA, U.S.A., INC.

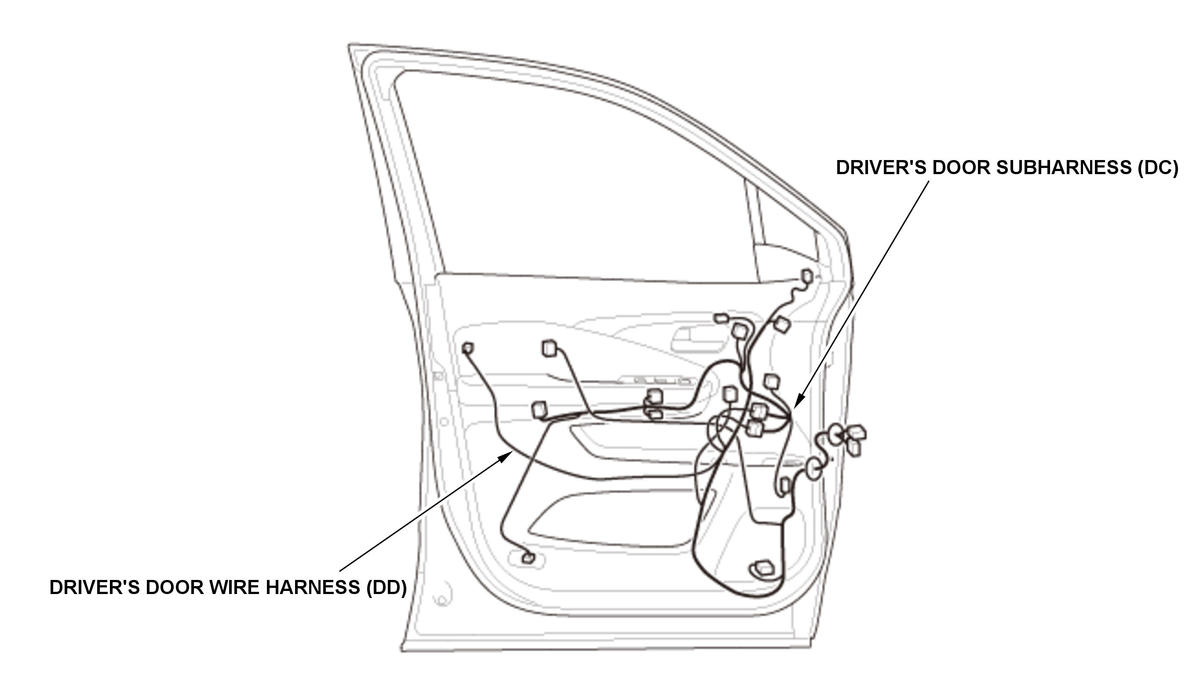

Door - 1/4 (Driver's)

Courtesy of HONDA, U.S.A., INC.

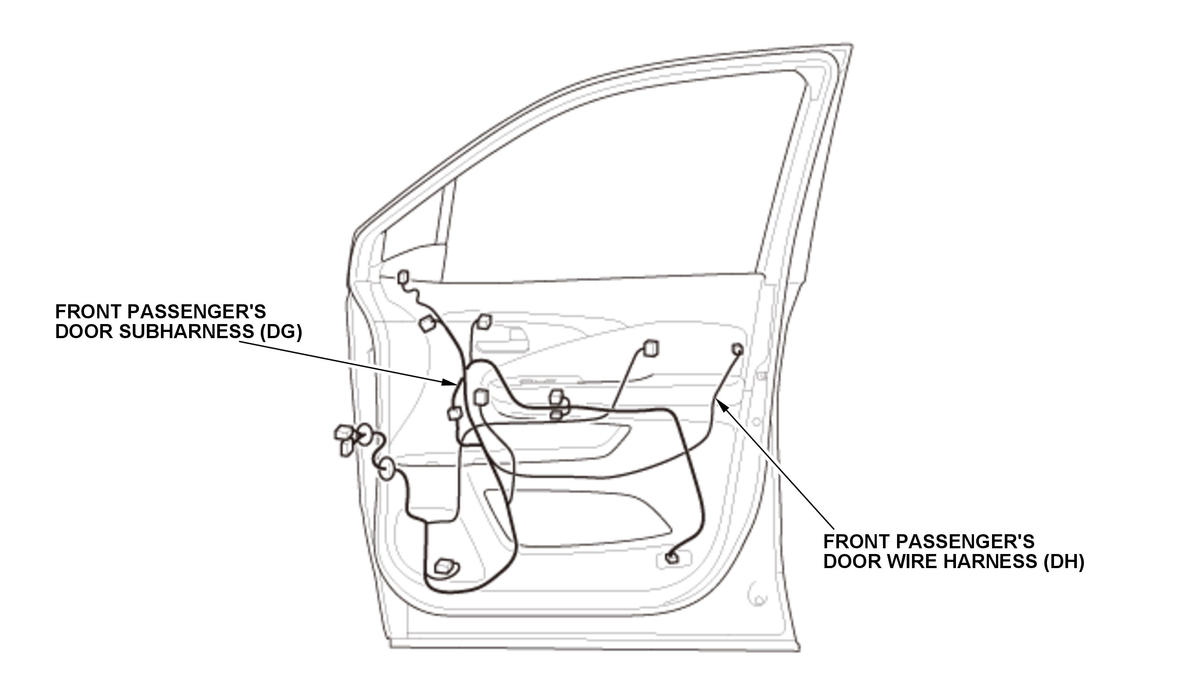

Door - 2/4 (Front passenger's)

Courtesy of HONDA, U.S.A., INC.

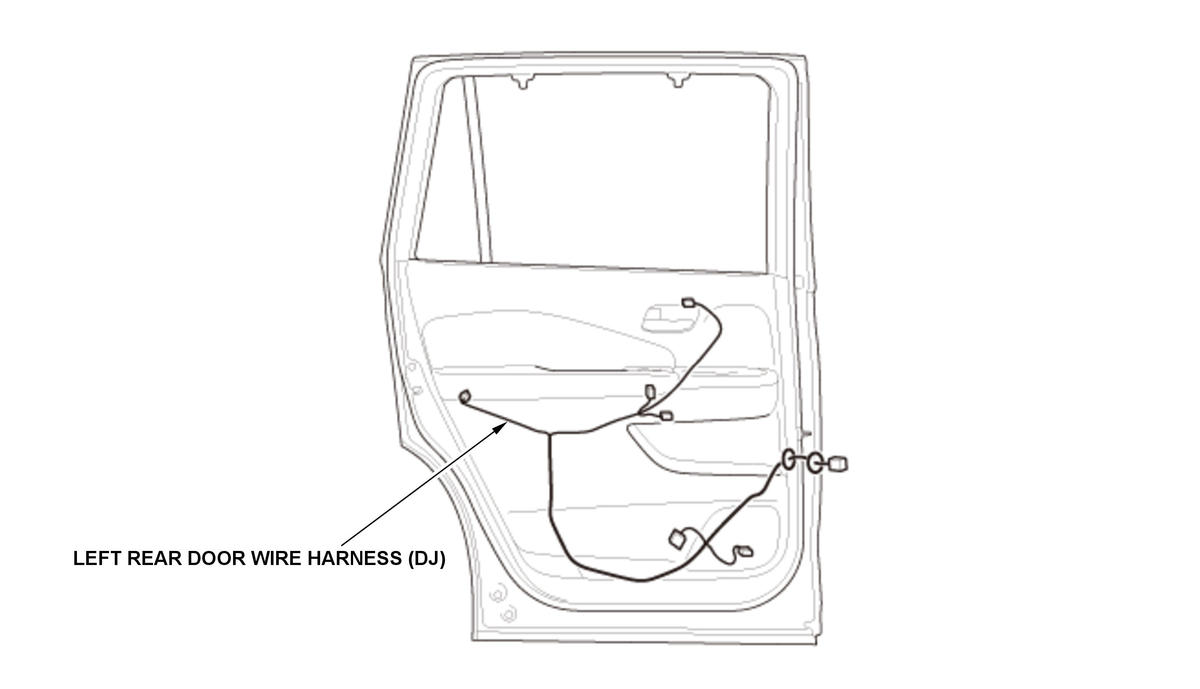

Door - 3/4 (Left rear)

Courtesy of HONDA, U.S.A., INC.

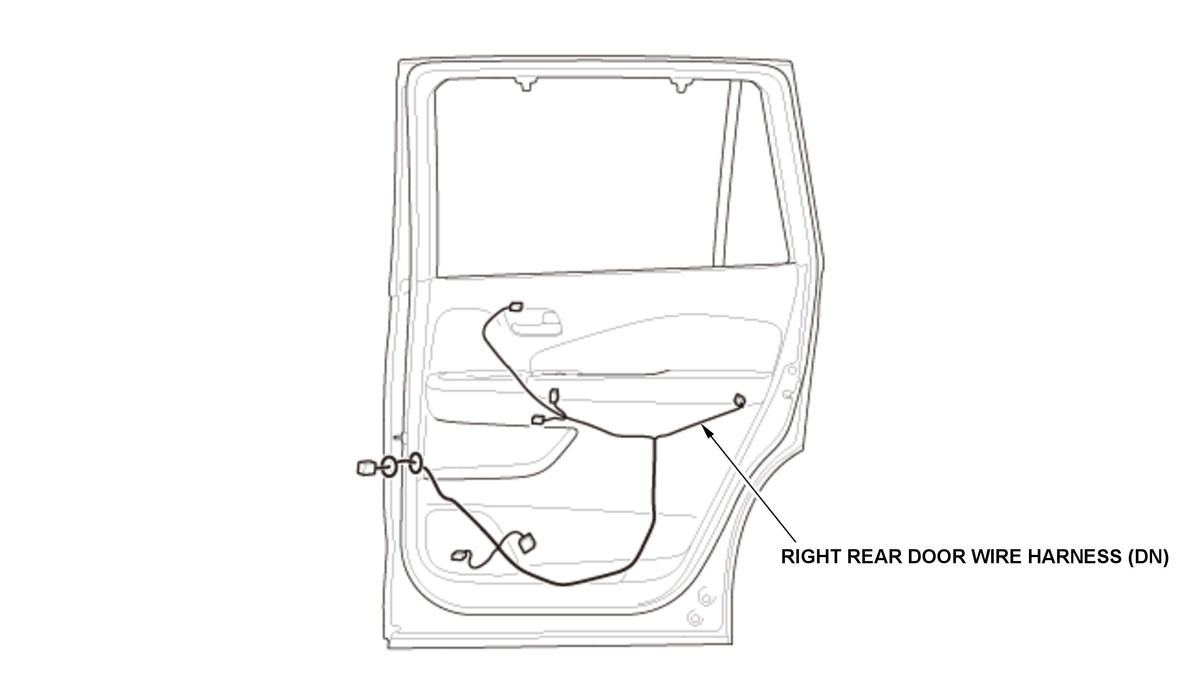

Door - 4/4 (Right rear)

Courtesy of HONDA, U.S.A., INC.

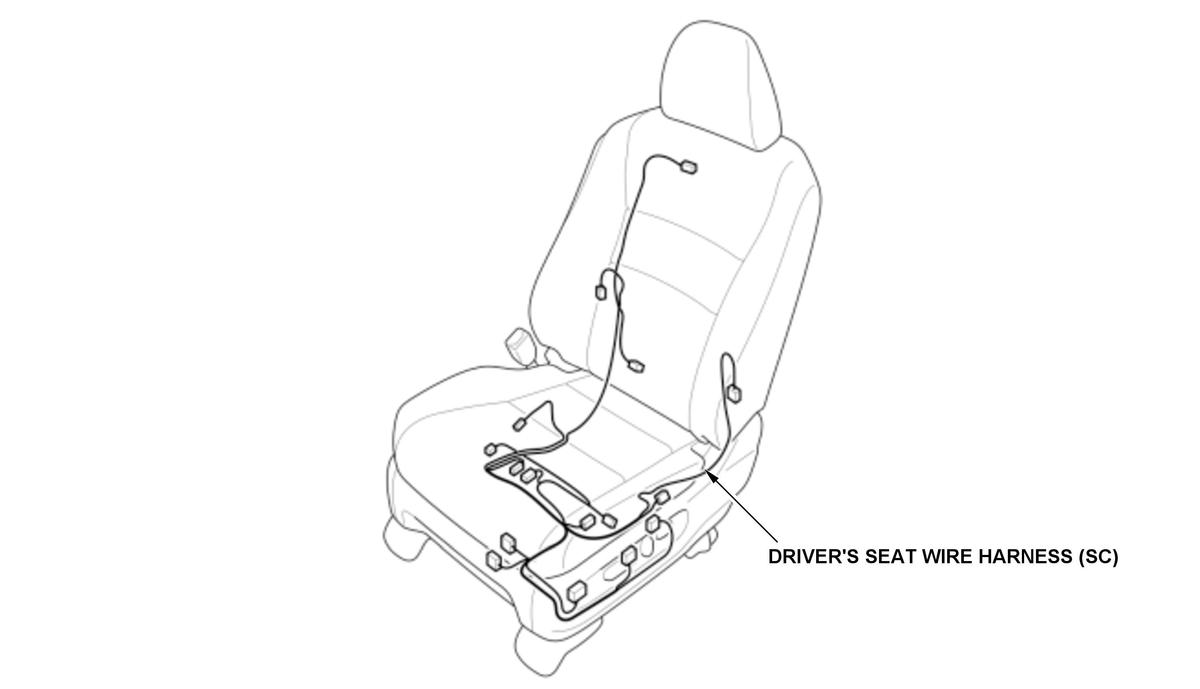

Seat - 1/4 (Driver's)

Courtesy of HONDA, U.S.A., INC.

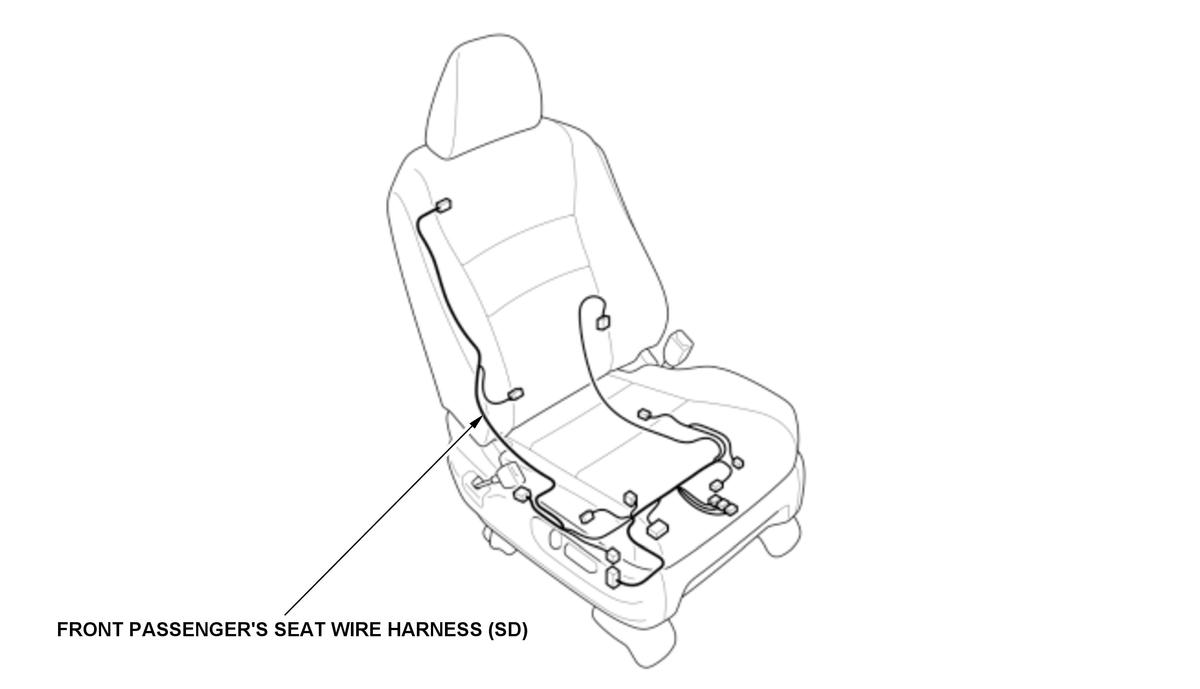

Seat - 2/4 (Front passenger's)

Courtesy of HONDA, U.S.A., INC.

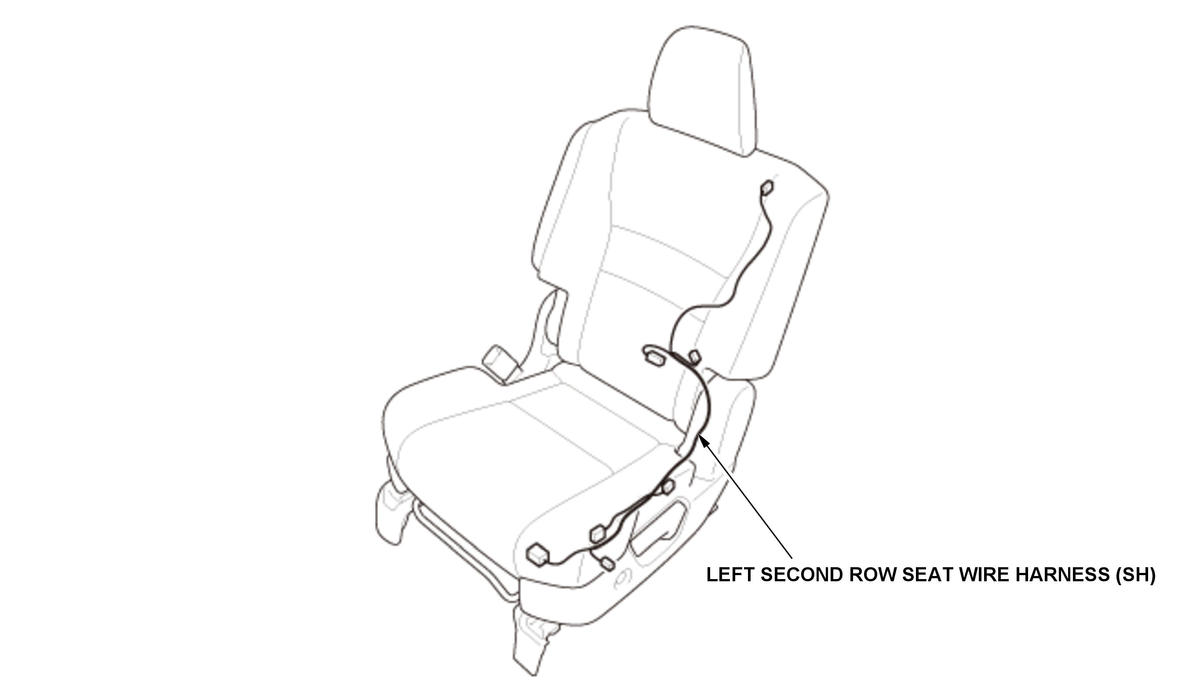

Seat - 3/4 (Left rear)

Courtesy of HONDA, U.S.A., INC.

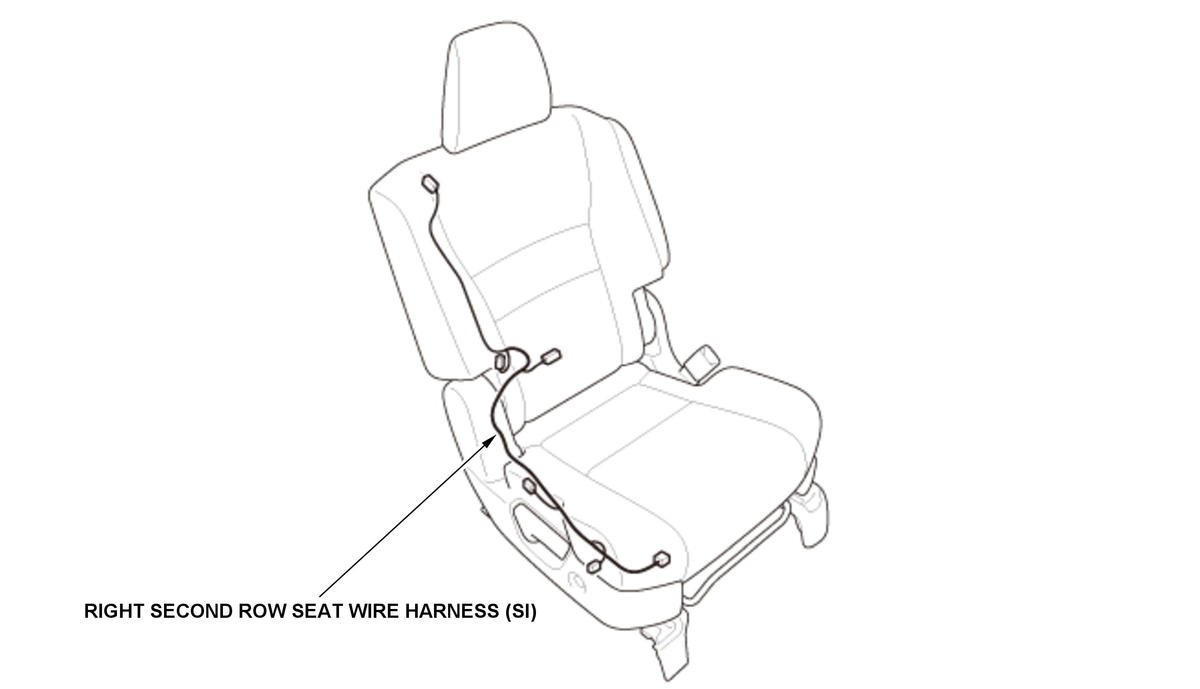

Seat - 4/4 (Right rear)

Courtesy of HONDA, U.S.A., INC.

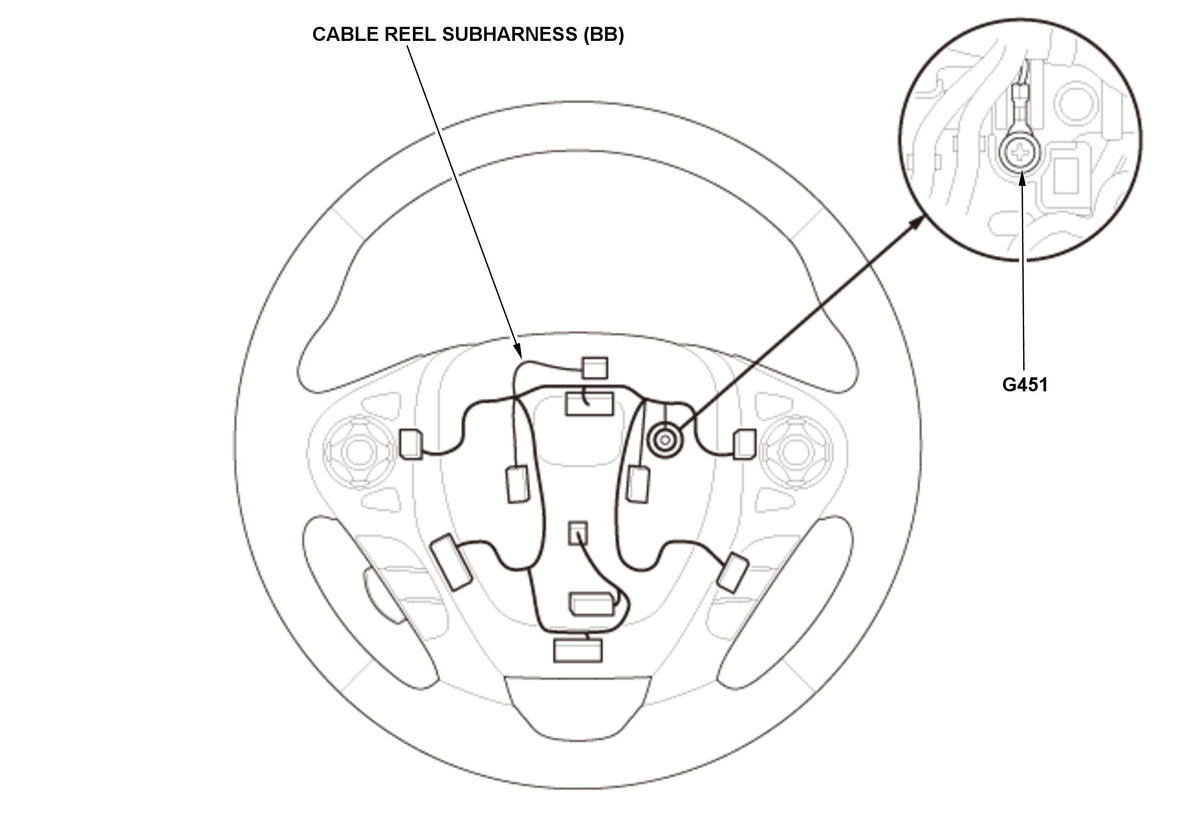

Steering

Courtesy of HONDA, U.S.A., INC.
