Battery Management System - General Information
>>
Circuit Diagram
>>

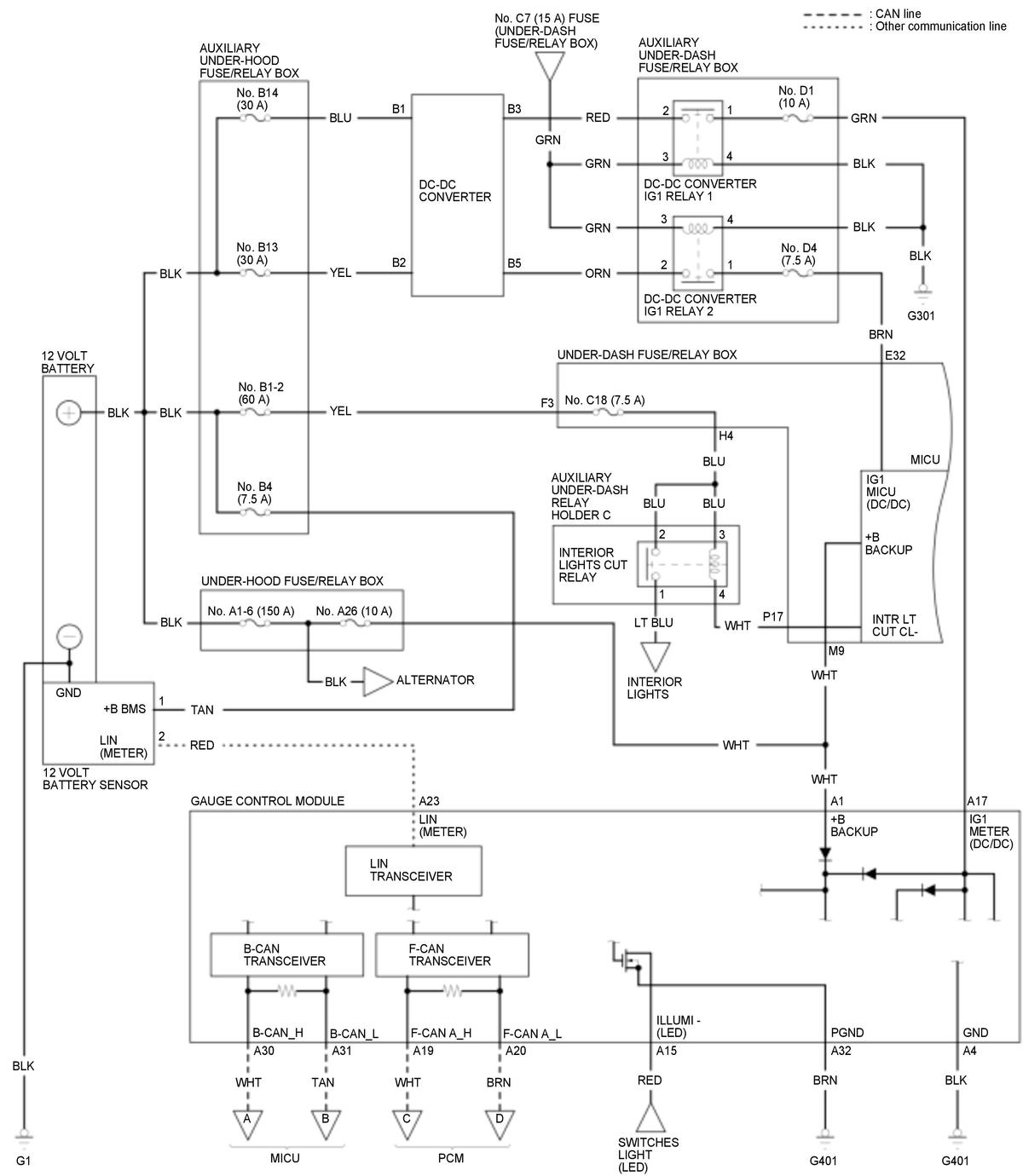

12 VOLT BATTERY MANAGEMENT SYSTEM (2019 2020 2021) (With Auto Idle Stop System)

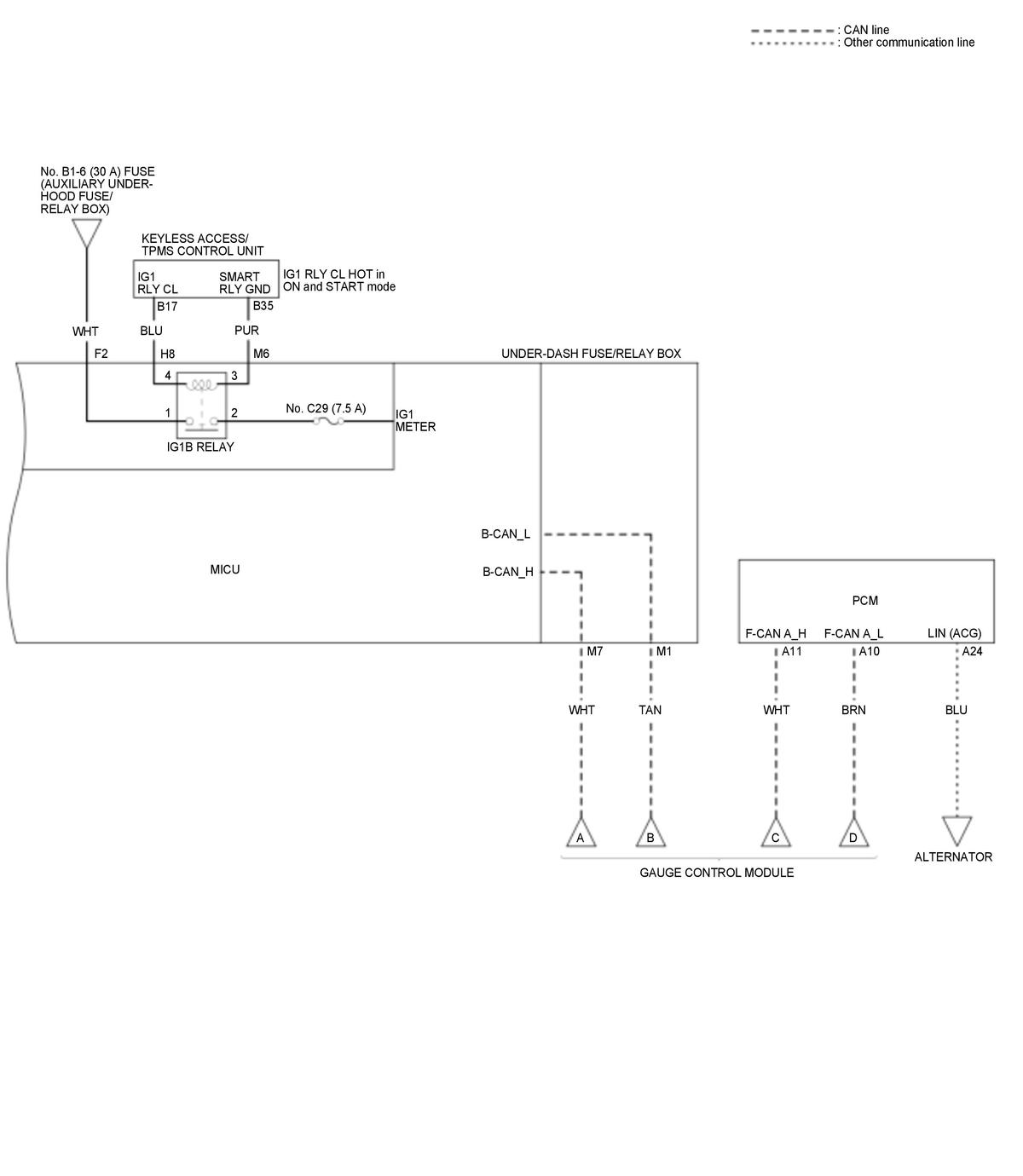

12 VOLT BATTERY MANAGEMENT SYSTEM (2019 2020 2021) (With Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
