Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Battery Management System - General Information
>>
Circuit Diagram
>>

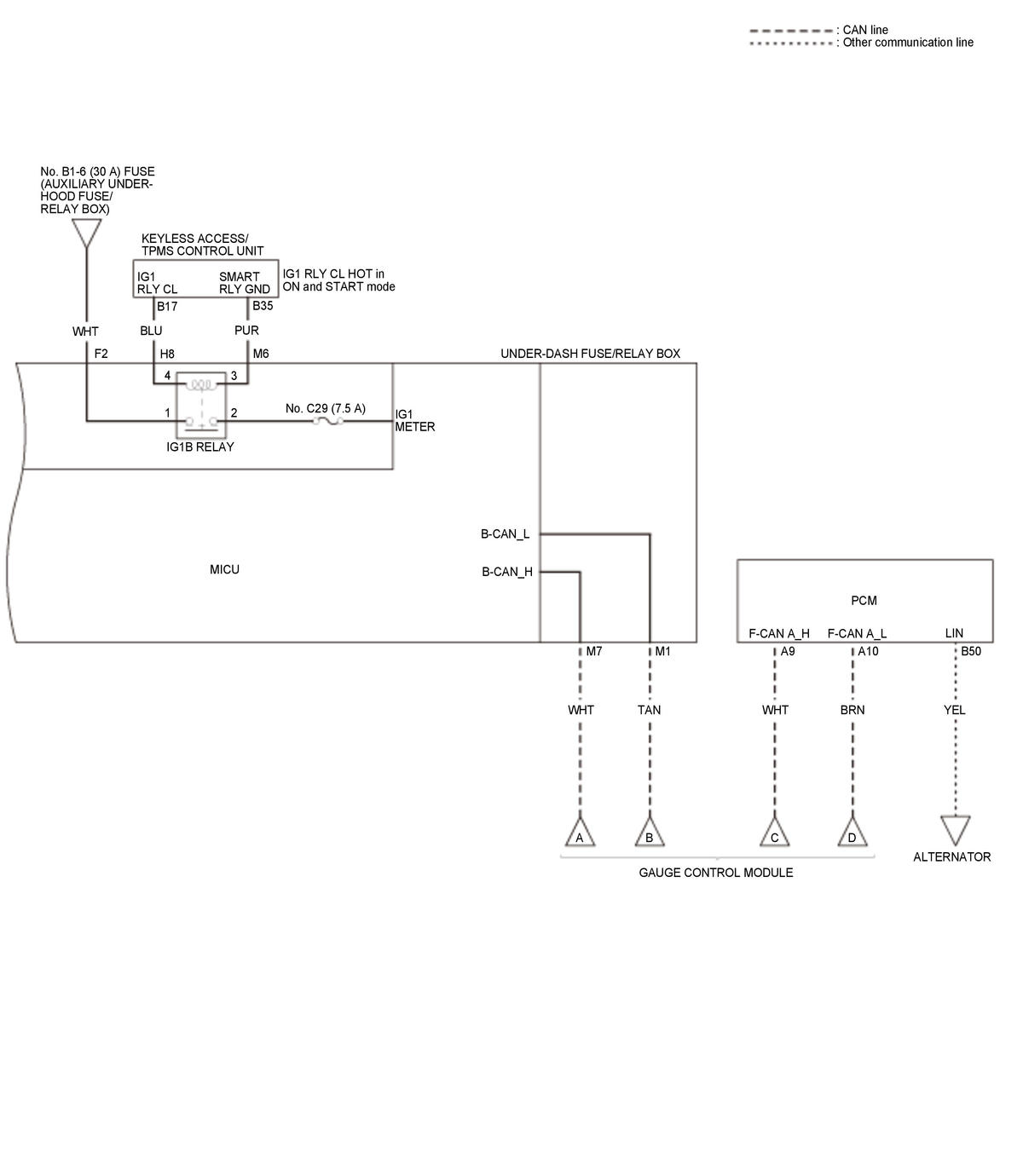

12 VOLT BATTERY MANAGEMENT SYSTEM (2016 2017 2018) (With Auto Idle Stop System)

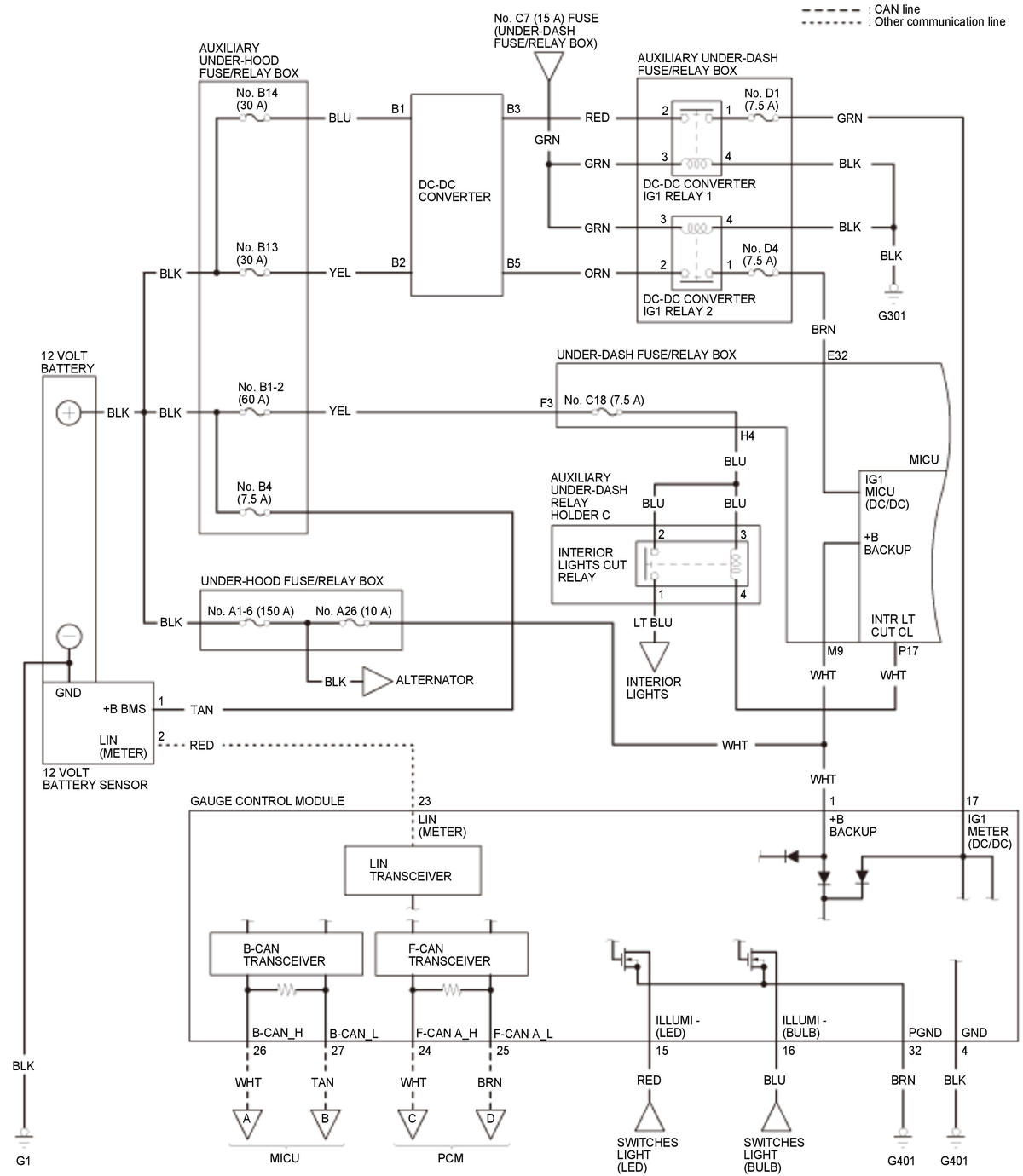

12 VOLT BATTERY MANAGEMENT SYSTEM (2016 2017 2018) (With Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
