Rear Driveshaft (AWD): Removal

  1. Vehicle - Lift
  2. Rear Wheel - Remove
  3. Rear Differential - Remove

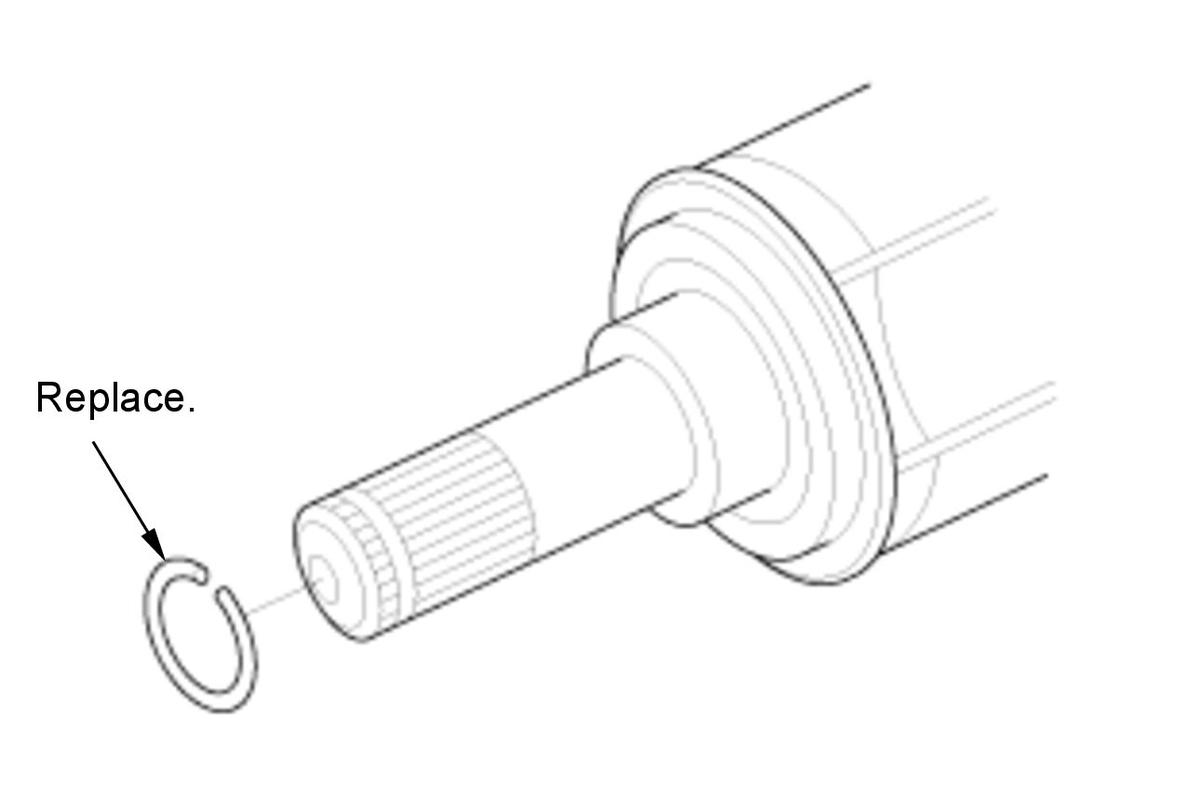

  4. Set Ring - Remove
    GHH306193Courtesy of HONDA, U.S.A., INC.

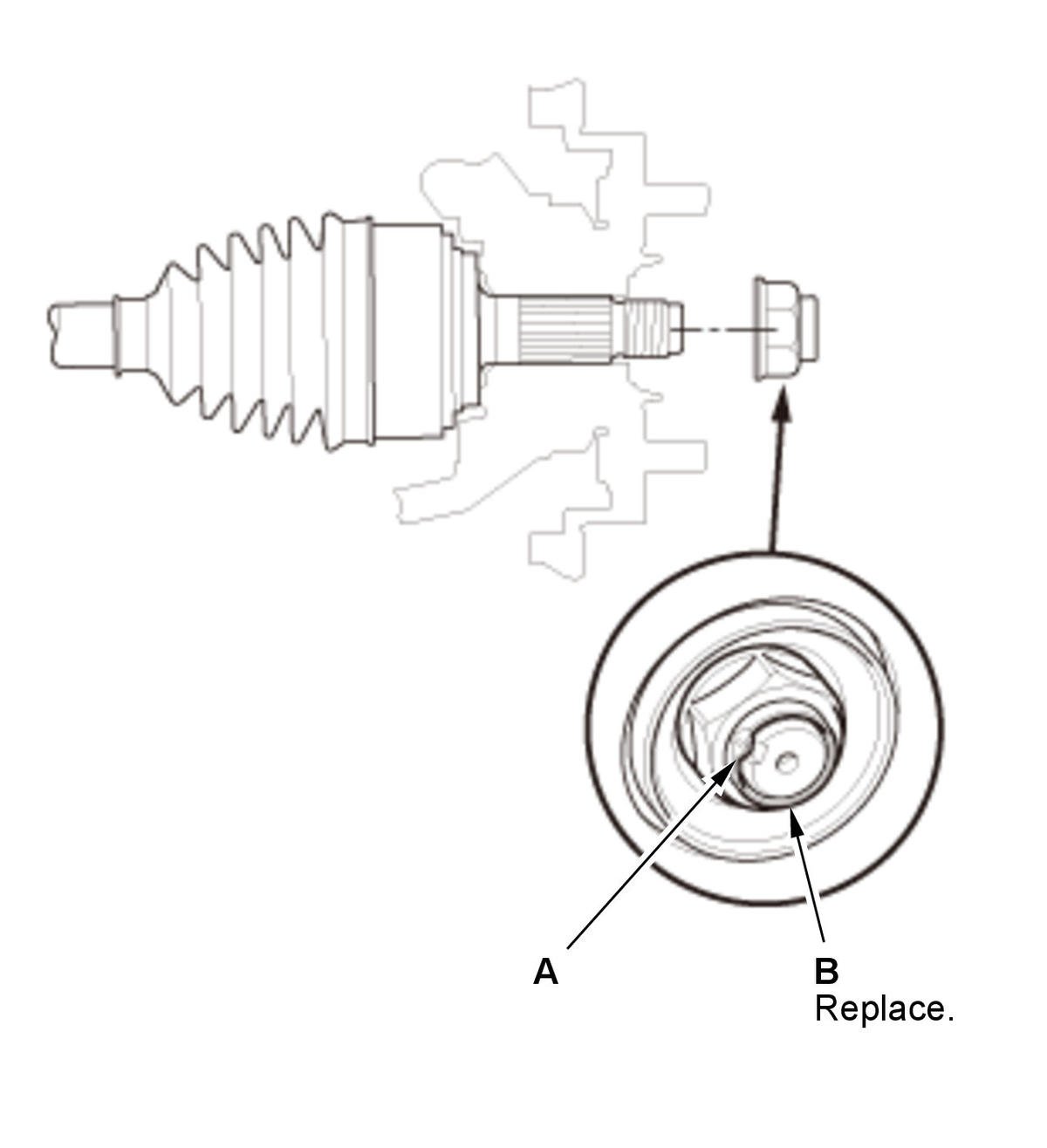

  5. Spindle Nut - Remove
    GHH306194Courtesy of HONDA, U.S.A., INC.
    		 1. Pry up the stake (A) on the spindle nut (B).

    2. Remove the spindle nut.

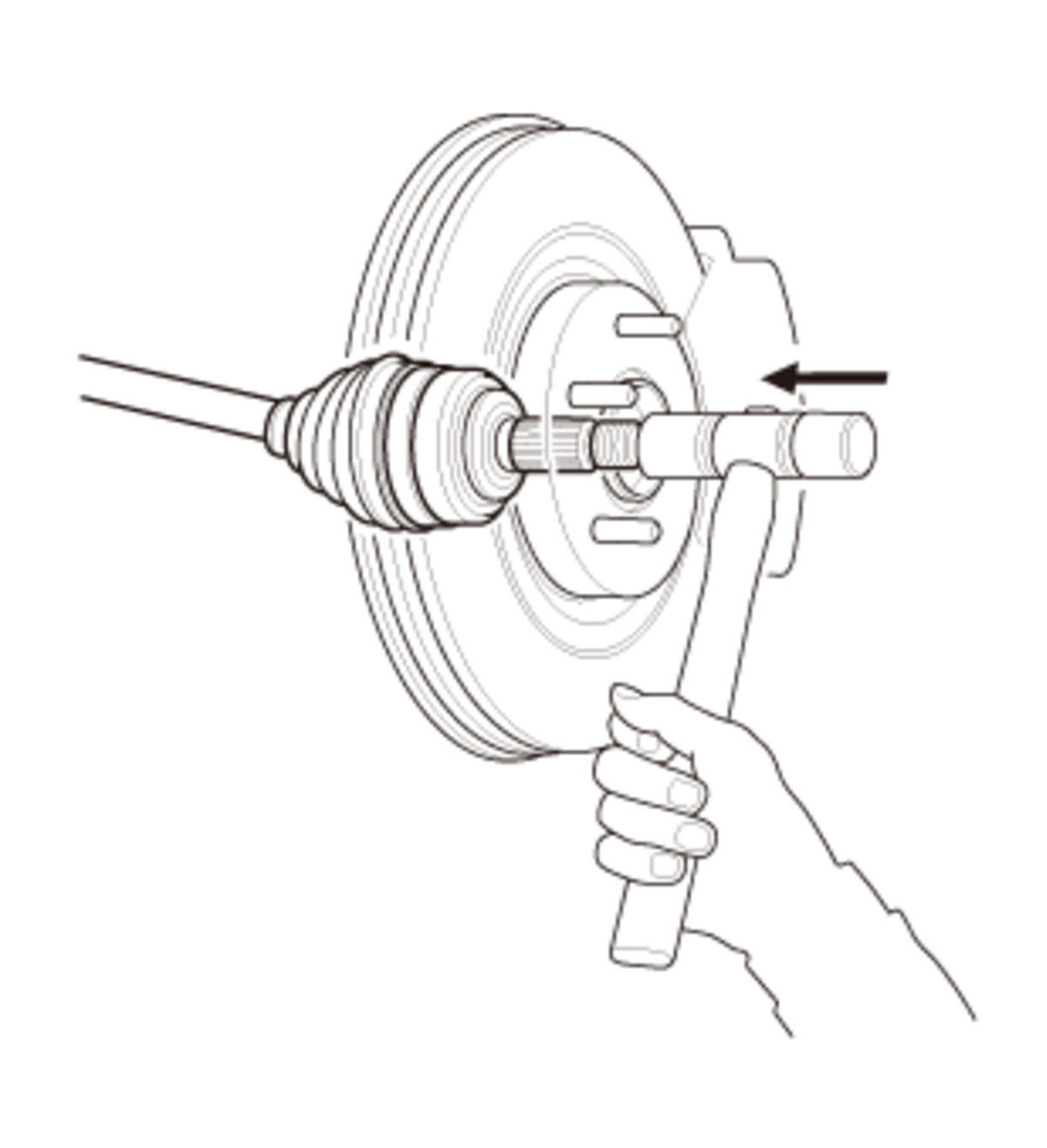

  6. Outboard Joint - Disconnect
    GHH306195Courtesy of HONDA, U.S.A., INC.
