Removal and Installation

Vehicle - Lift
Engine Undercover - Remove
Middle Floor Undercover - Remove
Fuel Tank Guard - Remove
Propeller Shaft - Remove
1. Remove the propeller shaft protector (A).

Fig 1: Propeller Shaft Bolts With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

2. Remove the center support bearing mounting bolts (B).

3. Make a reference mark (C) across the No. 1 propeller shaft (D) and the transfer companion flange (E).

4. Remove the No. 1 propeller shaft flange bolts (F).

5. Make a reference mark (G) across the No. 2 propeller shaft (H) and the rear differential companion flange (I).

6. Remove the No. 2 propeller shaft flange bolts (J).

All Removed Parts - Install

GHH306192

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

NOTE:

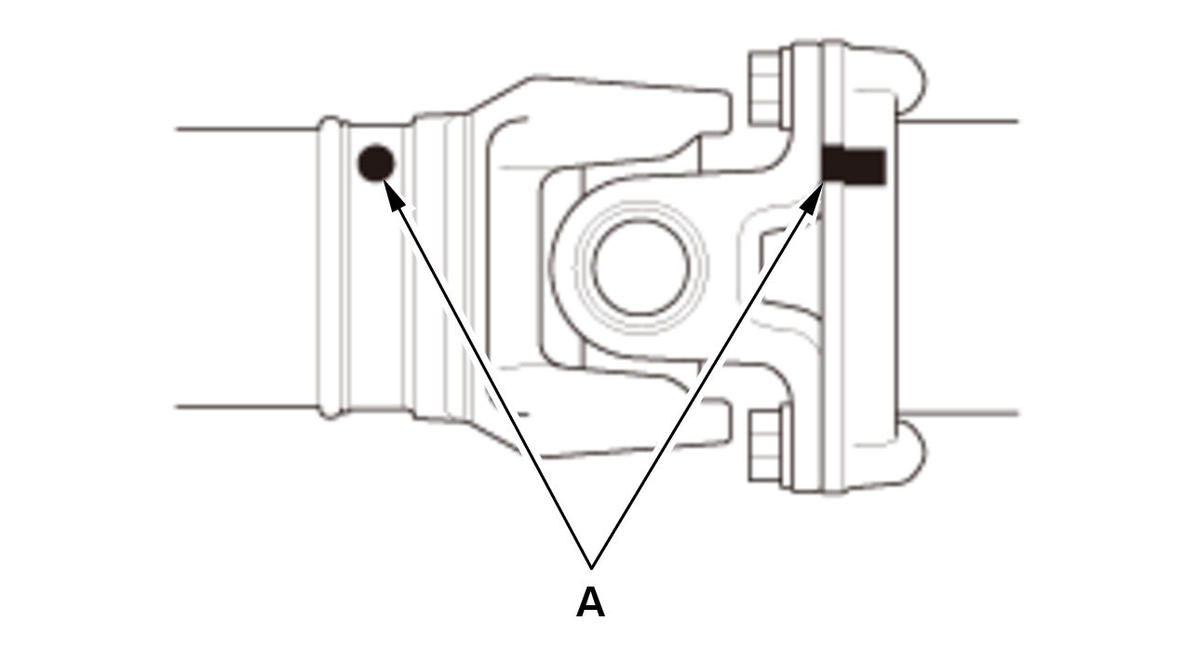

When replacing the propeller shaft or the rear differential, align the factory reference marks (A). There is a marking between the large runout part of the No. 2 propeller shaft and the small runout part of the rear differential.
Tighten the propeller shaft flange bolts and the center support bearing mounting bolts in the numbered sequence shown.
