Rear Driveshaft (AWD) (2019 2020 2021): Disassembly: Procedure

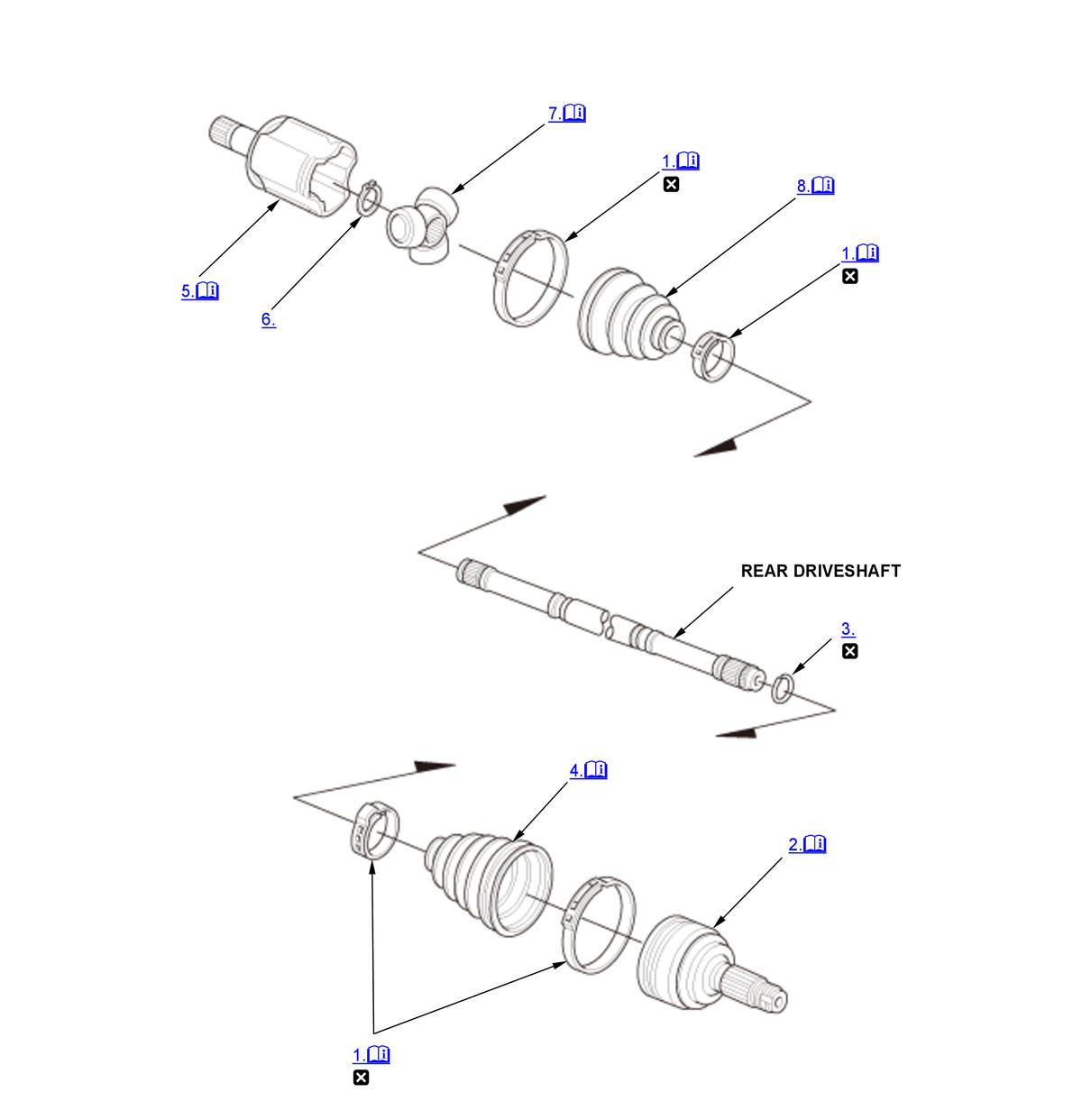

Fig 1: Rear Driveshaft Replacement Components
GHH306142Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Replace
  1. Boot Bands - Remove

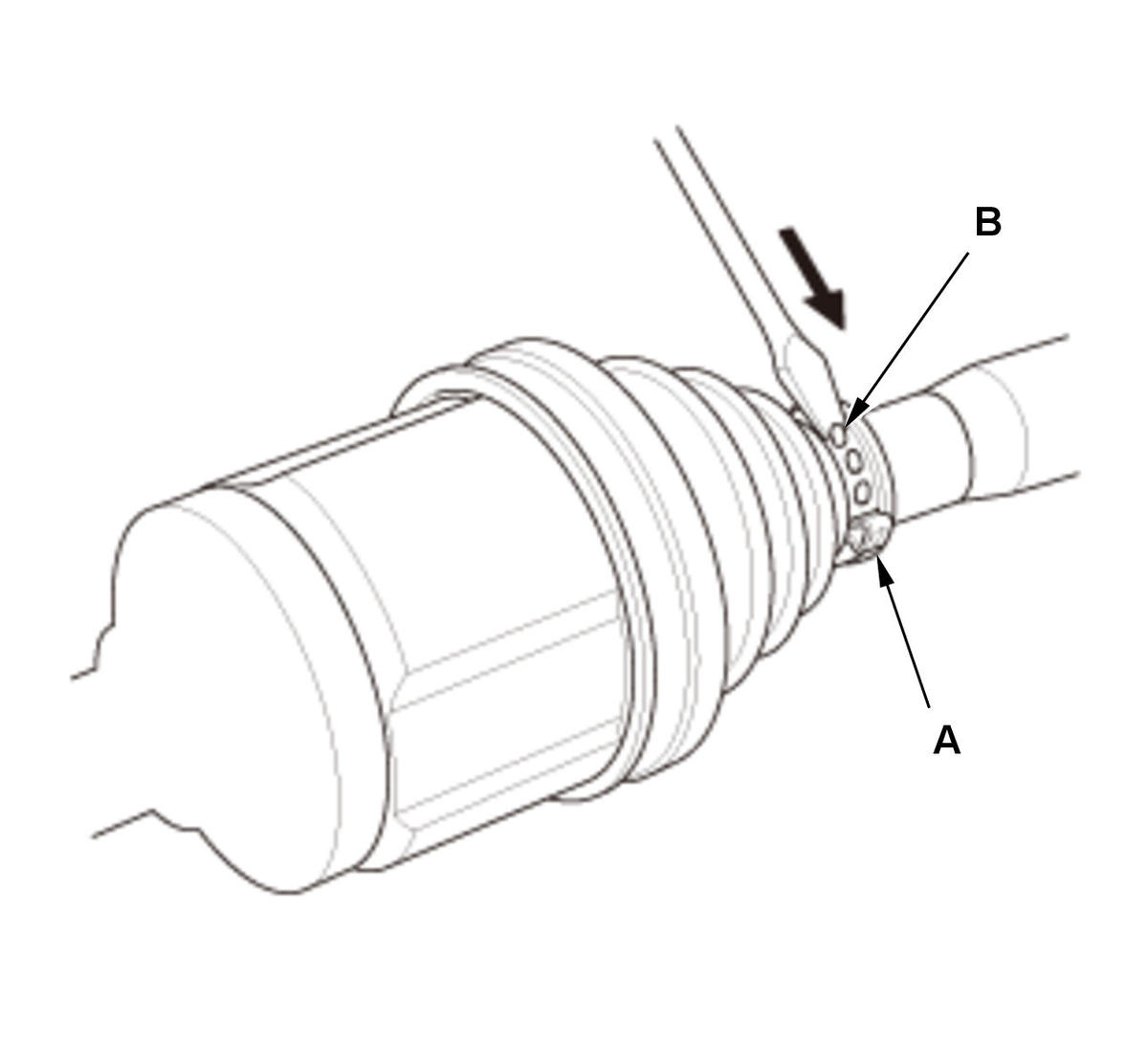

    GHH306143Courtesy of HONDA, U.S.A., INC.

    Ear clamp type

    1. If the boot band is a ear clamp type (A), lift up the tabs (B) using a flat-tipped screwdriver.

    GHH306144Courtesy of HONDA, U.S.A., INC.

    Low profile type 1

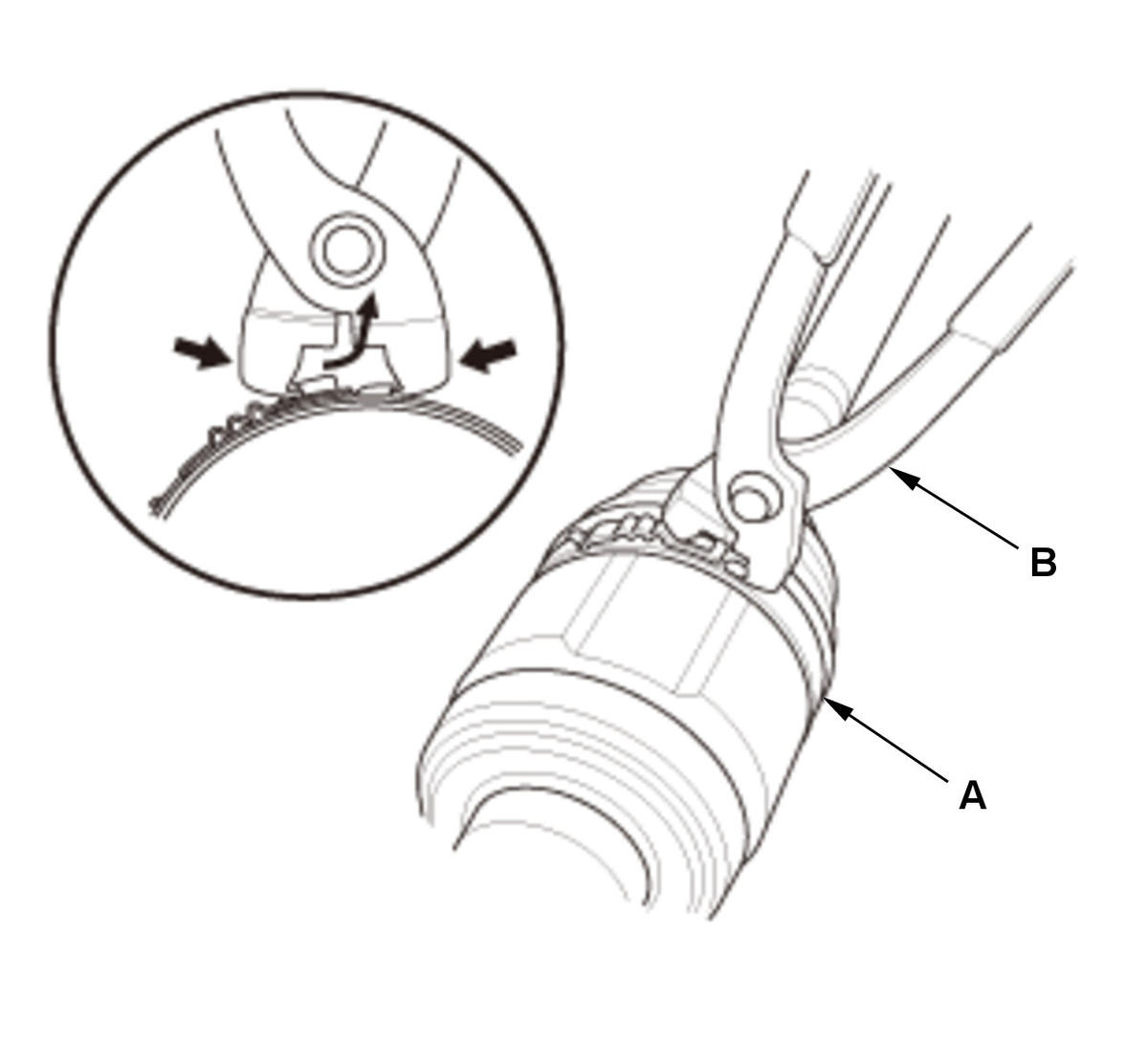

    1. If the boot band is a low profile type 1 (A), pinch the boot band using commercially available pincer CV Boot Clamp Pliers (30500) (B).

    GHH306145Courtesy of HONDA, U.S.A., INC.

    Low profile type 2

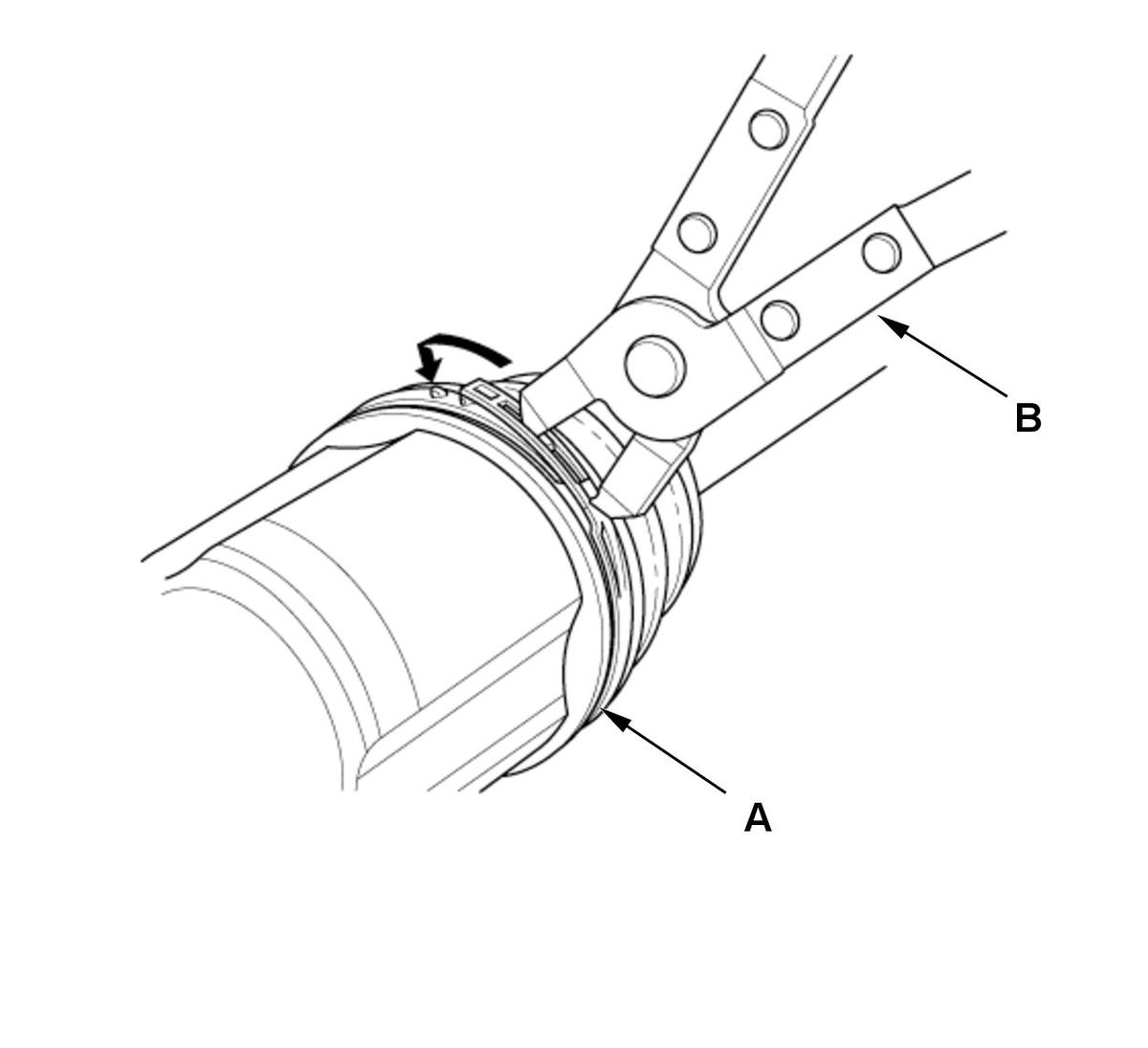

    1. If the boot band is a low profile type 2 (A), pinch the boot band using commercially available clamp pincer SPX 14100134 (B).

  2. Outboard Joint - Remove
    GHH306146Courtesy of HONDA, U.S.A., INC.

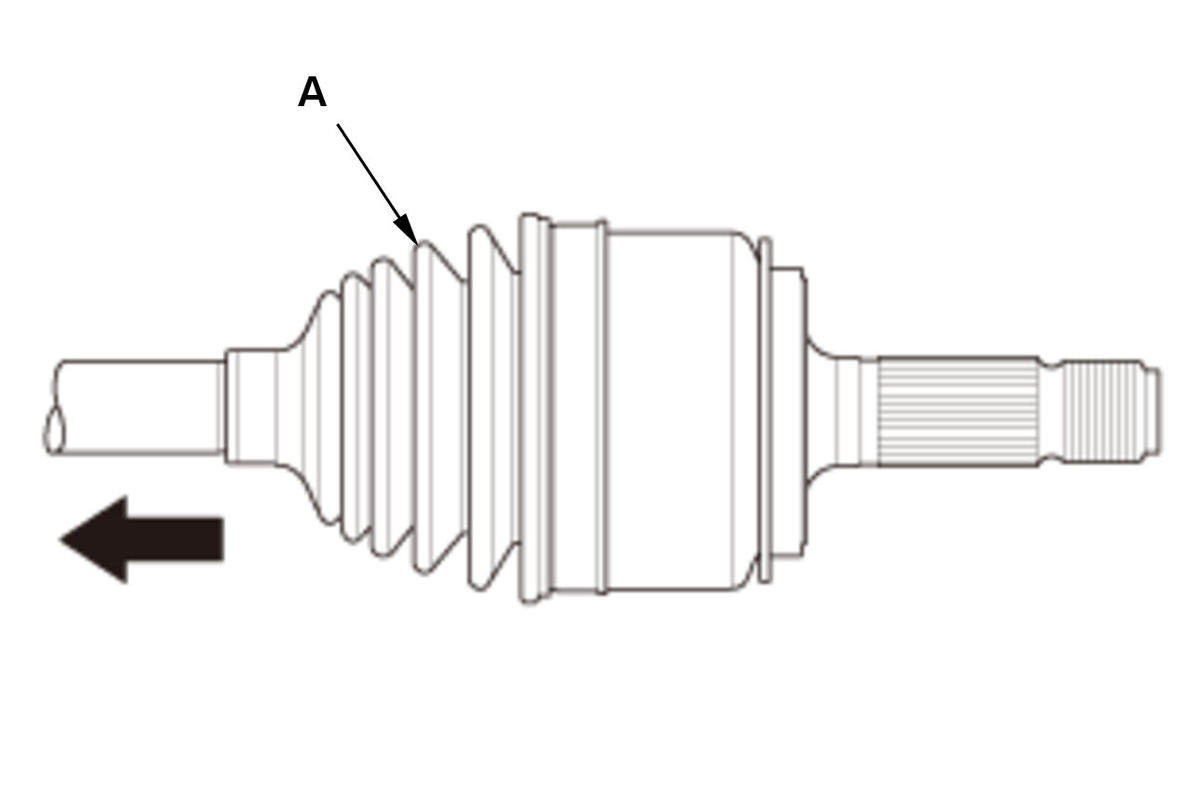

    		 1. Slide the outboard boot (A) partially toward the inboard joint side.

    2. Wipe off the grease to expose the driveshaft and the outboard joint inner race.
    GHH306147Courtesy of HONDA, U.S.A., INC.

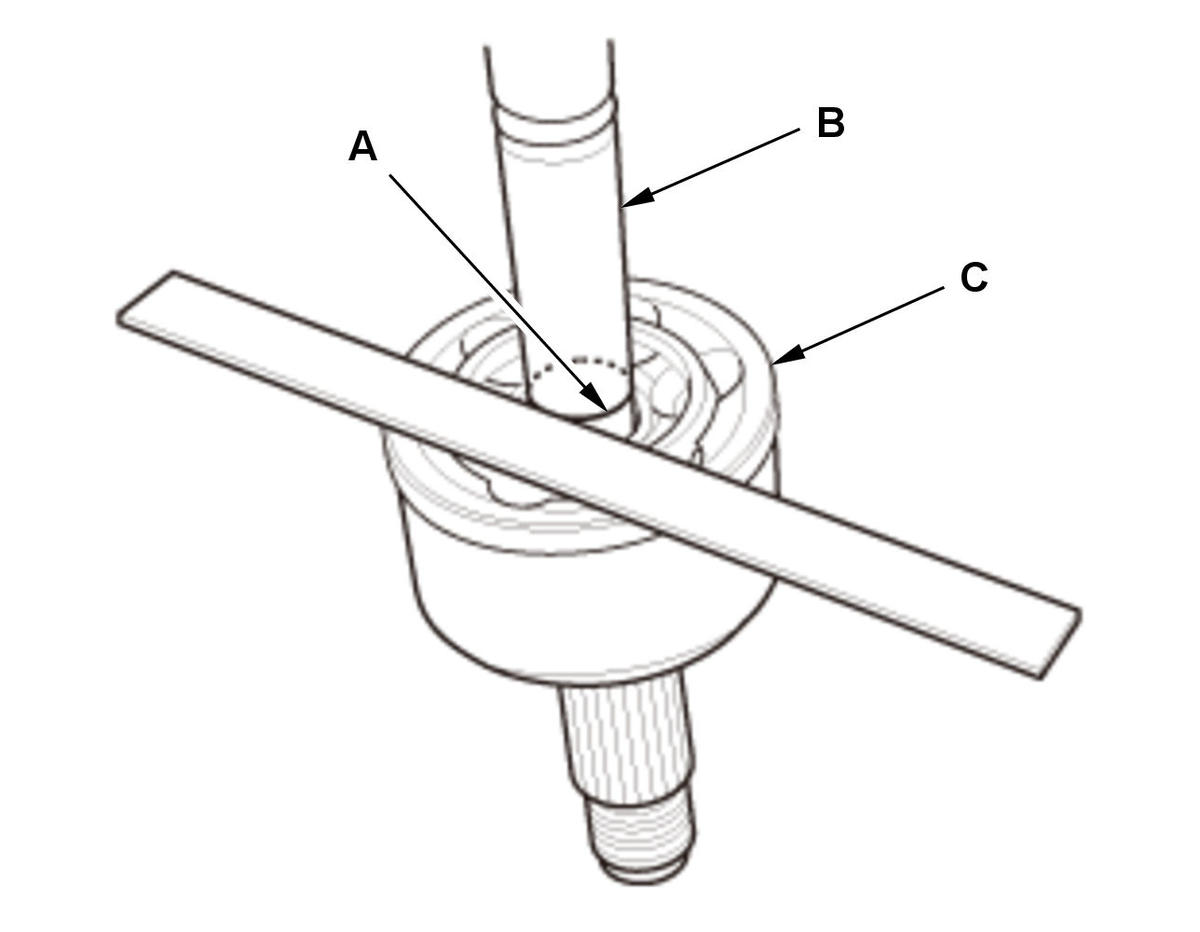

    		 3. Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).

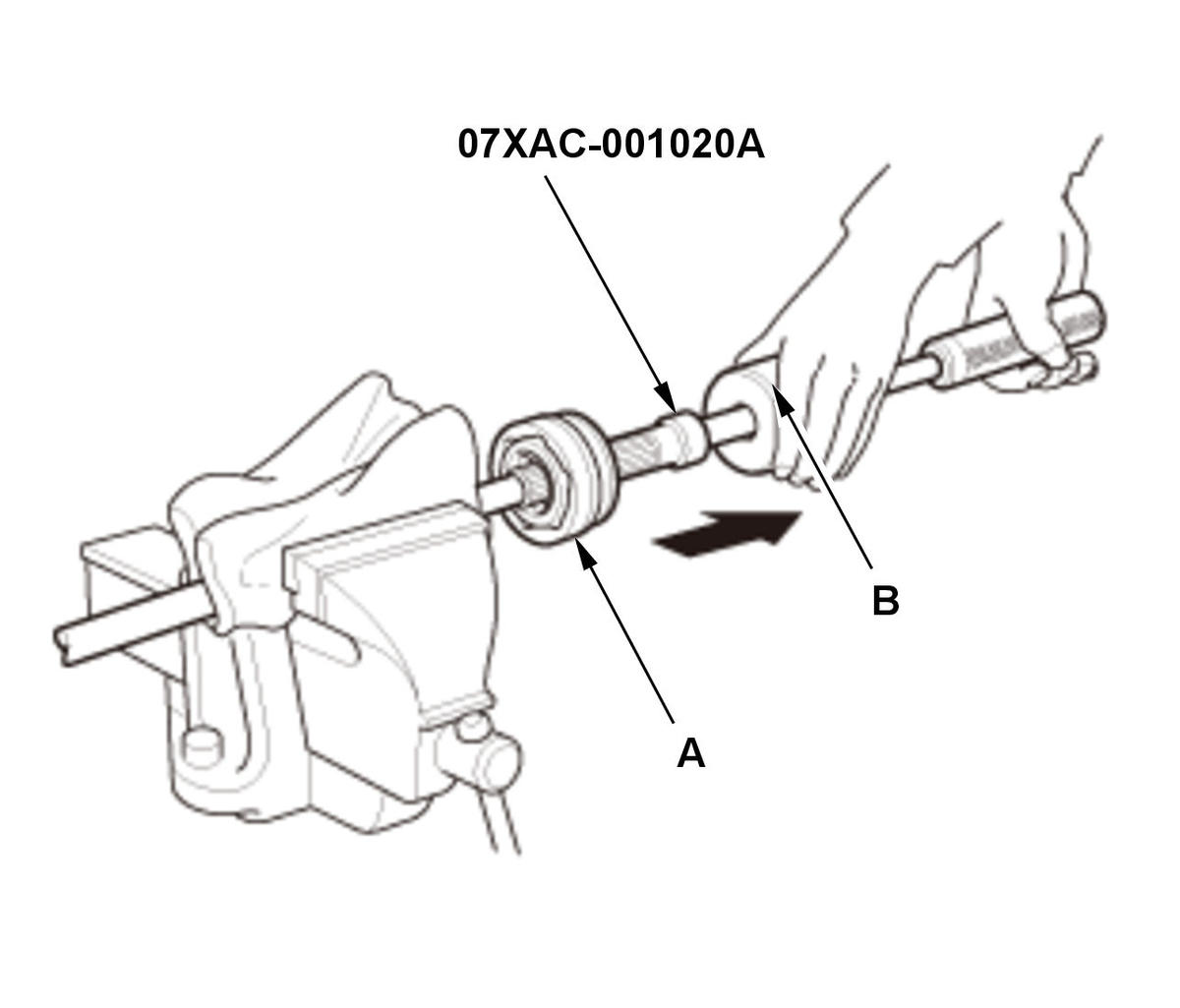

    GHH306148Courtesy of HONDA, U.S.A., INC.
    		 4. Securely clamp the driveshaft in a bench vise with a shop towel wrapped around the driveshaft.

    5. Remove the outboard joint (A) using the 24 x 1.5 mm threaded adapter and a commercially available 5/8"-18 UNF slide hammer (B).

    NOTE:  Check inside of the outboard joint and on the serrations for wear and tear.

    6. Remove the driveshaft from the bench vise.
  3. Stop Ring - Remove
  4. Outboard Boot - Remove
    GHH306149Courtesy of HONDA, U.S.A., INC.

    NOTE:

    • Check the outboard boot for cracks and damage. If any damage is found, replace the boot.
    • Wrap the splines on the driveshaft (A) with vinyl tape (B) to prevent damaging the outboard boot.
  5. Inboard Joint - Remove
    GHH306150Courtesy of HONDA, U.S.A., INC.

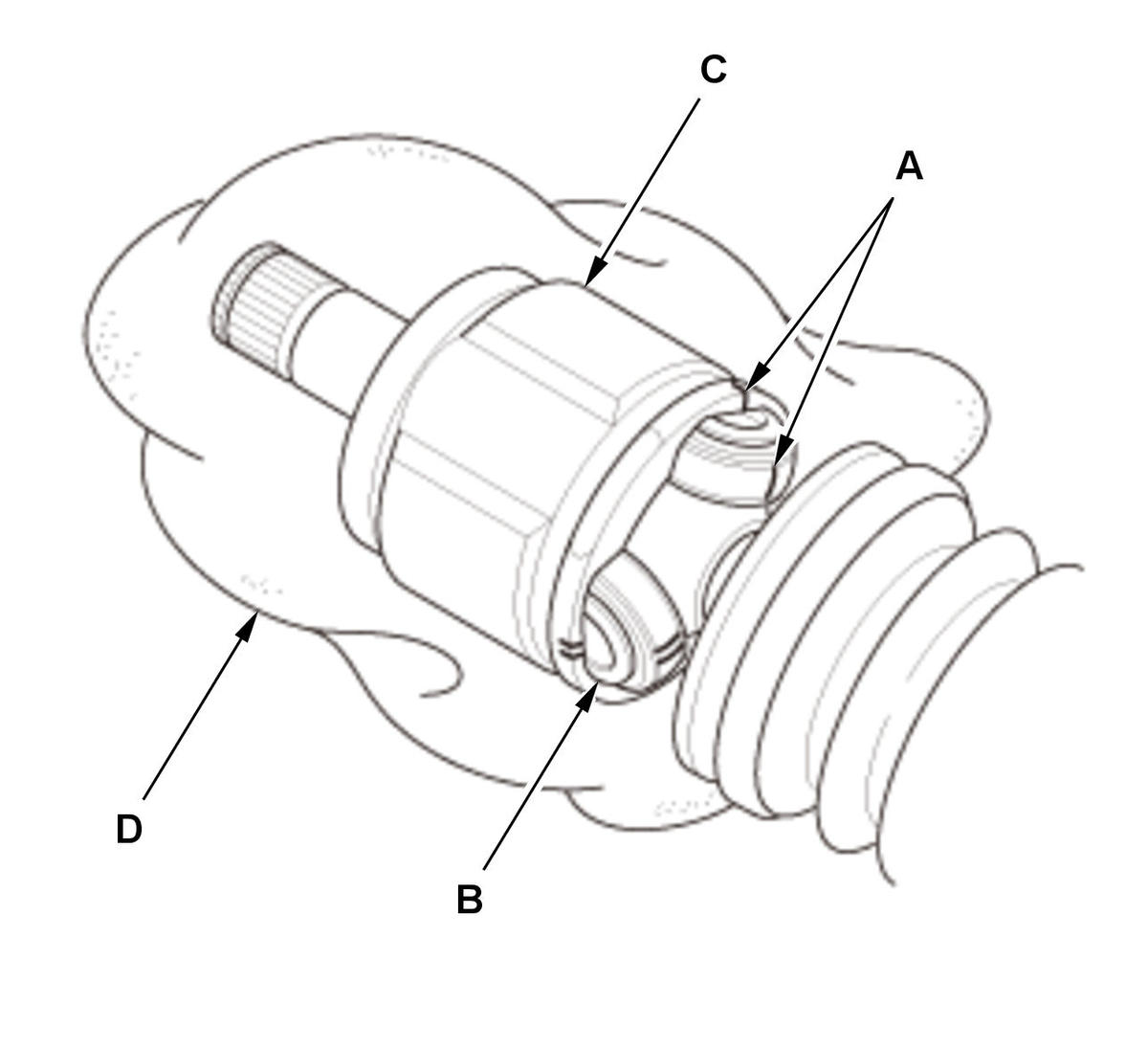

    		 1. Make marks (A) on each roller (B) and the inboard joint (C) to identify the locations of the rollers to the grooves in the inboard joint.

    NOTE:  Do not engrave or scribe any marks on the rolling surface.

    2. Remove the inboard joint on a clean shop towel (D).
  6. Circlip - Remove
  7. Spider - Remove
    GHH306151Courtesy of HONDA, U.S.A., INC.

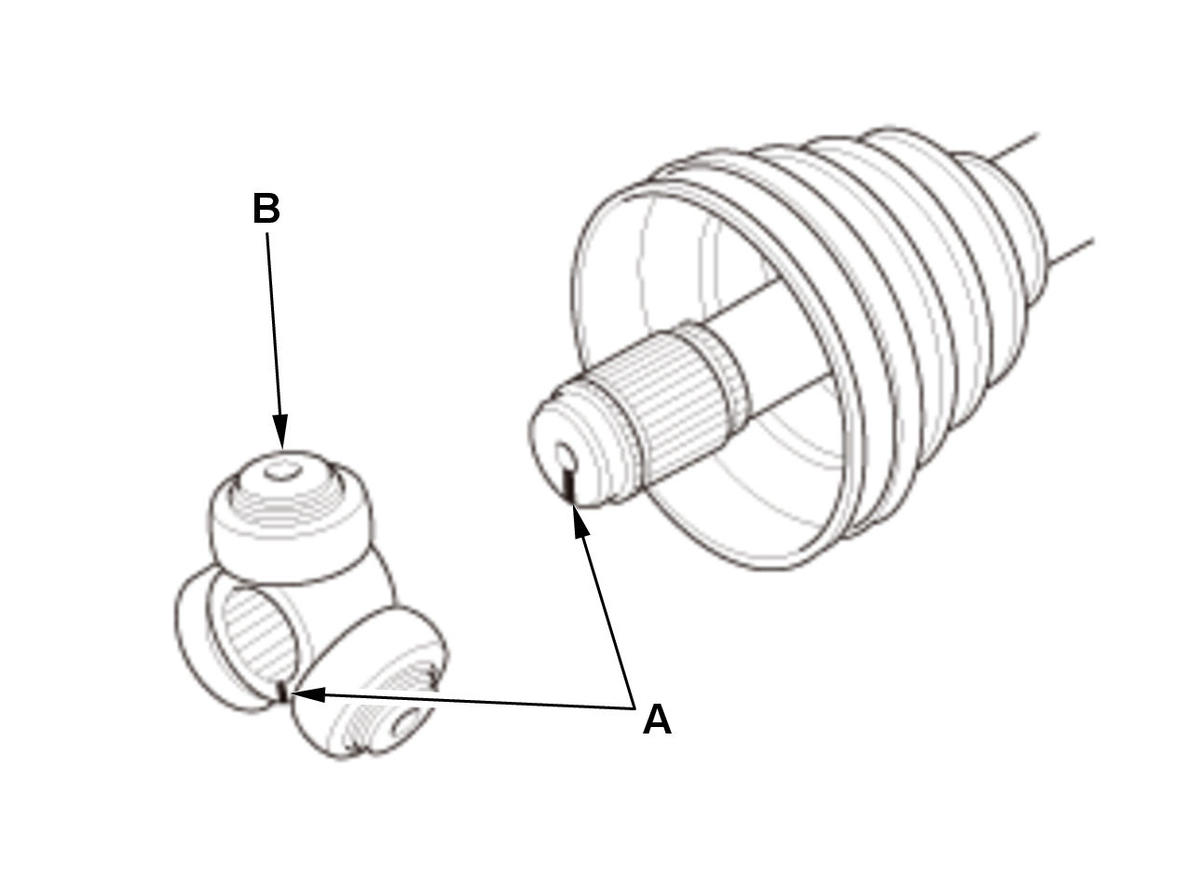

    		 1. Make marks (A) on the spider (B) and the driveshaft to identify the position of the shaft.

    2. Remove the spider.

    NOTE:  If necessary, use a commercially available bearing puller while being careful not to damage the spider.
  8. Inboard Boot - Remove
    GHH306152Courtesy of HONDA, U.S.A., INC.

    NOTE:

    • Check the inboard boot for cracks and damage. If any damage is found, replace the boot.

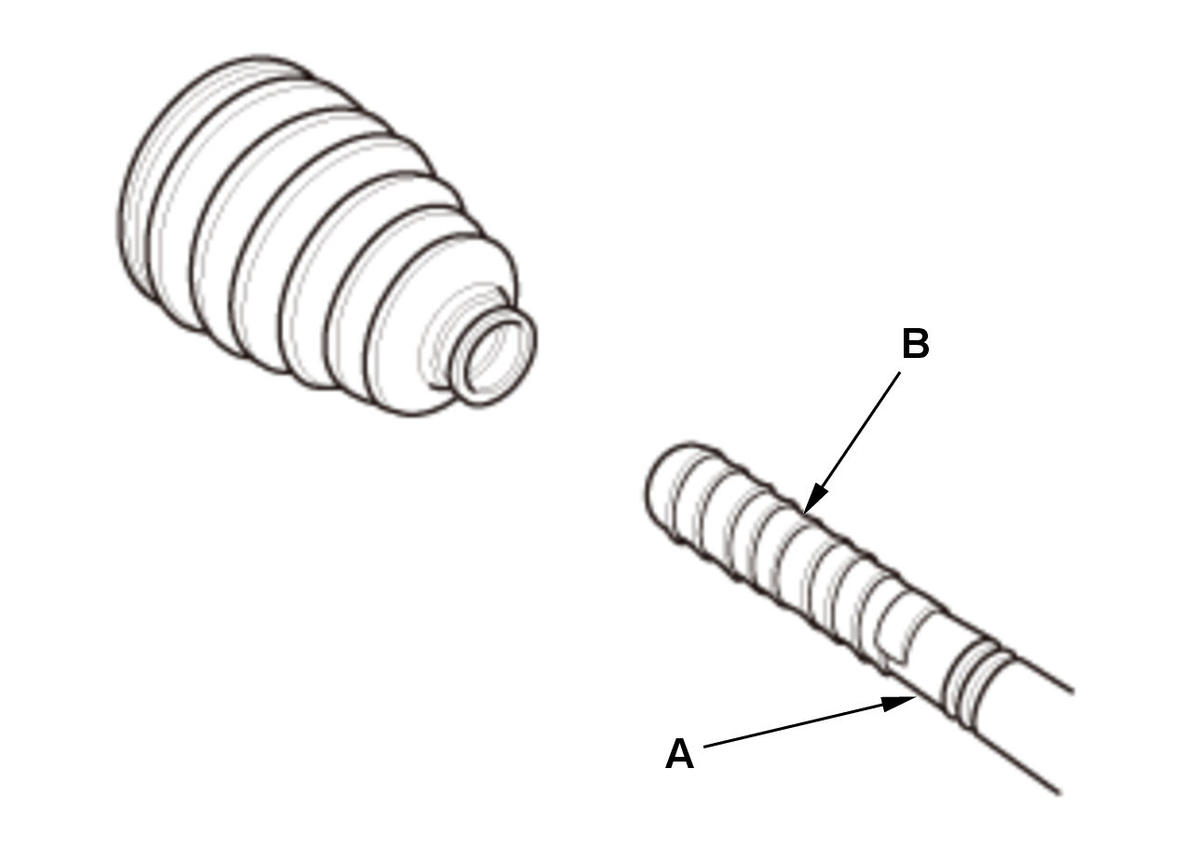

    • Wrap the splines on the driveshaft (A) with vinyl tape (B) to prevent damaging the inboard boot.
