Removal and Installation

  1. Right Driveshaft - Remove
  2. Driveshaft Support Base - Removal

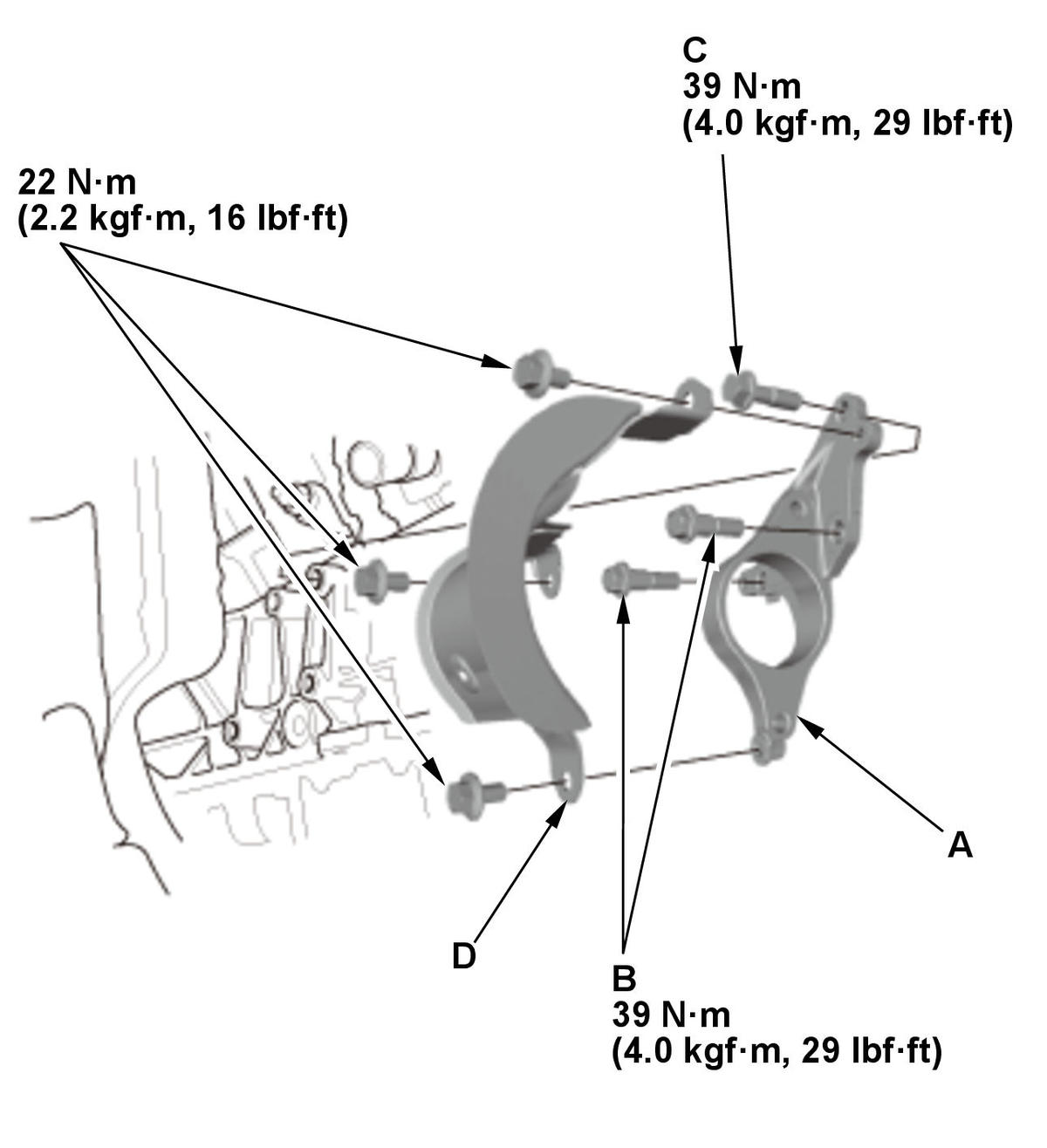

    Fig 1: Driveshaft Support Base With Torque Specifications
    GHH306170Courtesy of HONDA, U.S.A., INC.
    1. Remove the driveshaft support base (A), the two dowel bolts (B), and the flange bolt (C).

    2. Remove the heat shield (D).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
