Parking Brake Shoe Removal And Installation: Removal

CAUTION:

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

Parking Brake Cable - Disconnect

Courtesy of HONDA, U.S.A., INC.

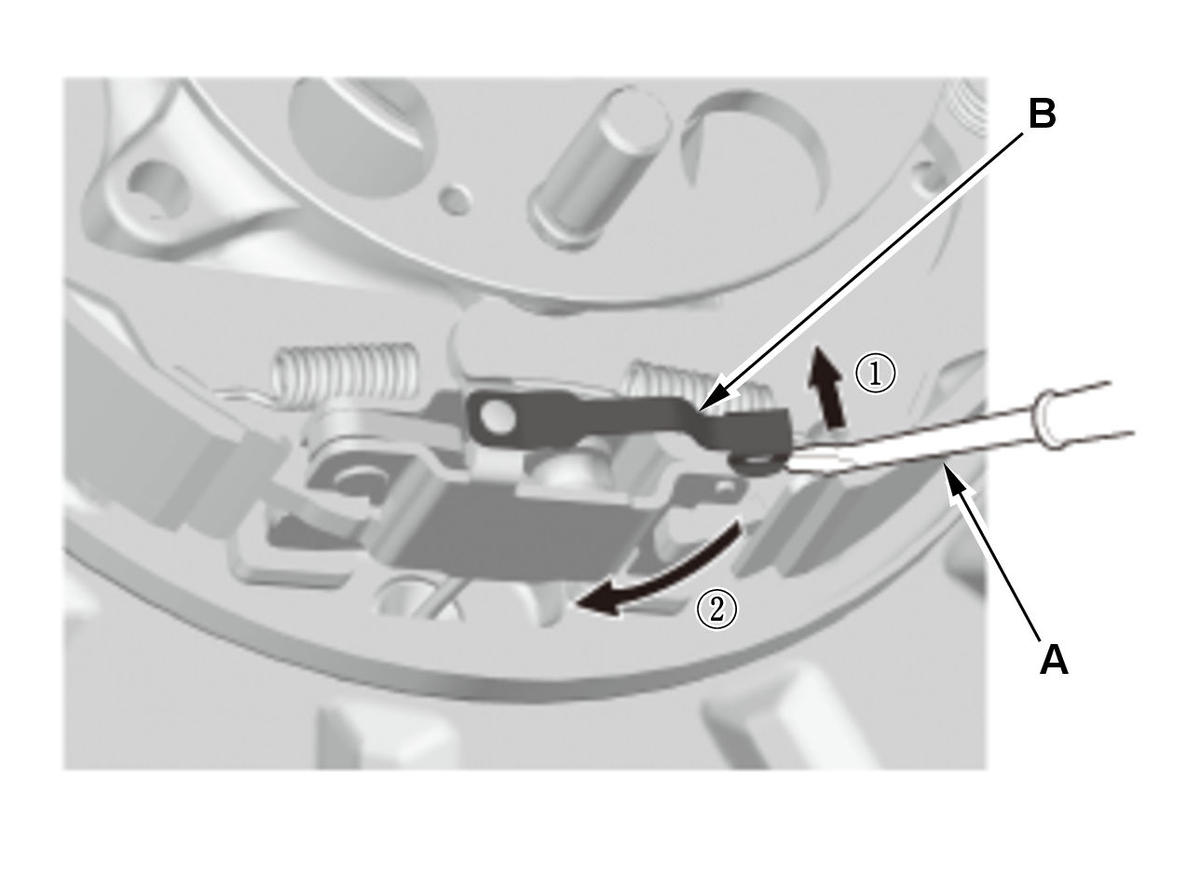

1. Using a flat-tip screwdriver (A), detach the clip (B) and then rotate the clip down.

Courtesy of HONDA, U.S.A., INC.

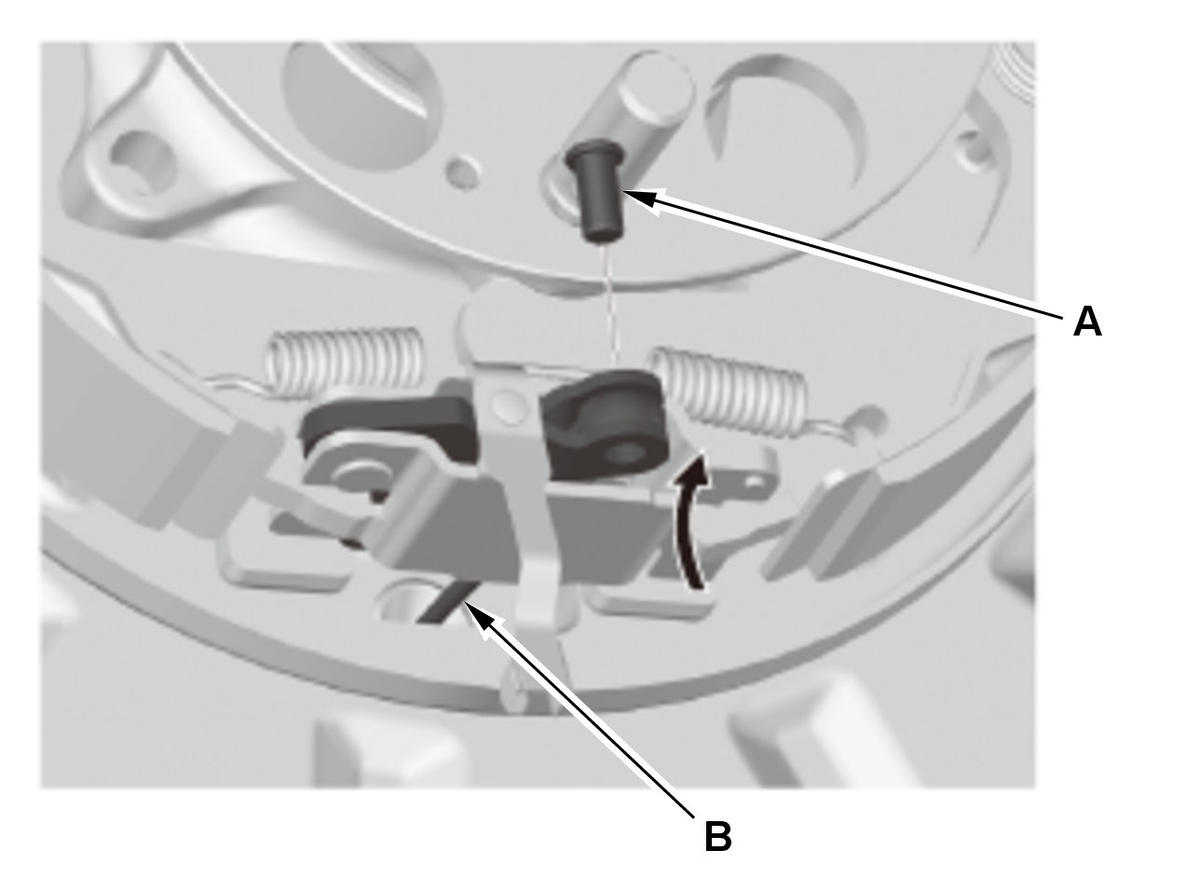

2. Pull out the link of the parking brake lever assembly, and then remove the pin (A).

3. Remove the parking brake cable (B) from the parking brake lever assembly.

Courtesy of HONDA, U.S.A., INC.

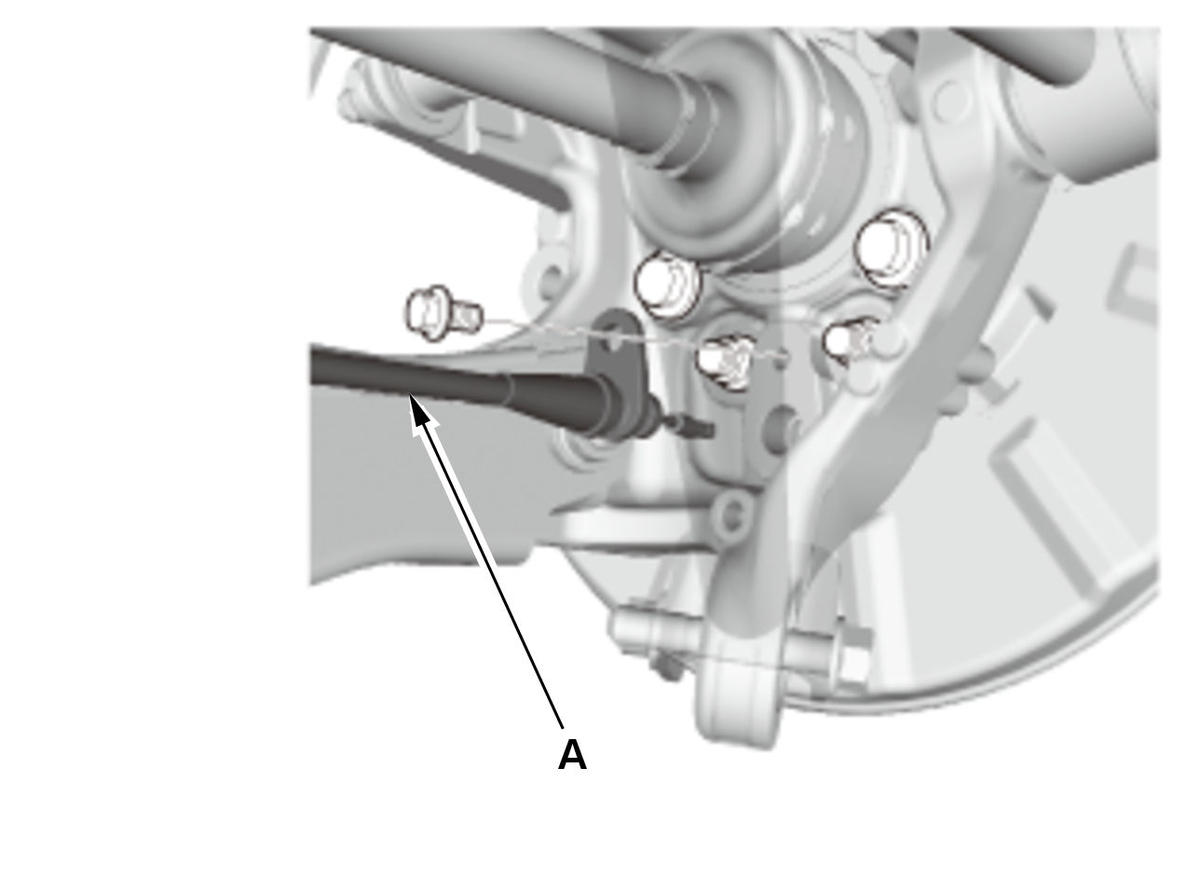

4. Remove the parking brake cable (A).

Parking Brake Shoe - Remove

Courtesy of HONDA, U.S.A., INC.

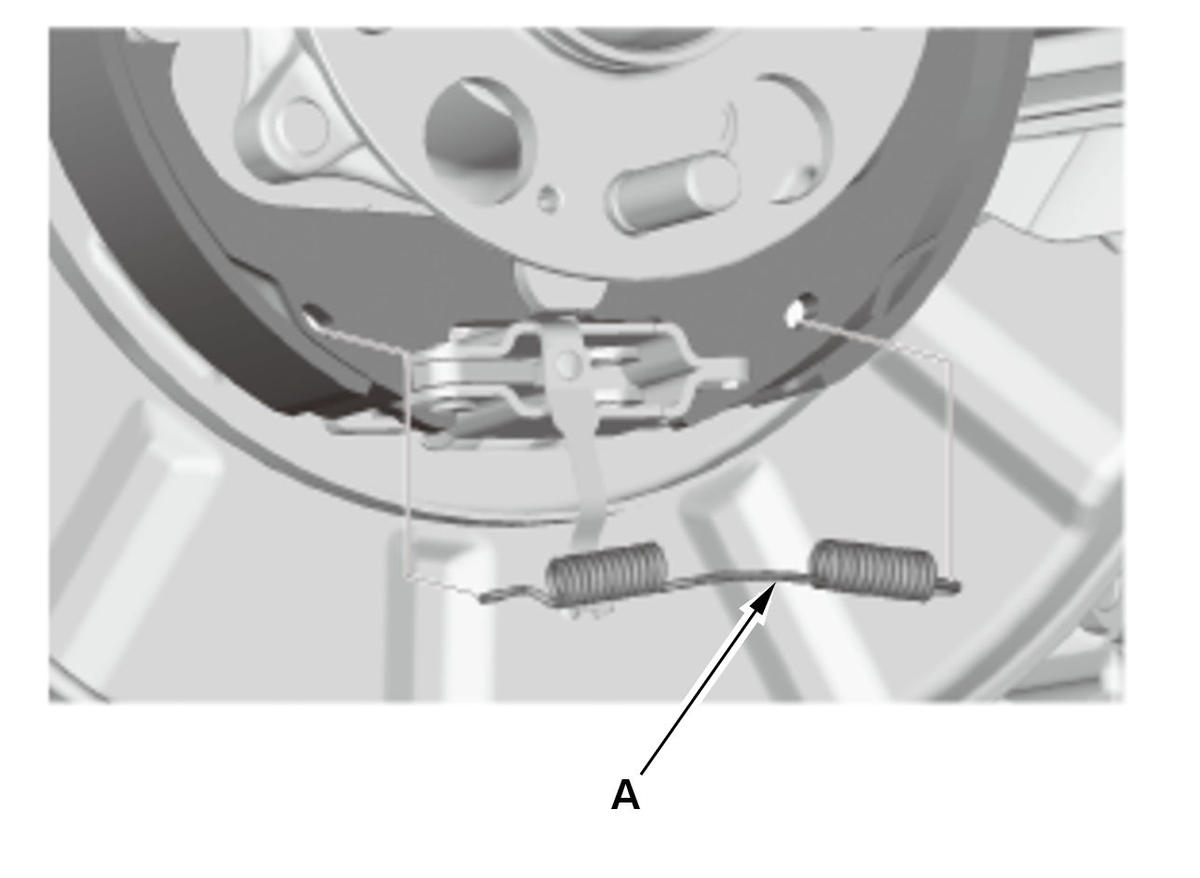

1. Disconnect and remove the brake spring A.

Courtesy of HONDA, U.S.A., INC.

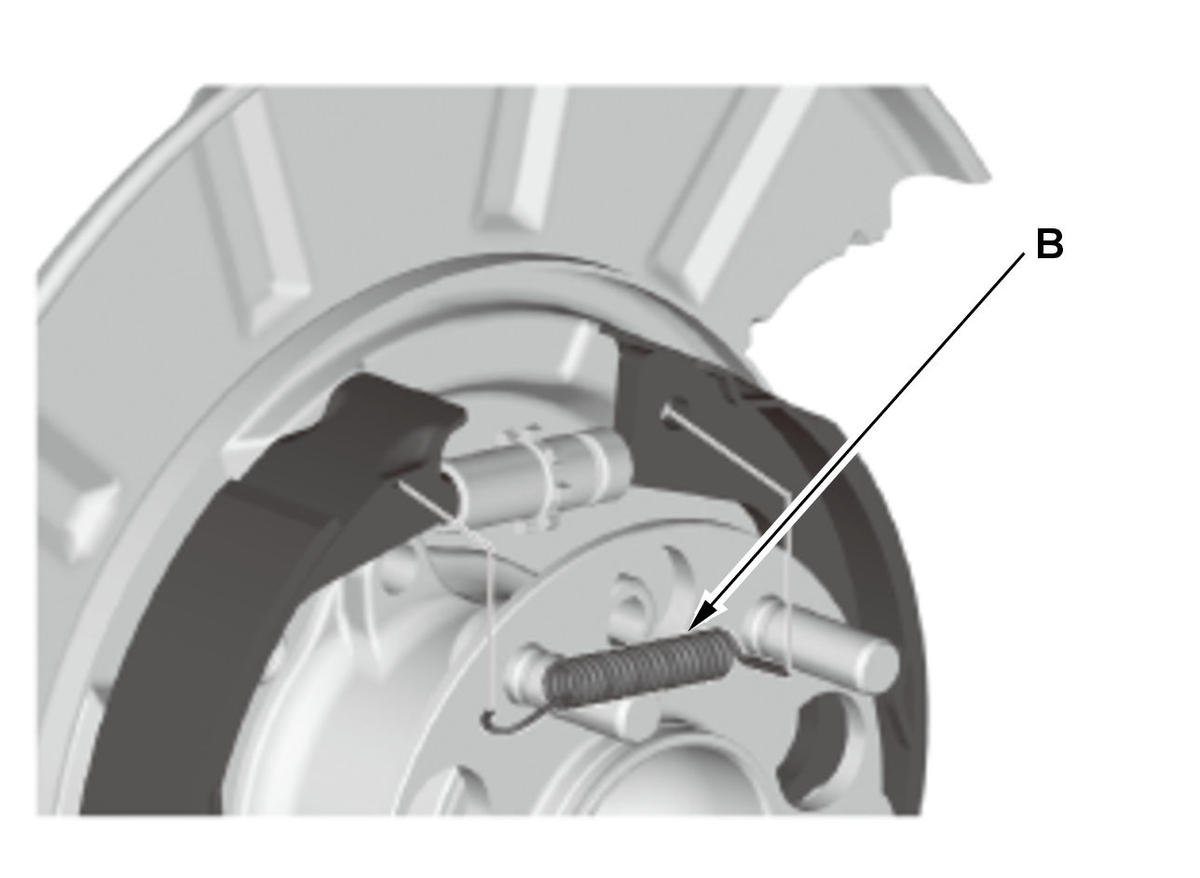

2. Disconnect and remove brake spring B.

Courtesy of HONDA, U.S.A., INC.

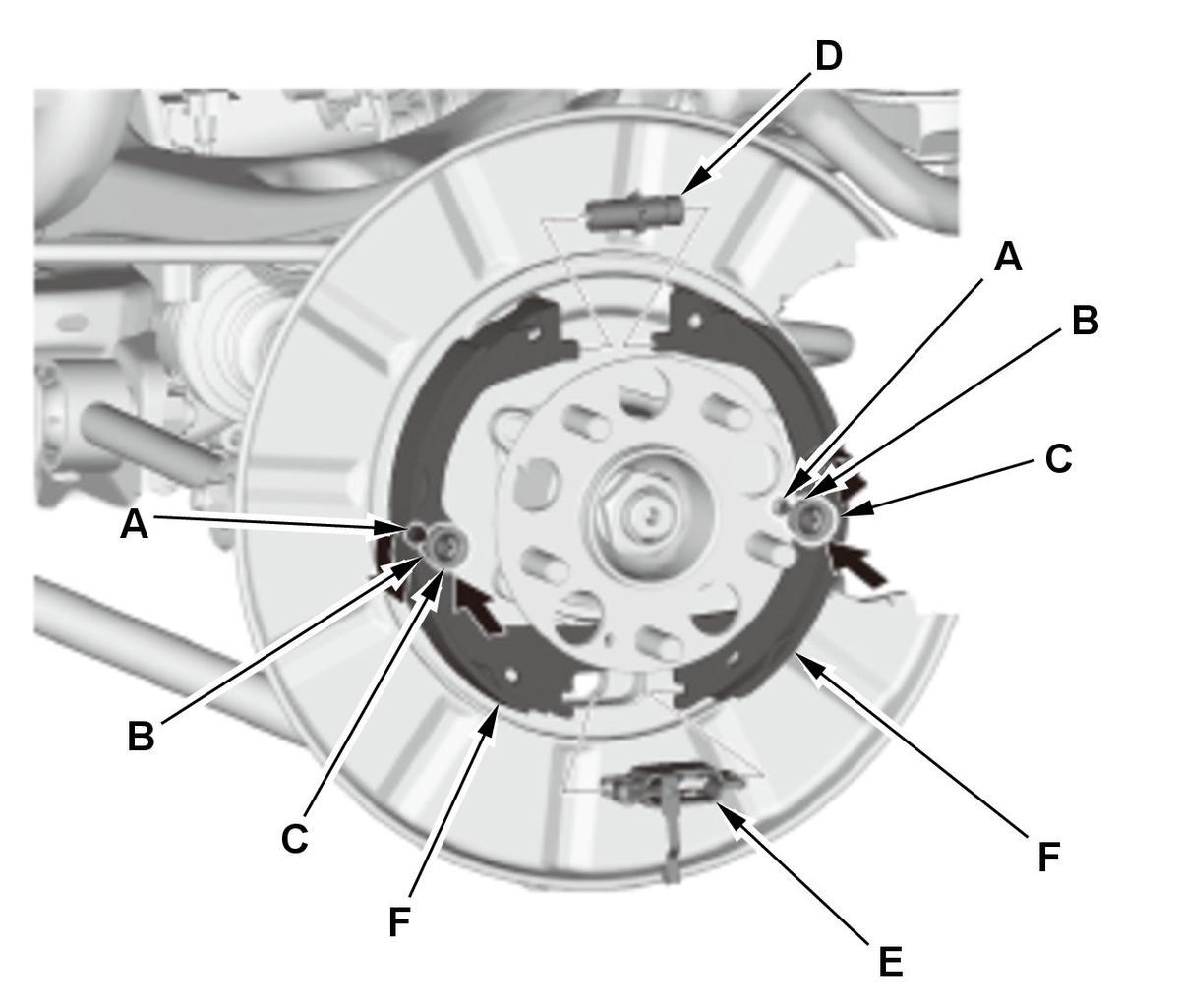

3. Remove the tension pins (A) by pushing the respective retainer springs (B), retainers (C), and turning the pin.

4. Remove the adjuster assembly (D).

5. Remove the parking brake lever assembly (E).

6. Remove the parking brake shoes (F).
