Parking Brake Pedal Removal And Installation: Removal

NOTE:  Be careful not to bend or distort the cable.

1. Parking Brake - Release
2. Parking Brake Pedal - Remove

   Courtesy of HONDA, U.S.A., INC.

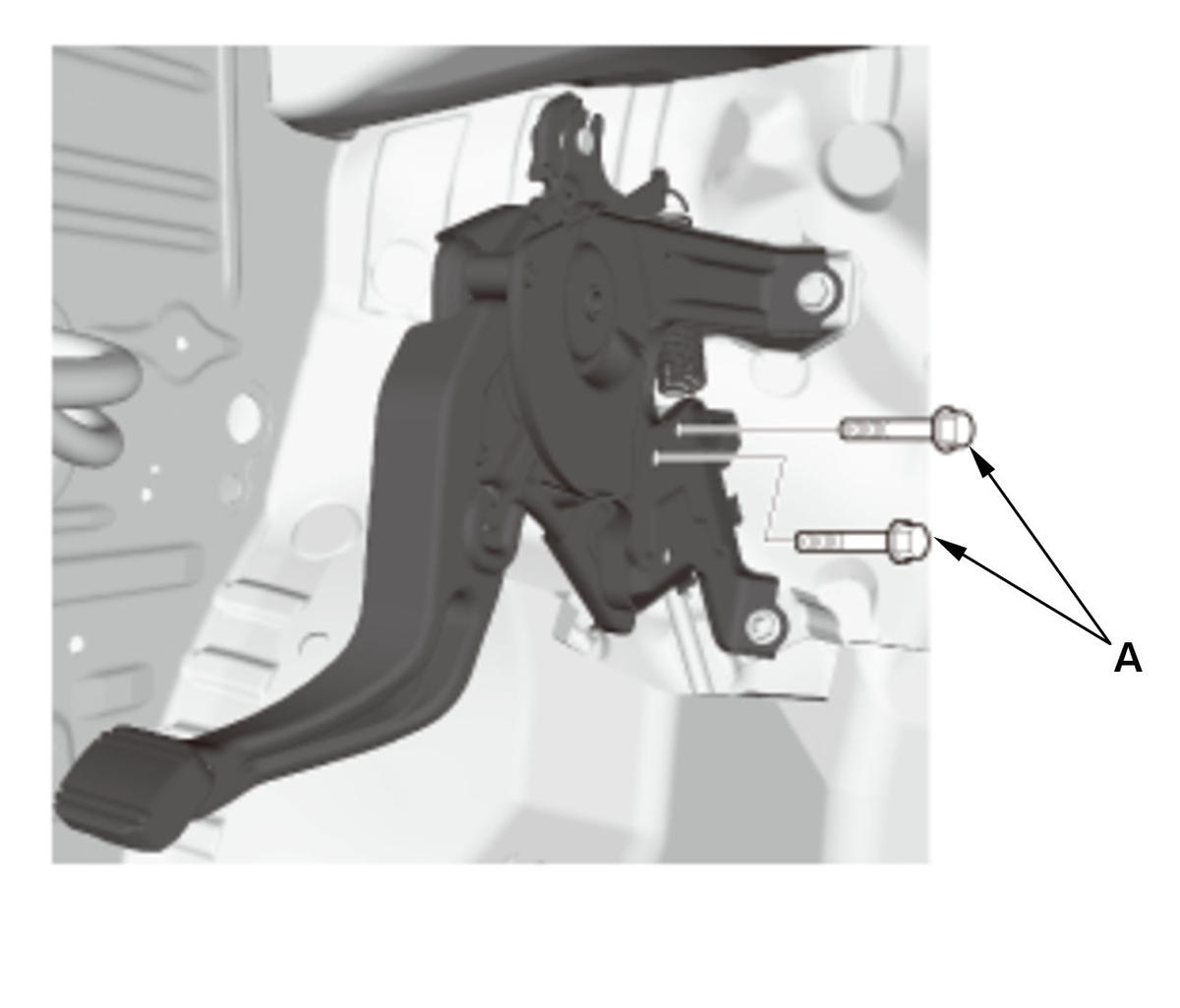

   1. Remove the parking brake cable mounting bolts (A).

   Courtesy of HONDA, U.S.A., INC.

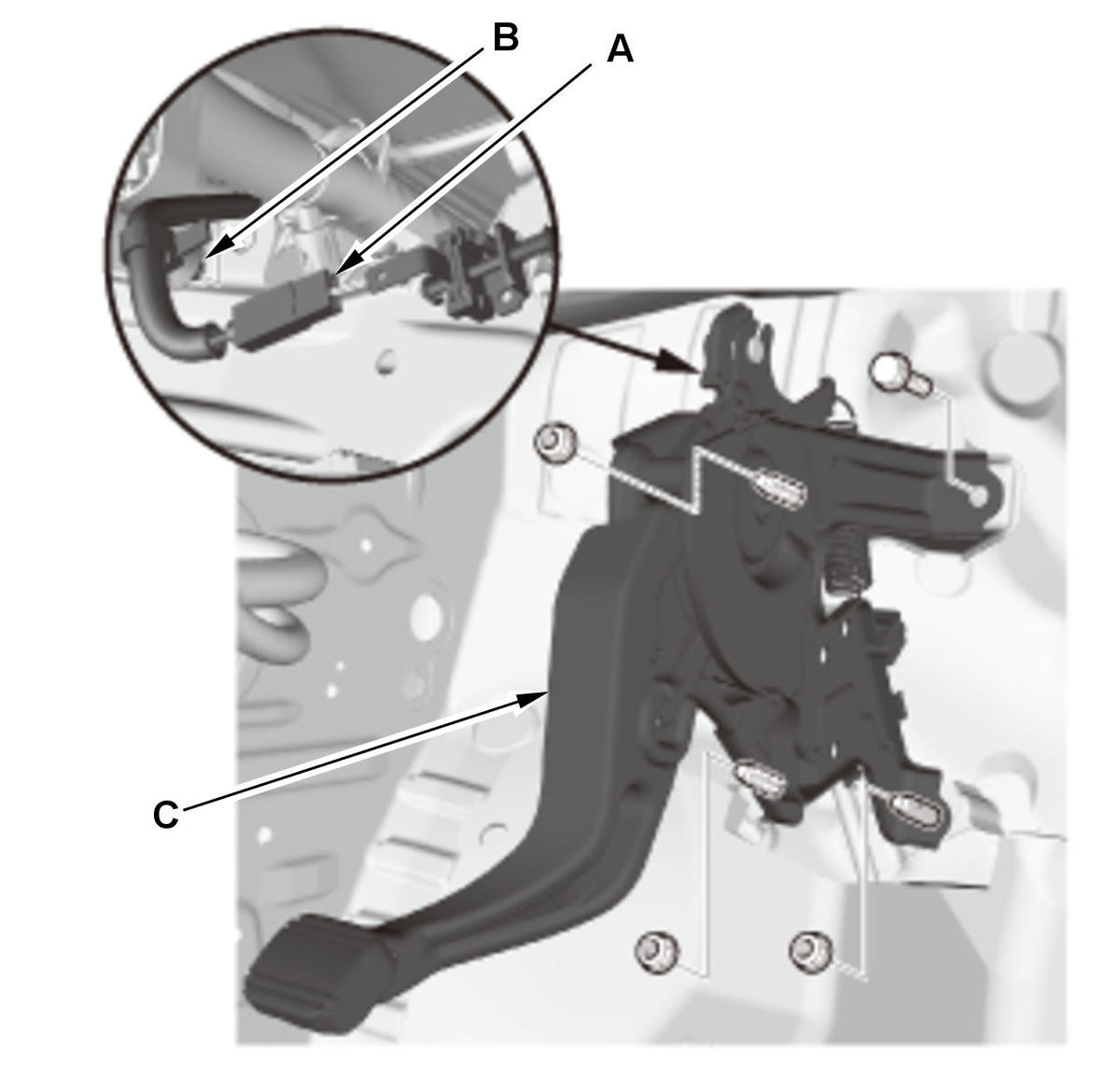

   2. Disconnect the connector (A). 3. Remove the harness clip (B) 4. Remove the parking brake pedal assembly (C).

   Courtesy of HONDA, U.S.A., INC.

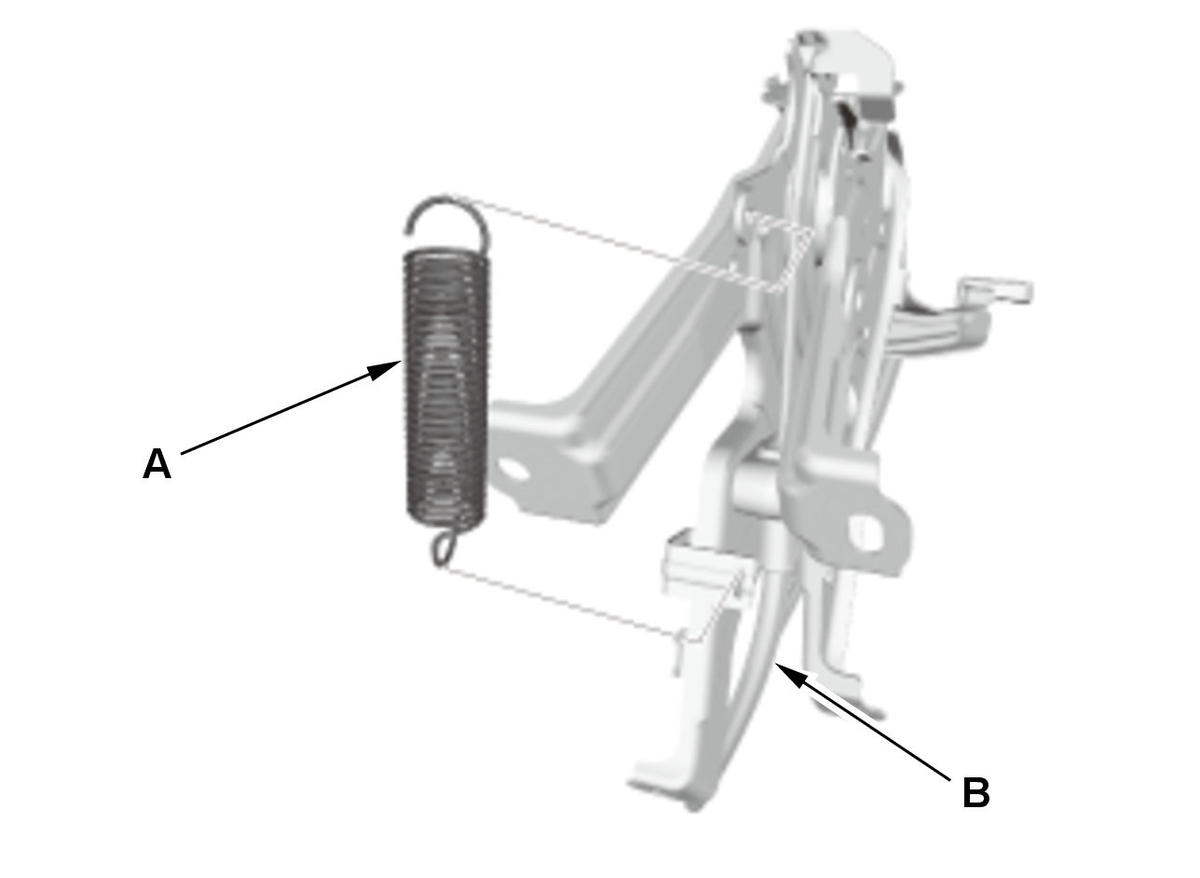

   5. Remove the spring (A). 6. Disconnect the parking brake cable (B) from the parking brake pedal assembly.

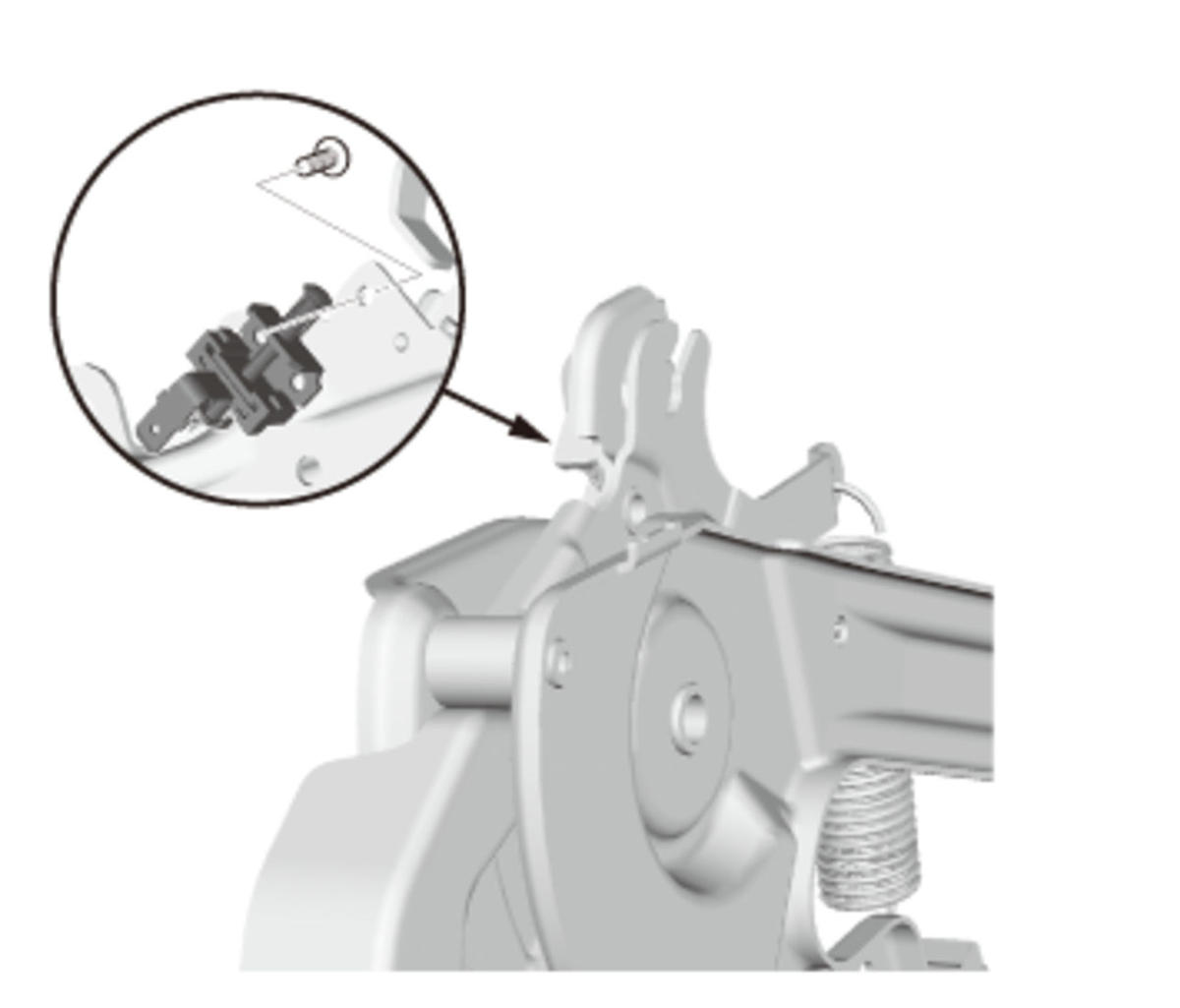

3. Parking Brake Switch - Remove

   Courtesy of HONDA, U.S.A., INC.
