Parking Brake Inspection And Adjustment: Inspection

Parking Brake - Inspect

Courtesy of HONDA, U.S.A., INC.

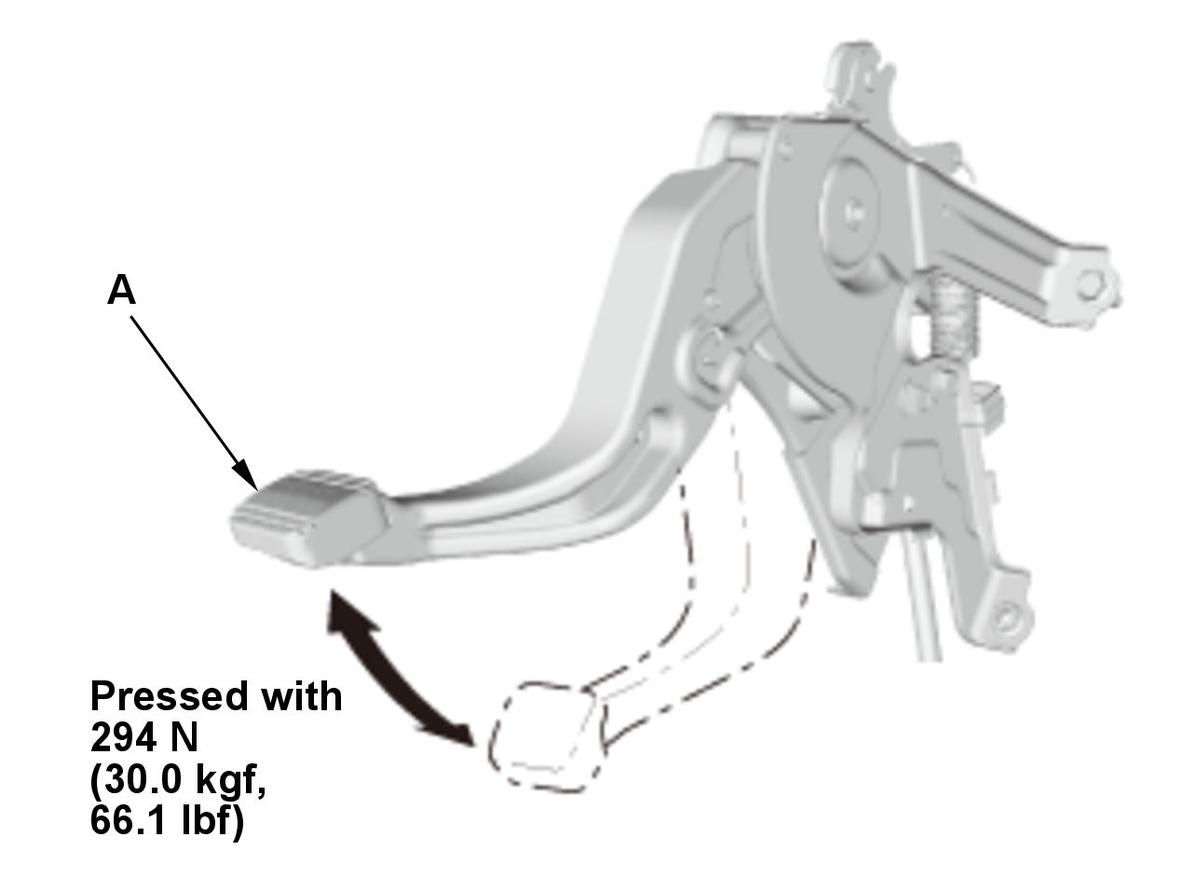

1. Press the parking brake pedal (A) with 294 N.m (30.0 Kgf-m, 66.1 lbf) of force to fully apply the parking brake.

2. The parking brake pedal should be locked within the specified number of clicks.

Pedal locked clicks: 9 to 11 clicks

3. Adjust the parking brake if the pedal clicks are not within the specification.

NOTE: Minor parking brake pedal adjustments (1 to 2 clicks) can be made with the adjusting nut (see parking brake minor adjustment). If a larger adjustment is required, follow the major adjustment procedure using the adjuster nut at the parking brake drum (see parking brake major adjustment). After installing new parking brake shoes and/or new brake disc/drum, make sure you drive the vehicle for "break-in" .
