Rear Brake Pad Removal And Installation: Removal

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

Brake Pad - Remove

Courtesy of HONDA, U.S.A., INC.

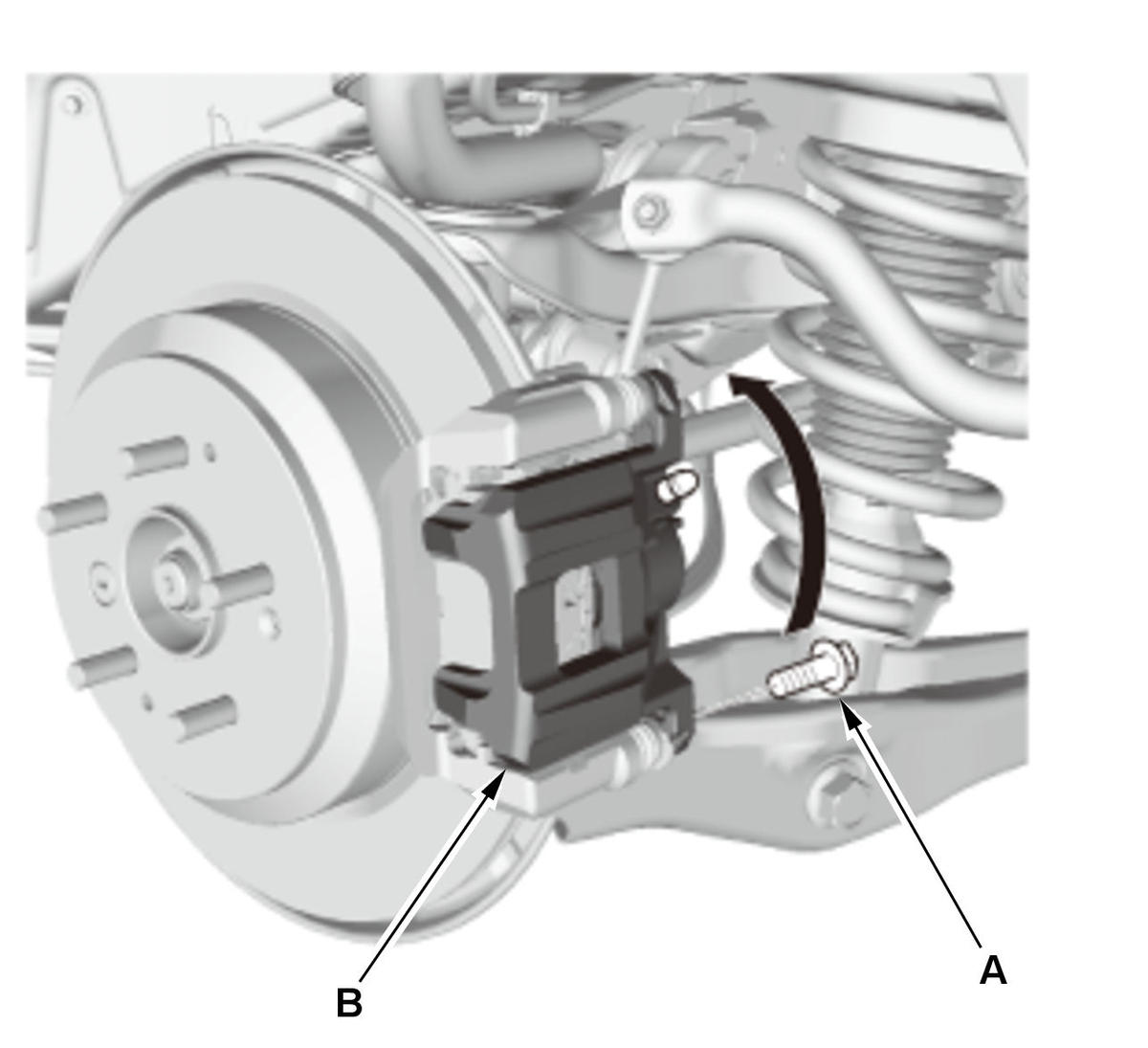

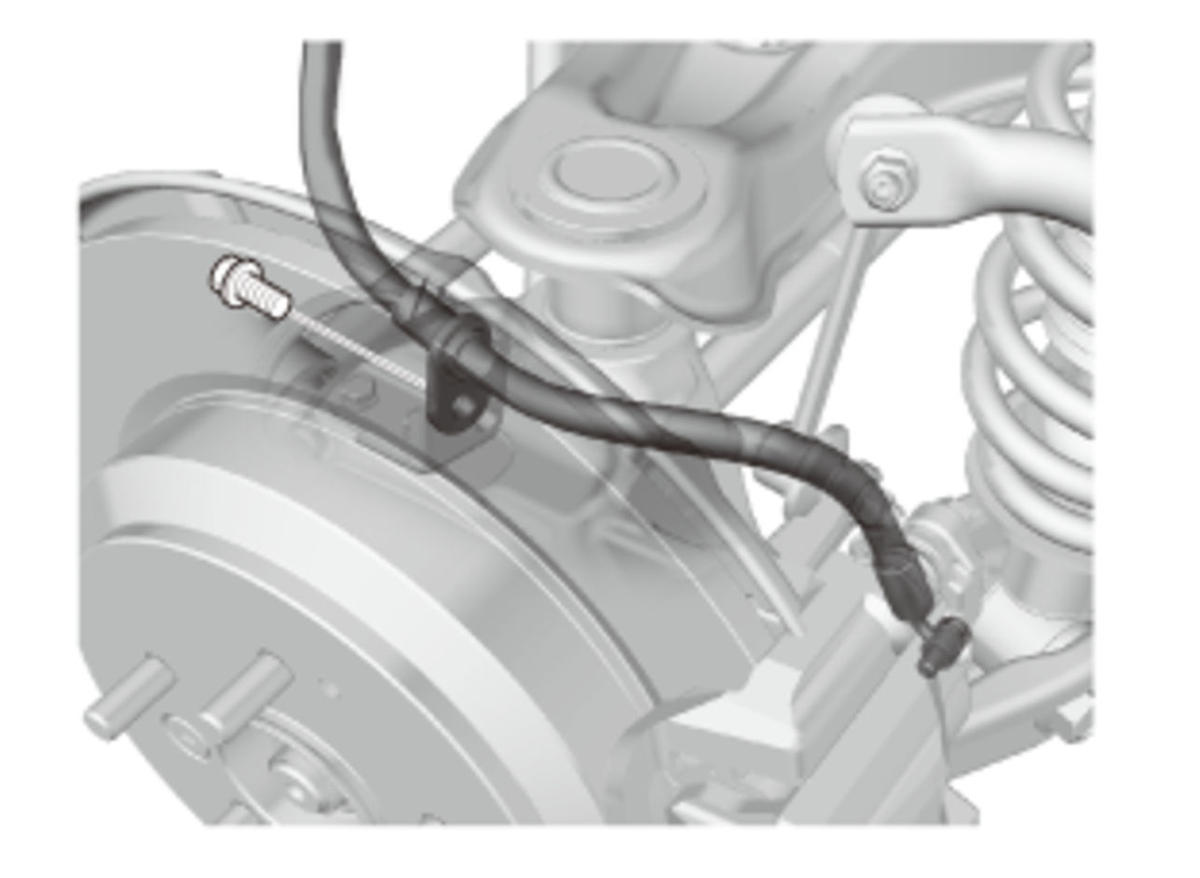

1. Remove the flange bolts (A).

NOTE: Be careful not to damage the pin boots.

2. Remove the caliper body (B).

NOTE: Check the hose and the pin boots for damage and deterioration.

Courtesy of HONDA, U.S.A., INC.

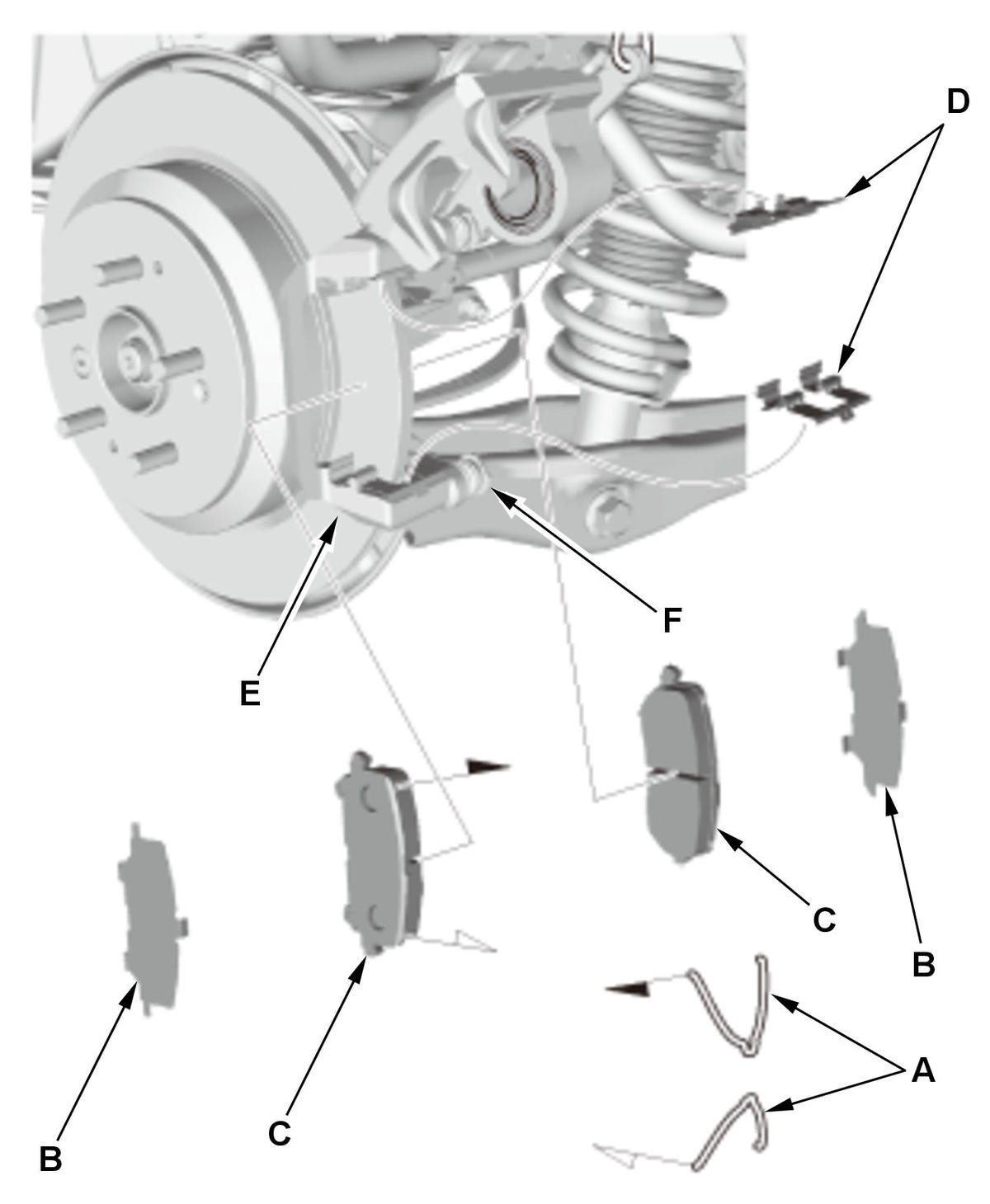

3. Remove the pad return springs (A).

4. Remove the pad shims (B) and the brake pads (C).

5. Remove the upper and lower pad retainers (D).

NOTE: The upper and lower pad retainers are different. During installation, make sure the pad retainers are in the proper positions.

6. Clean the caliper bracket (E) thoroughly; remove any rust, and check for grooves and cracks.

7. Verify that the caliper pins (F) move in and out smoothly. Clean and lube if needed.
