Removal and Installation

Brake Pedal - Remove

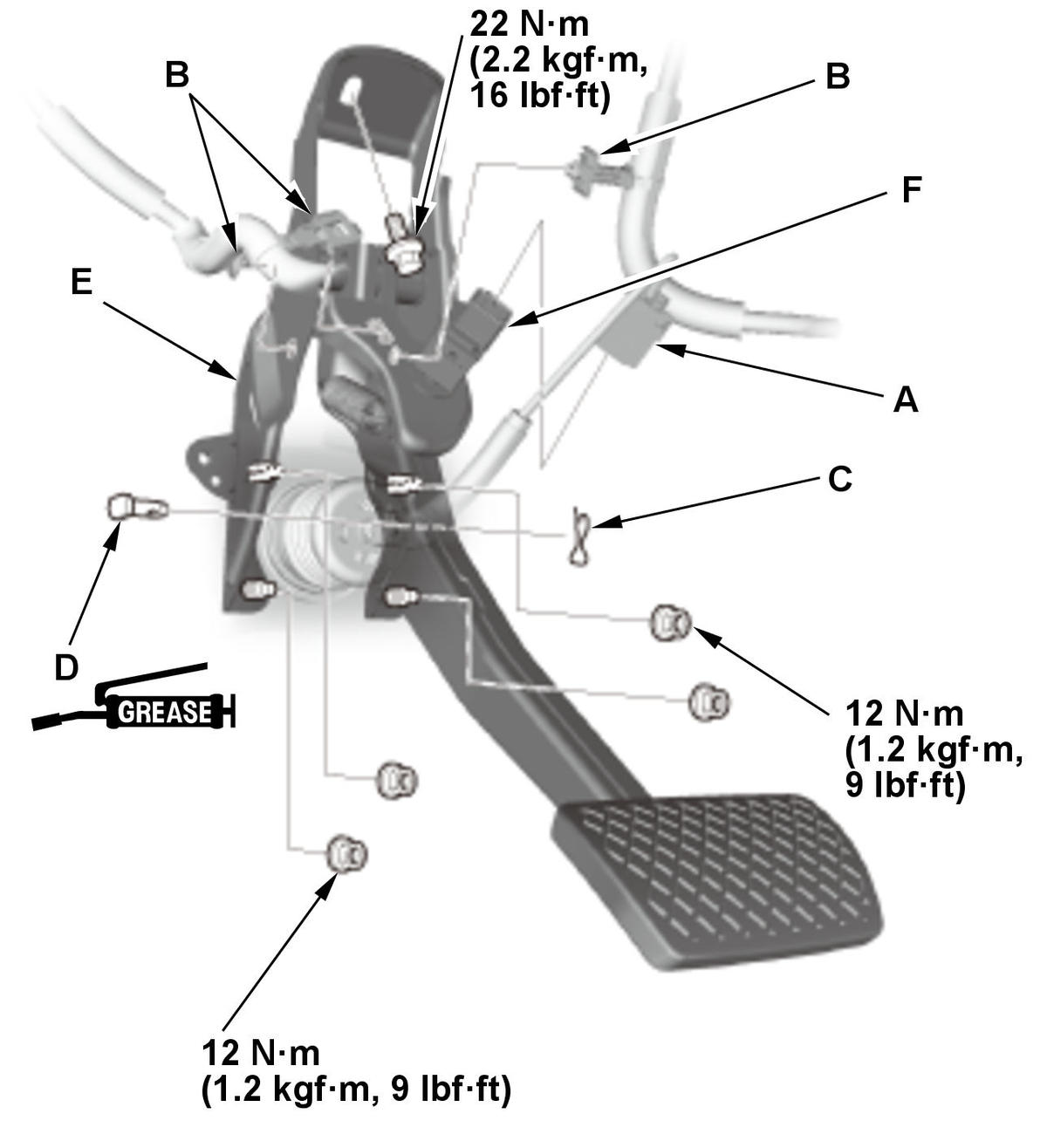

Fig 1: Brake Pedal Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A).

2. Remove the wire harness clips (B).

3. Remove the lock pin (C).

4. Remove the clevis pin (D).

NOTE: Apply multipurpose grease to the clevis pin in the brake pedal.

5. Remove the brake pedal with the bracket (E).

6. Remove the brake pedal position switch (F) by turning it 45° counterclockwise to release from bracket.

All Removed Parts - Install

1. Install the brake pedal in the reverse order of removal.
Brake Pedal and Brake Pedal Position Switch - Adjust
