Removal and Installation

Brake Line - Remove

Courtesy of HONDA, U.S.A., INC.

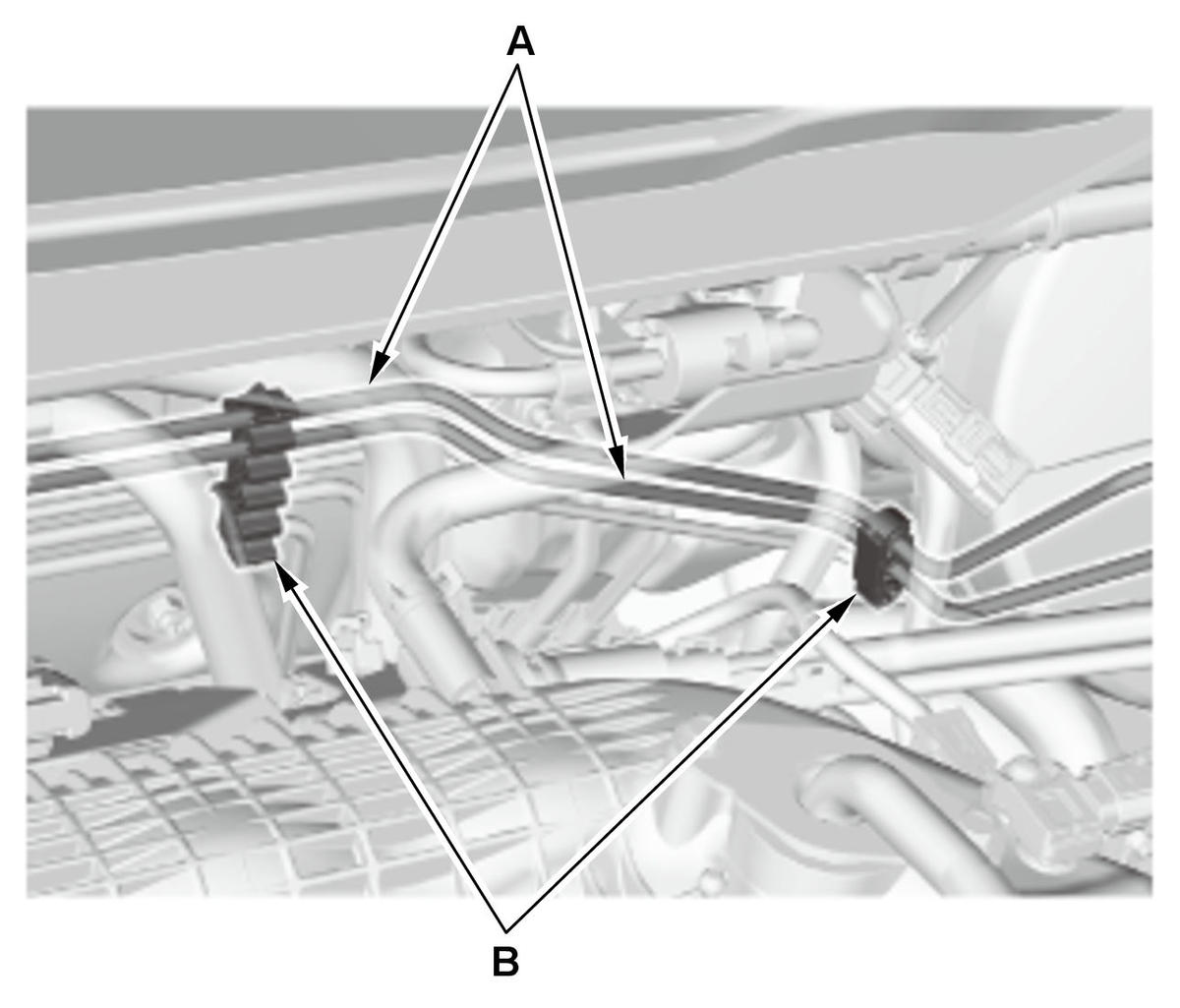

1. Remove the brake lines (A) from the brake line clamps (B).

Brake Booster - Remove

Courtesy of HONDA, U.S.A., INC.

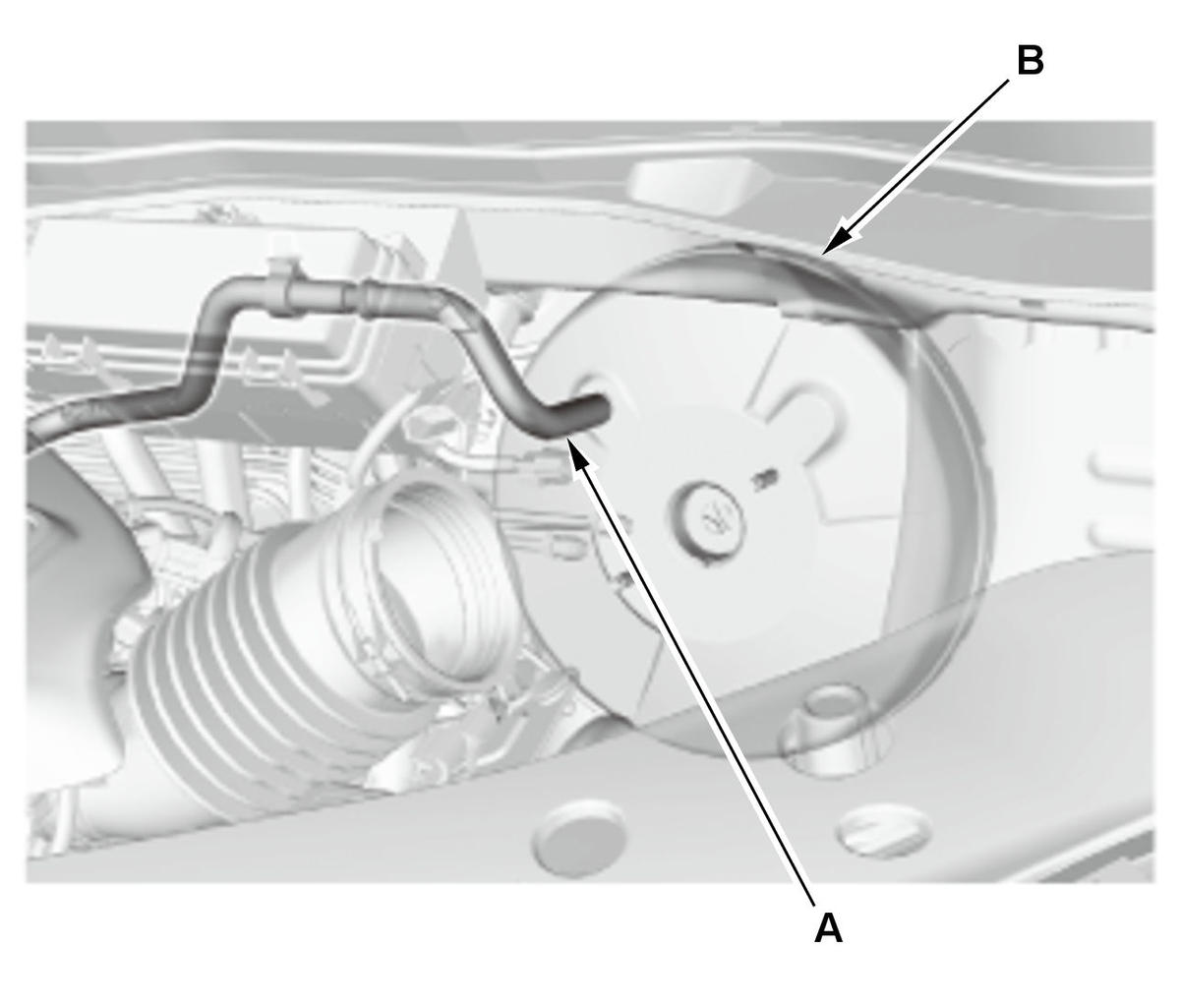

1. Disconnect the brake booster vacuum hose (A) from the brake booster (B).

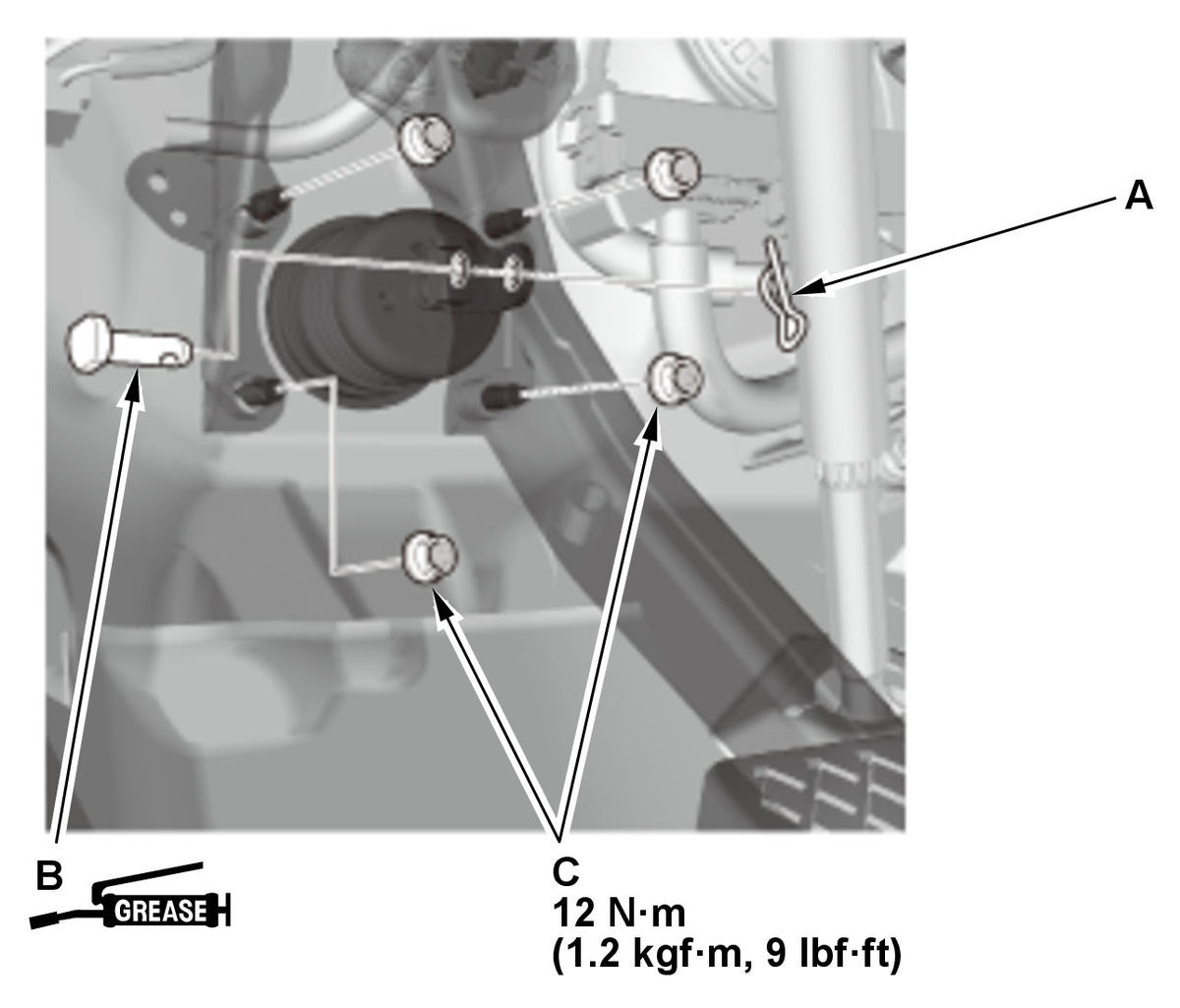

Fig 1: Brake Booster Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Remove the lock pin (A).

3. Remove the clevis pin (B).

NOTE: Apply multipurpose grease to the yoke pin in the brake pedal.

4. Remove the brake booster mounting nuts (C).

Courtesy of HONDA, U.S.A., INC.

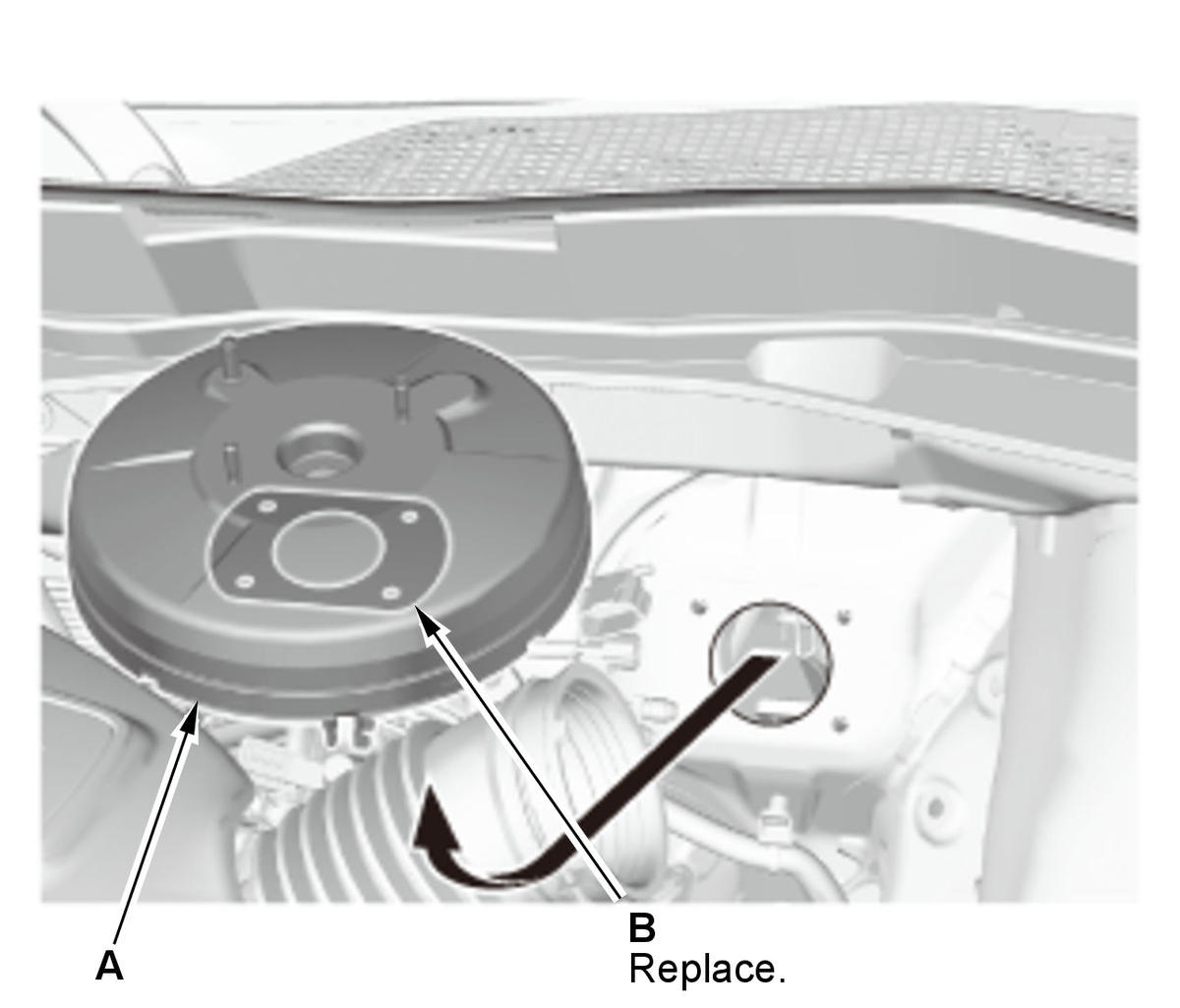

5. Remove the brake booster (A) from the engine compartment.

Be careful not to damage the brake booster mounting surfaces and the threads on the booster studs.
Be careful not to bend or damage the brake lines.
Use the new brake booster gasket (B) during reassembly.

All Removed Parts - Install

1. Install the brake booster in the reverse order of removal, and note these items:
