Removal and Installation

  1. Brake Booster Pressure Sensor - Remove

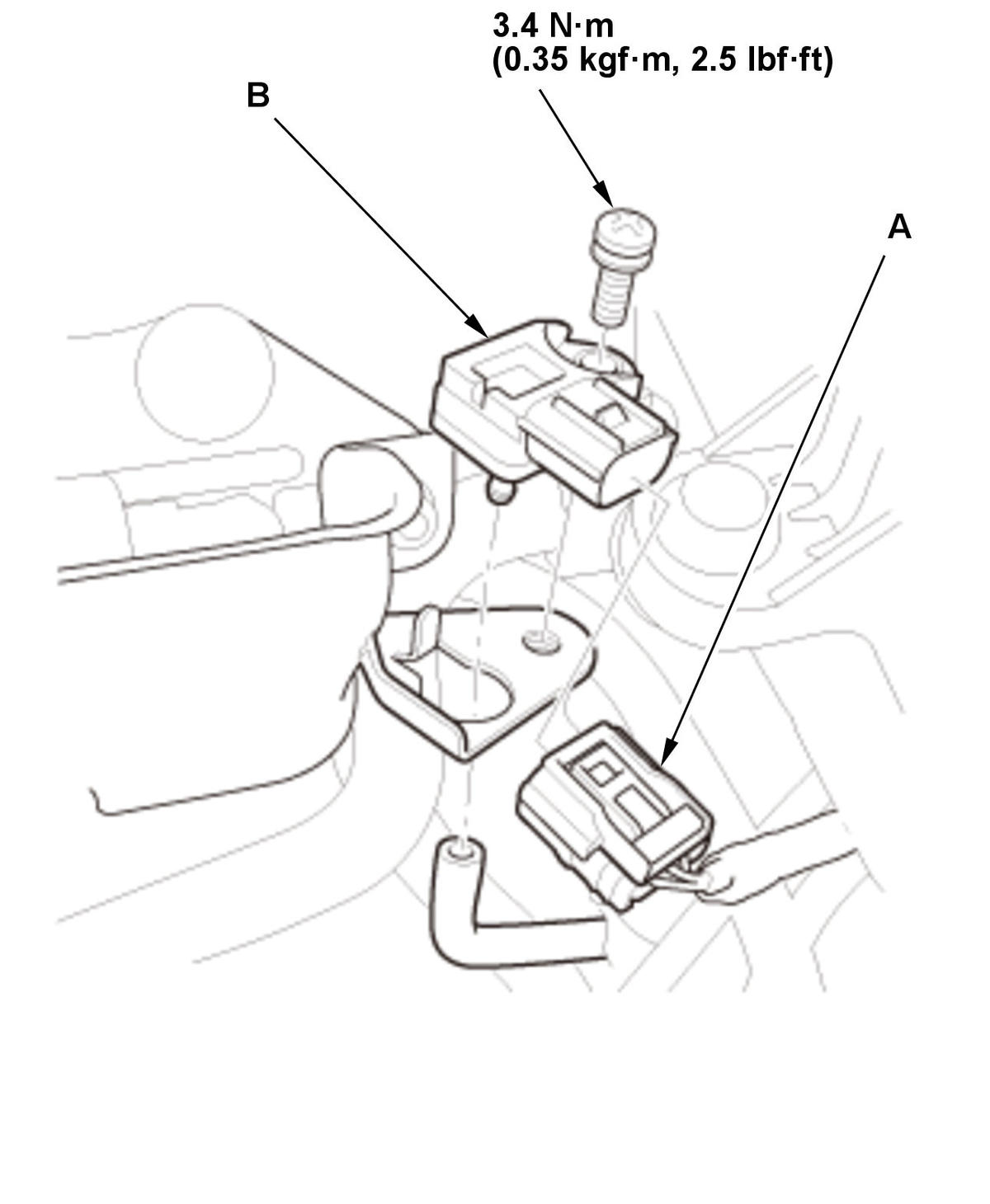

    GHH305713Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the brake booster pressure sensor (B).
  2. All Removed Parts - Install
    1. Install the brake booster pressure sensor in the reverse order of removal.
