Home
>>
Honda
>>
2021
>>
Pilot Special Edition, AWD
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Moonroof - Testing & Troubleshooting
>>

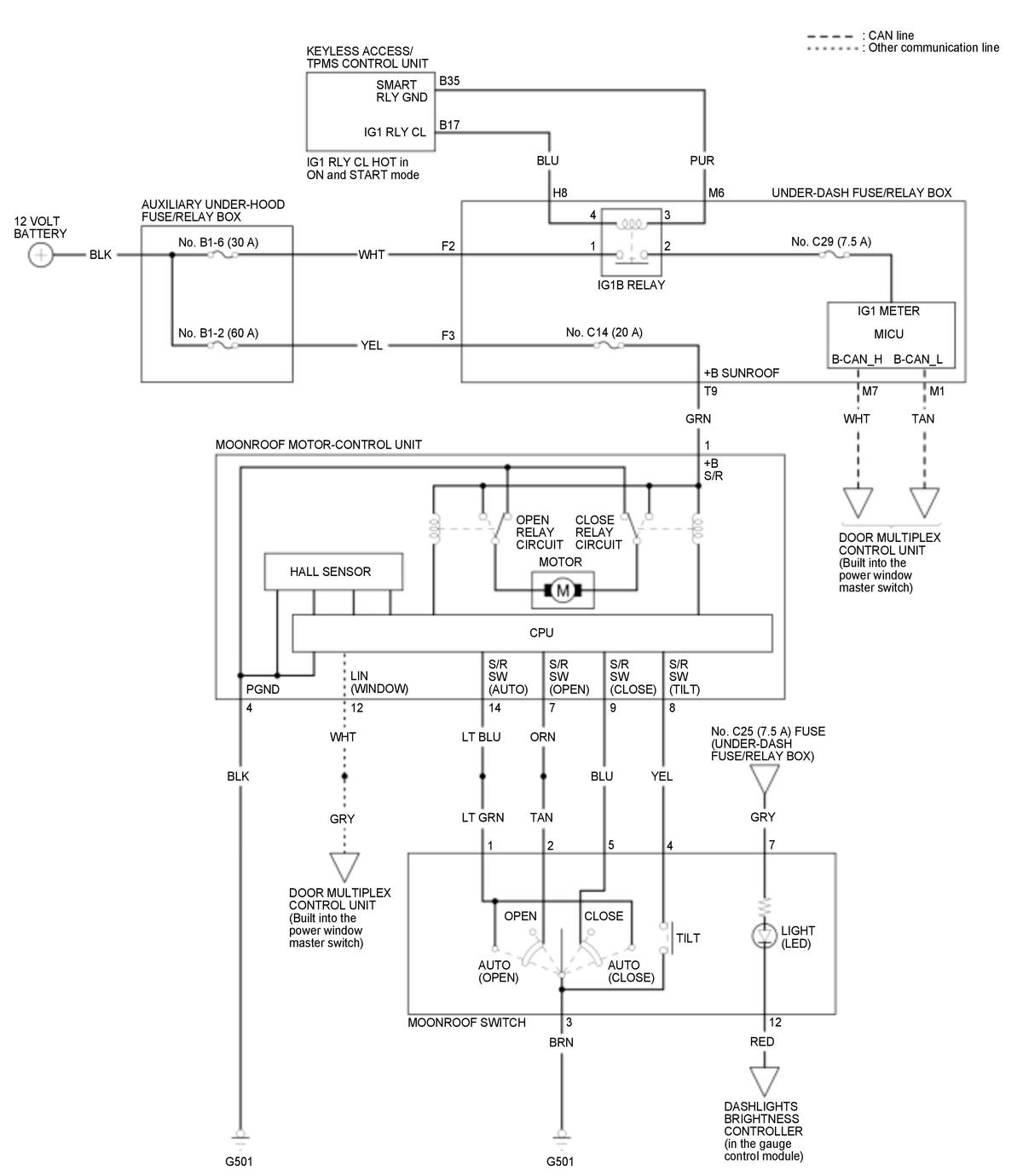

Circuit Diagram
>>
MOONROOF (WITHOUT Panoramic Glass Roof) (2019 2020 2021)
MOONROOF (WITHOUT Panoramic Glass Roof) (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
