Moonroof - Testing & Troubleshooting
>>

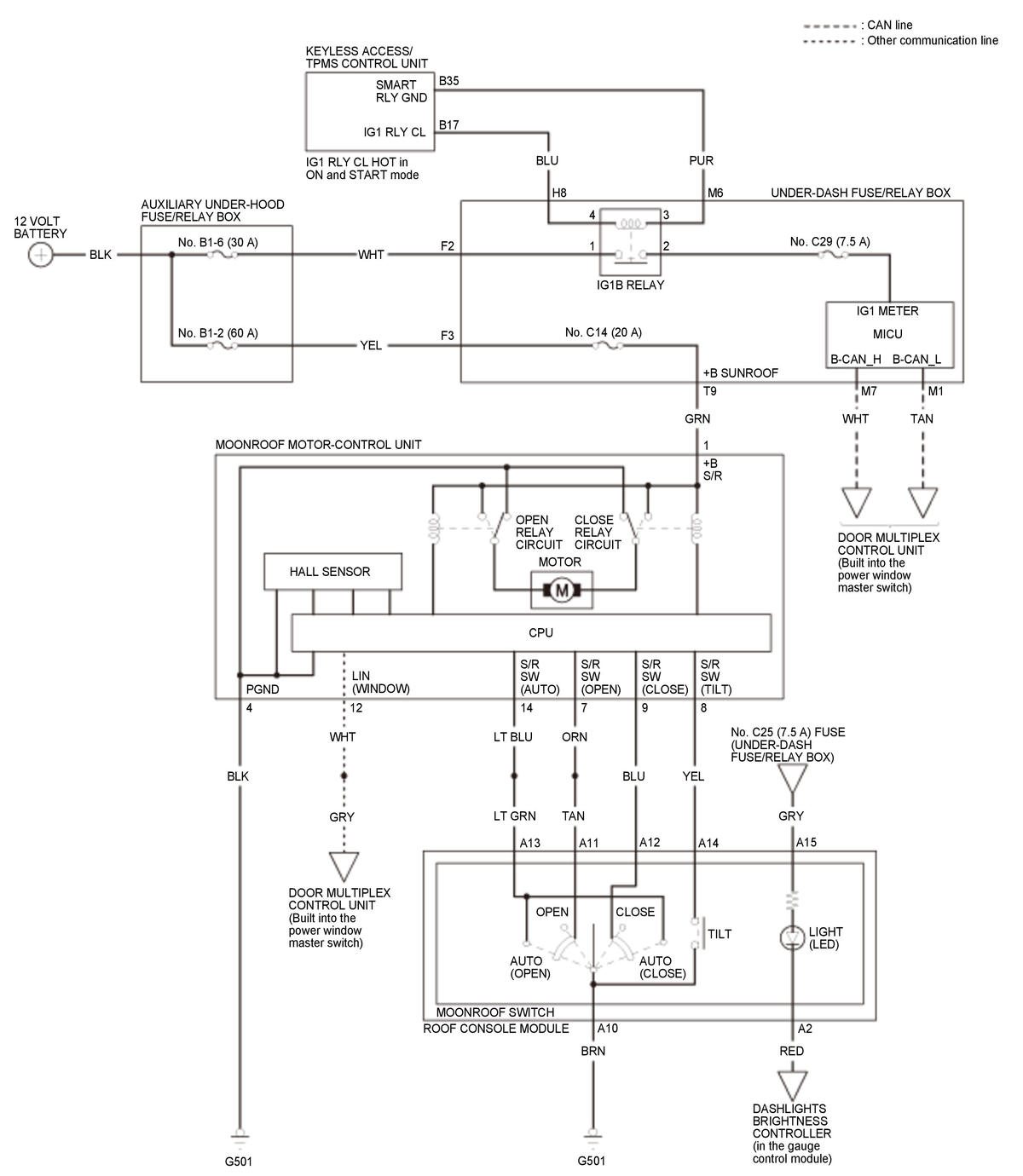

Circuit Diagram
>>
MOONROOF (WITH Panoramic Glass Roof) (2016 2017 2018)
MOONROOF (WITH Panoramic Glass Roof) (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
