Without Roof Rail

Roof Molding - Remove

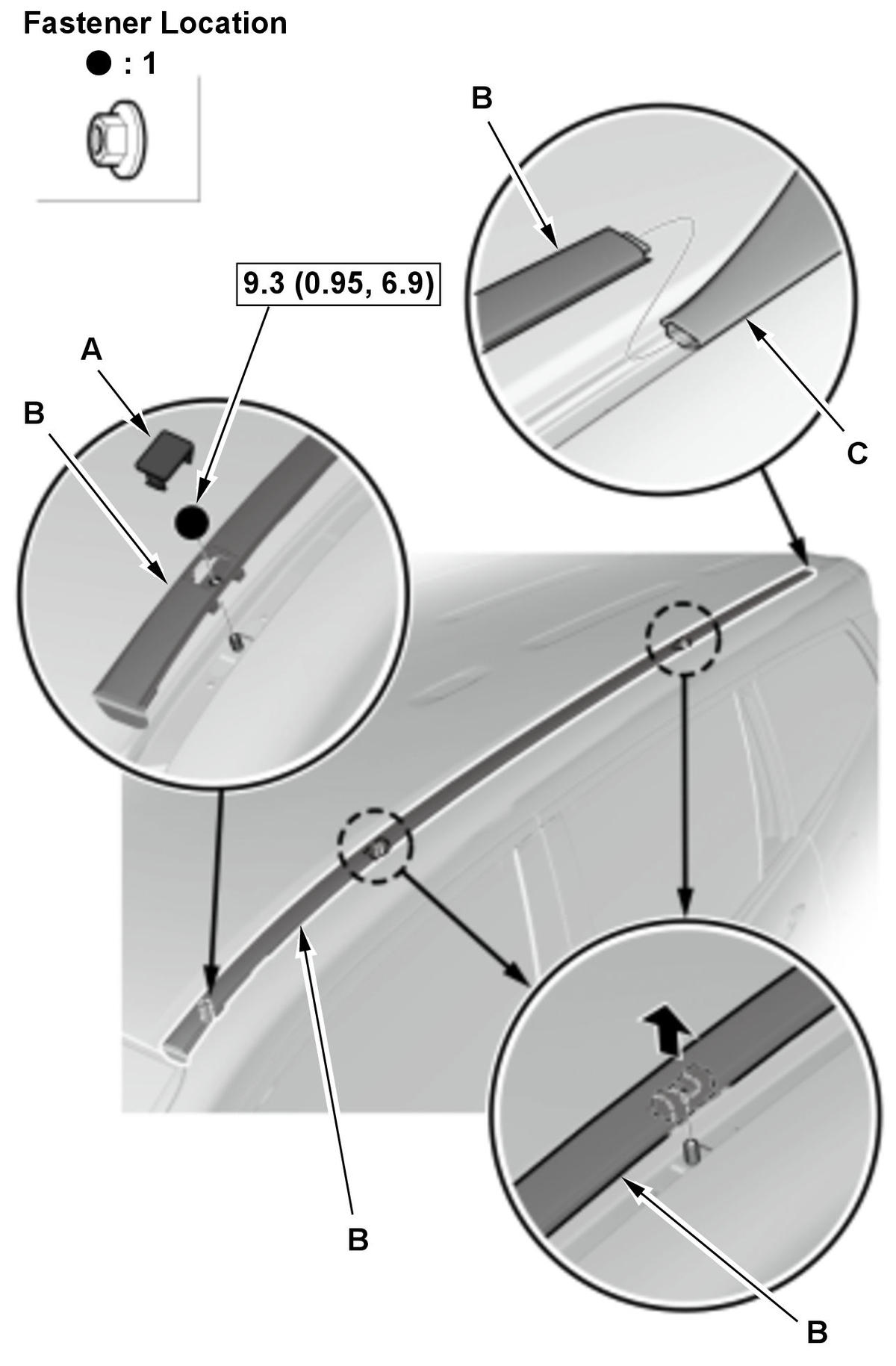

With roof molding cap

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

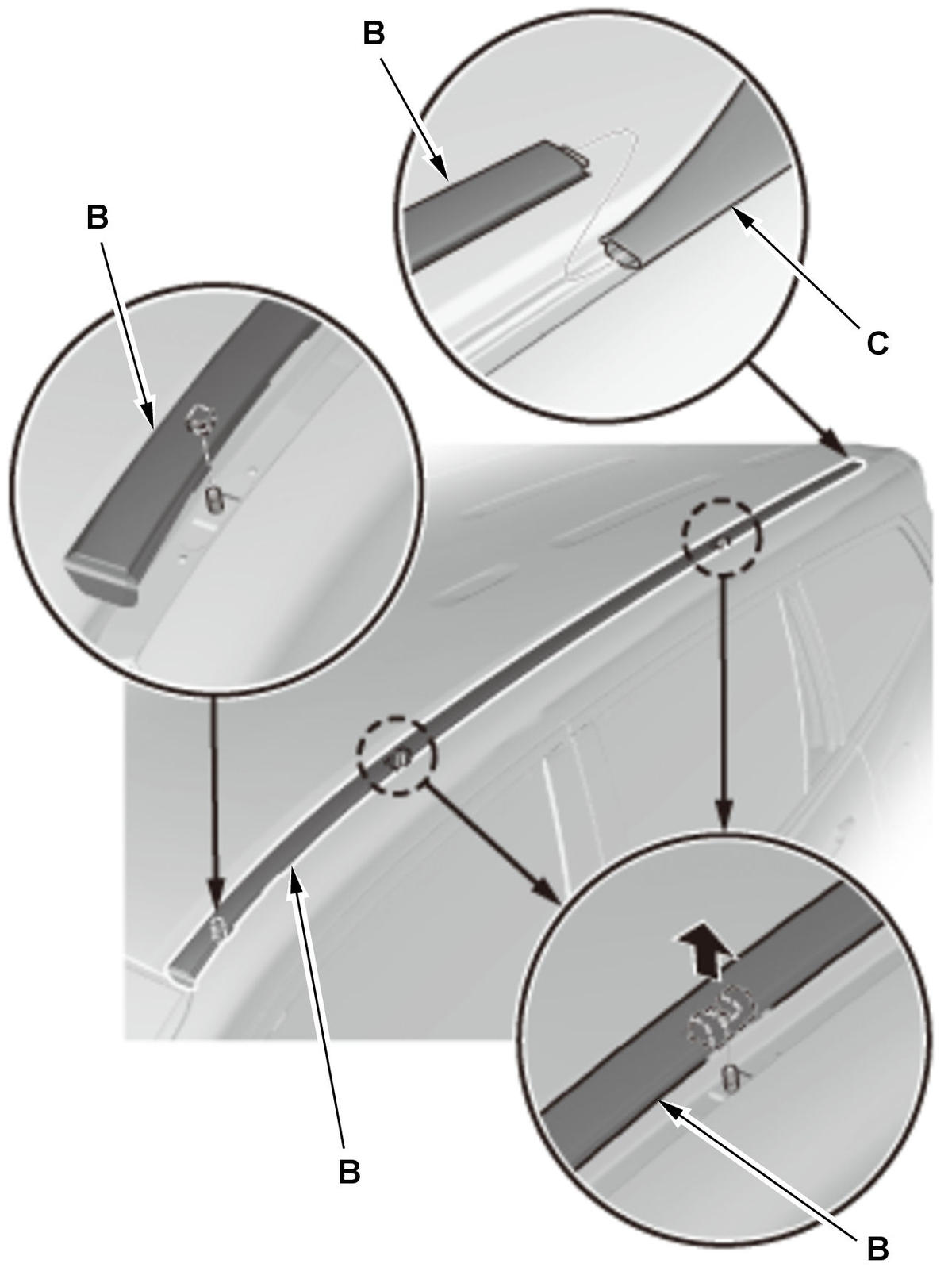

Without roof molding cap

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. With roof molding cap: Remove the roof molding cap (A), and then remove the nut.

2. Remove the roof molding (B).

NOTE: Remove the rear end of the roof molding from the tailgate hinge cover (C).

Courtesy of HONDA, U.S.A., INC.

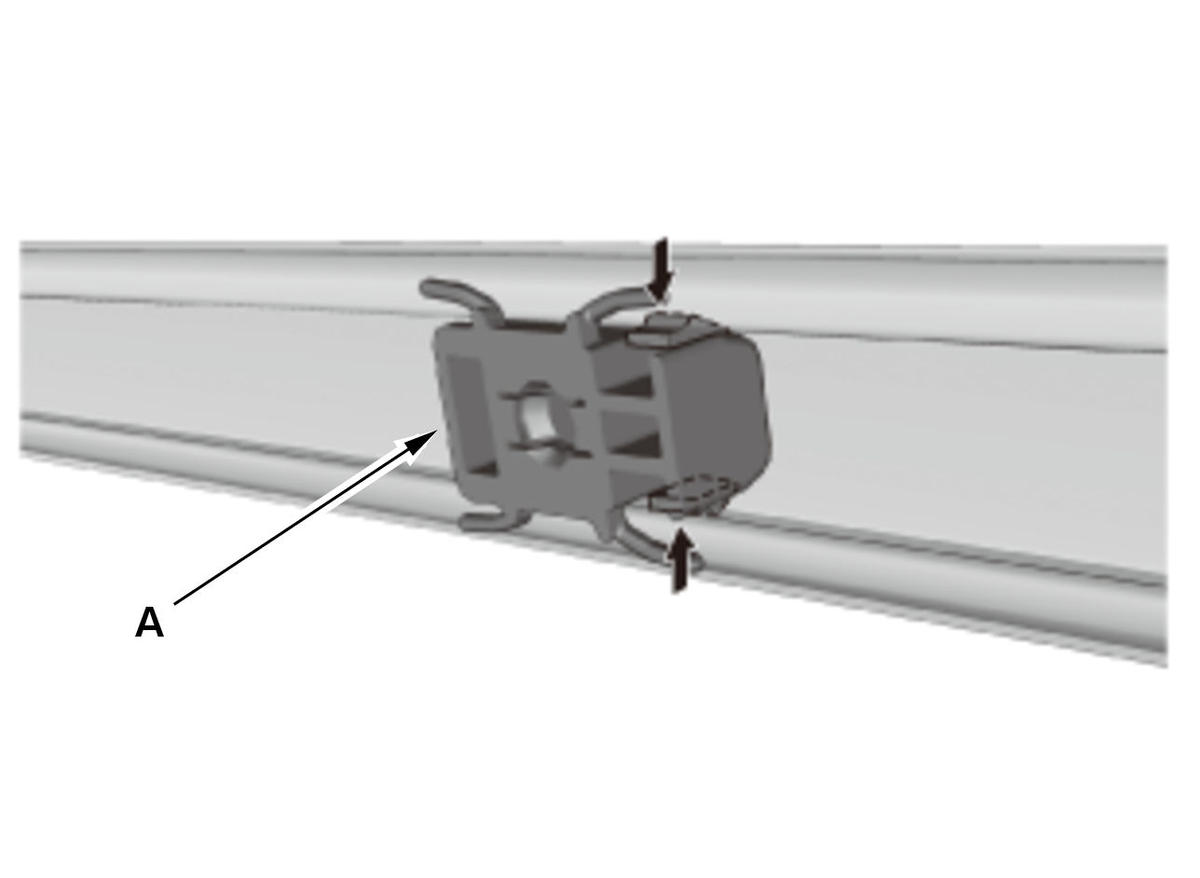

3. If necessary, remove the roof molding clip (A).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
