With Roof Rail

Roof Molding - Remove

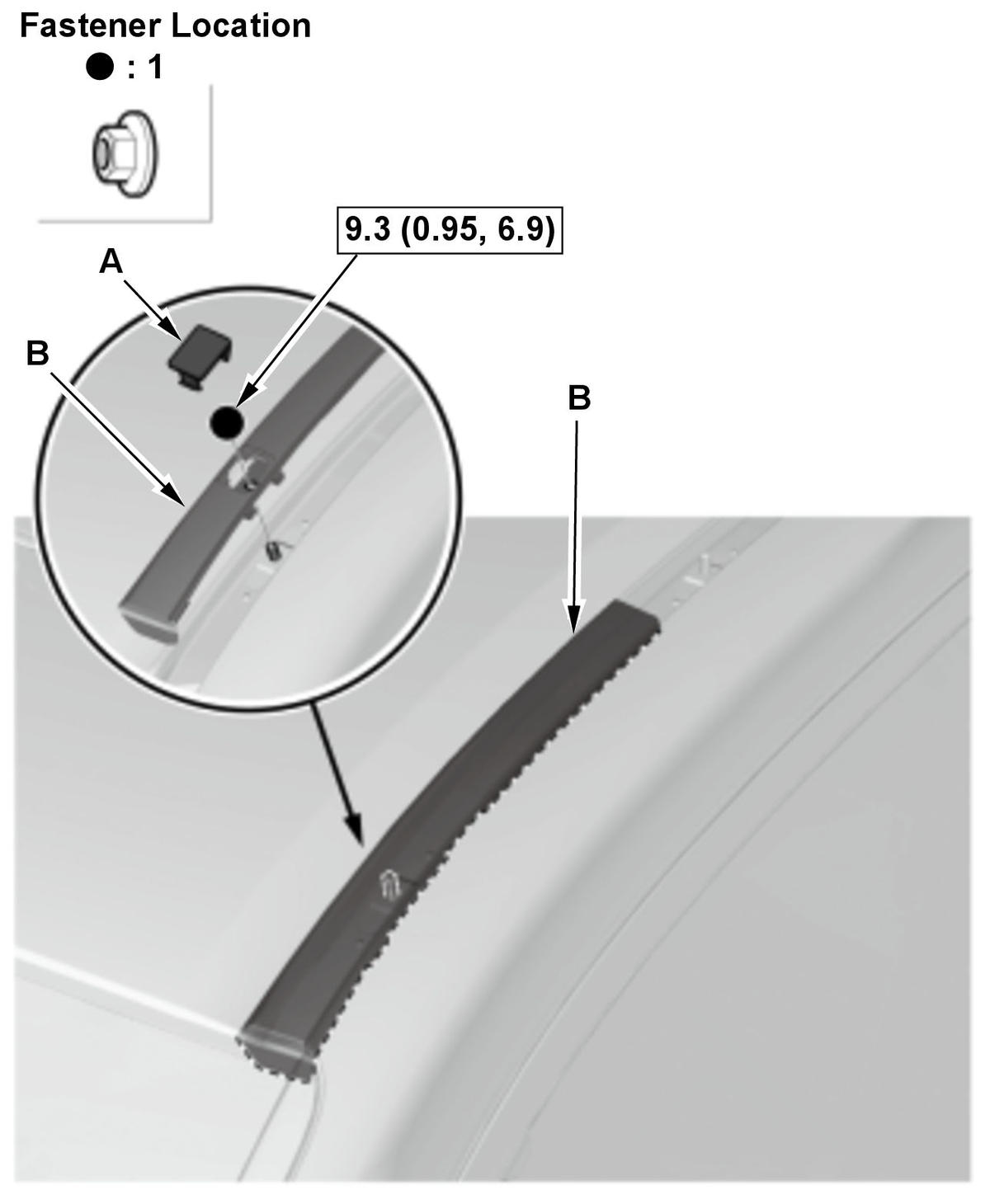

With roof molding cap

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

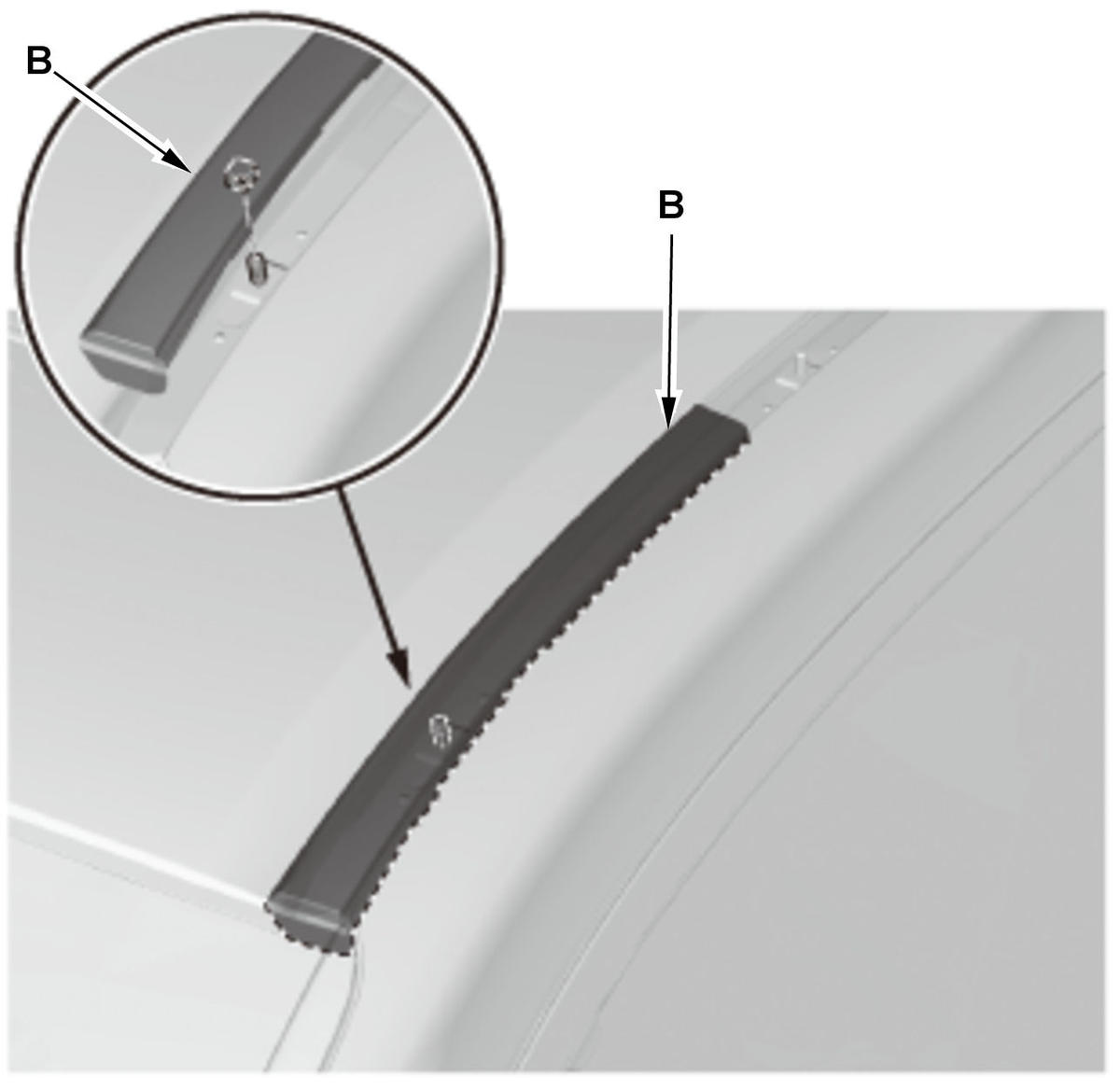

Without roof molding cap

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. With roof molding cap: Remove the roof molding cap (A), and then remove the nut.

2. Remove the roof molding (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
