Removal and Installation

NOTE:  SRS components are located in this area. Review the SRS component locations -

Refer to:

SRS Component Location Index (2016) or

SRS Component Location Index (2017 2018 2019) and the

Precautions And Procedures before doing repairs or service.

1. Headliner - Remove - Refer to:

   Headliner Removal and Installation (With Panoramic Glass Roof) or

   Headliner Removal and Installation (Without Panoramic Glass Roof) .

2. Sunshade Motor - Remove
3. Sunshade Frame - Remove
4. Sunshade Trim - Remove
5. Sunshade - Remove

   Courtesy of HONDA, U.S.A., INC.

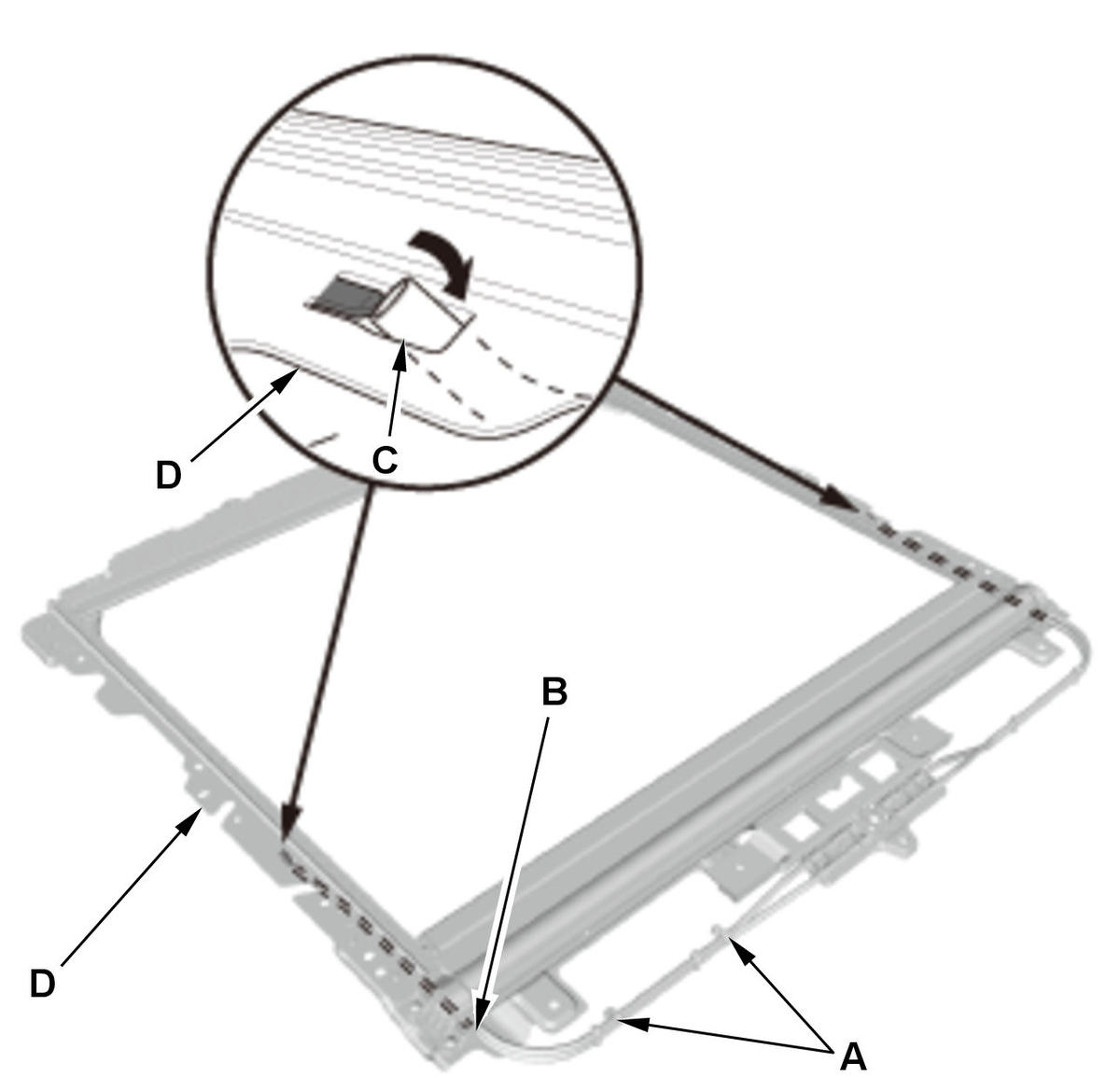

   1. Remove the harness clips (A, B). 2. Disconnect the sunshade cable tube (C) from the sunshade frame (D). (both side)

   Courtesy of HONDA, U.S.A., INC.

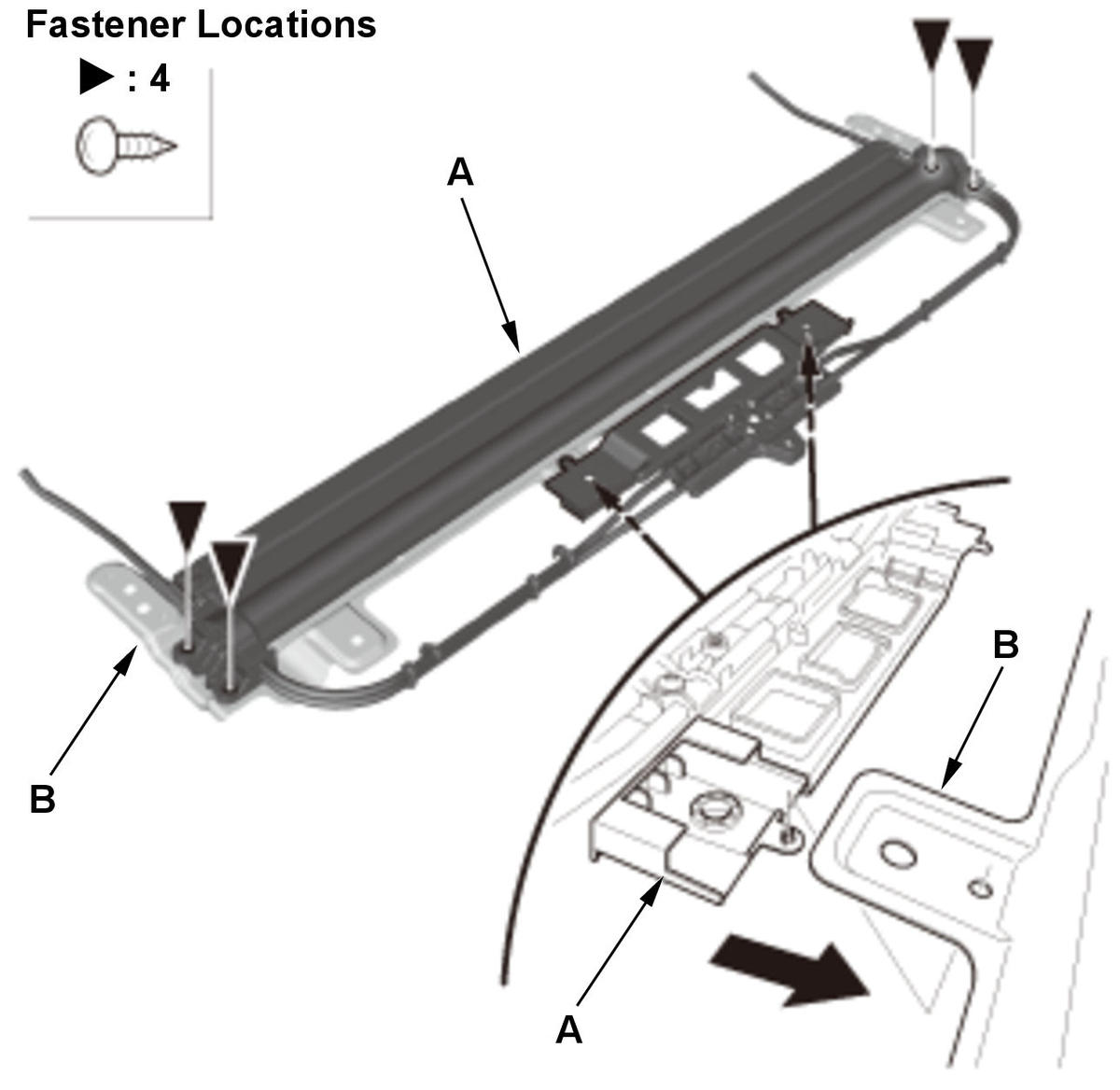

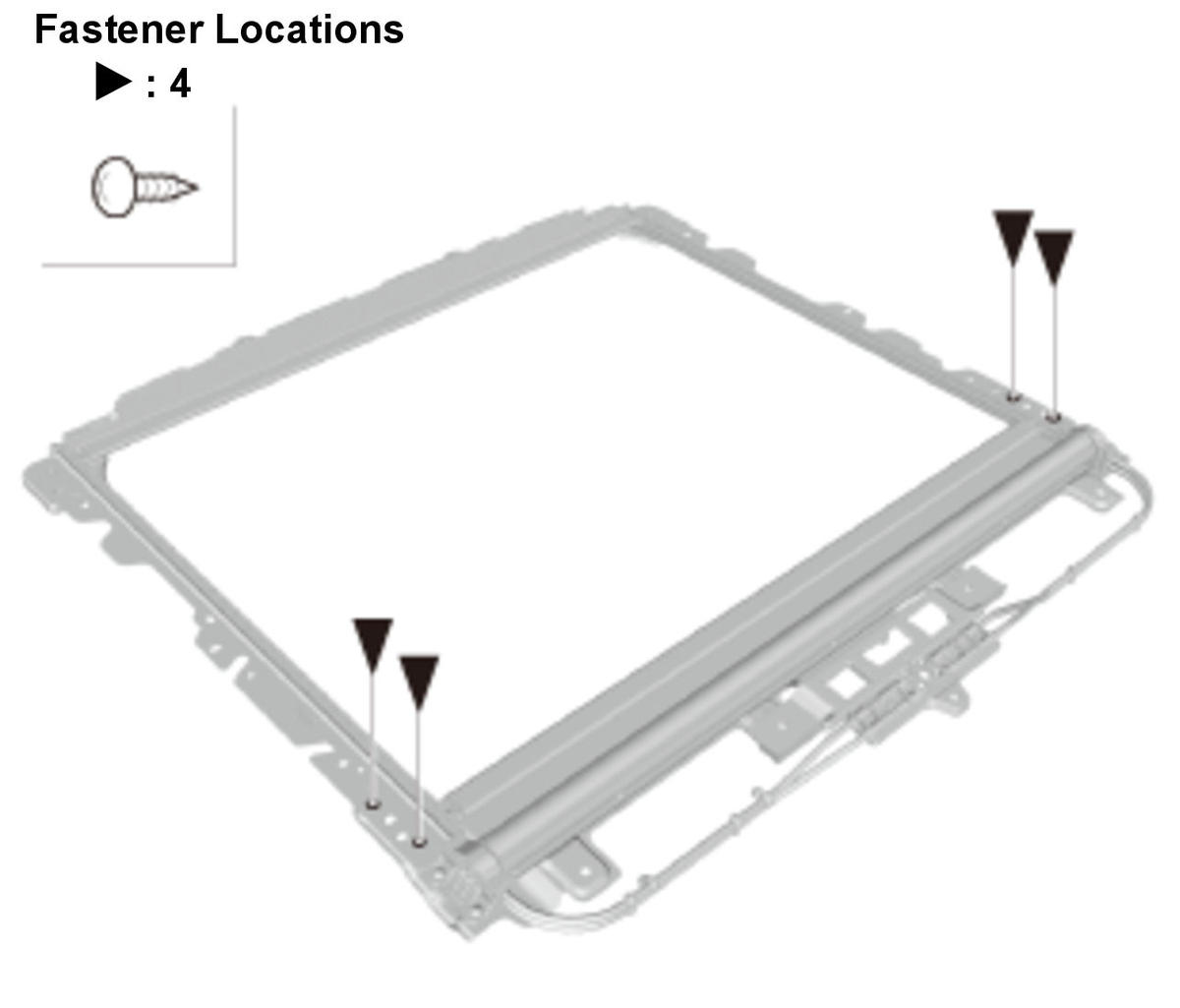

   3. Remove the screws.

   Courtesy of HONDA, U.S.A., INC.

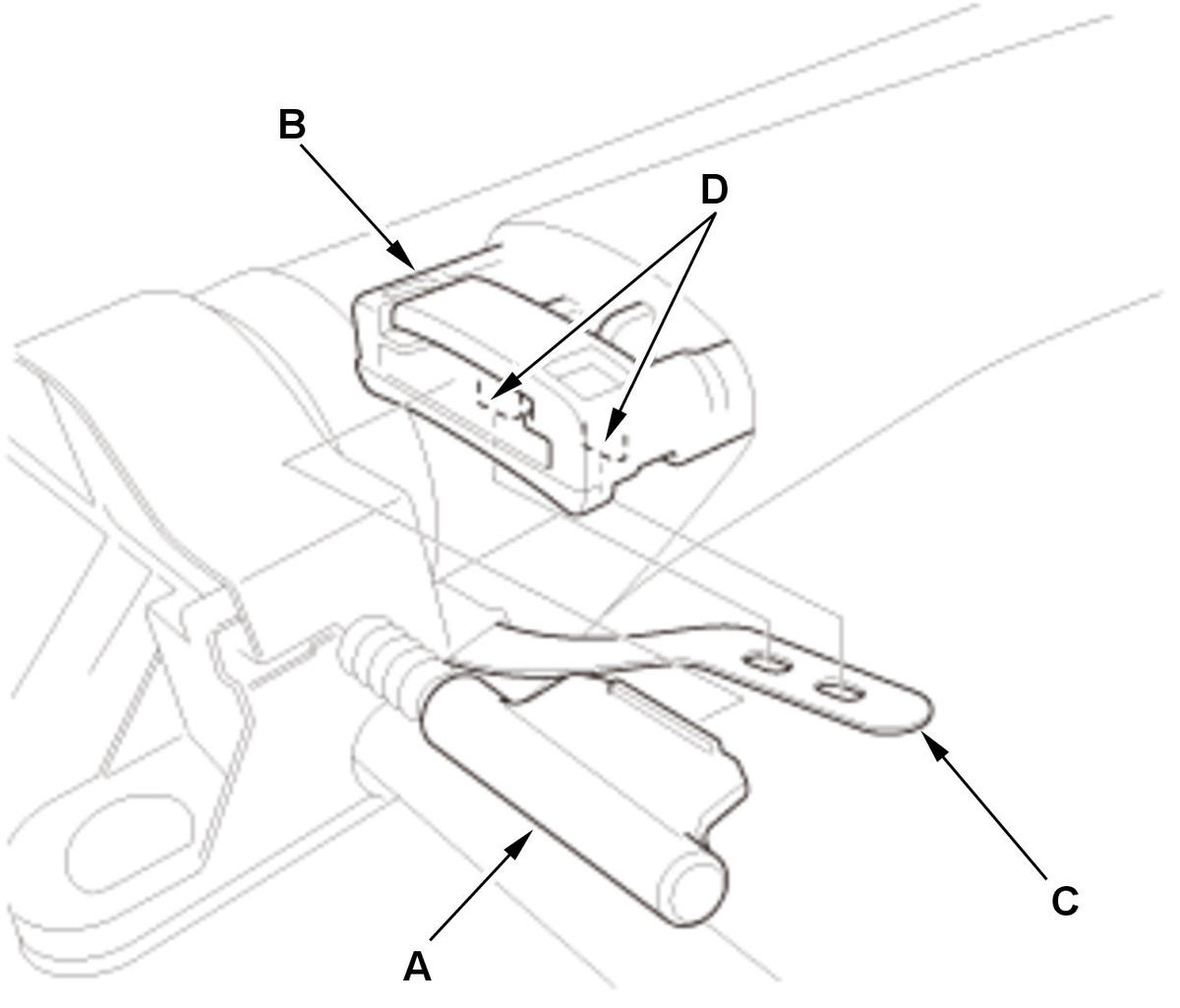

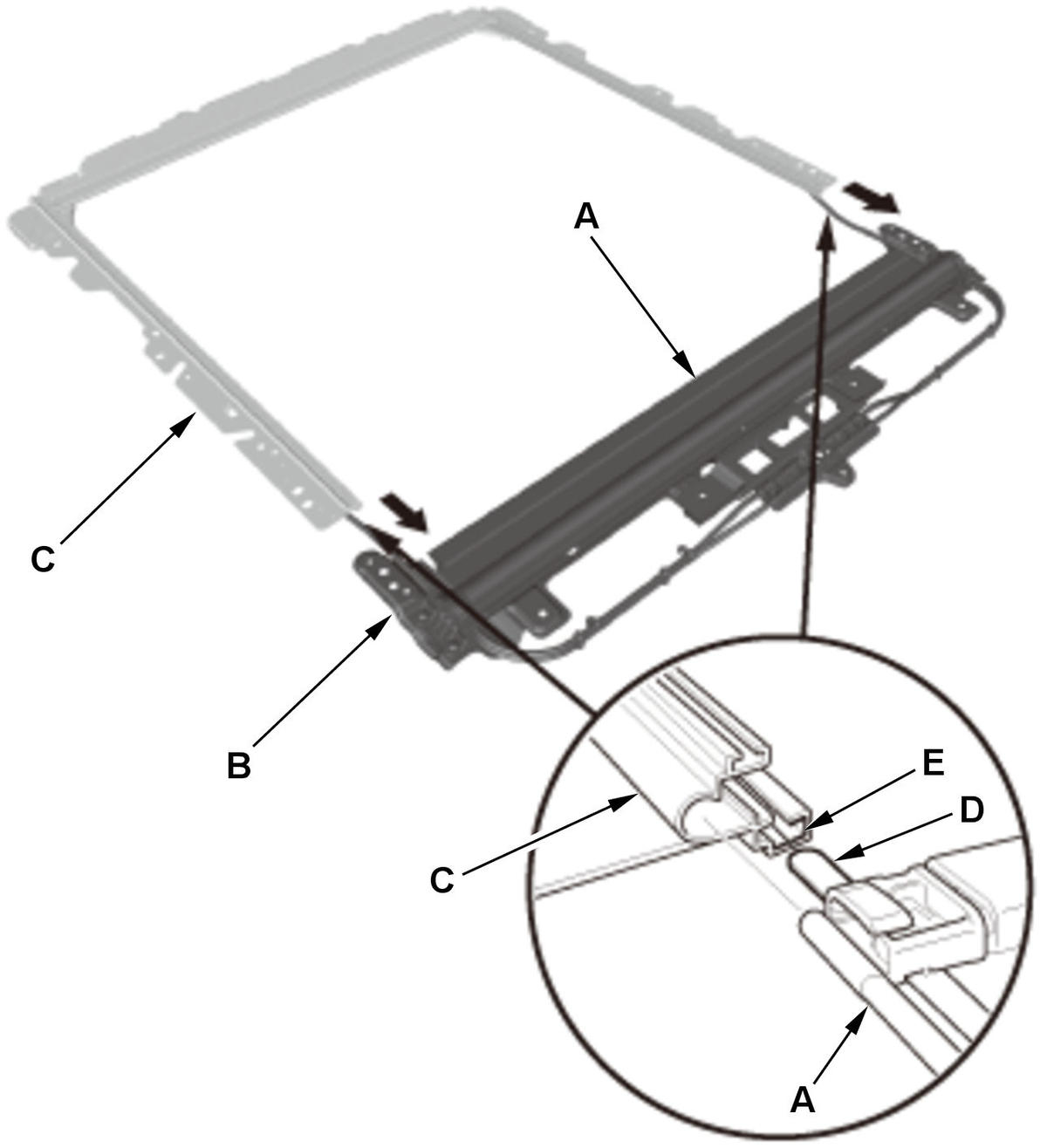

   4. Remove the sunshade cable assembly (A) and the sunshade plate (B) from the sunshade frame (C).   NOTE:  Remove the tension guide (D) from the tension guide rail (E) of the sunshade frame.

   Courtesy of HONDA, U.S.A., INC.

   5. Remove the sunshade cable assembly (A) from the sunshade plate (B).

   Courtesy of HONDA, U.S.A., INC.

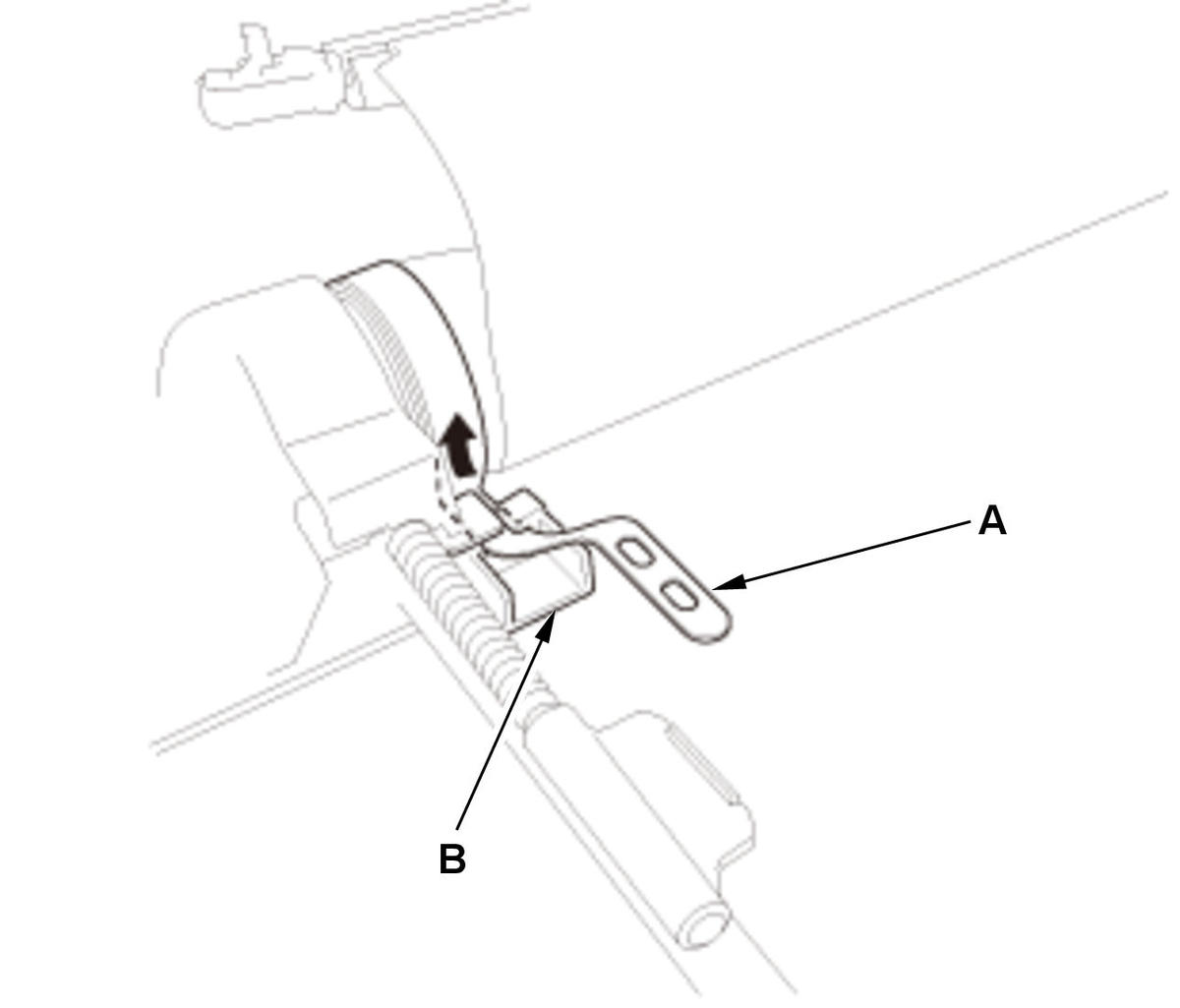

   6. Remove the sunshade cable (A) from the sunshade slider (B). 7. Release the tension guide (C) from the sunshade slider hooks (D).

   Courtesy of HONDA, U.S.A., INC.

   8. Release the tension guide (A) from the rail guide (B).

   Courtesy of HONDA, U.S.A., INC.

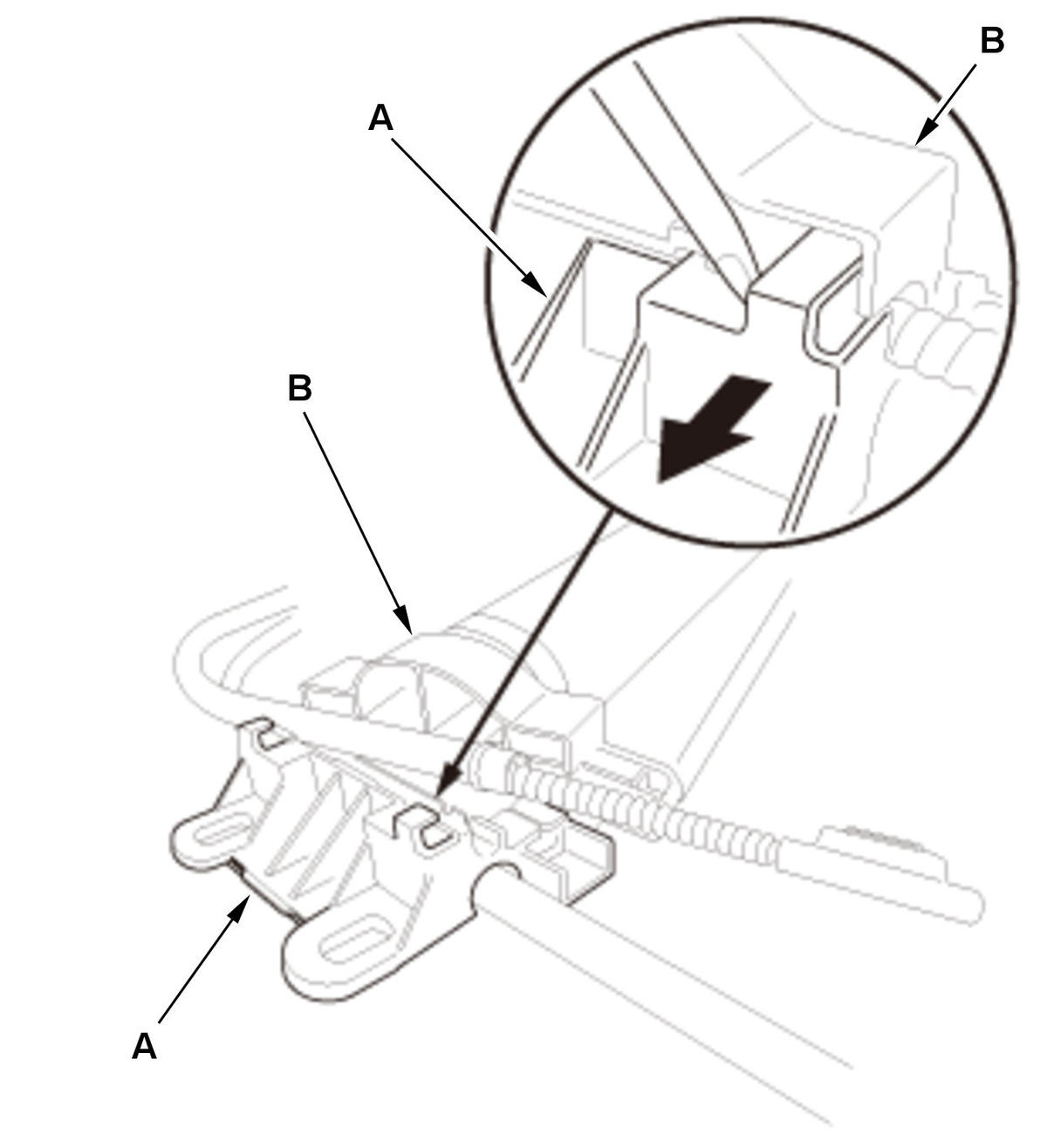

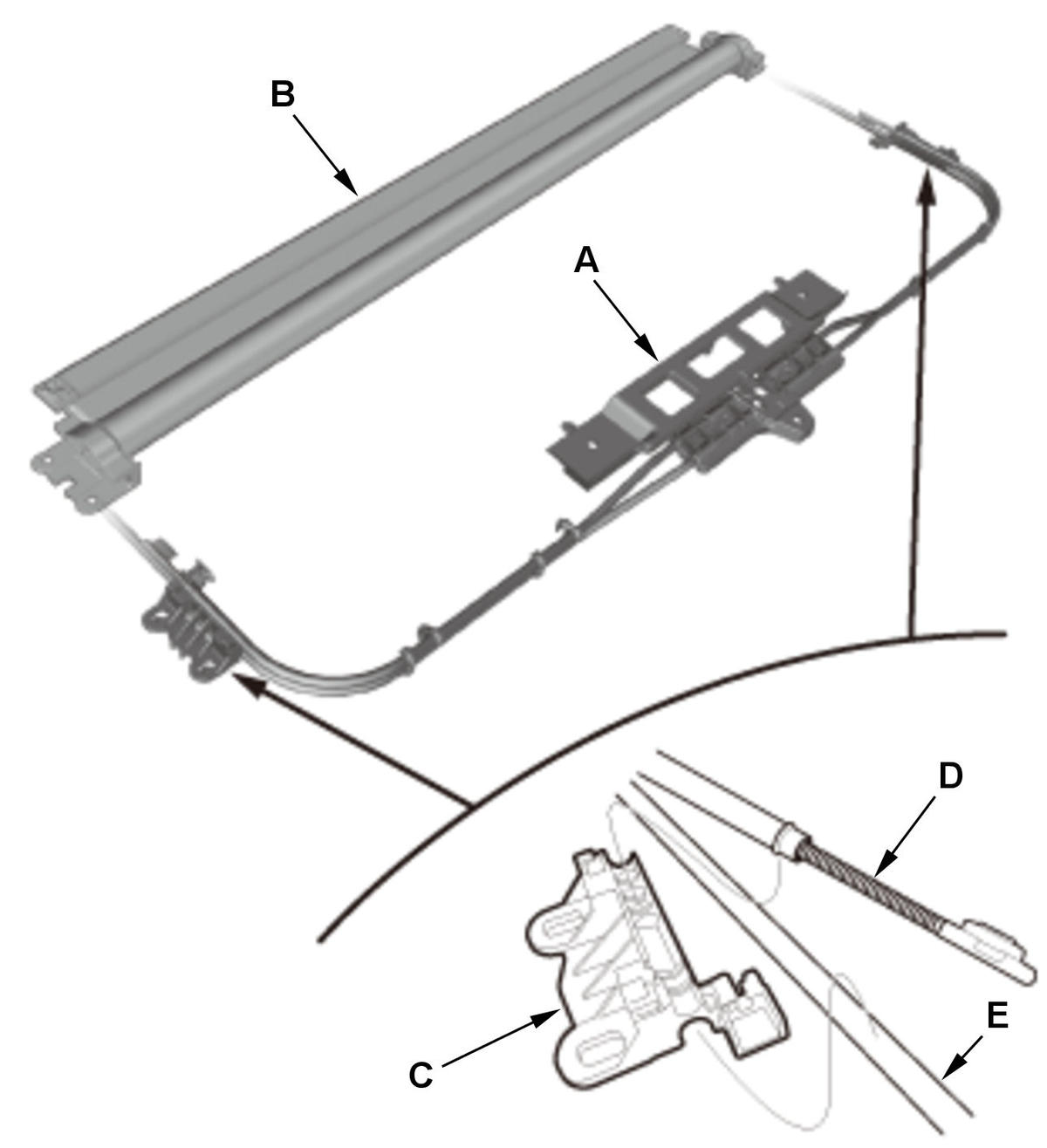

   9. Remove the sunshade holder (A) from the sunshade (B).

   Courtesy of HONDA, U.S.A., INC.

   10. Remove the sunshade cable assembly (A) from the sunshade (B). NOTE:  Firmly hold the sunshade with both hands; otherwise the wind-up force will be transferred to the shade. 11. Remove the sunshade holder (C) from the sunshade cable (D) and the sunshade cable tube (E).

   Courtesy of HONDA, U.S.A., INC.

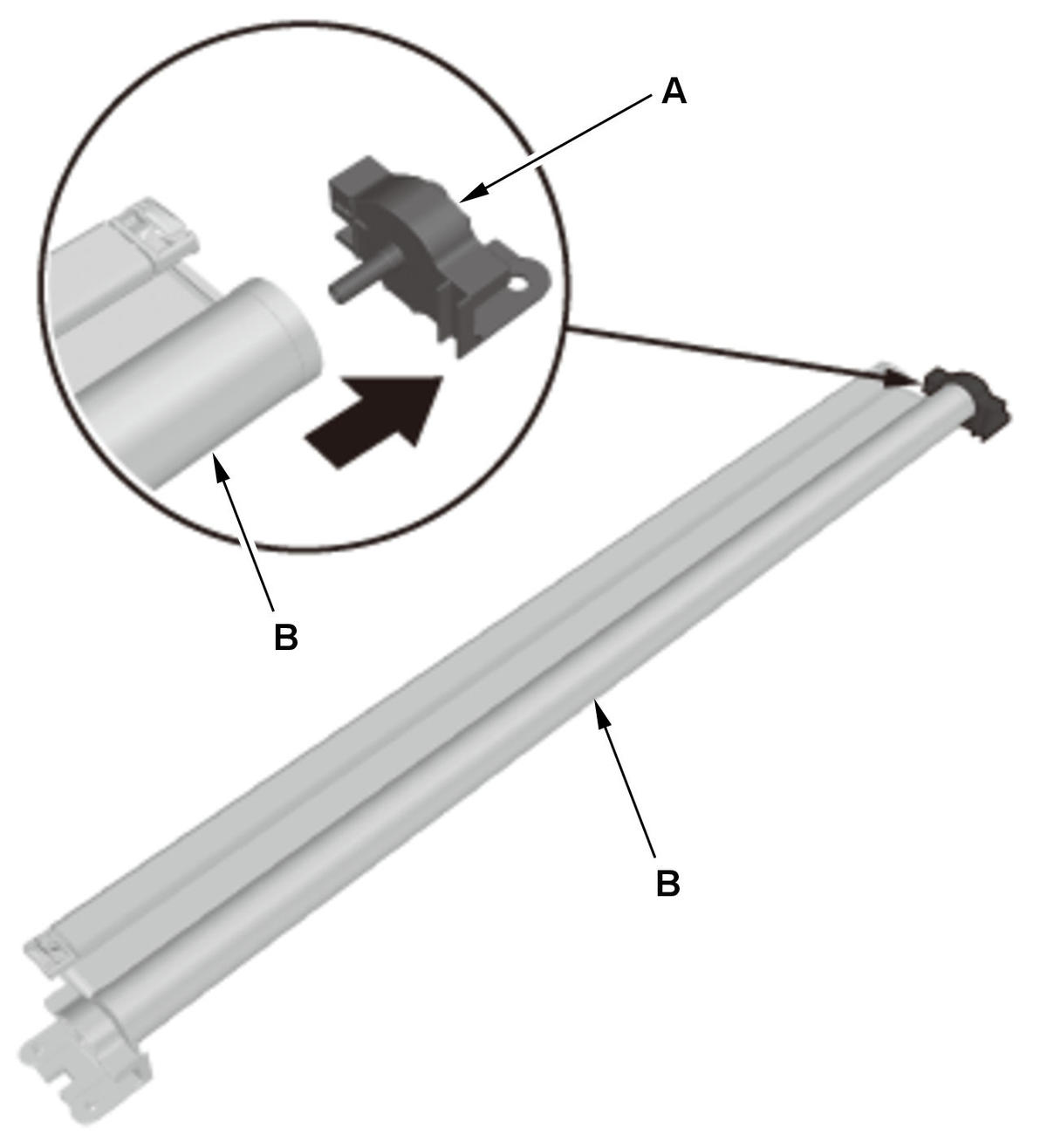

   12. Remove the guide pin (A) from the sunshade (B).

6. All Removed Parts - Install

   Courtesy of HONDA, U.S.A., INC.

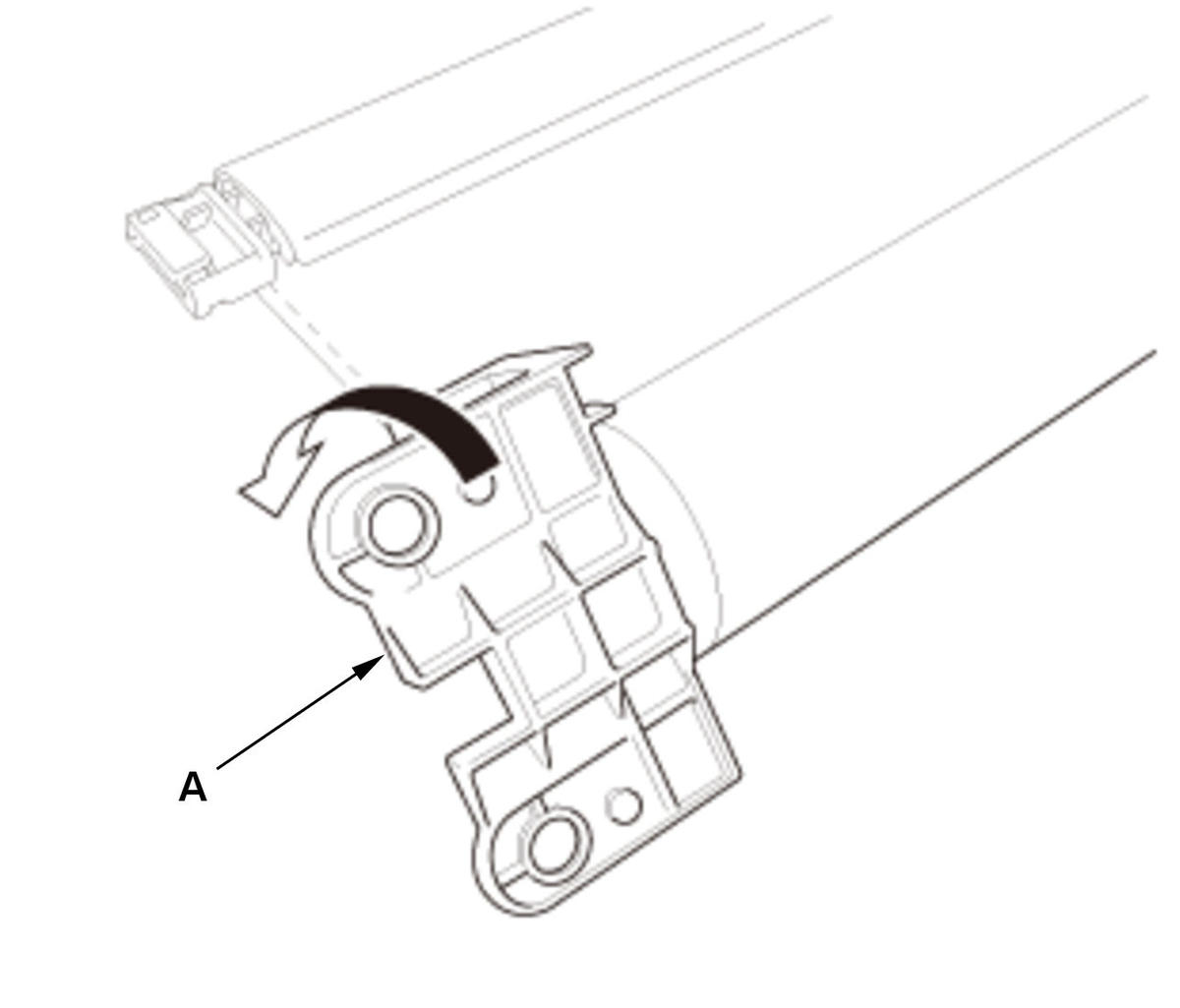

   1. Install the parts in the reverse order of removal.   NOTE:  Adjustment the wind-up force, rotate the sunshade guide pin (A) 20 revolutions as shown.

7. Sunshade Control Unit - Reset
