Removal and Installation

NOTE:  SRS components are located in this area. Review the SRS component locations -

Refer to:

SRS Component Location Index (2016) or

SRS Component Location Index (2017 2018 2019) and the

Precautions And Procedures before doing repairs or service.

1. Headliner - Remove - Refer to:

   Headliner Removal and Installation (With Panoramic Glass Roof) or

   Headliner Removal and Installation (Without Panoramic Glass Roof) .

2. Sunshade Frame - Remove
3. Sunshade Trim - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the rear sunshade trim (A).

   Courtesy of HONDA, U.S.A., INC.

   2. Release the hook (A), and then remove the front sunshade trim (B).

   Courtesy of HONDA, U.S.A., INC.

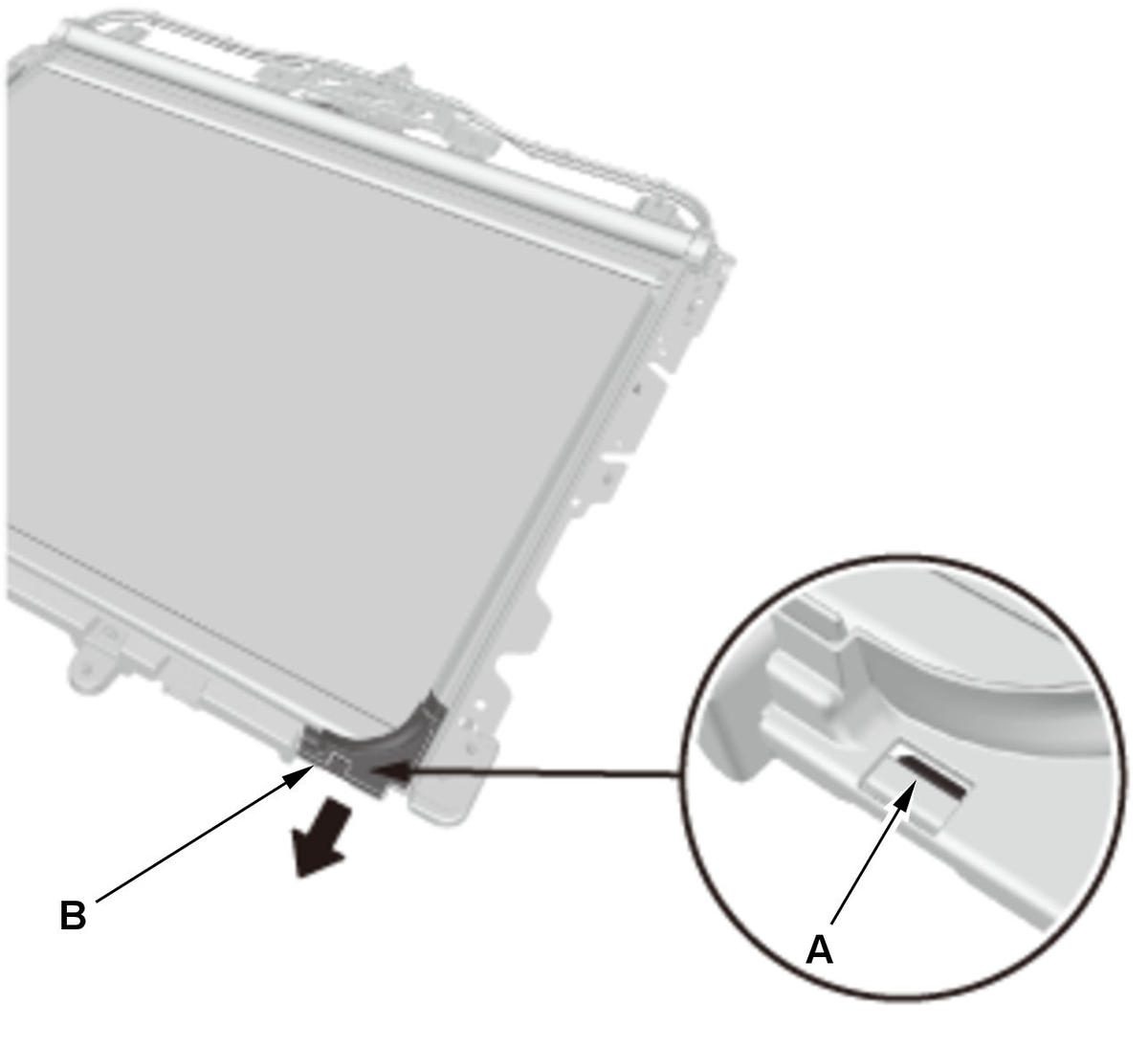

   3. Release the hook (A), and then remove the side sunshade trim (B).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
