Removal and Installation

NOTE:  SRS components are located in this area. Review the SRS component locations -

Refer to:

SRS Component Location Index (2016) or

SRS Component Location Index (2017 2018 2019) and the

Precautions And Procedures before doing repairs or service.

1. Moonroof Glass - Remove
2. Moonroof Drain Channel - Remove
3. Rear Middle Drain Tube - Remove
4. Moonroof Frame - Remove
5. Sunshade - Remove

   Courtesy of HONDA, U.S.A., INC.

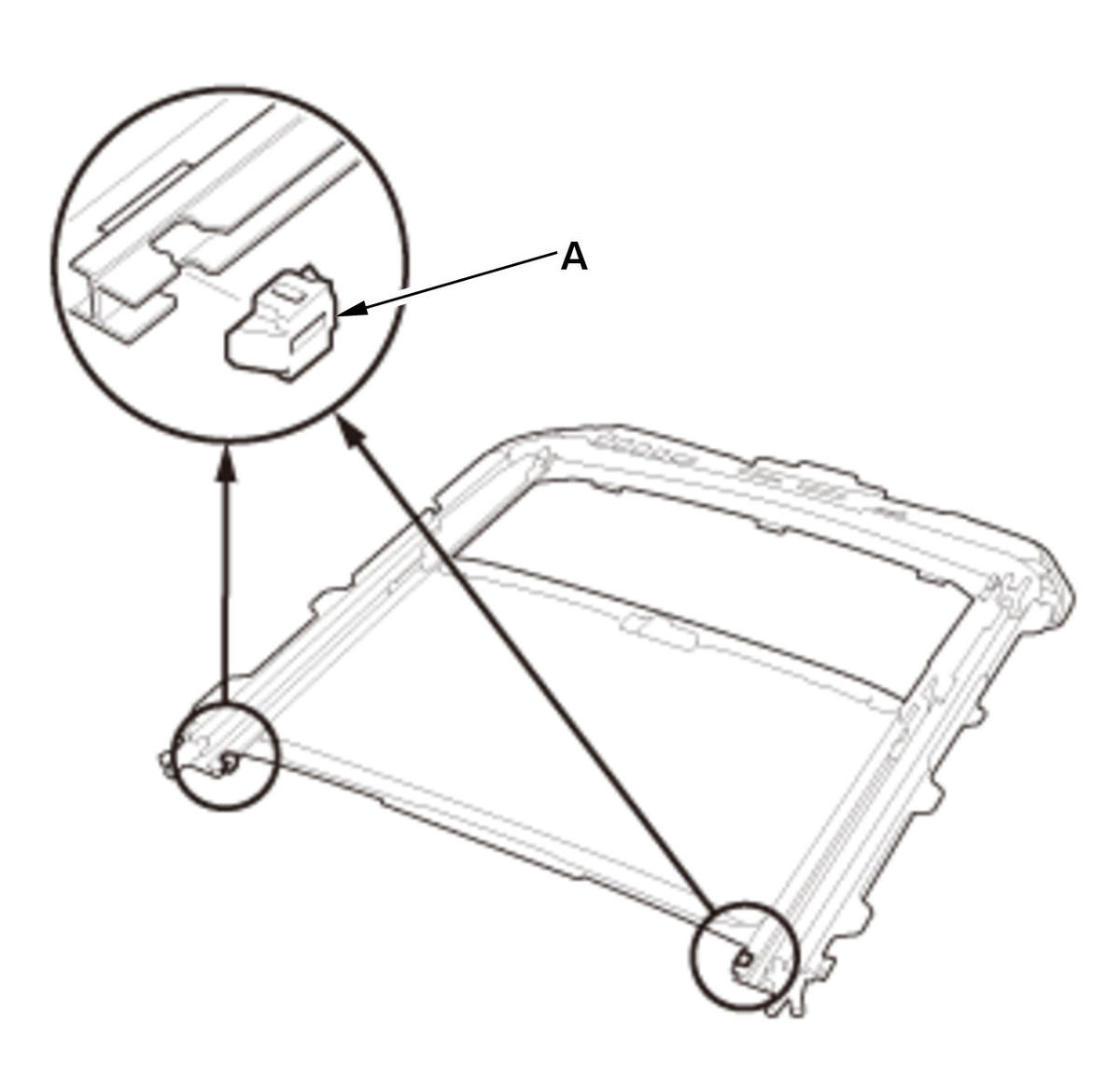

   1. Remove the sunshade stoppers (A).

   Courtesy of HONDA, U.S.A., INC.

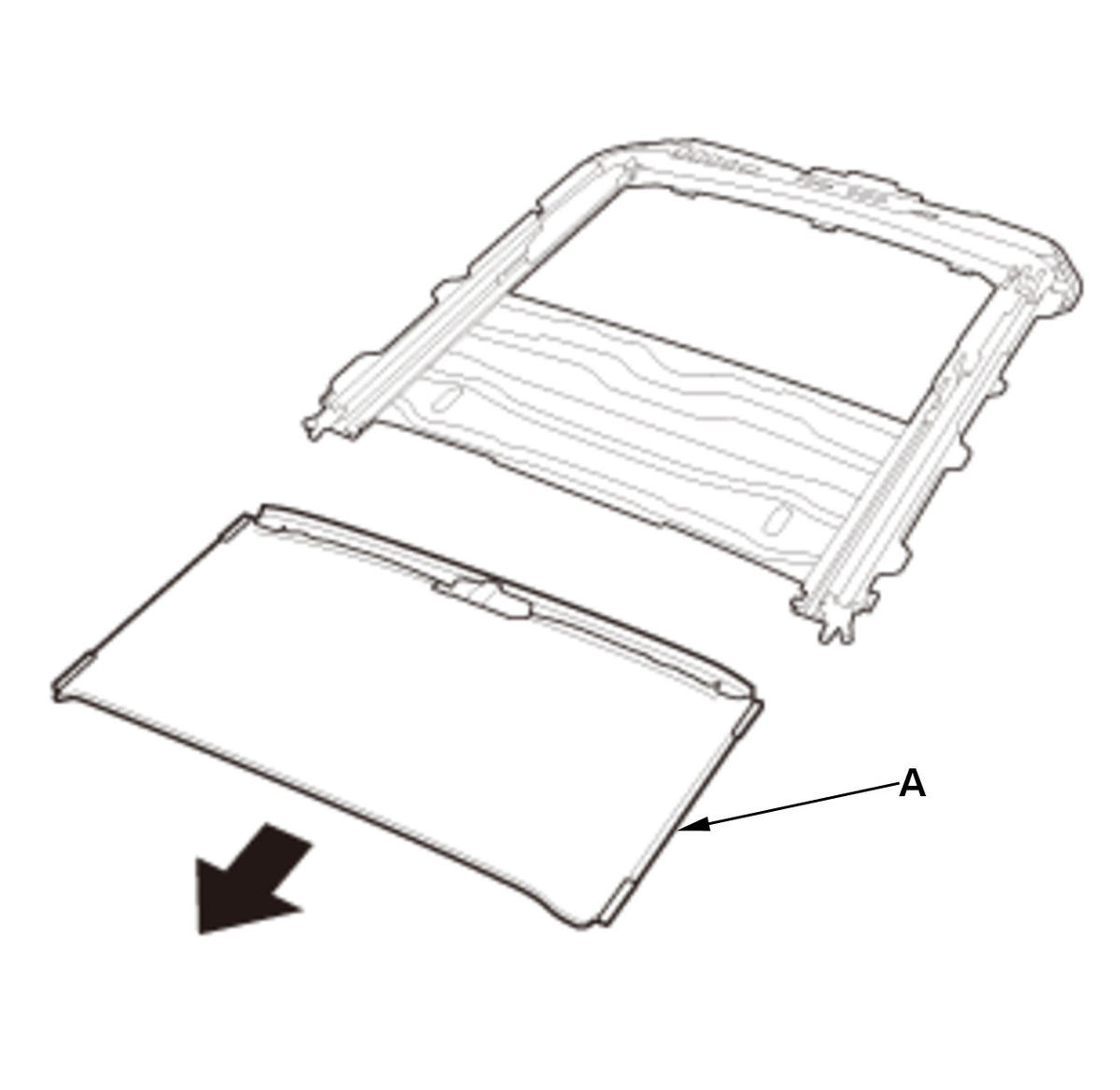

   2. Slide the sunshade (A) forward, and then remove it.

   Courtesy of HONDA, U.S.A., INC.

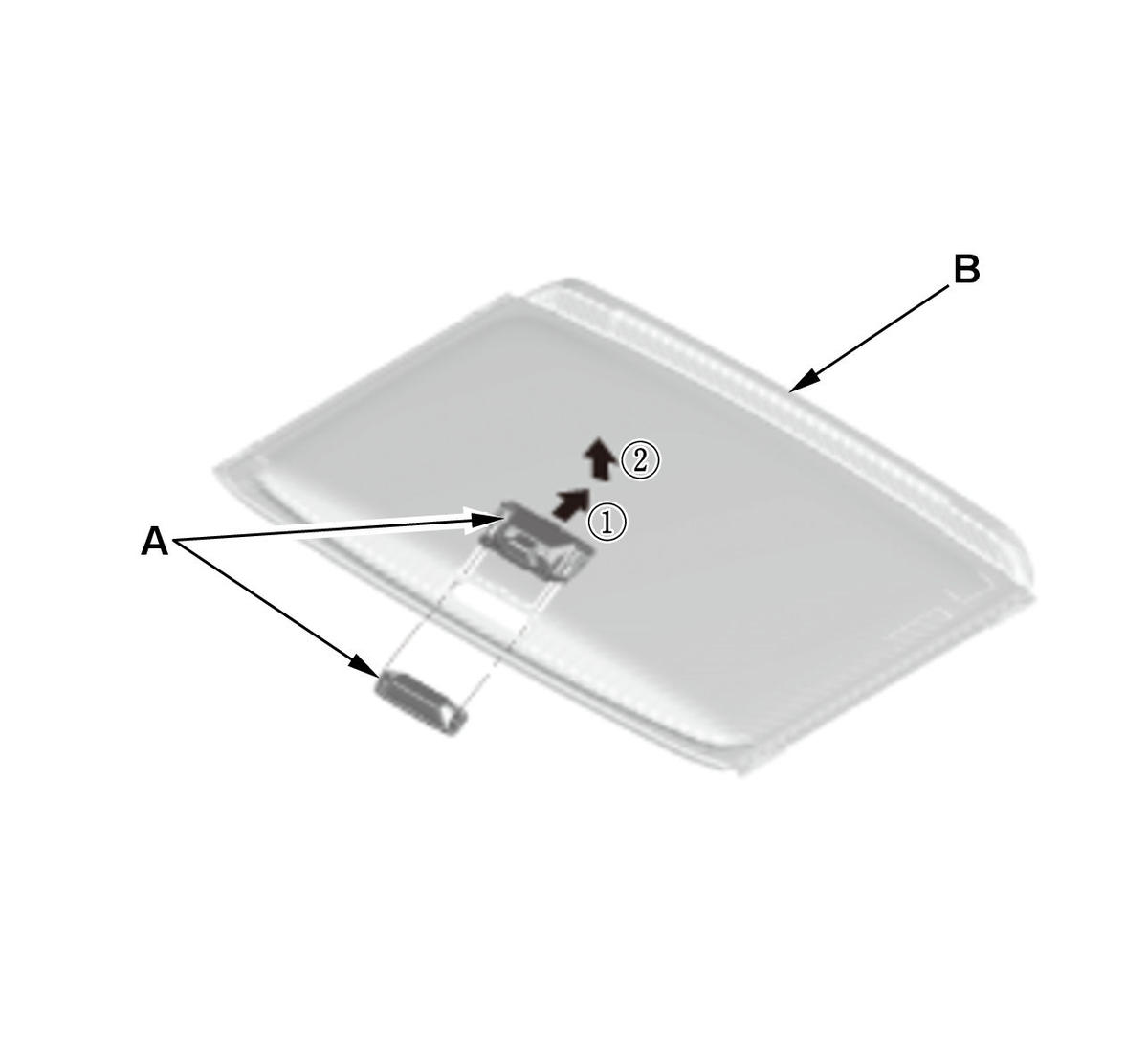

   3. If necessary, remove the sunshade holder (A) from the sunshade (B).

6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

7. Moonroof Glass Position - Adjust
