Rear Middle Drain Tube

Rear Middle Drain Tube - Remove

without panoramic glass roof

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

with panoramic glass roof

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

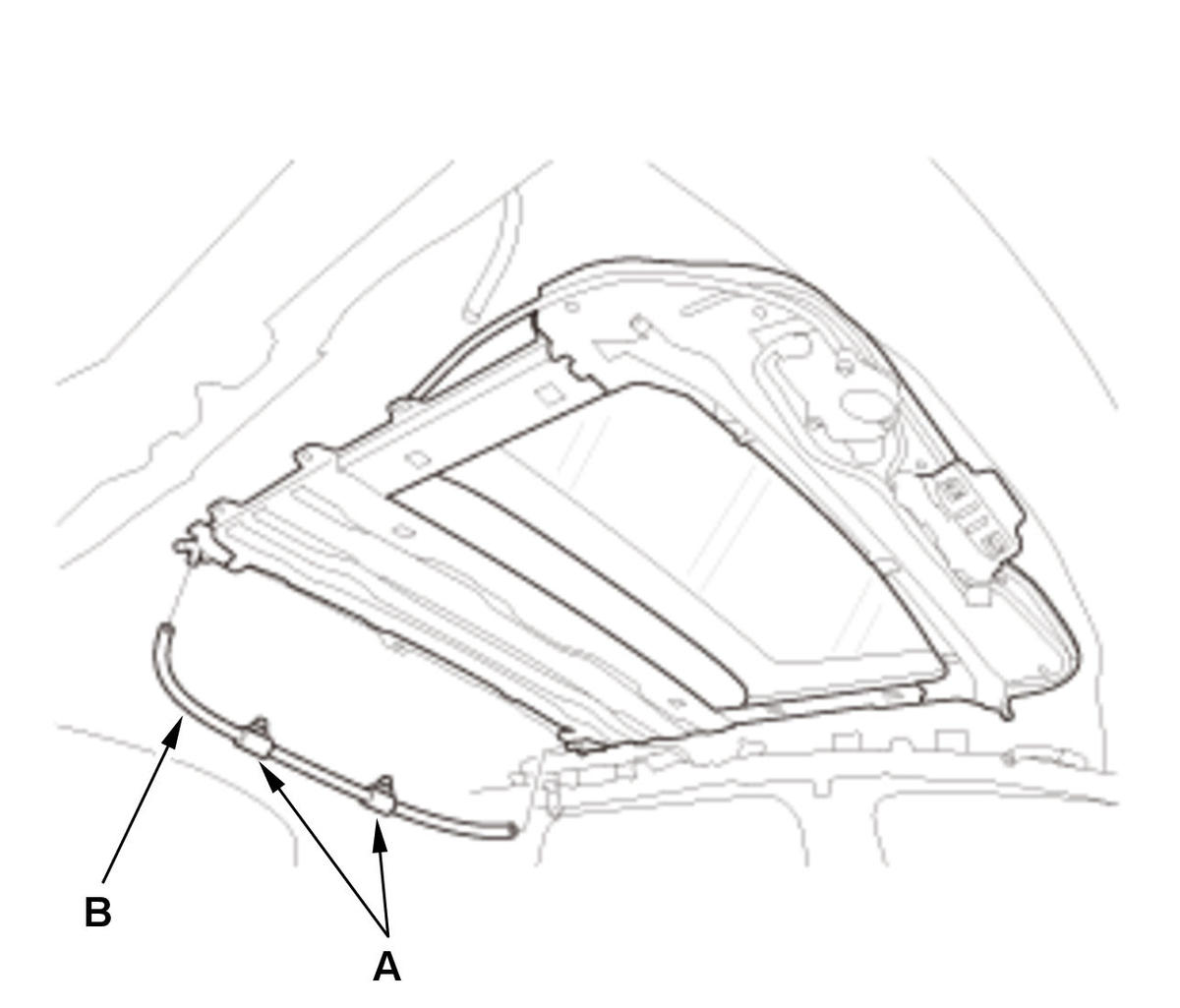

1. Remove the rear middle drain tube clips (A), and then remove the rear middle drain tube (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
