Rear Drain Tube

Headliner Removal and Installation (With Panoramic Glass Roof)
Third Row Seat Belt Assembly - Remove

Rear Drain Tube - Remove

Courtesy of HONDA, U.S.A., INC.

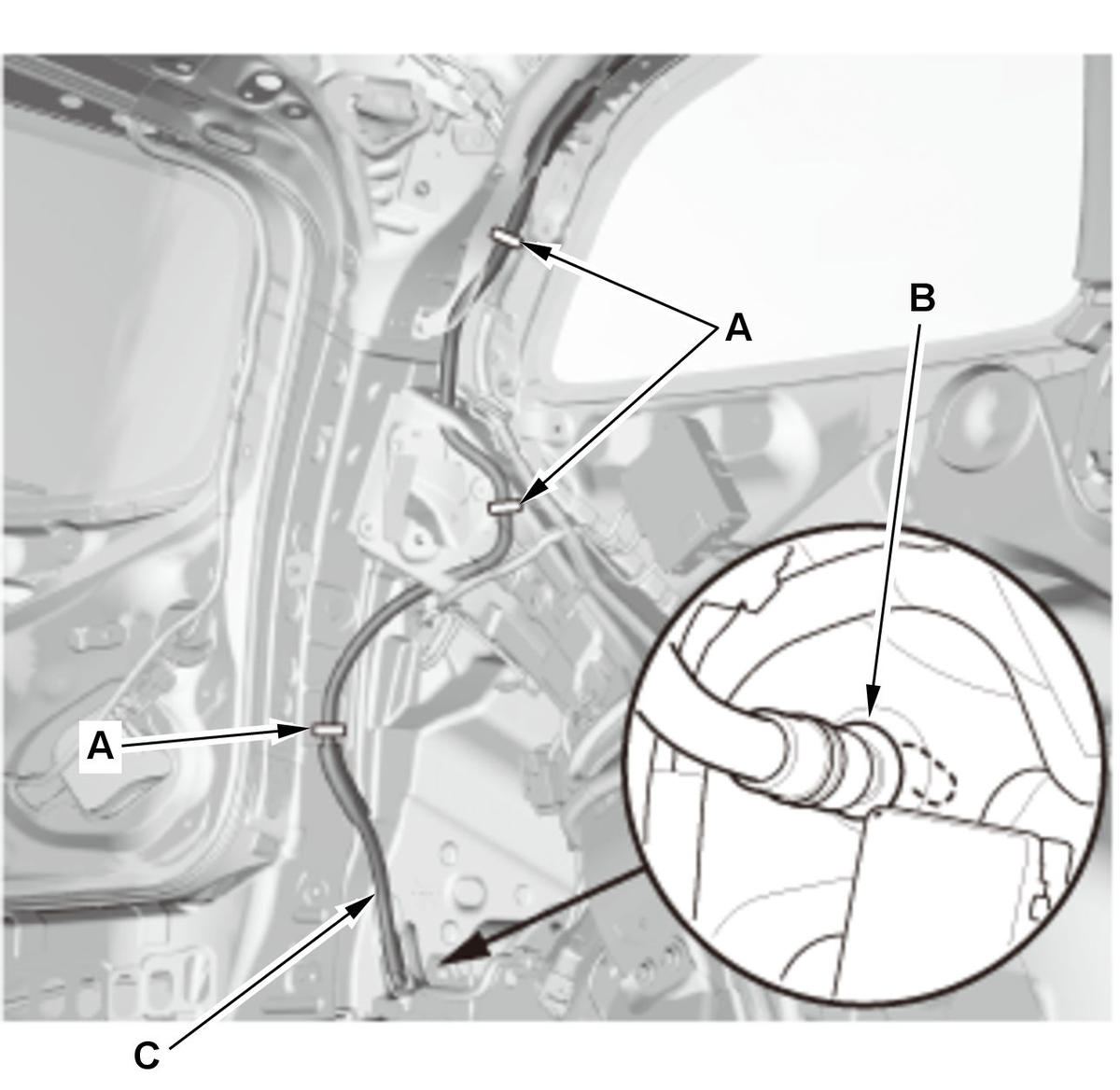

1. Remove the clips (A).

2. Pull the rear drain valve (B) out of the body hole.

3. Tie a string to the top end of the rear drain tube (C), and then pull the drain tube down out of the pillar. Leave the string in the pillar to use when reinstalling the drain tube.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
Water Leaks - Check
