Moonroof Frame

  1. Headliner - Remove - Refer to:

    Headliner Removal and Installation (With Panoramic Glass Roof) or

    Headliner Removal and Installation (Without Panoramic Glass Roof) .

  2. These Items - Remove

    Remove the following items depending on the vehicle:

  3. Moonroof Frame - Remove
    GHH310938Courtesy of HONDA, U.S.A., INC.

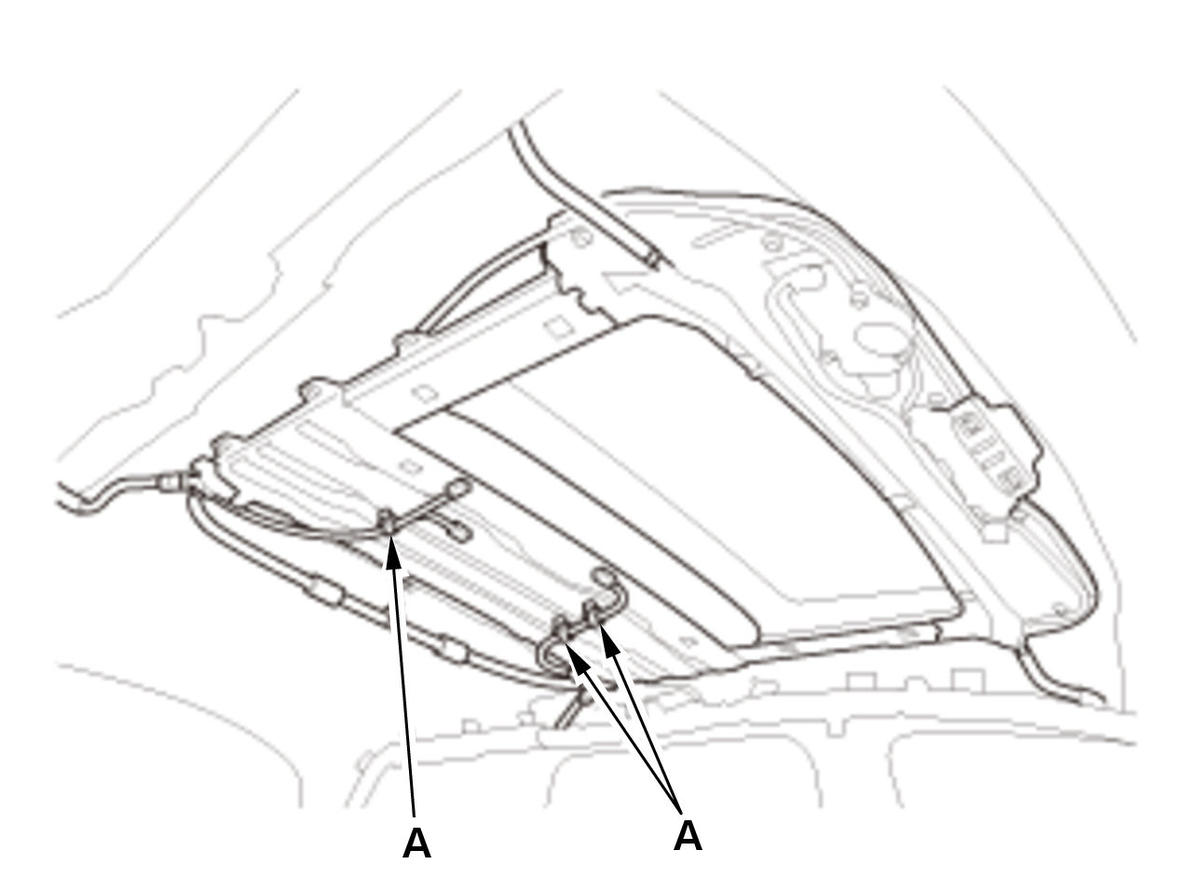

    		 1. Remove the harness clips (A). (with rear entertainment system)
    GHH310939Courtesy of HONDA, U.S.A., INC.

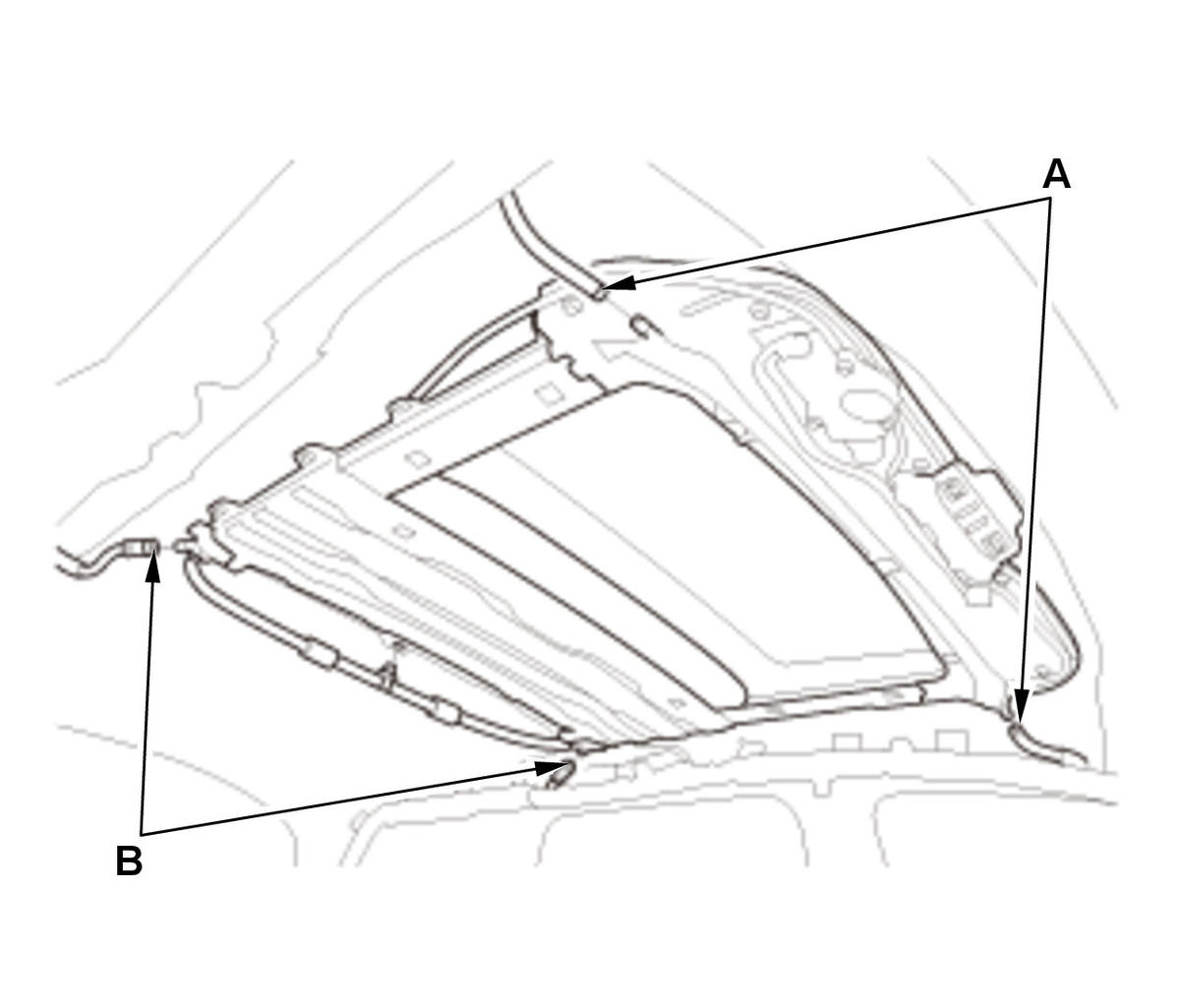

    		 2. Disconnect the front drain tubes (A) and the rear drain tubes (B).

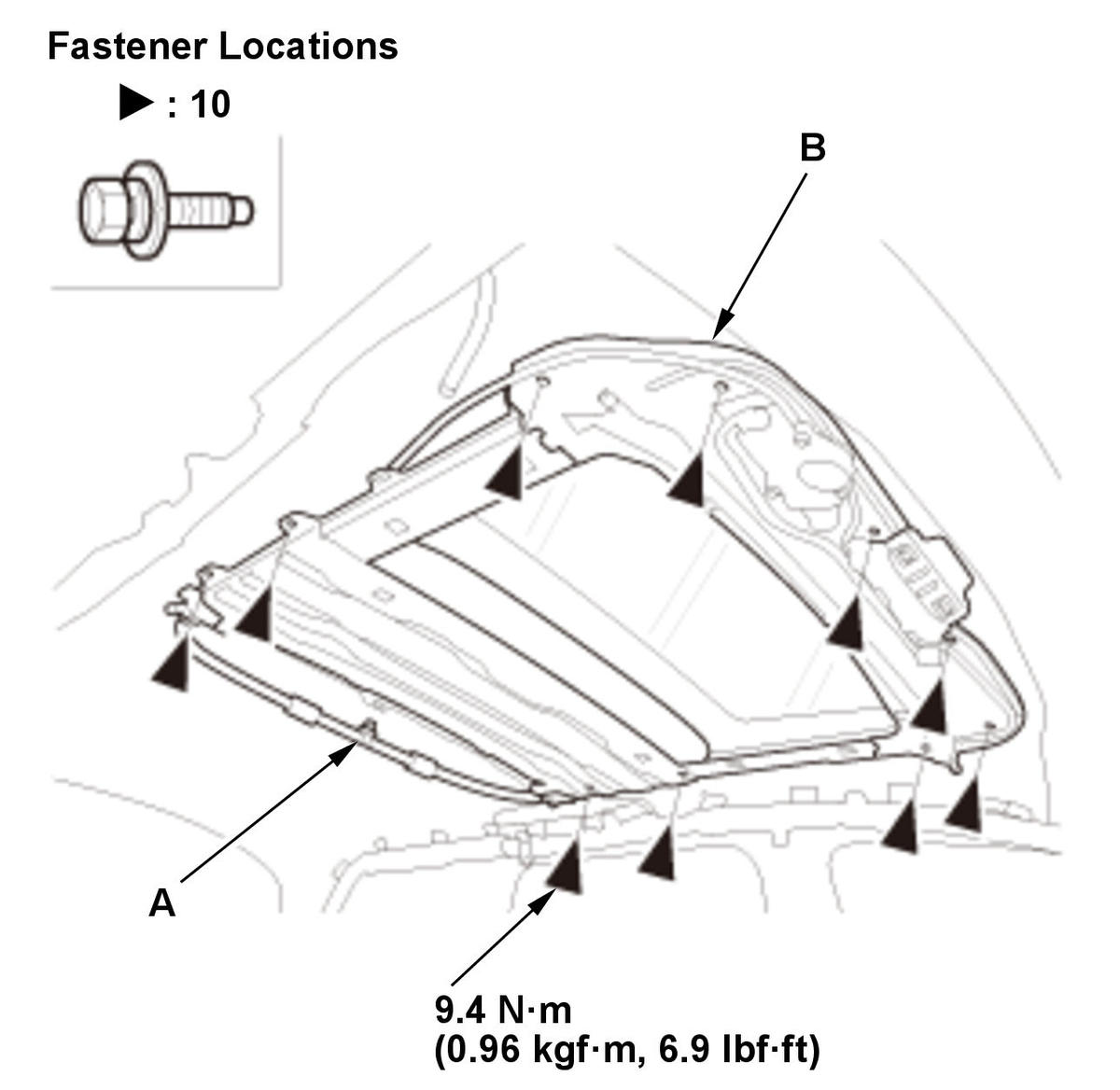

    without panoramic glass roof
    GHH310940GHH310941Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

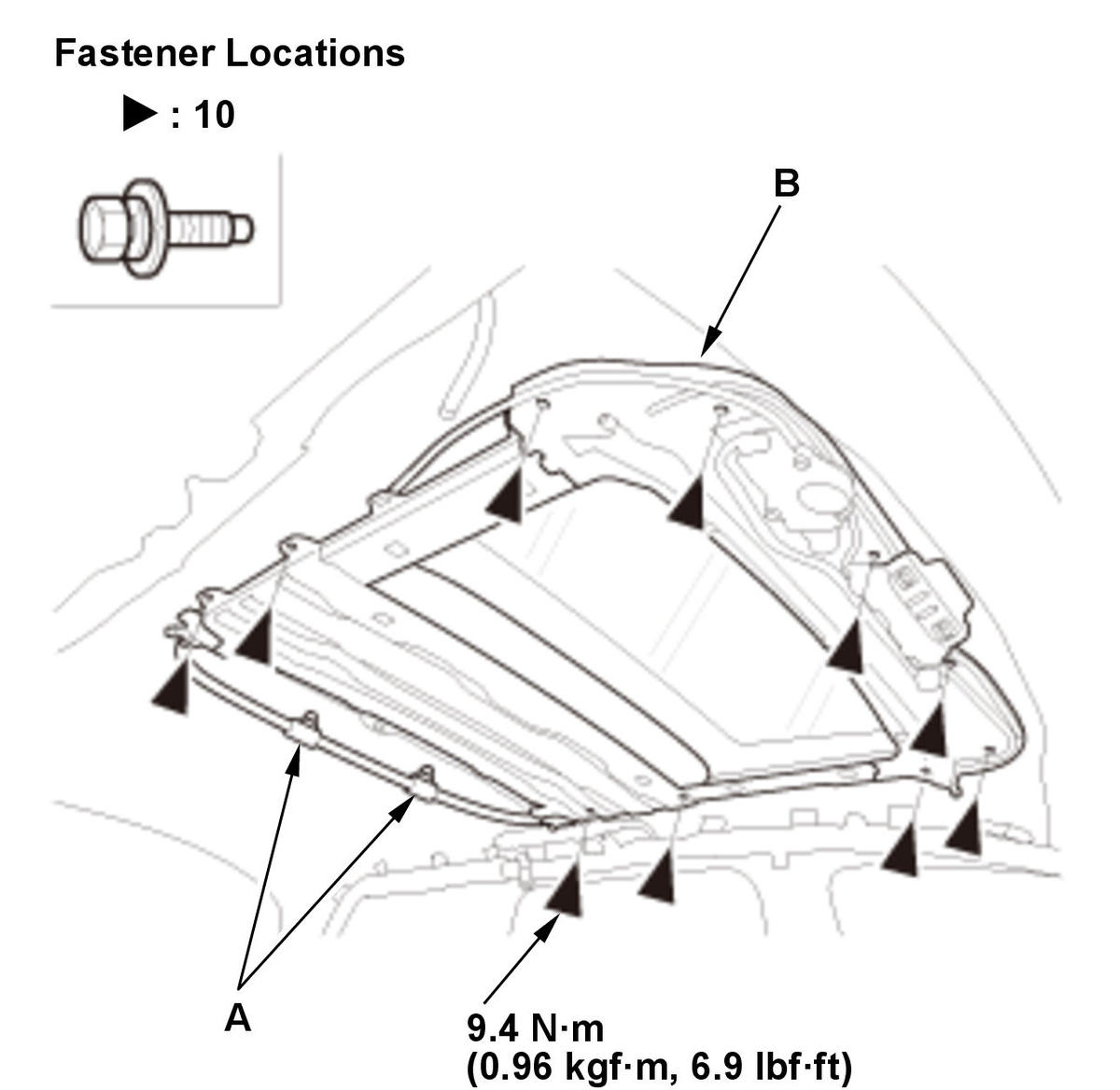

    with panoramic glass roof

    GHH310940GHH310941Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 3. Remove the bolts and release the rear middle drain tube clips (A), and then remove the frame (B).
    GHH310942Courtesy of HONDA, U.S.A., INC.

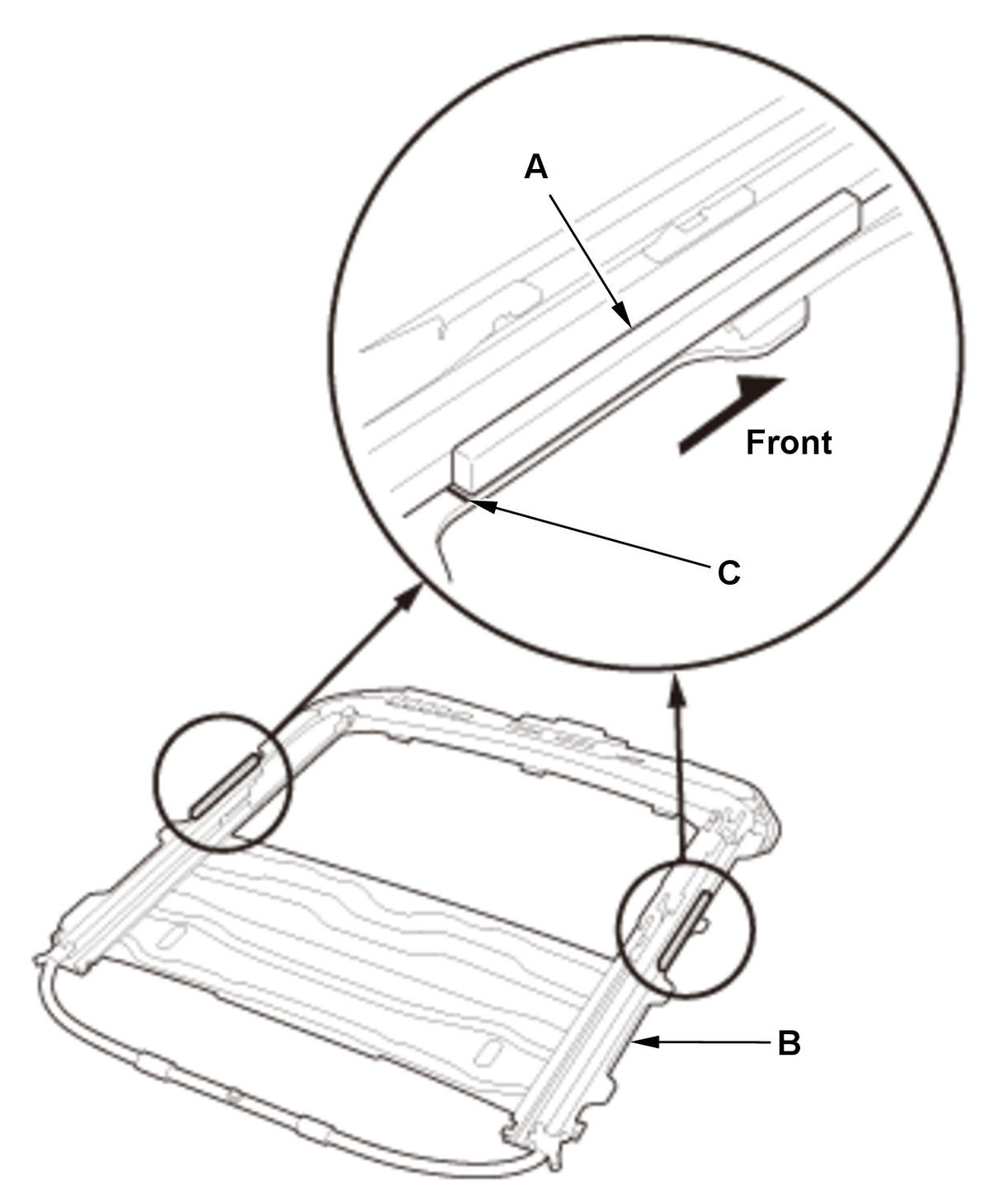

    		 4. If necessary, remove the frame seals (A) from the frame (B).

    NOTE:  Make sure the frame seals line up with the alignment marks (C).
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  5. Moonroof Glass Position - Adjust
  6. Moonroof Control Unit - Reset
  7. Water Leaks - Check
