Front Drain Tube

  1. Headliner - Remove - Refer to:

    Headliner Removal and Installation (With Panoramic Glass Roof) or

    Headliner Removal and Installation (Without Panoramic Glass Roof) .

  2. Dashboard Panel - Remove - Refer to:

    Dashboard Removal and Installation or

    Dashboard/Steering Hanger Beam Removal and Installation,

  3. Front Drain Tube - Remove

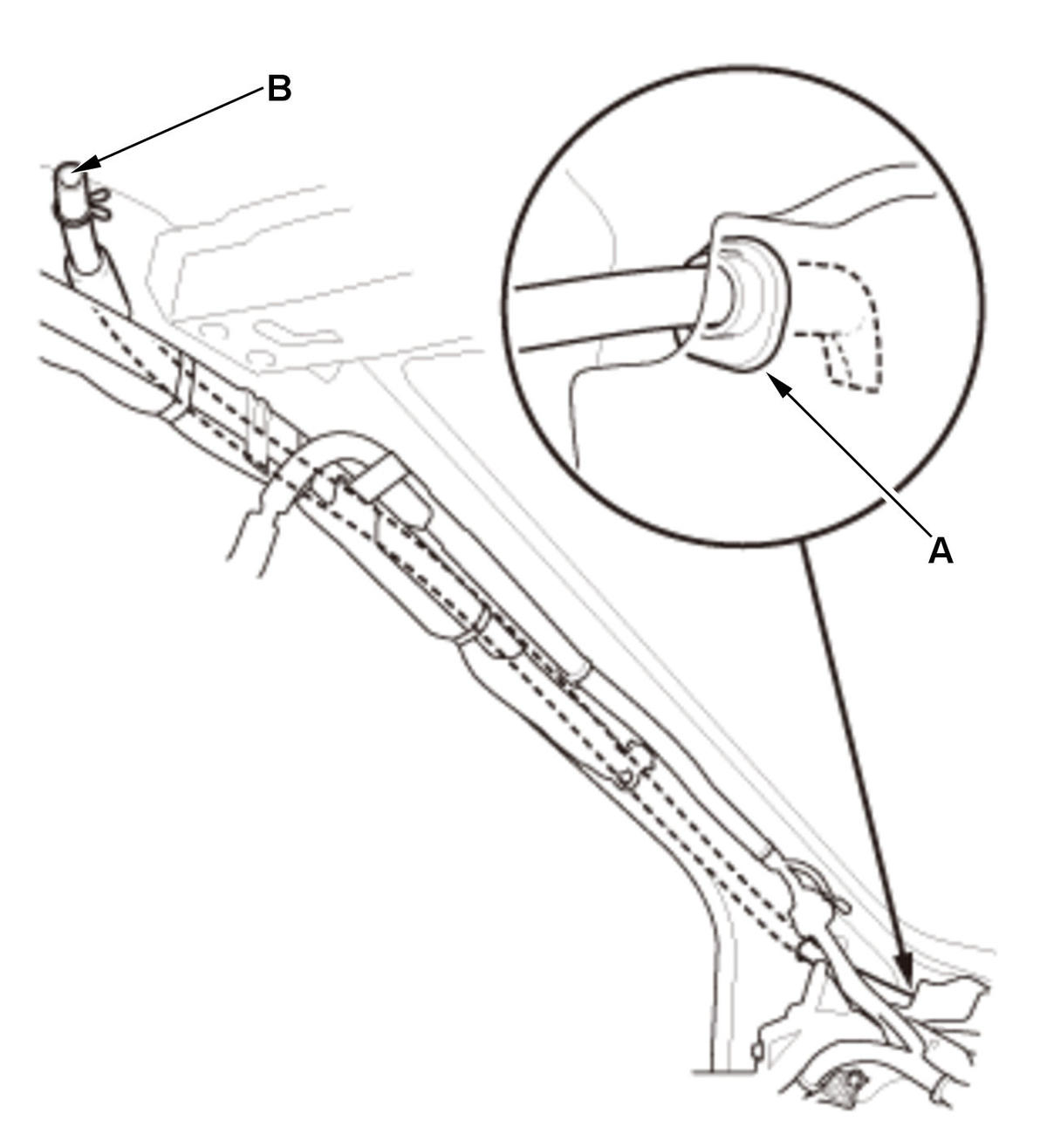

    GHH310943Courtesy of HONDA, U.S.A., INC.
    		 1. Pull the front drain valve (A) out of the body hole.

    2. Tie a string to the top end of the front drain tube (B), and then pull the drain tube down out of the pillar. Leave the string in the pillar to use when reinstalling the drain tube.
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  5. Water Leaks - Check
