Removal and Installation

Second Row Seat - Remove - Go to: Second Row Seat Removal and Installation (Captain)
Second Row Seat Recline Cover - Remove - Go to: Second Row Seat Recline Cover Removal and Installation (Captain)

Second Row Seat Cushion Cover/Pad - Remove

Courtesy of HONDA, U.S.A., INC.

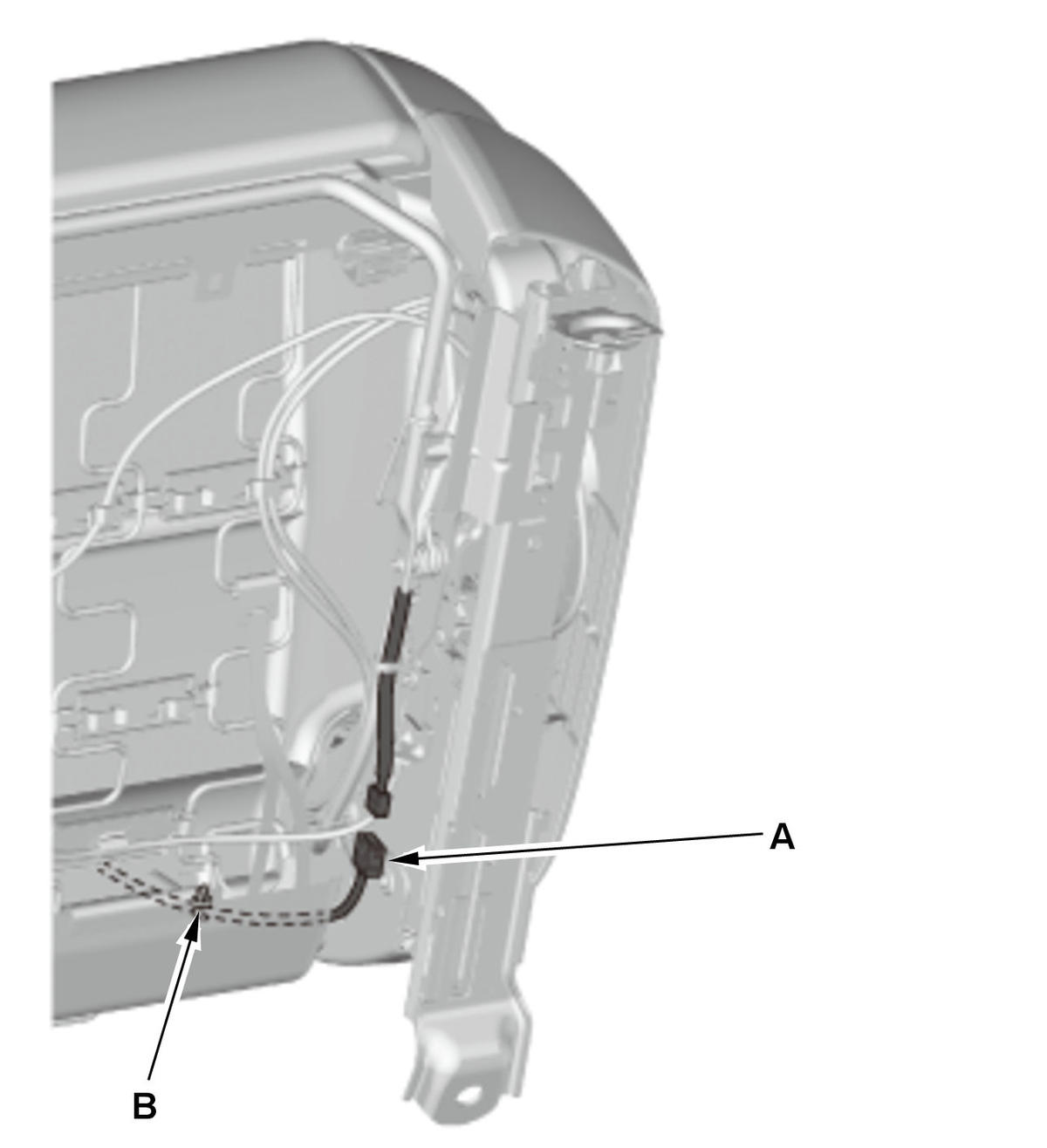

1. Disconnect the connector (A), and then remove the harness clip (B). (with seat heater)

Left seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

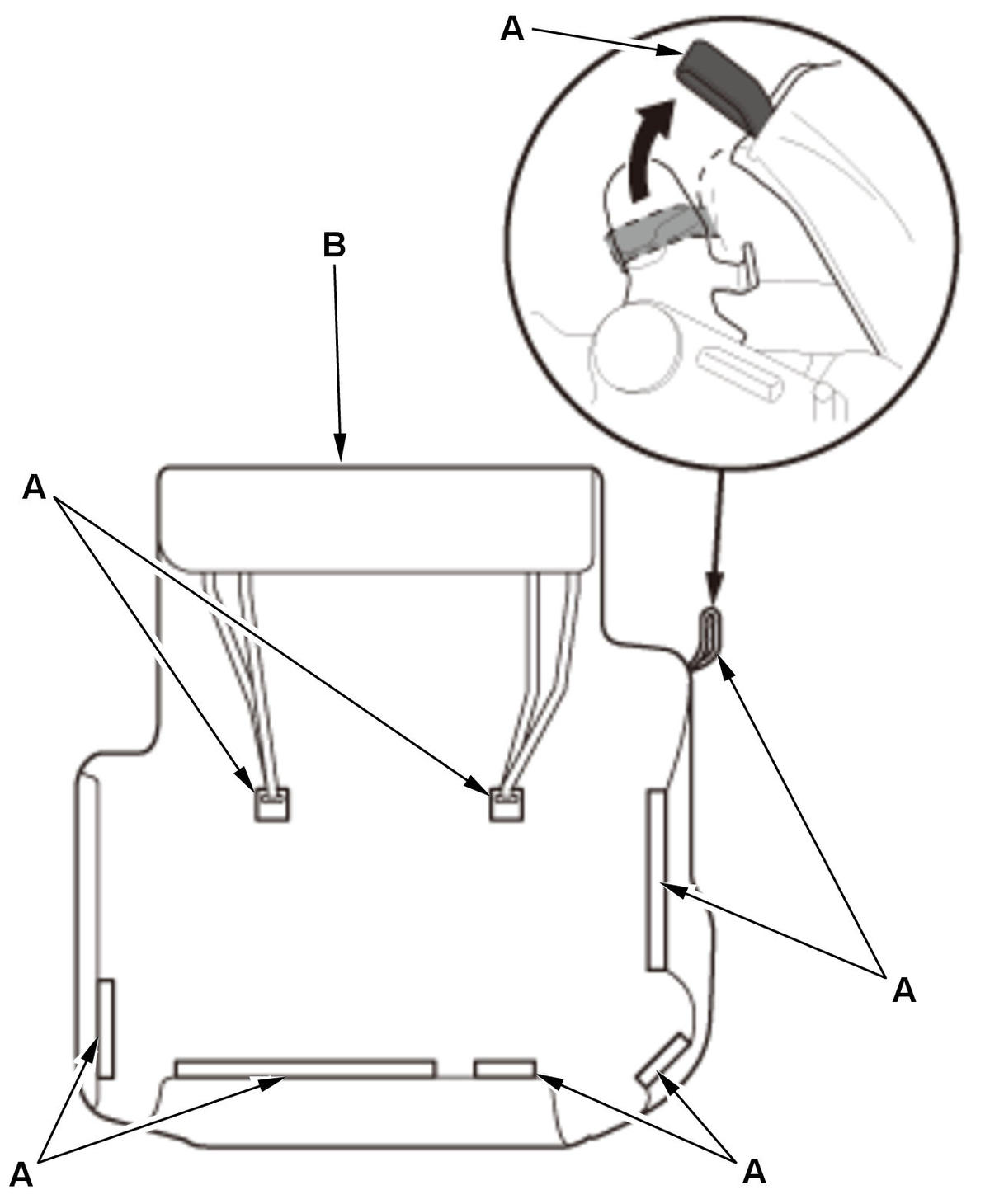

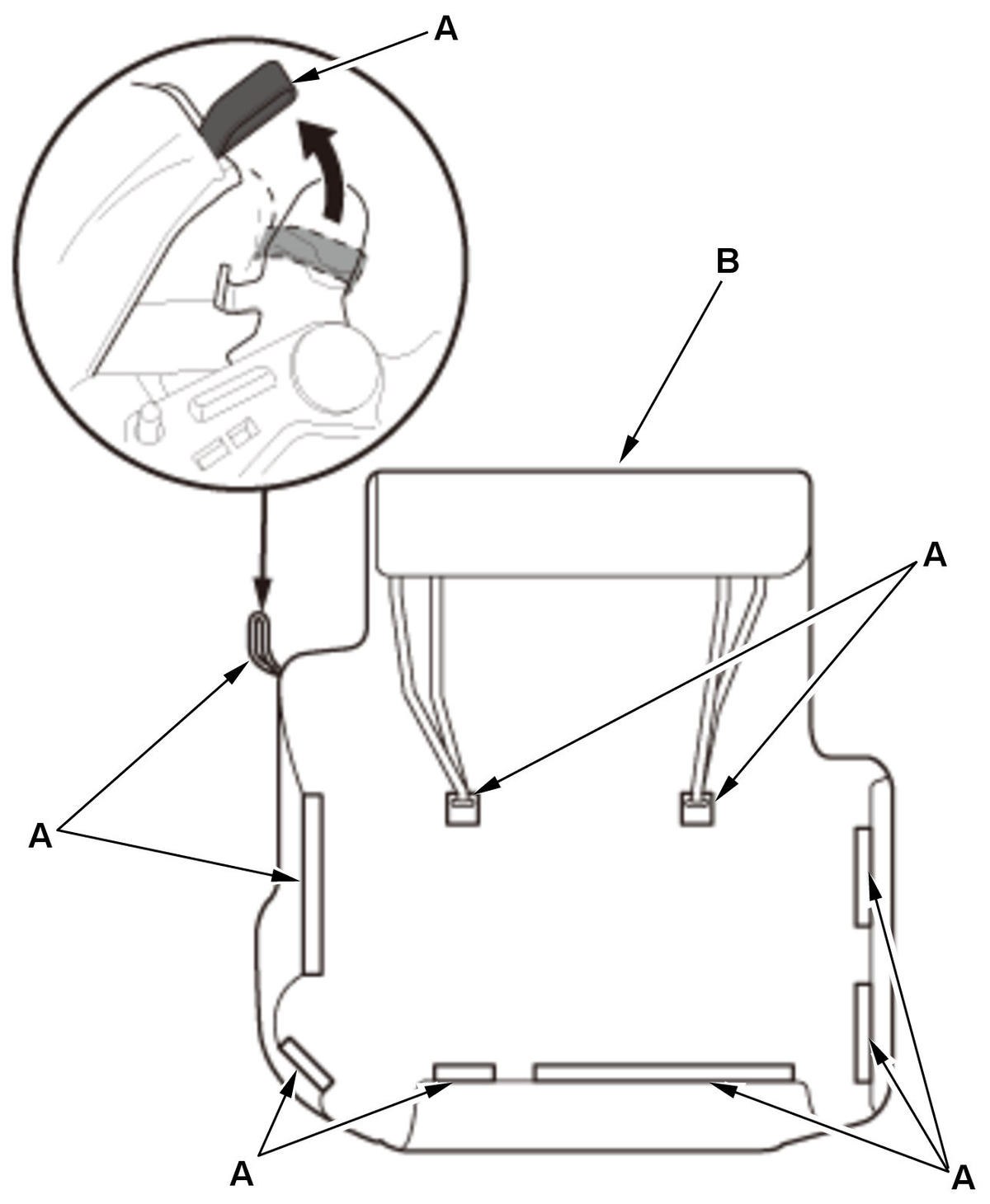

2. From the back of the seat cushion, release the hook strips (A).

3. Remove the seat cushion cover/pad (B).

Second Row Seat Cushion Cover - Remove

Courtesy of HONDA, U.S.A., INC.

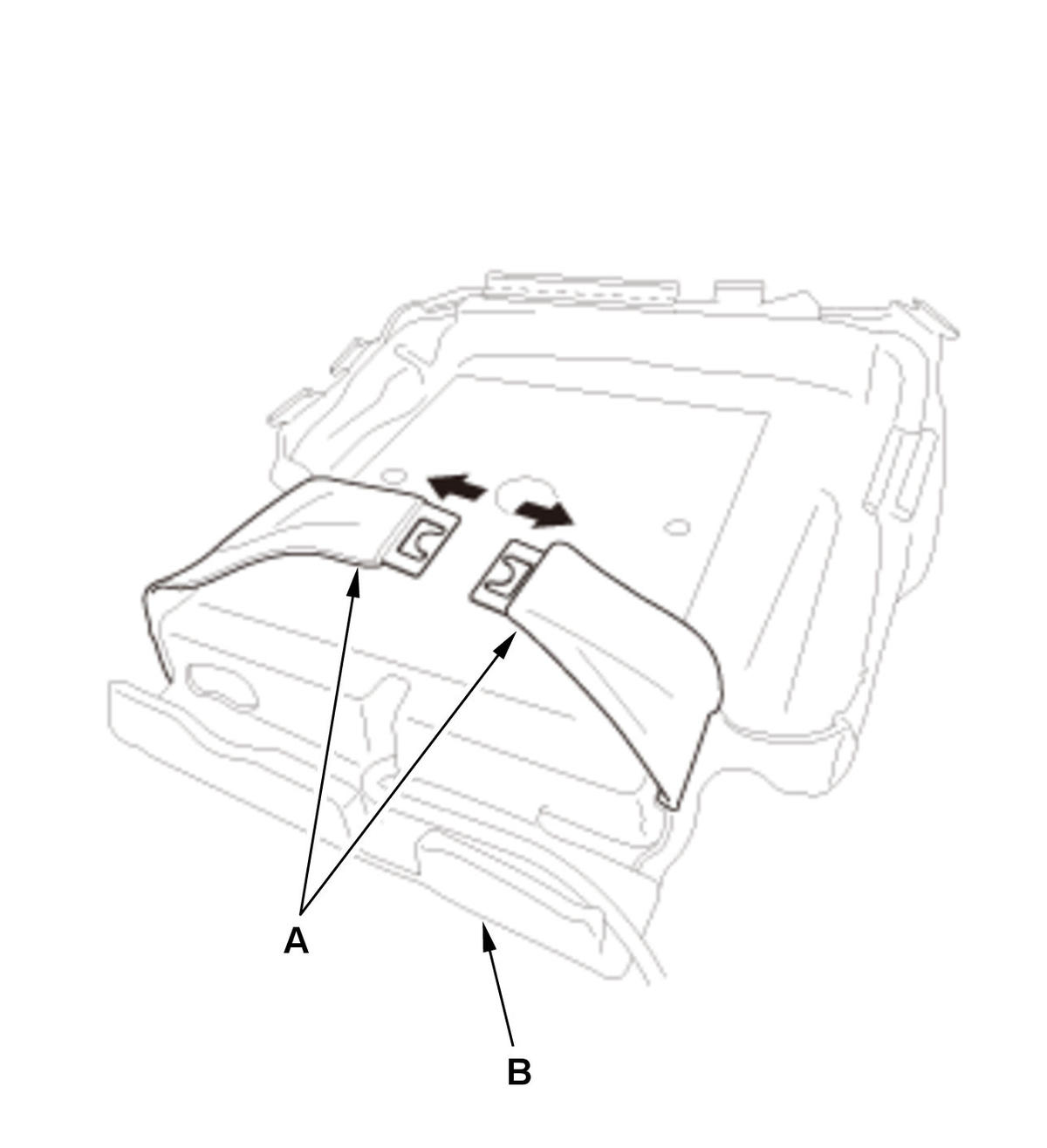

1. Remove the band (A) of the second seat cushion cover (B).

Courtesy of HONDA, U.S.A., INC.

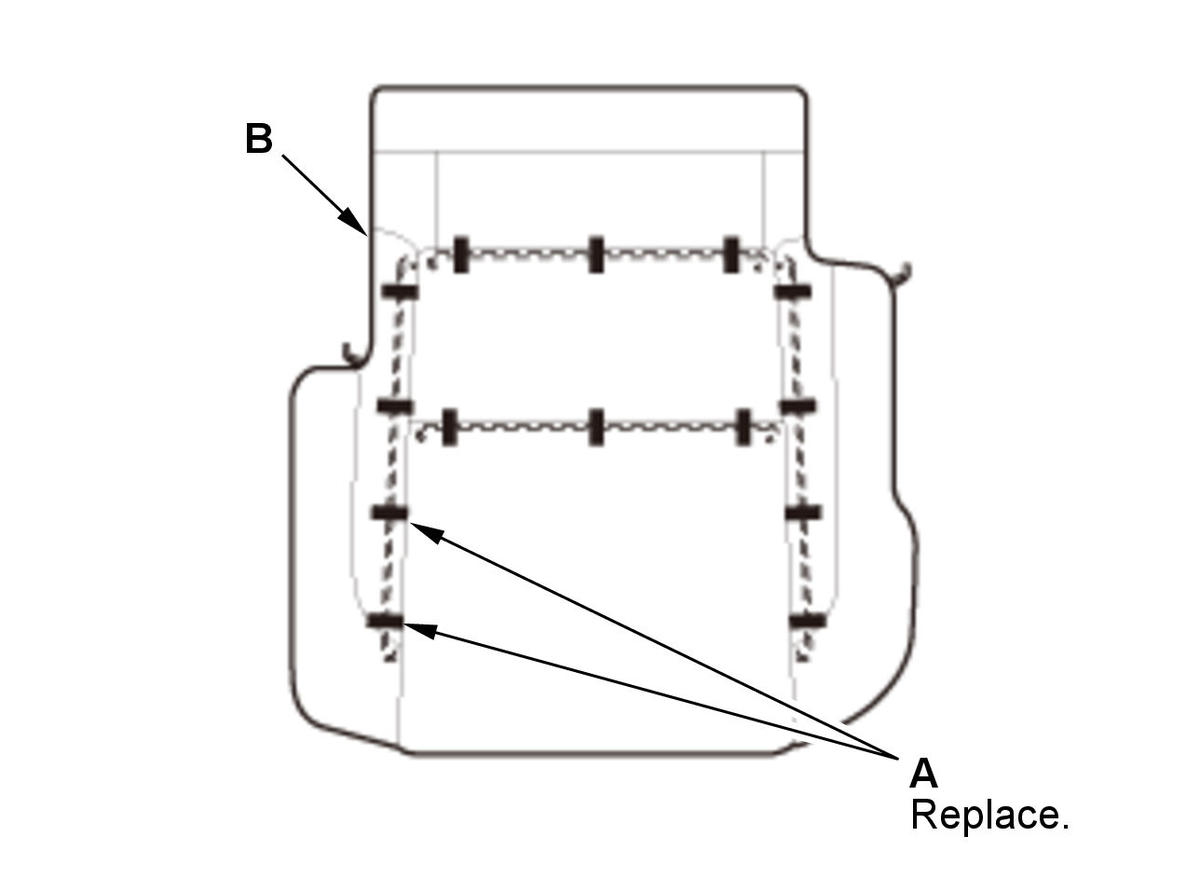

2. Remove the upholstery rings (A), and then remove the seat cushion cover (B).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

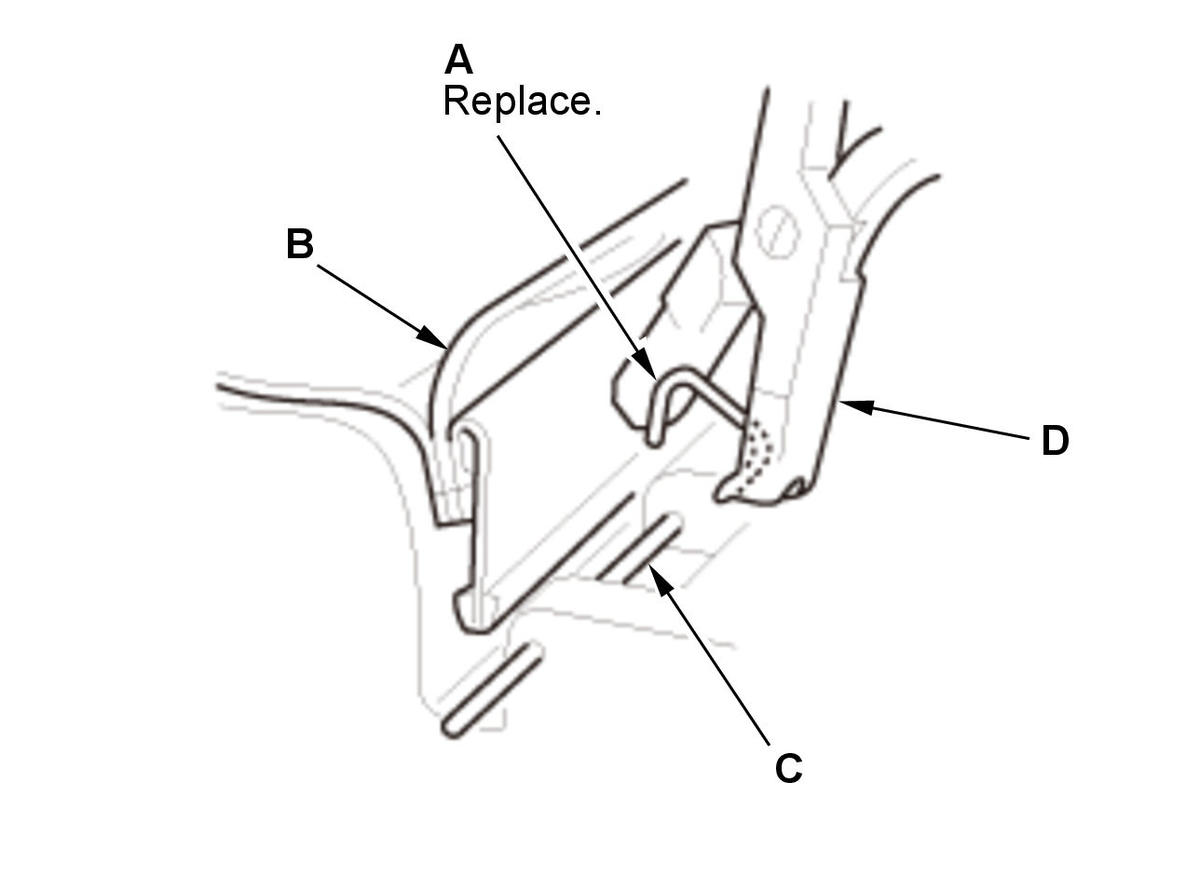

NOTE: Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
