Removal and Installation

NOTE:  SRS components are located in this area. Review the SRS component locations - Go to:

SRS Component Location Index (2016) or

Component Location Index (2017 2018 2019 2020 2021) and the

Precautions and Procedures before doing repairs or service.

1. Front Passenger's Seat - Remove
2. Front Seat Frame - Remove
3. Front Passenger's Seat Rail - Remove

   Power seat (with ventilated seat)  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Power seat (without ventilated seat)  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Manual seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

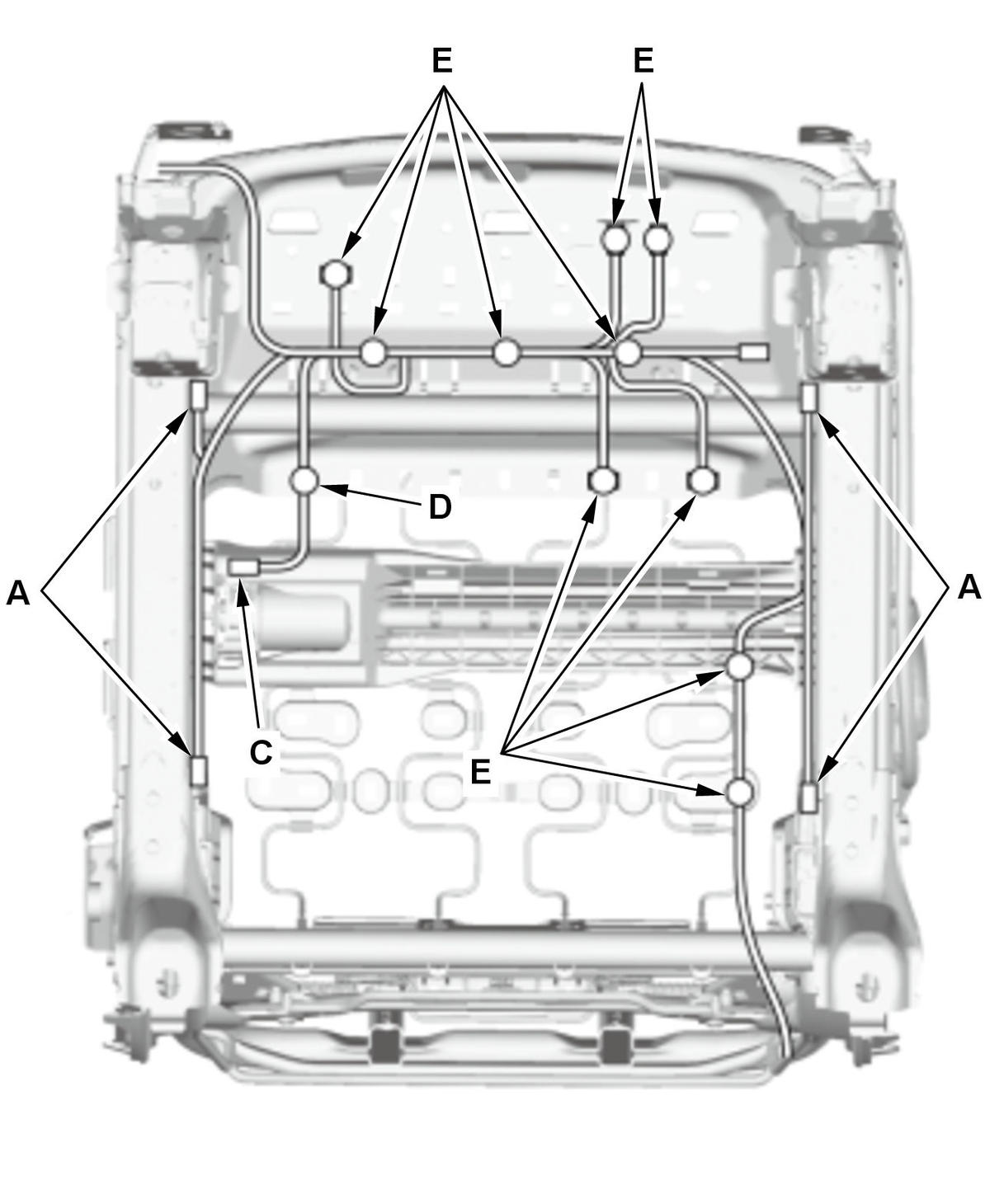

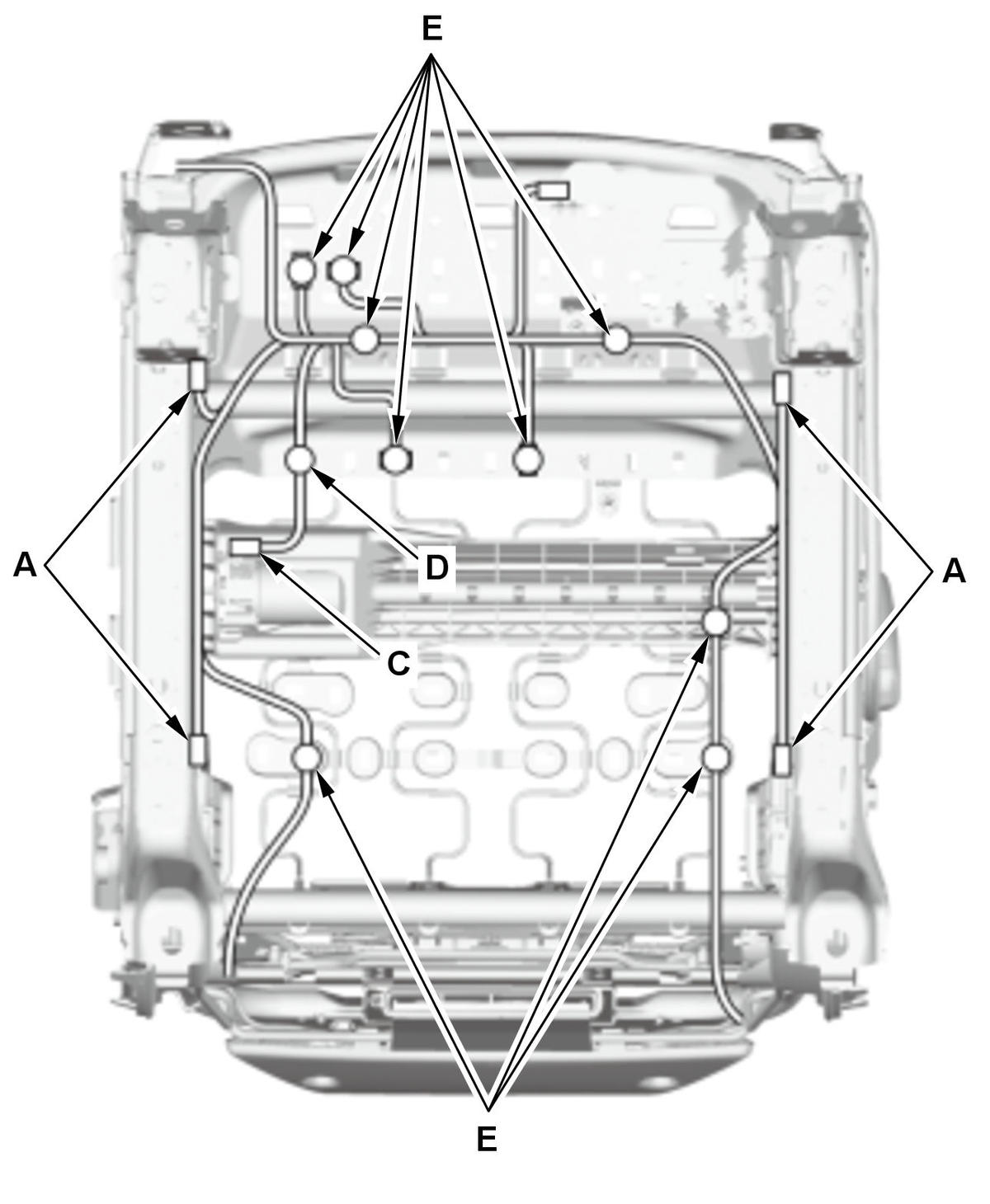

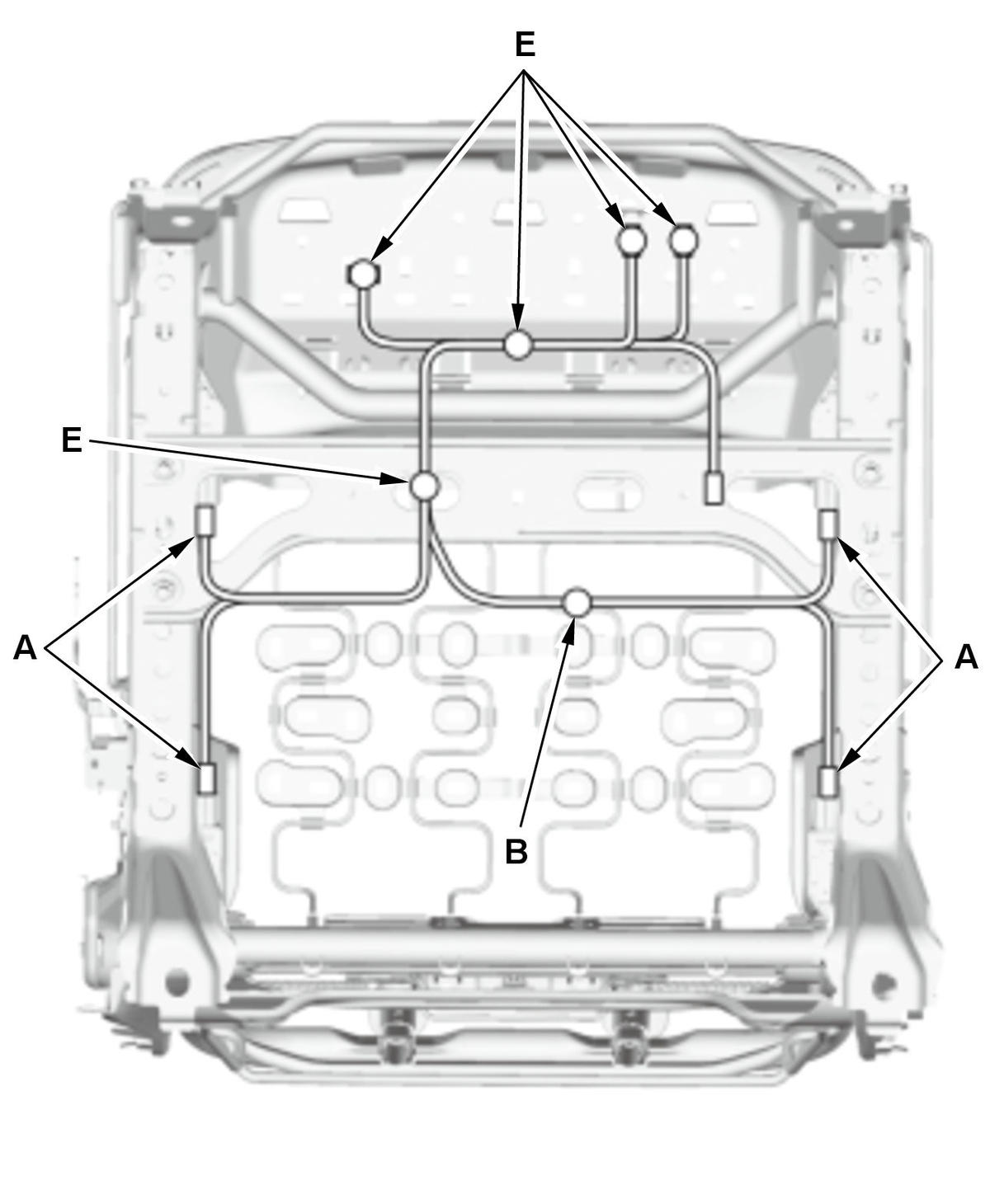

   1. Disconnect the connectors (A), and remove the clip (B). (with weight sensor)   2. Disconnect the connector (C), and remove the clip (D). (with power seat)   3. Remove the harness clips (E).

   Courtesy of HONDA, U.S.A., INC.

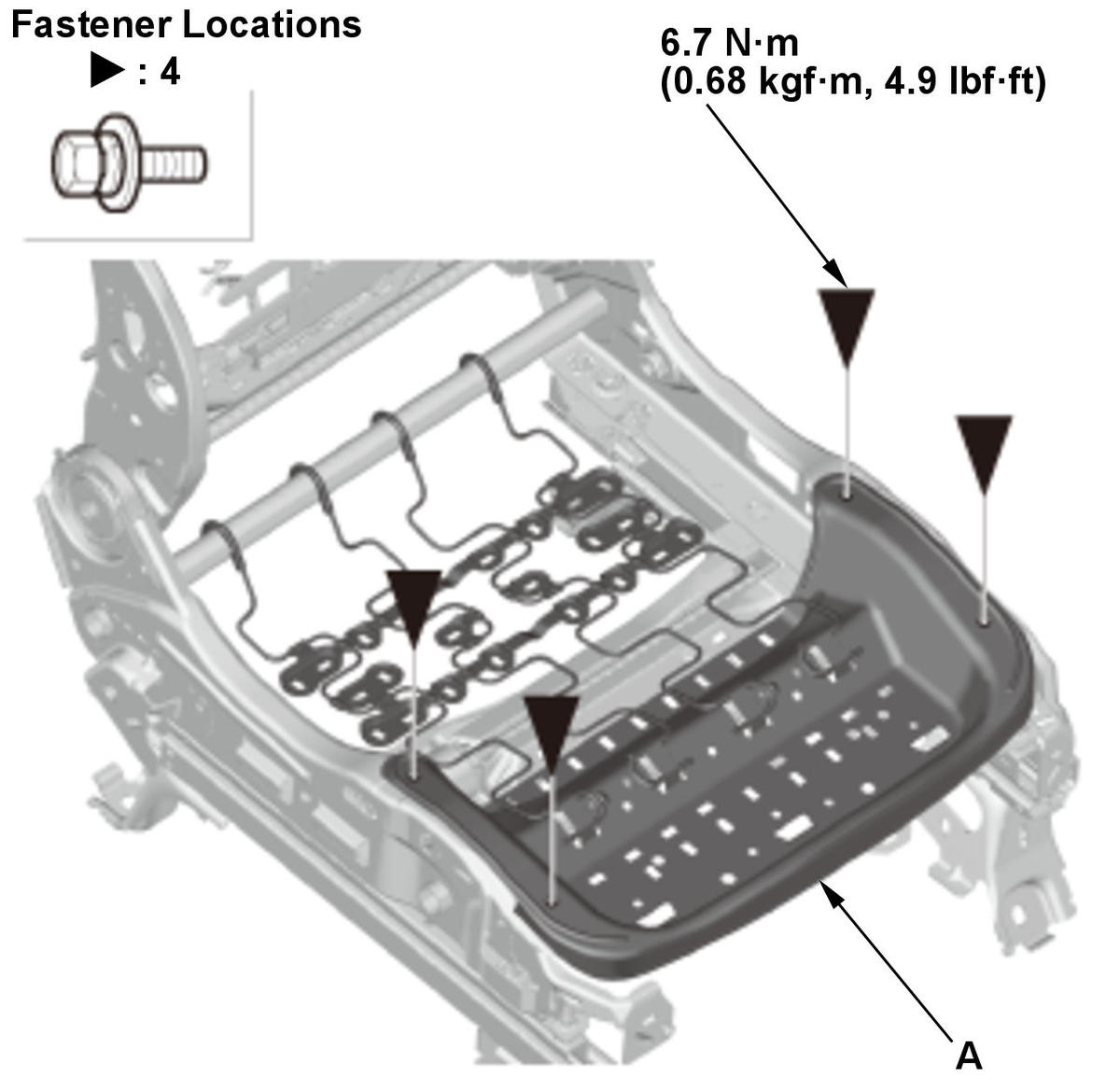

   4. Remove the cushion spring (A).

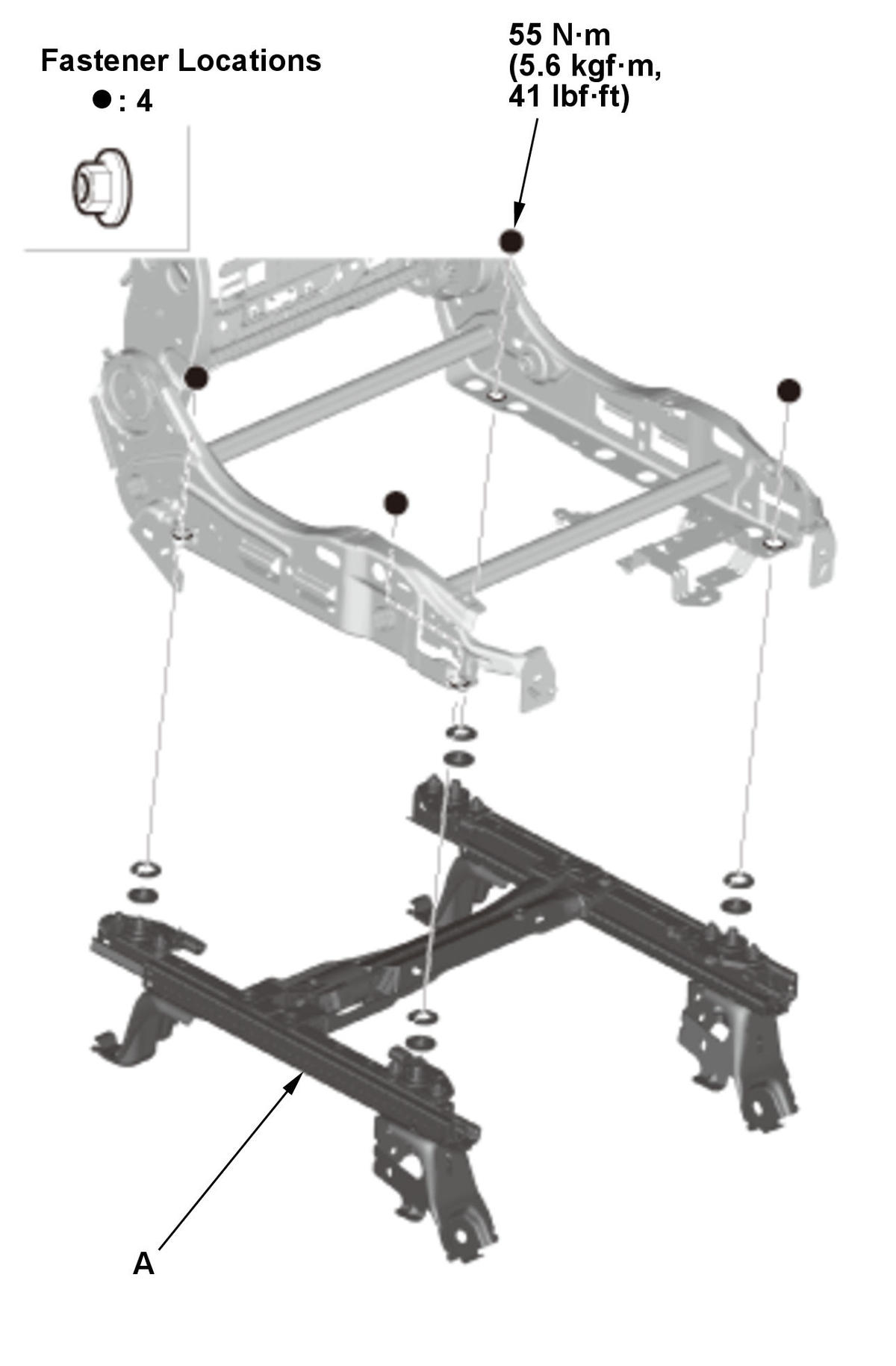

   Fig 1: Seat Rail Nuts With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   5. Remove the nuts, then remove the front passenger's seat rail (A).

4. All Removed Parts - Install

   Courtesy of HONDA, U.S.A., INC.

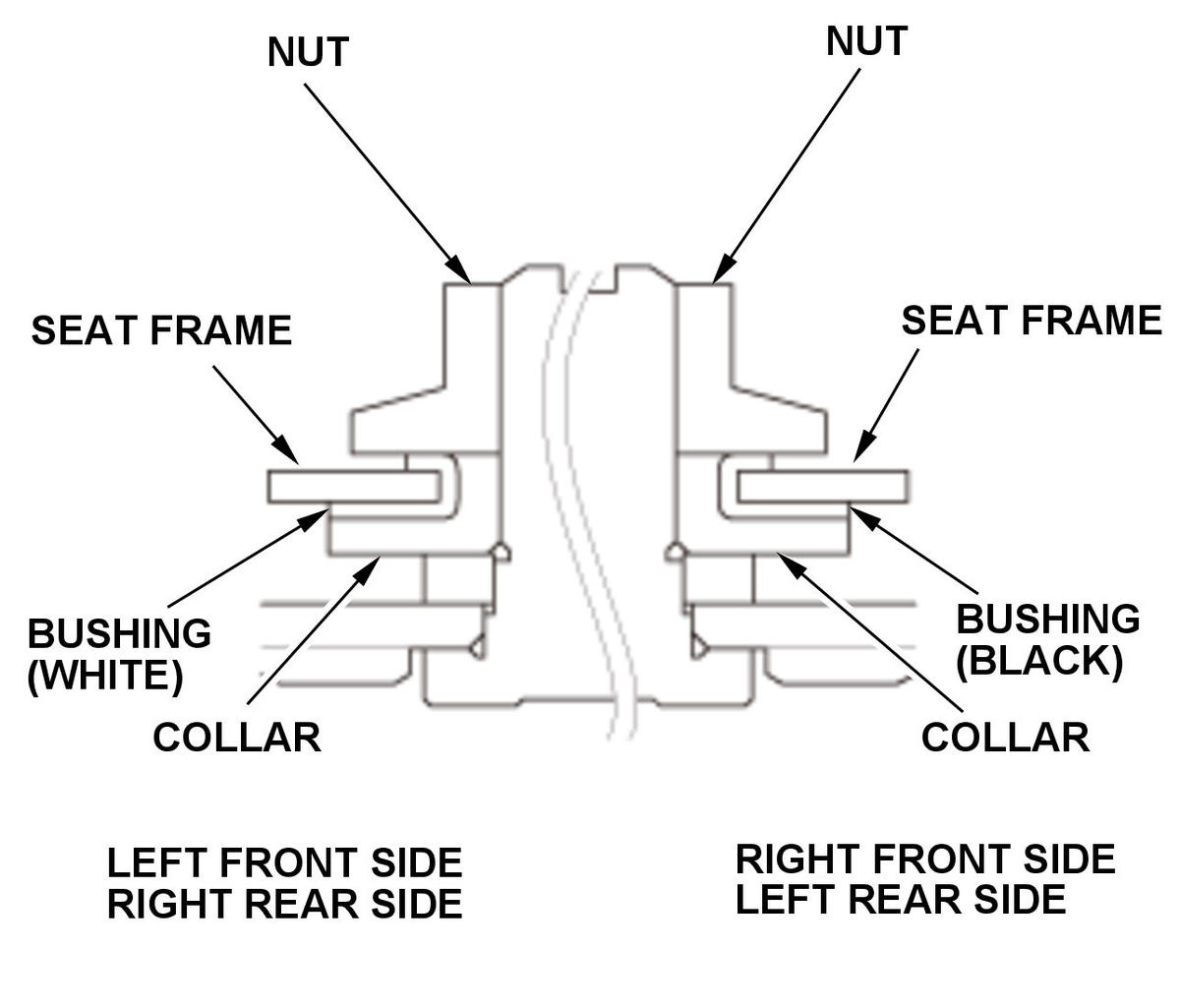

   1. Install the parts in the reverse order of removal.   NOTE:  Make sure to install the spacers and collars as shown.

5. Front Passenger's Weight Sensor - Initialize: Front Passenger's Weight Sensor Unit - Initialization
